Product Details

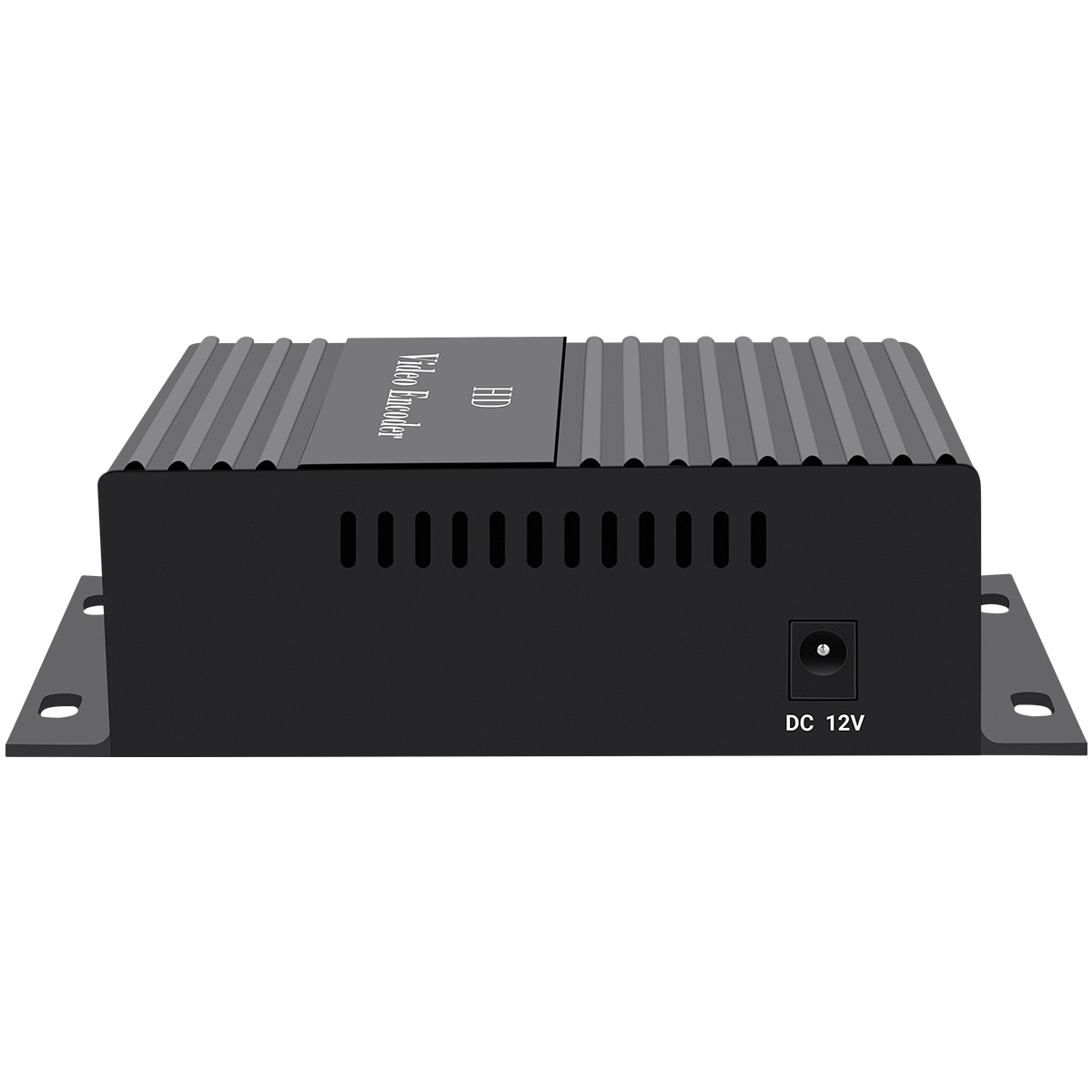

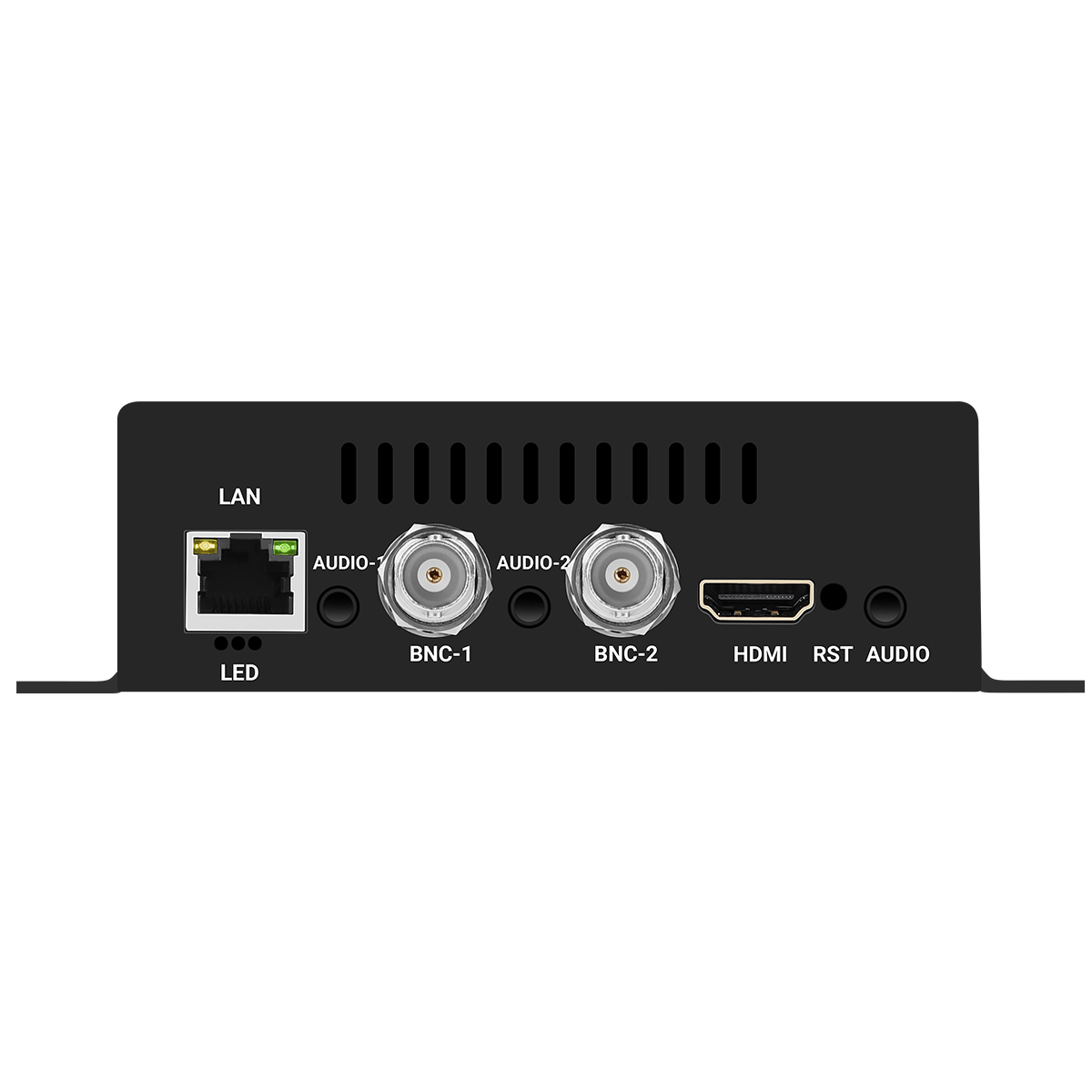

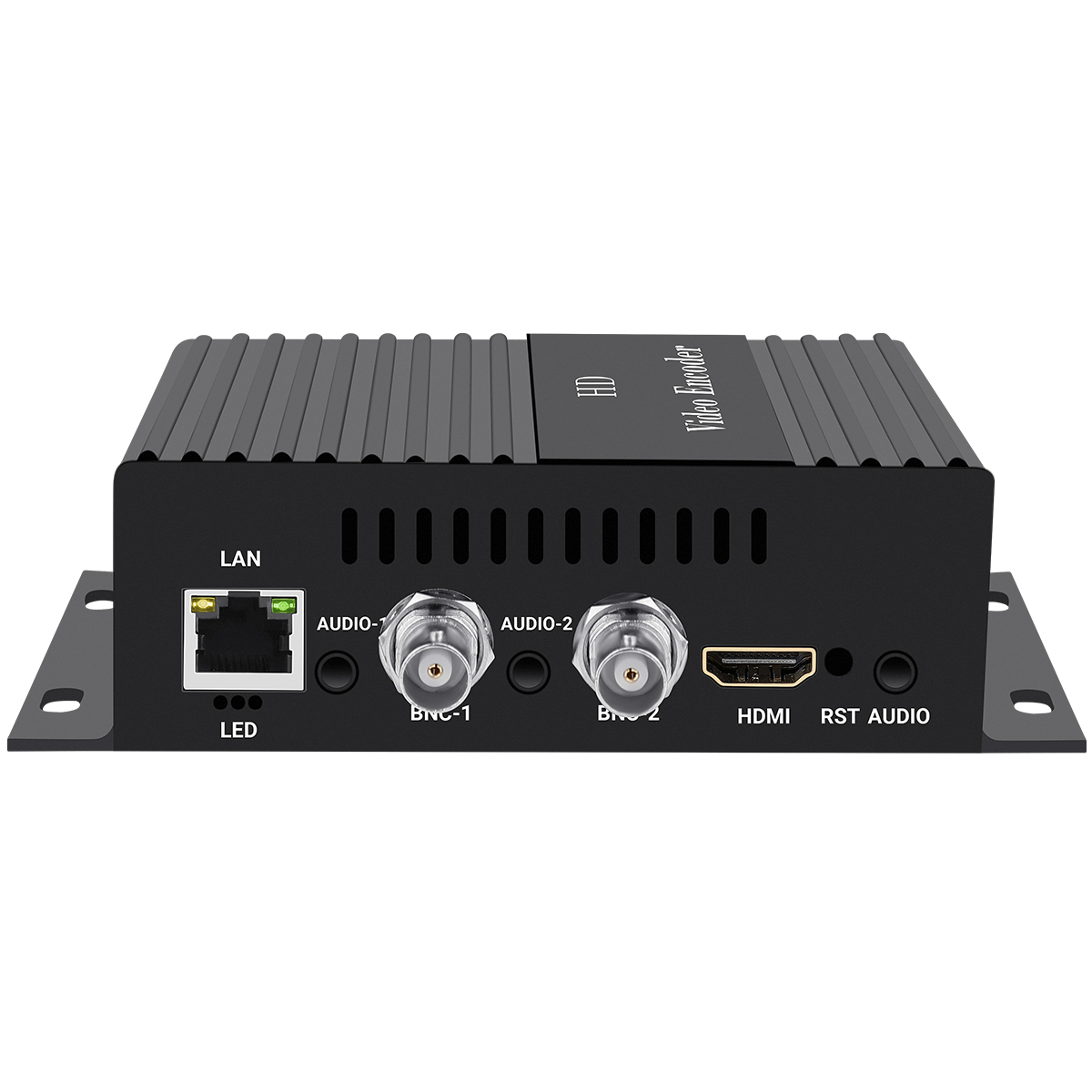

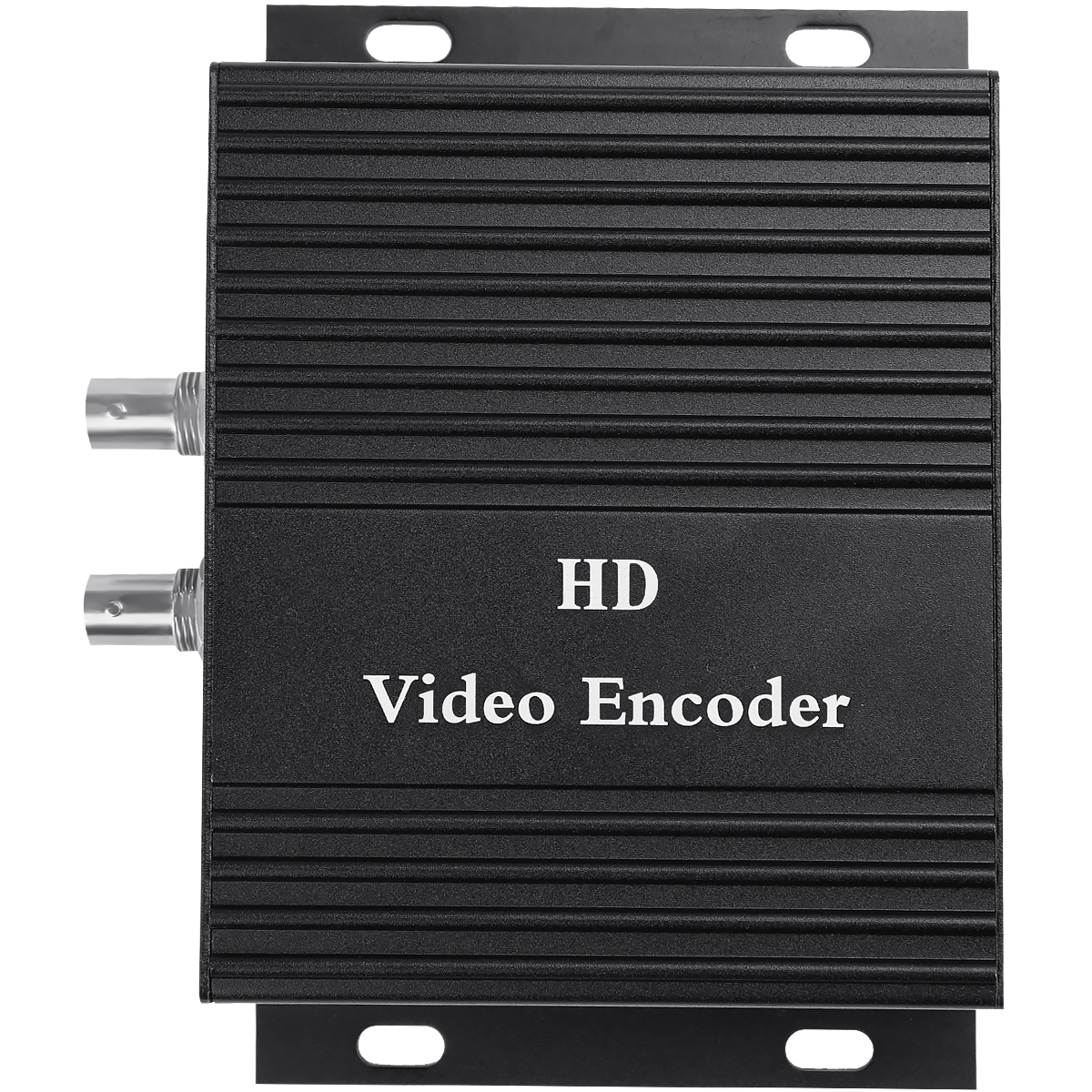

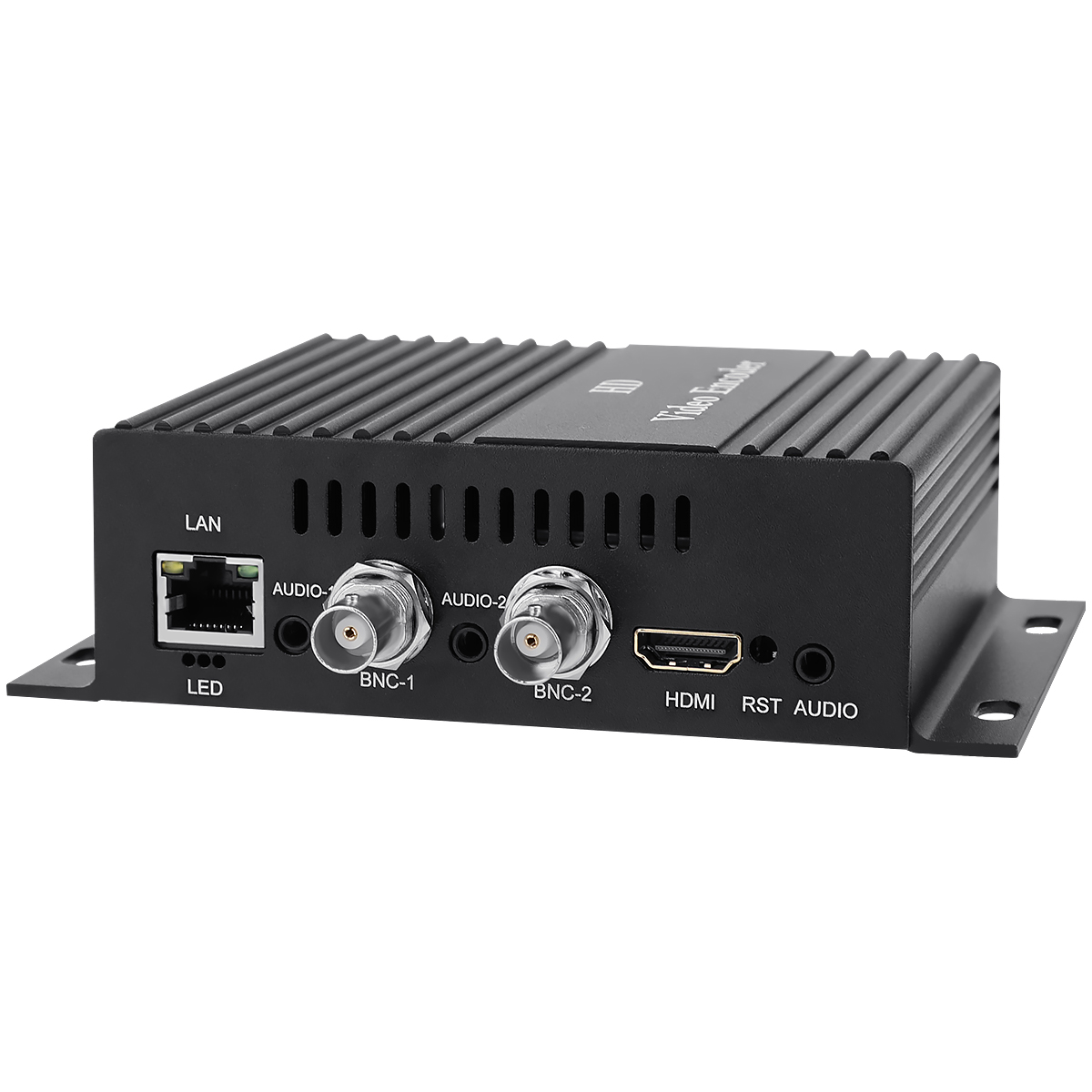

- H.265 /H.264 HDMI + 2-channel CVBS Encoder

Model No.: UHCE265-1P2
Input: 1 x HDMI(audio bulid-in)+2 x CVBS+3 x external audio(3.5mm jack)
Video Encoding: HEVC /H.265, H.264 /AVC
Audio Encoding: AAC, MP3, MP2, G.711
Output Video: 6 video streams output simultaneously
Output Audio: Support to switch HDMI audio or line-in audio as output audio at will
Video Resolution: Adjustable, max 1920X1080@60fps input and output
Streaming Protocol: HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, Unitcast etc
Video Bitrate: Adjustable from 16kbit/s to 12mbit/s
Audio Bitrate: Adjustable from 24000kb/s to 256000kb/s
Control Mode: Web page control, support wide area network remote management
OSD Setting: Support to add logo, text on the displayed video
Customization: Provide logo, function, language, firmware etc customization
Extral Service: Provide SDK /API /CGI for secondary development
General: 148x119x42mm(Size), 360g(Weight), Aluminum Shell
Description






Connection Diagram.jpg





  • Support HEVC /H.265, H.264 /AVC video encoding

    Support AAC, MP3, MP2, G.711 audio encoding


  • Support to live streaming on 6 live broadcast platforms simultaneously

    6 streams output simultaneously, support different protocol transmission for each stream

  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 1920x1080P input and output

  • Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

    Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol

  • Support on screen display settings, such as logo /text etc

    Support customize the no signal image when there is no input signal

  • Support HDMI audio and three line-in audio input simultaneously

    Support to switch HDMI audio or line-in audio as output audio at will

  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization




Model No.

UHCE265-1P2

Video

Input Video

1 x HDMI(audio bulid-in)+2 x CVBS

Input Resolution

Max 1920x1080 resolution, max 60fps frame rate

Video Encoding

HEVC /H.265, MPEG-4 /H.264 AVC

Encoding Levels

H.265 main profile; H.264 high /main /baseline profile

Video Bitrate

Adjustable From 16kbit /s to 12mbit /s

Bitrate Control

CBR, VBR

Output Resolution

It is adjustable, max 1920x1080P /60fps

Video Pre-processing

De-interlacing, noise reducing, sharpening etc

Audio

Input Audio

HDMI audio, 3xline-in audio

Output Audio

Support to switch HDMI audio or line-in audio as output audio at will

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 24000~256000

Audio Encoding

AAC, MP3, MP2, G.711

Network

Interface

Ethernet port(1000 BASE-T)

Streaming Protocol

HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, Unitcast etc

Control Panel

Webpage UI(language customizable)

Firmware Update

Enable by uploading files to dashboard and upgrade

General

Dimension (W* L* H)

148 x 119 x 42 mm

Net Weight

360 g

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

DC 12V /2A

Material

Aluminum Shell



4-control panel.jpg• Access Address(Click to enlarge)

access address.jpg


• Video Parameters (Click to enlarge)

video parameters.jpg


Audio Parameters (Click to enlarge)

audio parameters.jpg


Preview (Click to enlarge)



Network Setting (Click to enlarge)

network setting.jpg


• HDMI Main Stream Setting (Click to enlarge)

hdmi main stream setting.jpg


• CVBS1 Main Stream Setting (Click to enlarge)

cvbs main stream setting.jpg


• Audio Setting(Click to enlarge)

audio setting.jpg


• HDMI Main OSD Setting (Click to enlarge)

osd setting.jpg


• CVBS1 Color Setting (Click to enlarge)

cvbs1 color setting.jpg


Onvif Setting (Click to enlarge)

onvif setting.jpg


• Reset and Reboot (Click to enlarge)

reset reboot.jpg


Password (Click to enlarge)



Upgrade Setting (Click to enlarge)

upgrade setting.jpg


PTZ Setting (Click to enlarge)

PTZ setting.jpg
