Product Details

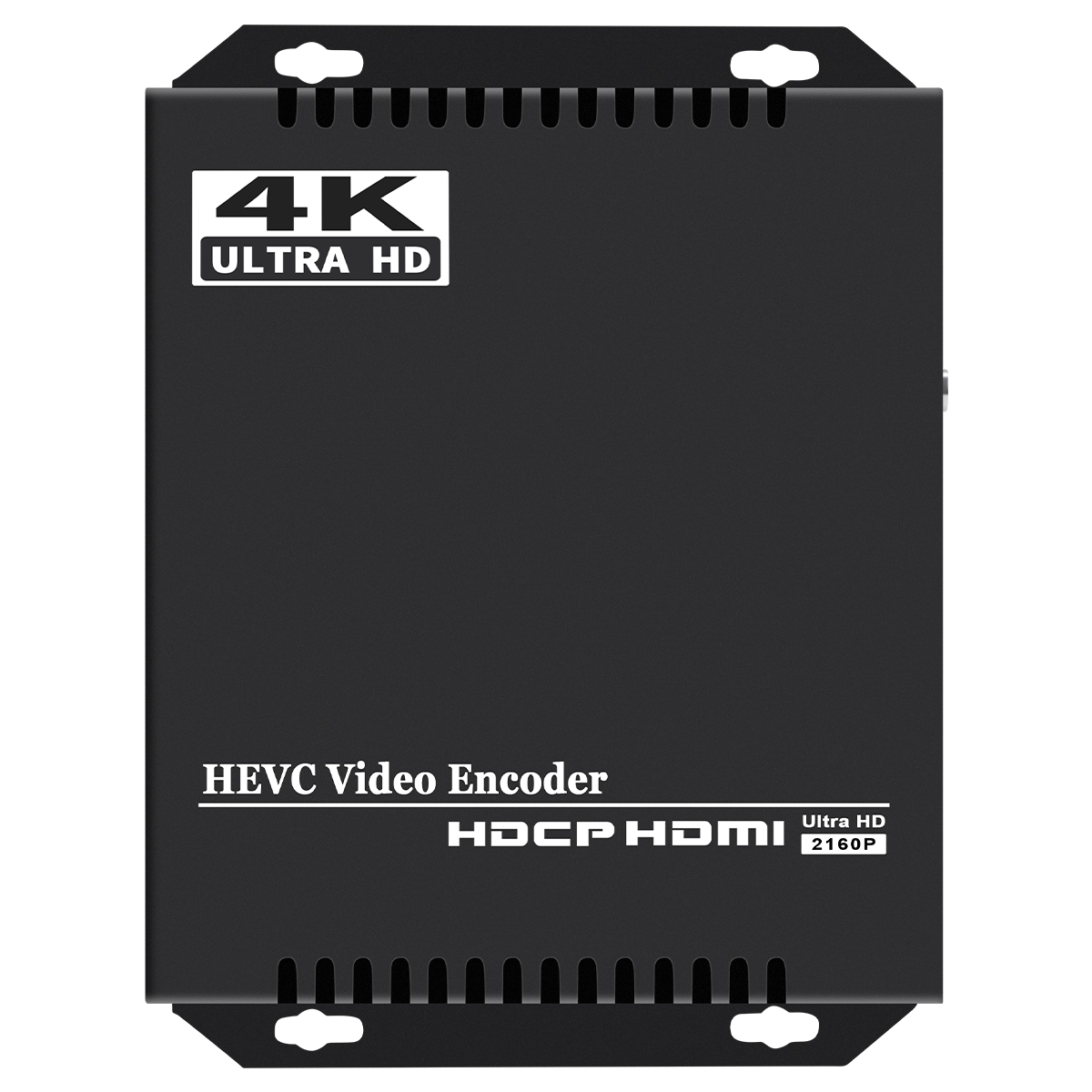

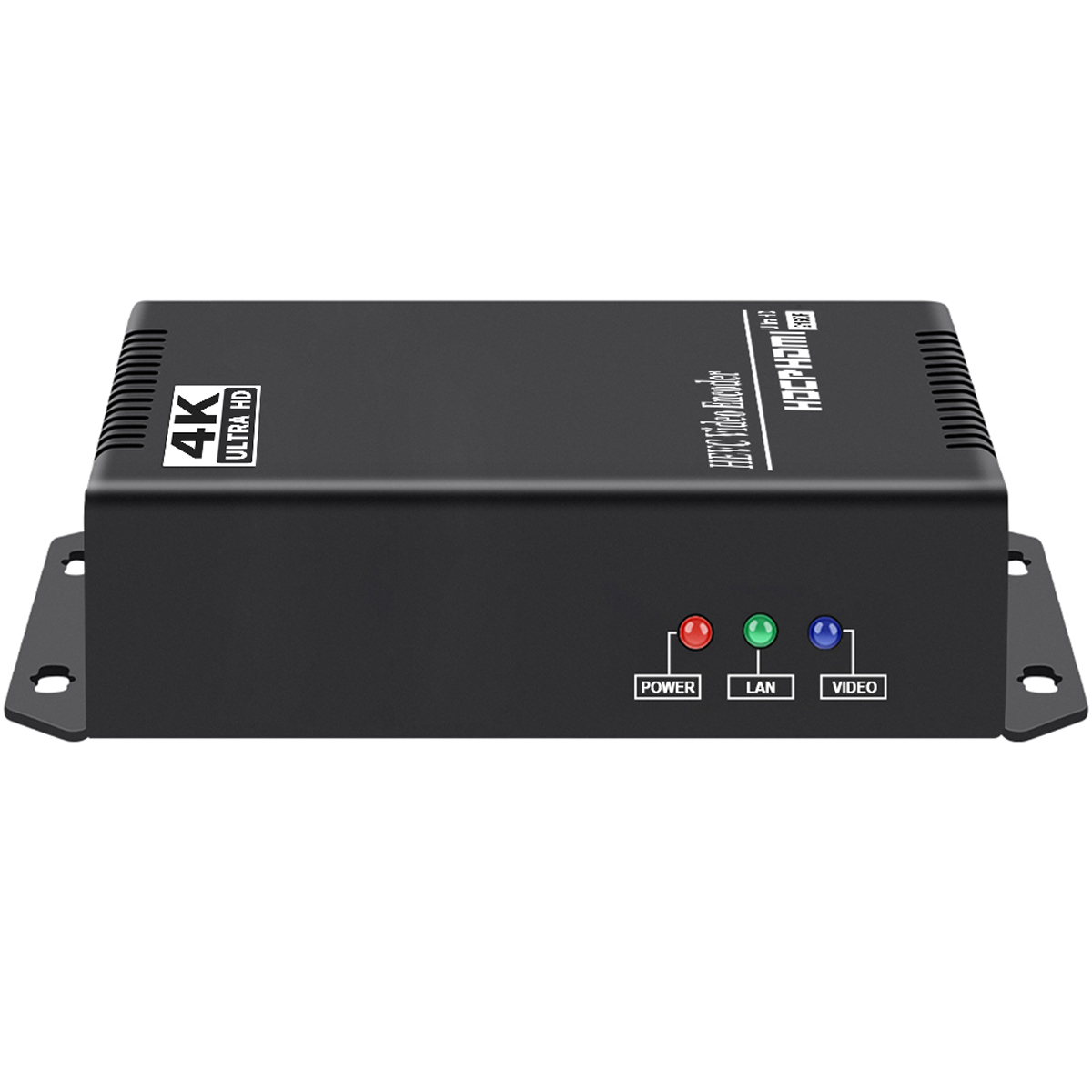

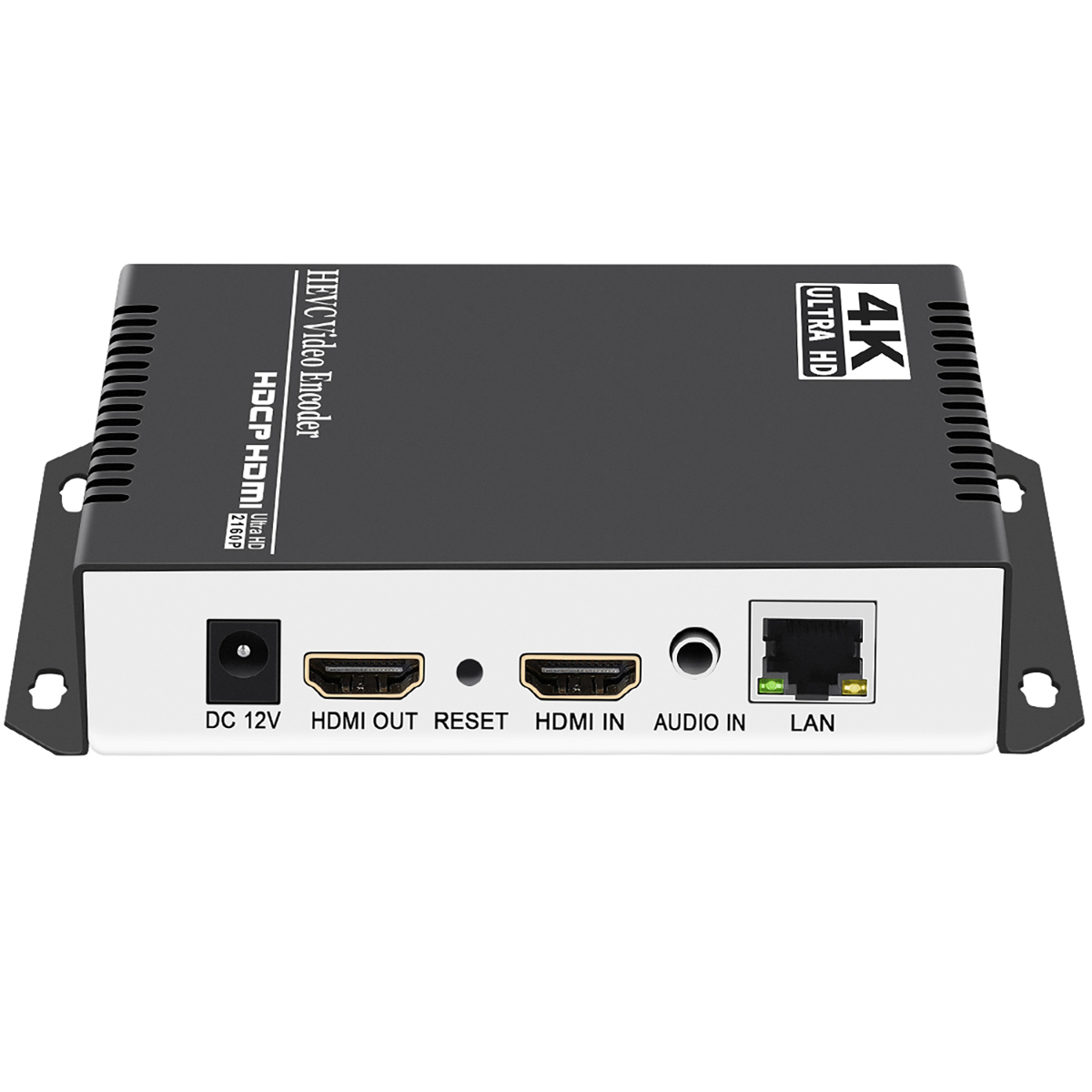

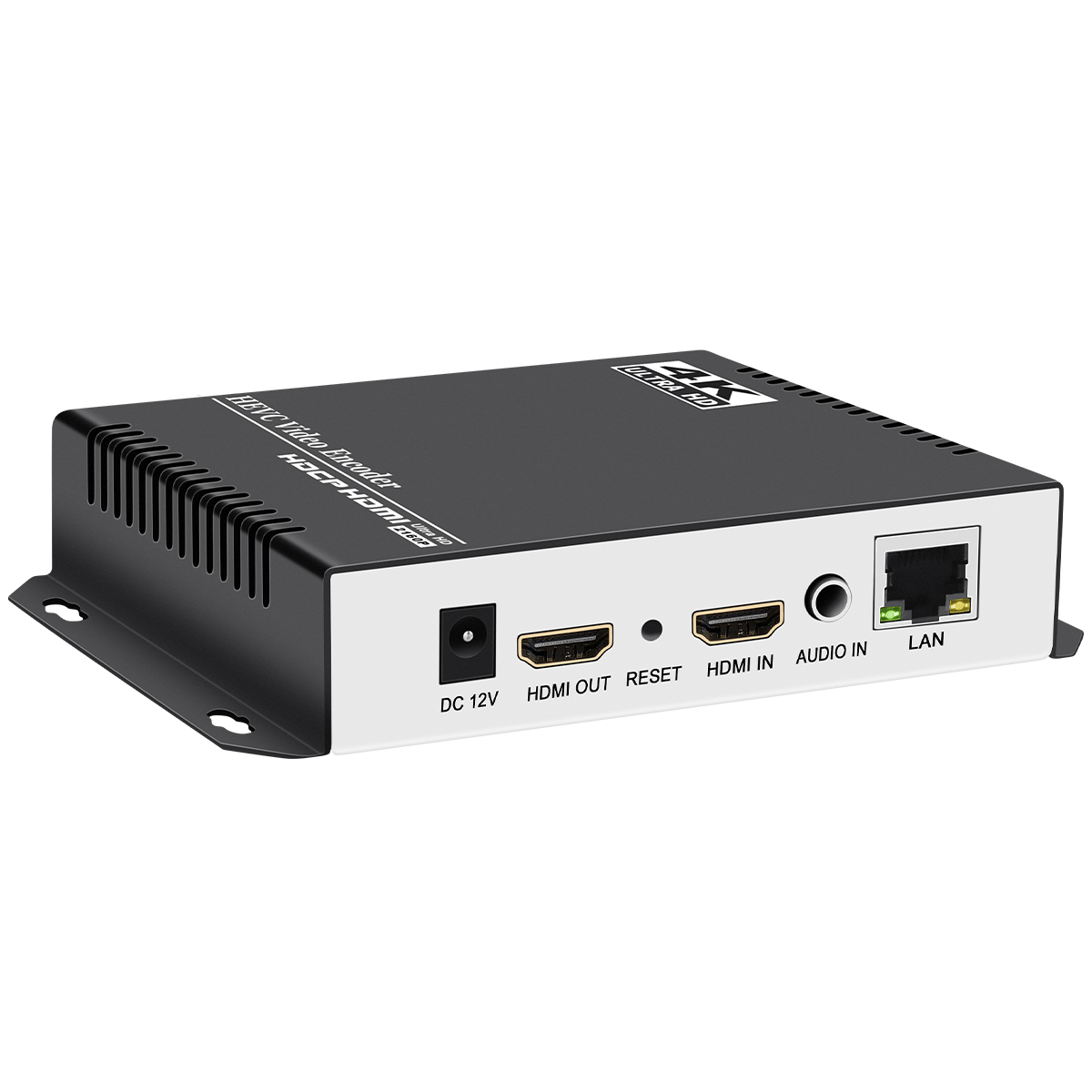

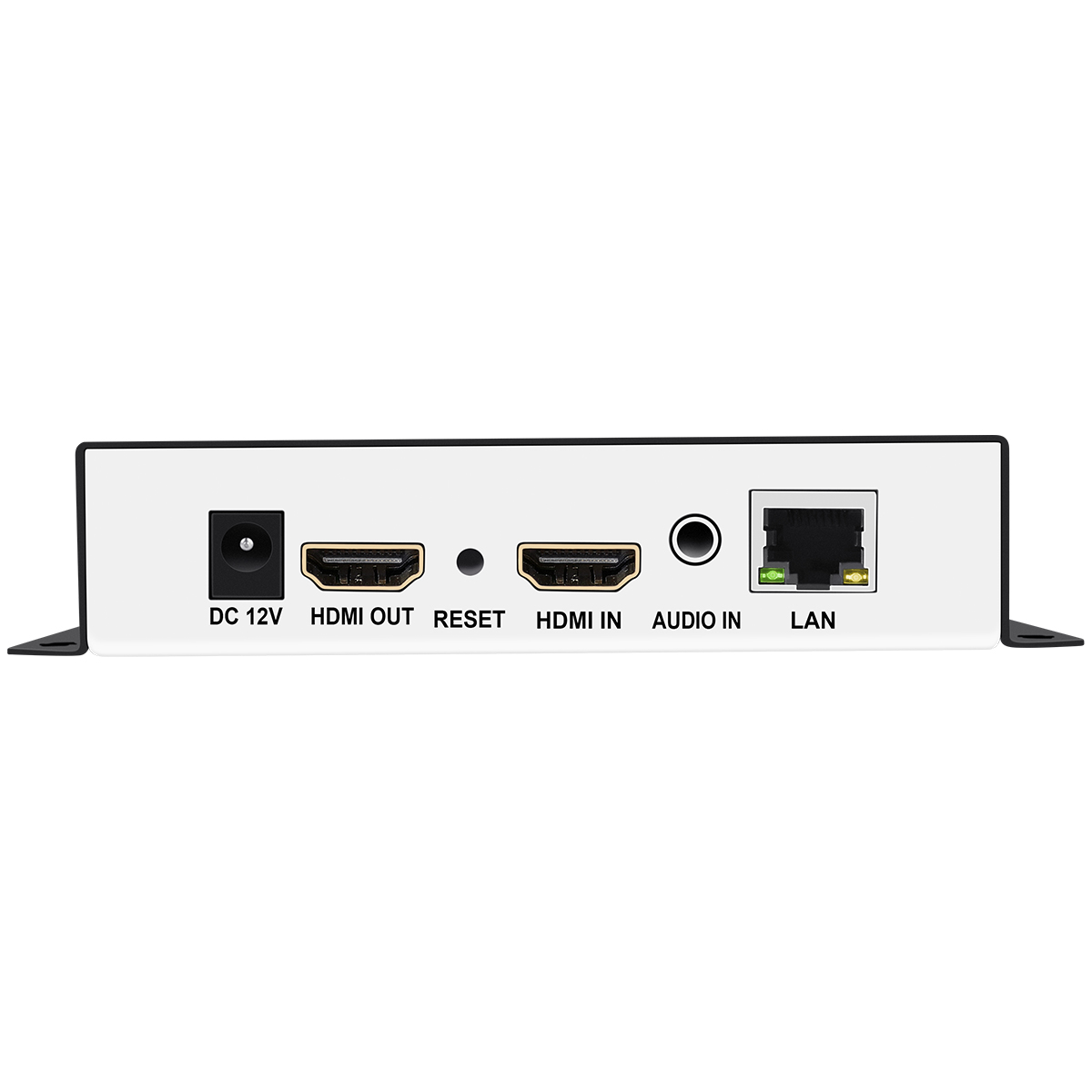

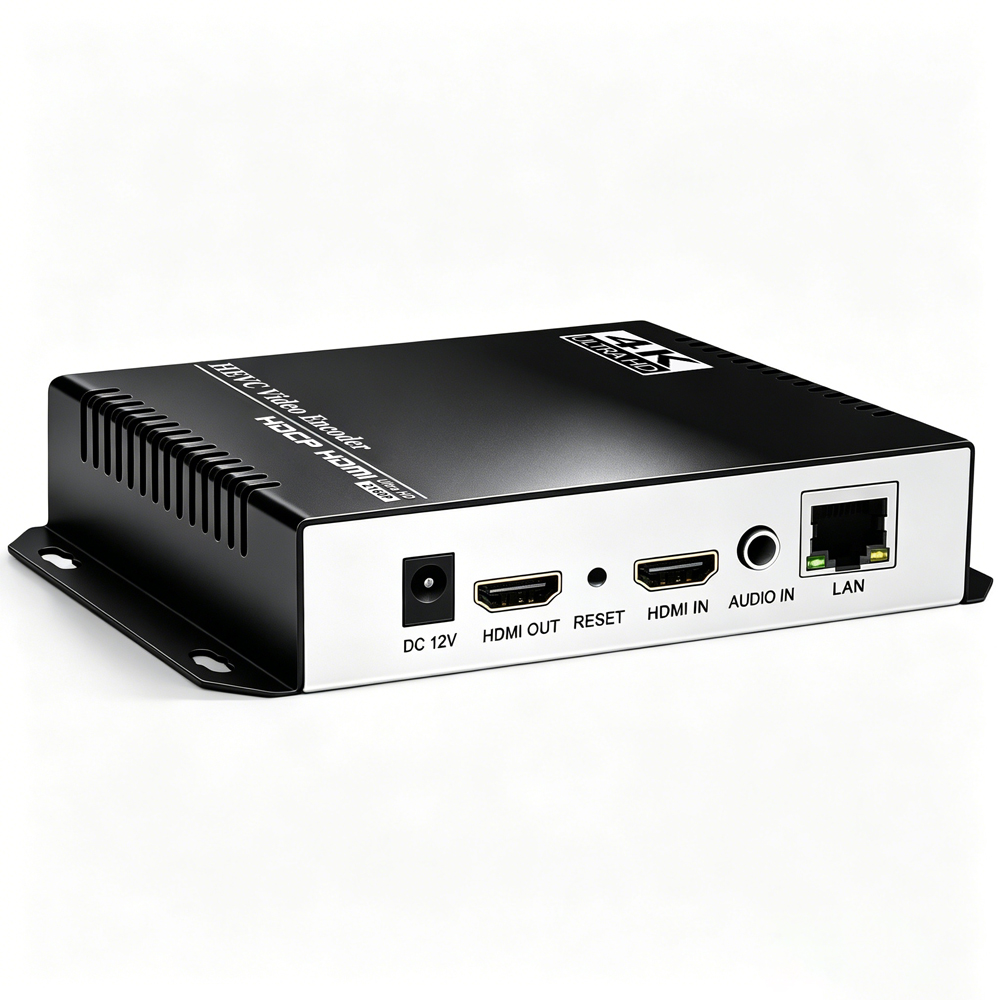

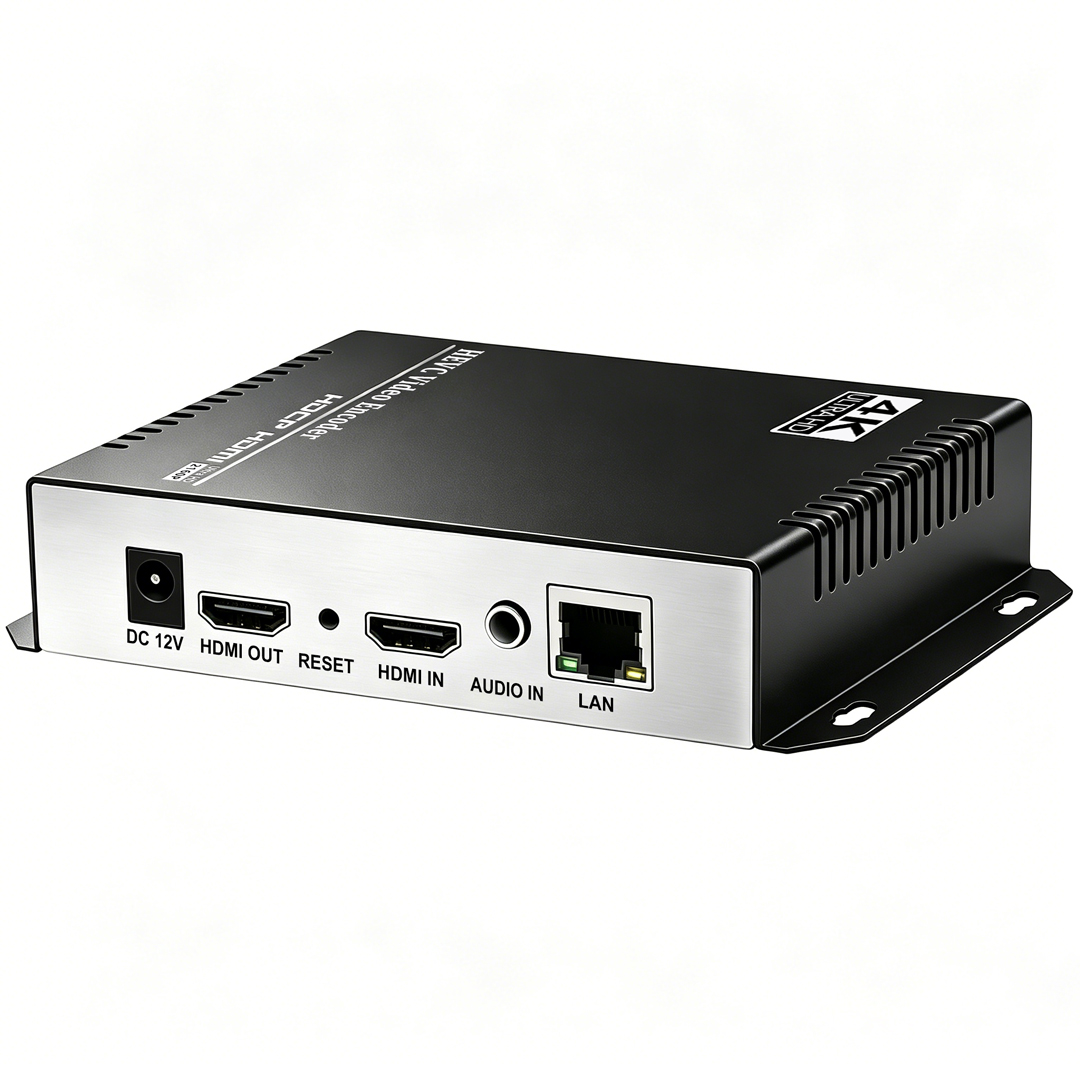

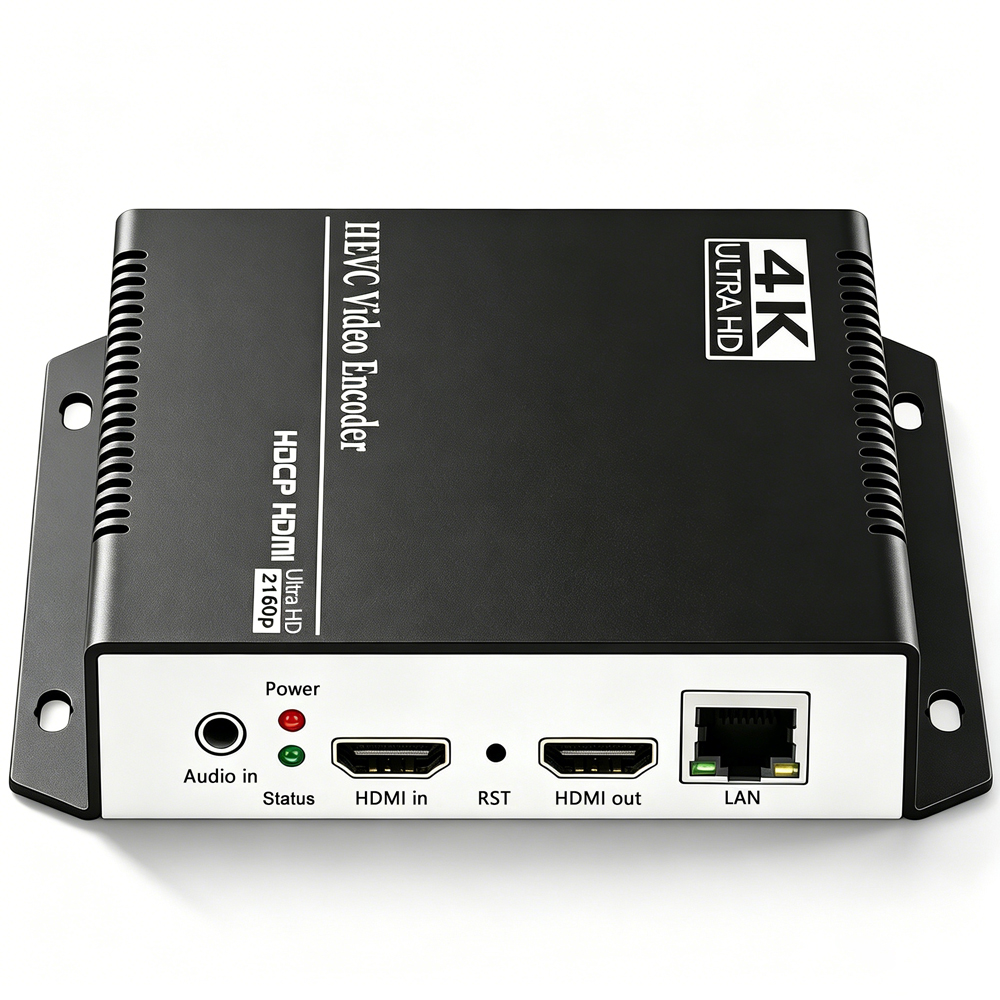

· 4K H.264 HDMI Video Encoder with HDMI Loop Out

· 4K H.264 HDMI Video Encoder with HDMI Loop Out

Model No.： UHE264-1L-4K
Input： HDMI(audio bulid-in)+external audio(3.5mm jack)
Video Encoding： H.264 /AVC
Audio Encoding： AAC, MP3, G.711
Output Video： 2 video streams output simultaneously
Output Audio： Support to switch HDMI audio or external audio as output audio
Video Resolution： Adjustable, max 3840x2160P@30fps input and output
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, FLV, Unitcast etc
Video Bitrate： Adjustable from 16kbit/s to 12mbit/s(CBR, VBR mode)
Audio Bitrate： Adjustable from 48000kb/s to 256000kb/s
Control Mode： Web page control, support wide area network remote management
OSD Setting： Support to add logo, text on the displayed video
Customization： Provide logo, function, language, firmware etc customization
Extral Service： Provide SDK /API /CGI for secondary development
General： 165x130x29/mm(Size), 310g(Weight), Aluminum Shell
Description

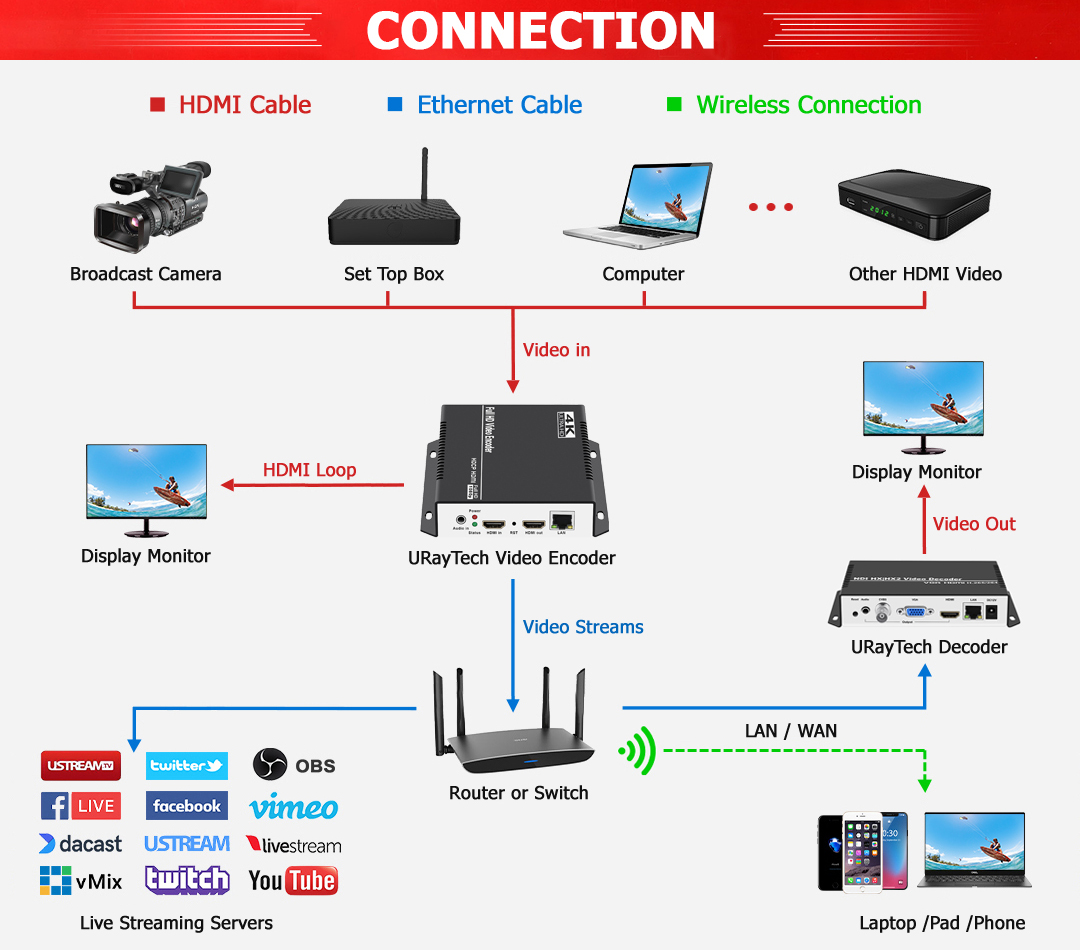

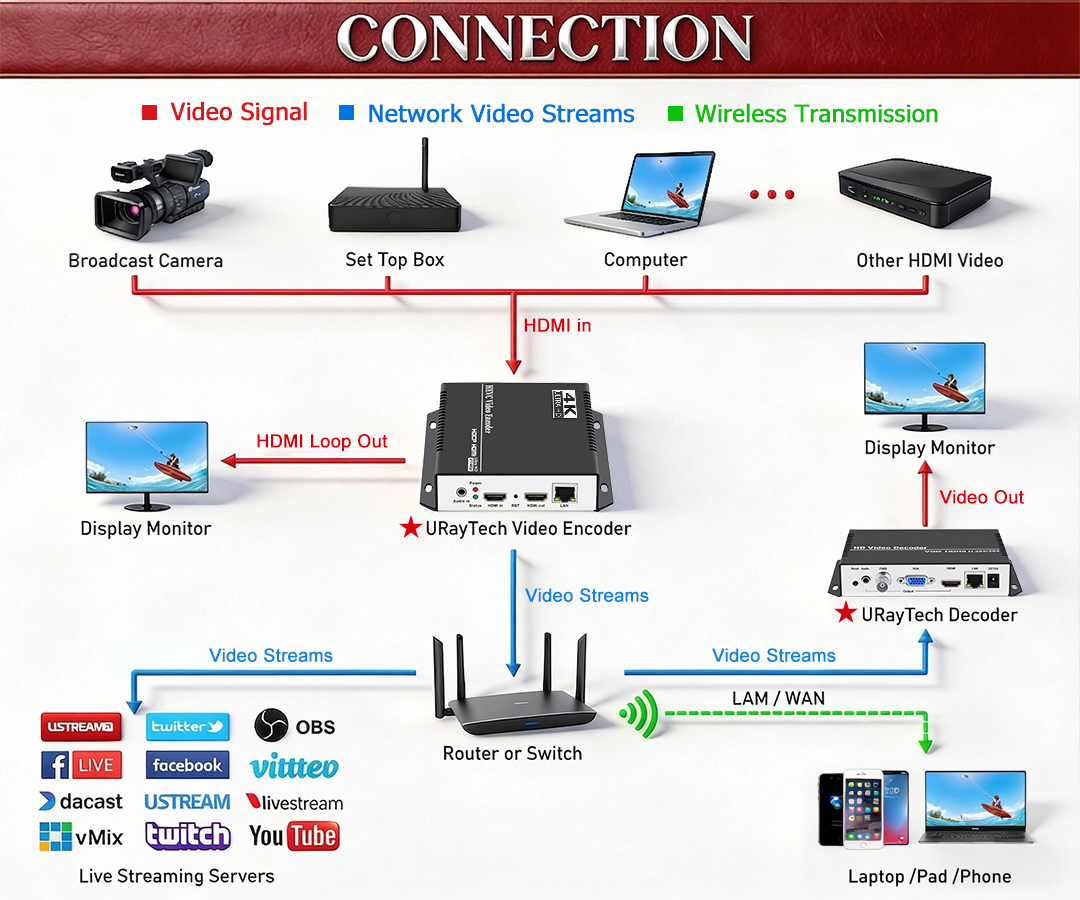

Connection Diagram.jpg




  • Support H.264 /AVC video encoding

    Support AAC, MP3, G.711 audio encoding

20220726

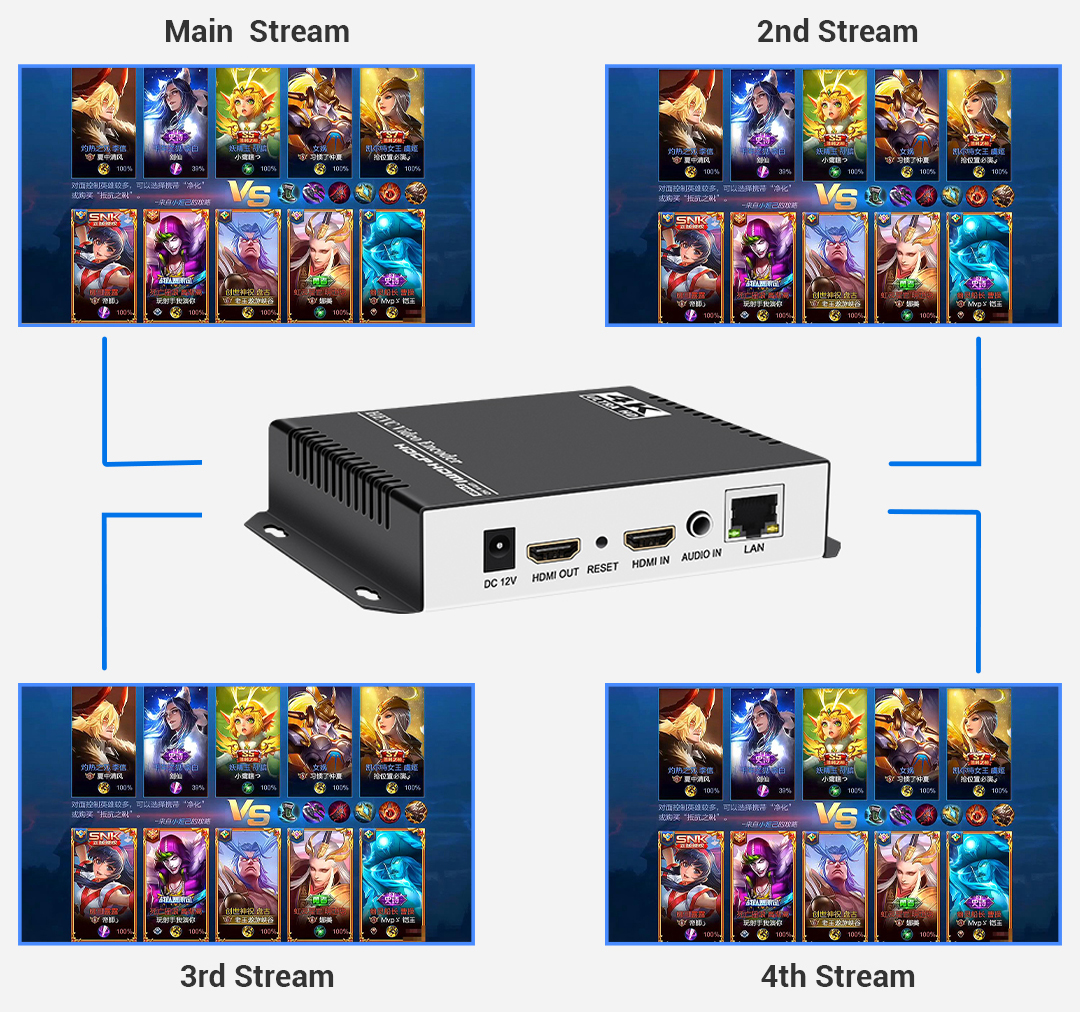

  • Support to live streaming on 2 live broadcast platforms simultaneously for each channel

    2 streams output for each channel, support different protocol transmission for each stream


  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 3840x2160P input and output

  • Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

    Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol

  • Support multiple on screen display settings, such as logo /text etc

    Support customize the no signal image when there is no input signal

  • Support both HDMI audio and external audio input simultaneously

    Support to switch HDMI audio or external audio as output audio at will


  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization




Model No.

UHE264-1L-4K

Video

Input Video

HDMI, Support HDCP

Input Resolution

Max 3840x2160 input, max 30fps frame rate

Video Encoding

MPEG-4 /H.264 AVC

Encoding Levels

H.264 high /main /baseline profile

Video Bitrate

Adjustable From 16kbit /s to 12mbit /s

Bitrate Control

CBR, VBR

Output Resolution

It is adjustable, max 3840x2160P /30fps(Max 60fps for 1080P and below)

Video Pre-processing

De-interlacing, noise reducing, sharpening etc

Audio

Input Audio

HDMI embedded audio or external stereo audio(3.5mm jack)

Output Audio

Support to switch HDMI audio or external audio at will

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 48000~256000

Audio Encoding

AAC, MP3, G.711

Network

Interface

Ethernet port(1000 BASE-T)

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS, ONVIF, UDP, RTP, Unitcast etc

Control Panel

Webpage UI(language customizable)

Firmware Update

Enable by uploading files to dashboard and upgrade

General

Dimension (W* L* H)

165 x 130 x 29 mm

Net Weight

310 g

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

DC 12V /2A

Material

Aluminum Shell



4-control panel.jpg

• Status Display (Click to enlarge)



• Network Setting (Click to enlarge)

network setting.jpg


• Main Stream Setting (Click to enlarge)

media setting.jpg


• Second Stream Setting (Click to enlarge)

osd setting.jpg


• Audio Setting (Click to enlarge)

system settings.jpg


• System Setting (Click to enlarge)

system settings.jpg
