Product Details

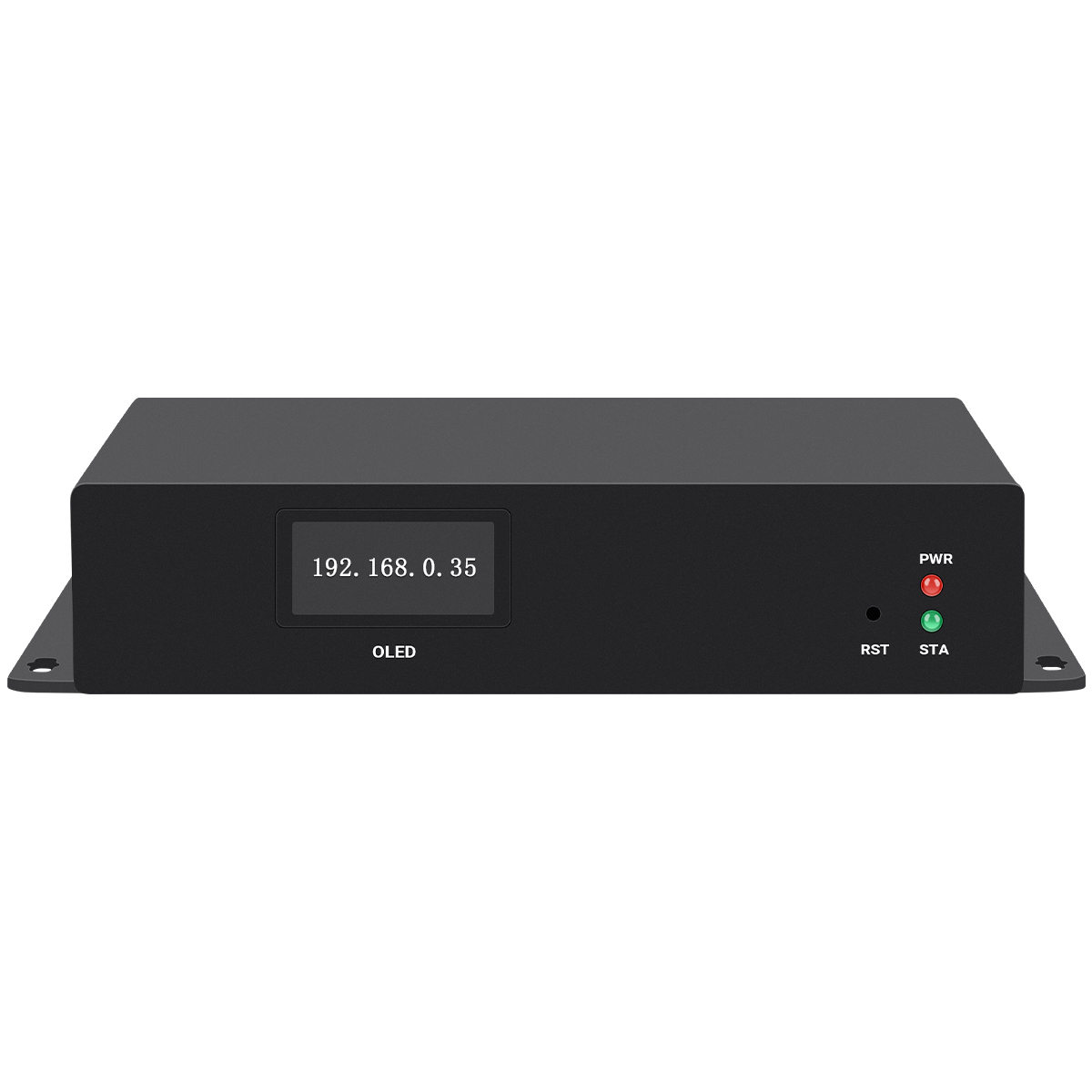

H.265 H.264 Video Decoder With 2 Channels SDI Output
Input: 1000M Ethernet Port(RJ45)
Model No.: USD265-2
Output: 2xSDI(audio build-in)+1xStereo Audio(3.5mm jack)
Video Resolution: Max 1920x1080P /60fps Input and Output
OSD Setting: Support Edit No Signal Image
Service: Provide SDK and API and CGI for Secondary Development
Video Decoding: HEVC /H.265, H.264 /AVC
Audio Decoding: AAC, AAC+. AAC++, MP3
Channel: Support Max 9 Channels URL Decoding and Display Simultaneously
Feature: Buffer Size Setting, Output Window Setting, Resolution Setting etc
Protocol: HTTP, RTSP, RTMP, UDP, RTP, FLV, HLS(M3U8), Multicast, Unitcast etc
Upgrade: Firmware is Upgradeable
Warranty: 5-year Warranty and Free Lifetime Technical Support
Description



Overview

URaytech video decoder(Model No. USD265-2) is a HD audio and video decoding device with powerful functionality. It supports 1 channel video stream URL decoding, H.265 /H.264 video decoding and AAC /MP3 audio decoding, 2 channels SDI(audio build-in) and 1 channel stereo audio(3.5mm jack) output simultaneously. It supports decode HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, HLS(M3U8), FLV etc streaming protocol.Its high integration and cost-effective design make this device widely used in variety of field such as advertisement or wall display or live broadcast ect.

We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.

All URayTech video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.

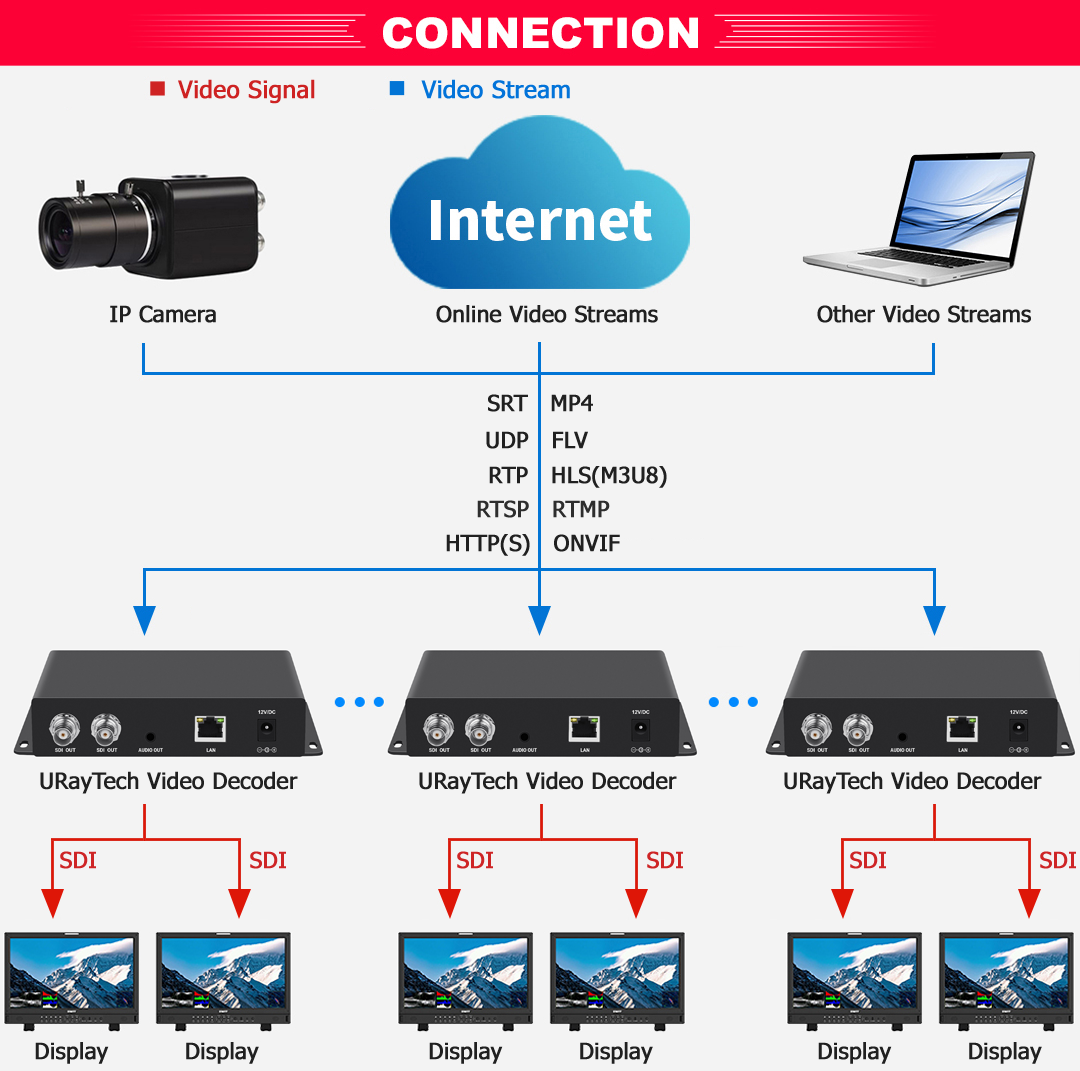

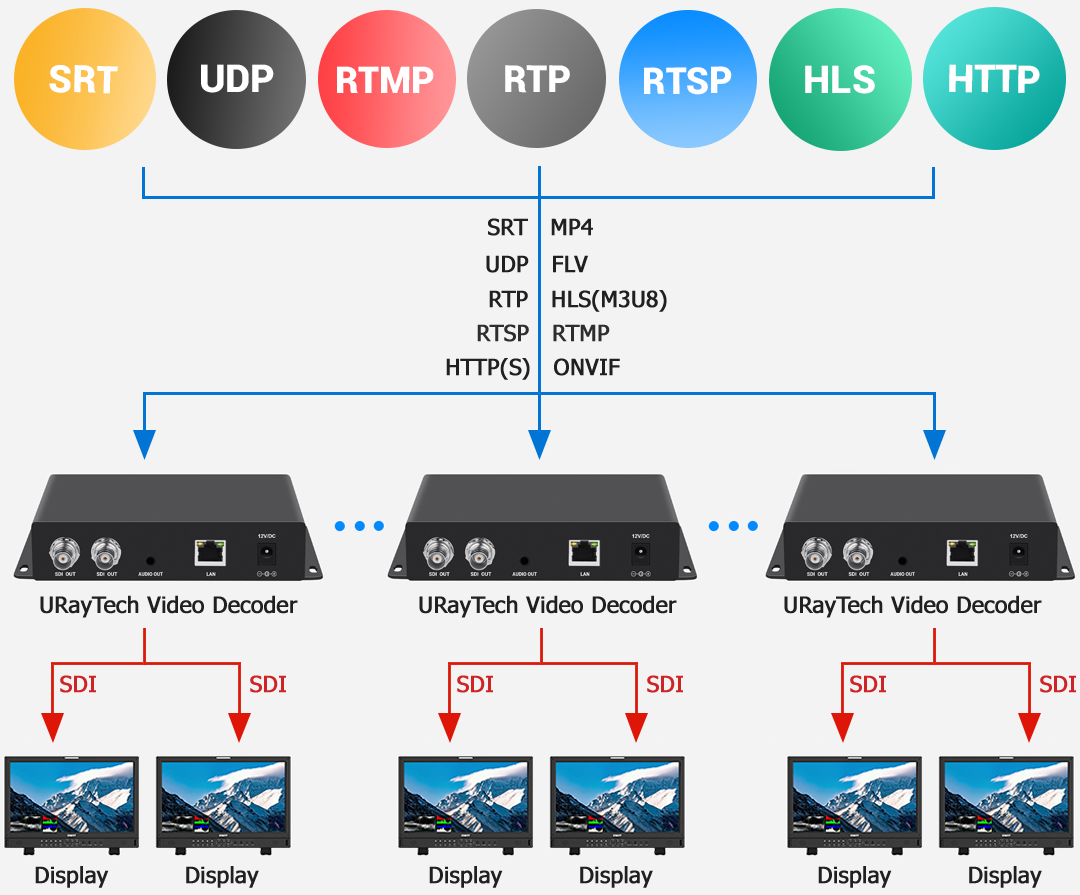

Typical Connection


The Feature

•   Embedded HiLinux system, stable and effective

•   A wide area network remote management(Friendly webpage control)

•   Support HEVC /H265 and H.264 /AVC video decoding

•   Support AAC and MP3 audio decoding

•   Support 2 channels SDI output simultaneously

•   Support multiple-brand set-top box and IP camera decoding

•   Support HTTP, RTSP, UDP, RTP, RTMP, HLS(M3U8), FLV, Unitcast, Multicast streaming protocol

•   Support up to 1920x1080P /60fps video resolution input and output

•   Support output video resolution setting

•   Support customize no signal image

•   Support buffer setting when output video play not smooth

•   Network interface full-duplex mode with 1000M speed

•   Firmware is upgradeable

•   Support english webpage control panel and language customizable

•   A wide area network remote management

•   Stable and effective, support 7x24h working time

•   A click to restore the default configuration

•   Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed

•   Provide many kinds of customization(logo print, language customization, firmware or function customization etc)

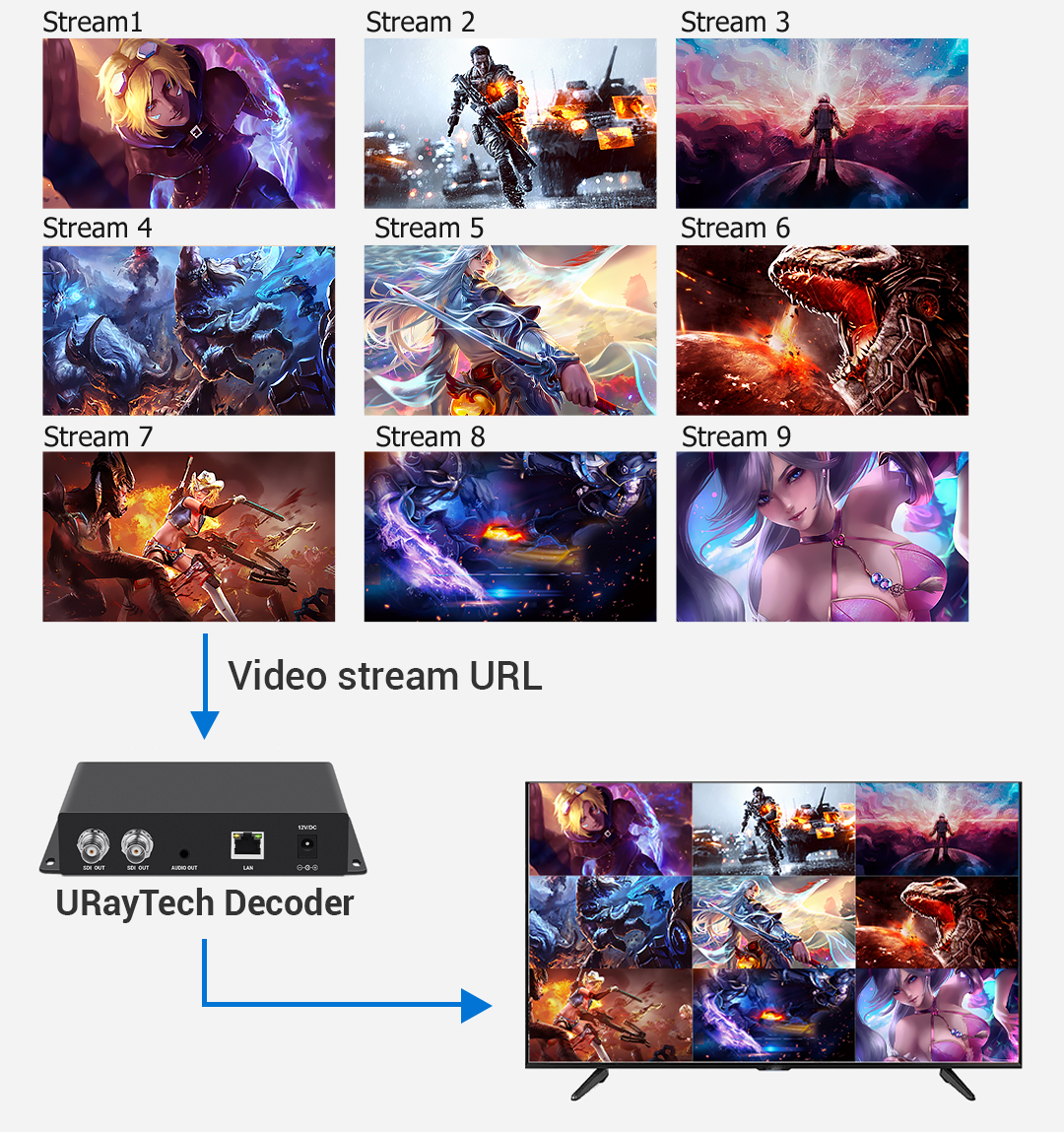

•   Support multi streaming url decoding and display simultaneously(Max 9 channels)


Specification

Model No.

USD265-2

Video

Input

Video stream URL

Video Resolution

Max 1920x1080P decoding and display

Output Video

2xSDI output simultaneously

Video Decoding

H.265, H.264

Channel

Support multi channels decoding and output simultaneously

Video Decoding

H.265 and H.264

Audio

Output Audio

SDI embedded audio, stereo audio(3.5mm jack)

Audio Ddcoding

AAC, MP3

Network

Interface

1000M Ethernet port(RJ45)

Streaming Protocol

HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, FLV RTP, Unitcast

Control Panel

Webpage UI(language customizable)

Upgrade

Firmware is upgradeable

General

Dimension(W/L/H)

120 x 105 x 30 /mm

Gross Weight

0.3KG

Temperature

0 to 45(For working),   -20 to 80(For storing)

Input Voltage

DC 12V /1A

Power

5W


Control Panel

1.   Status

2.   Network

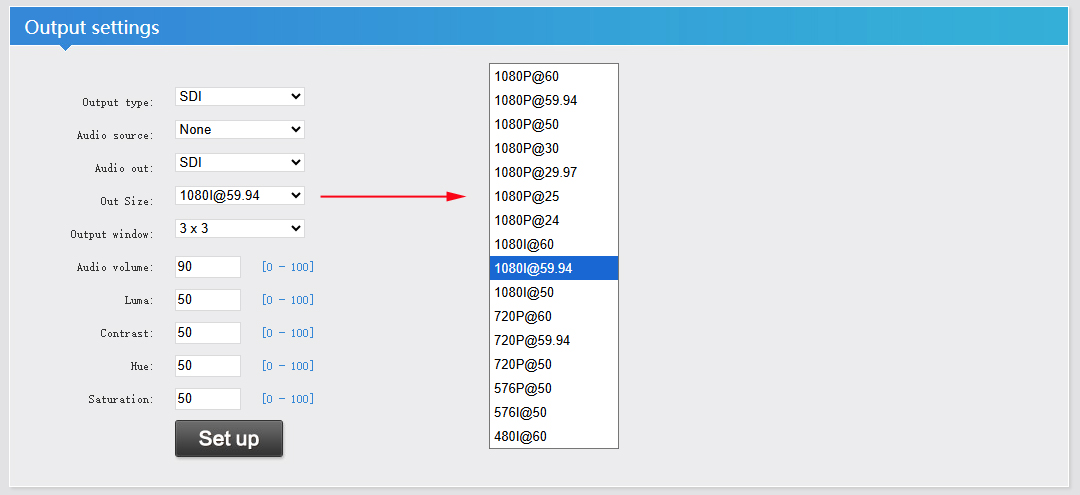

3.   Decoder Setting

4.   System
