Product Details

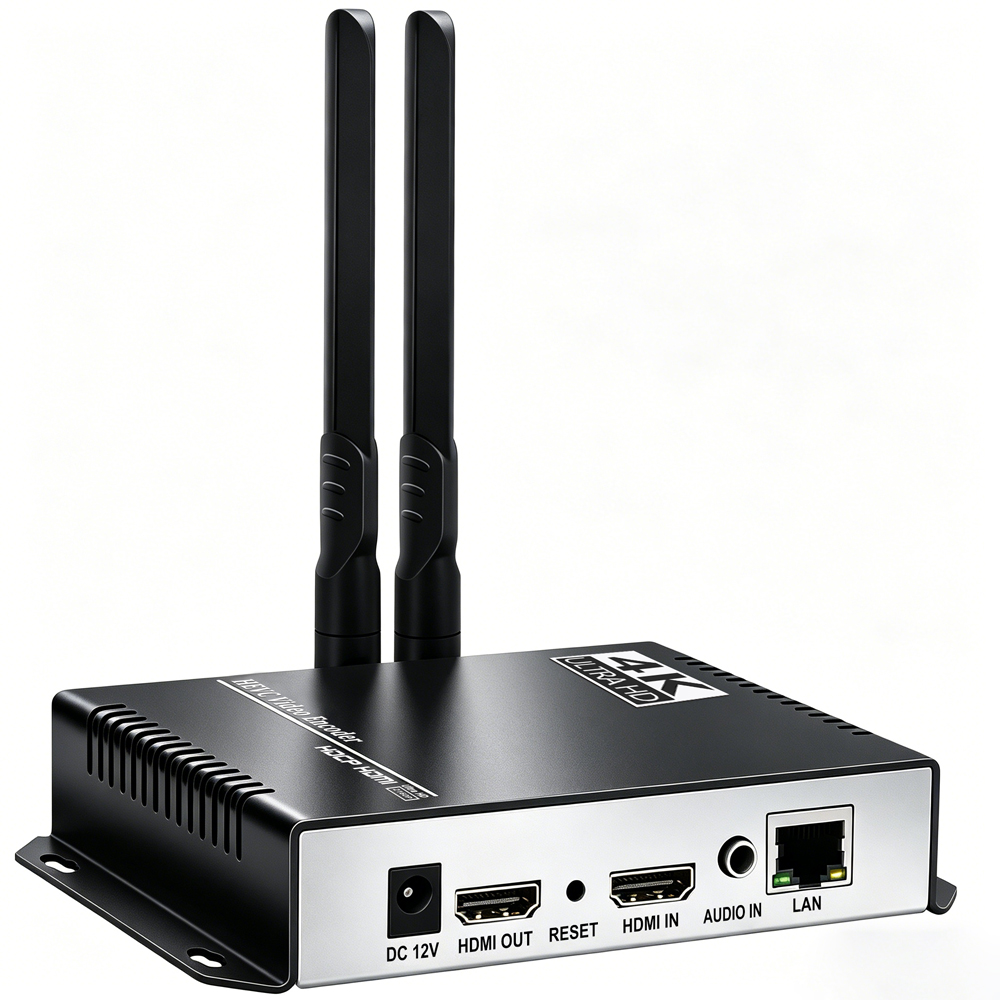

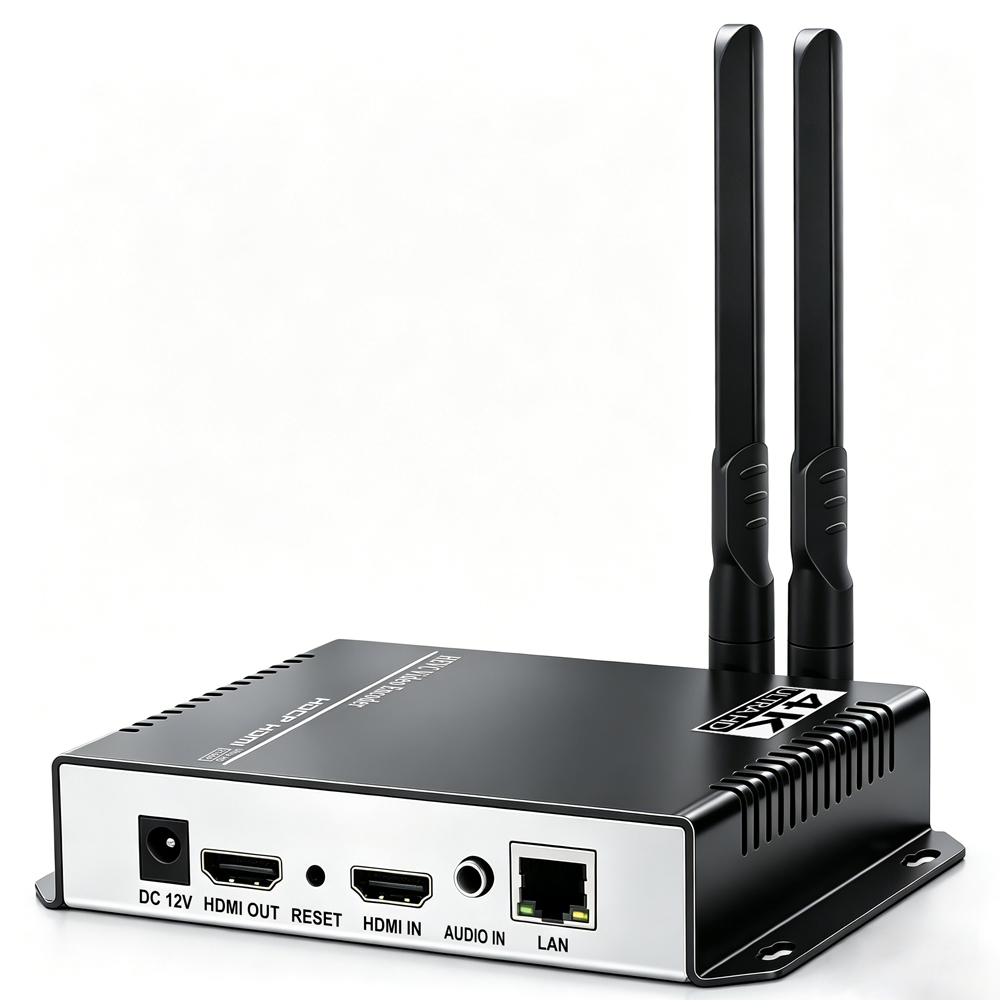

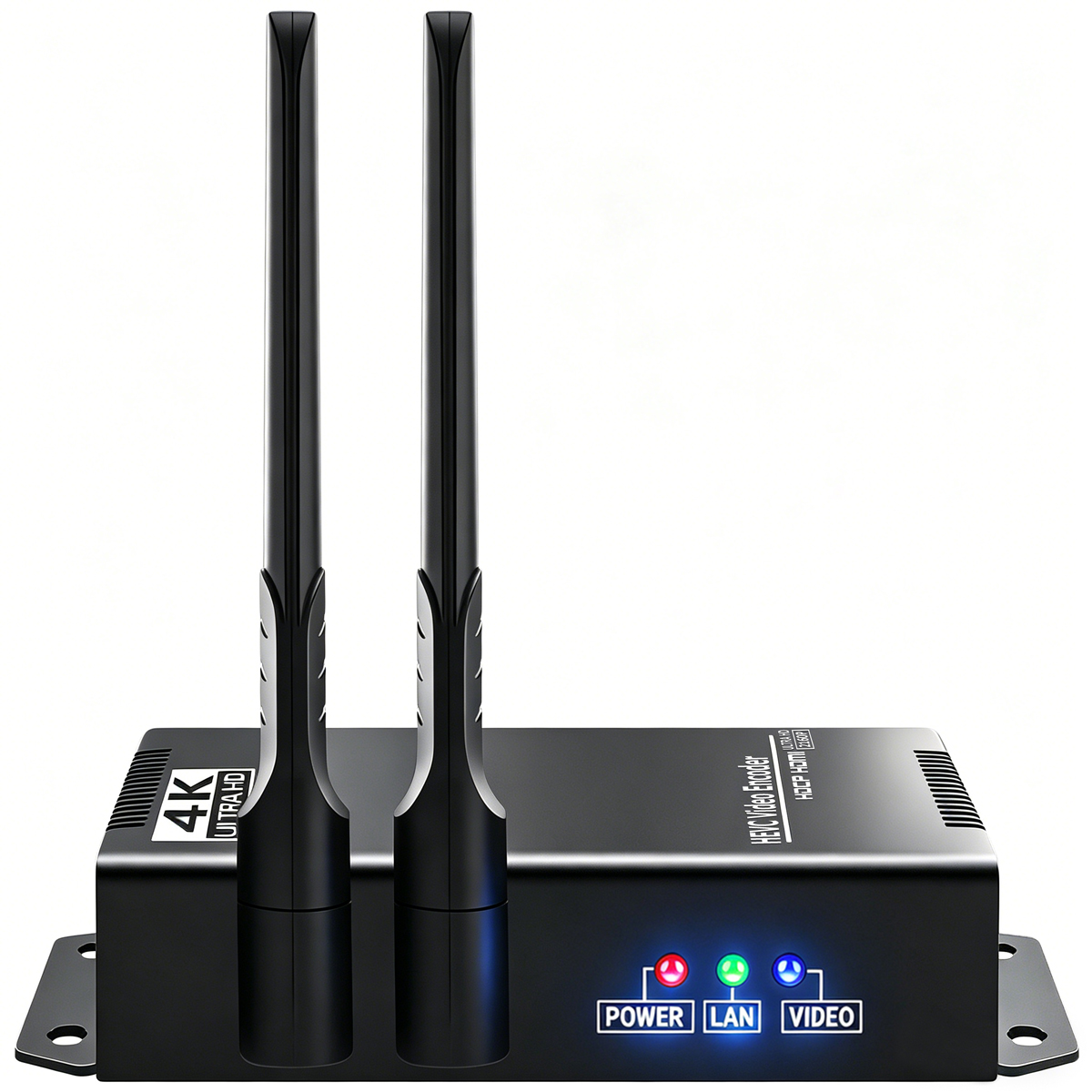

· H.265 /H.264 HDMI Encoder WIFI with HDMI Output

· H.265 /H.264 HDMI Encoder WIFI with HDMI Output

Model No.： UHE265-1LW

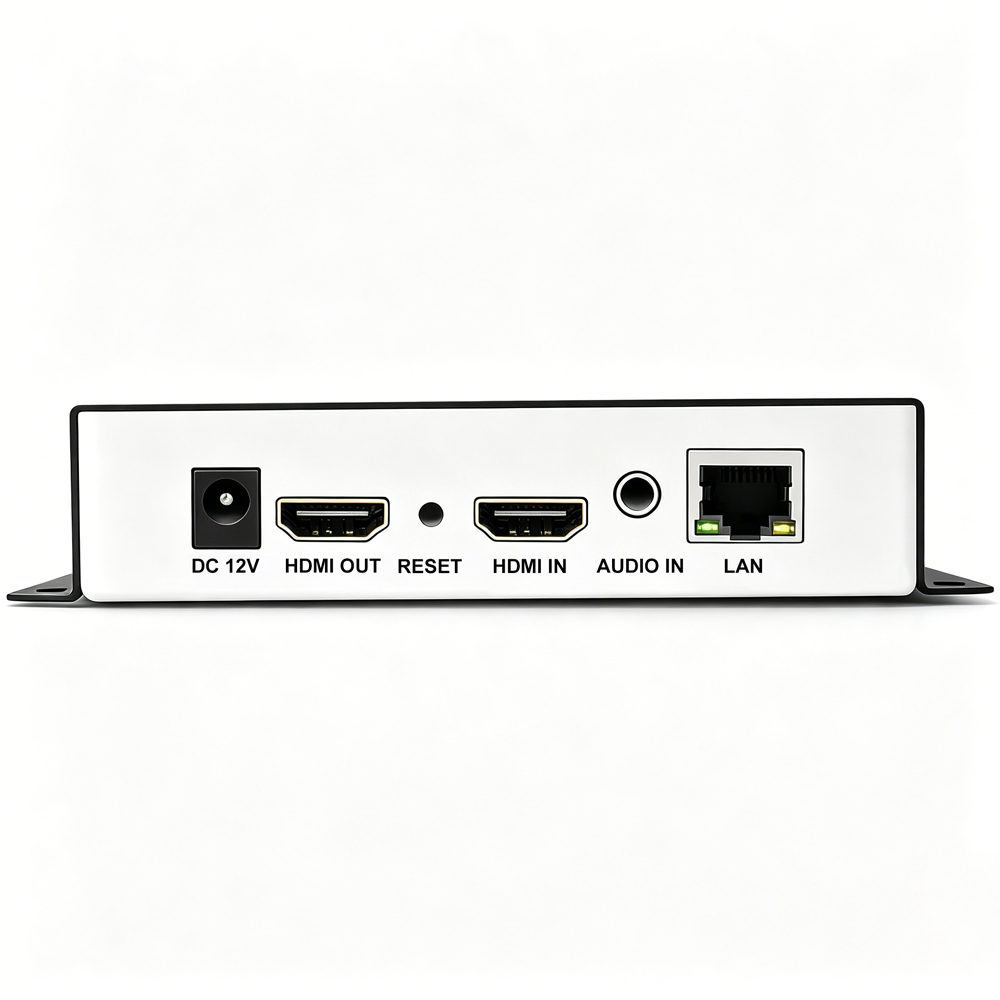

Input： HDMI(audio bulid-in)+external audio(3.5mm jack)
Video Encoding： HEVC /H.265, H.264 /AVC, MJPEG
Audio Encoding： AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711
Output Video： 4 video streams output simultaneously
Output Audio： Support to switch HDMI audio or external audio as output audio
Video Resolution： Adjustable, max 1920X1080@60fps input and output
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, FLV, Unitcast etc
Video Bitrate： Adjustable from 32kbit/s to 32mbit/s(CBR, VBR, Strong CBR))
Control Mode： Web or APP control, support wide area network remote management
OSD Setting： Support to add logo, text, scroll text, time on the displayed video
Customization： Provide logo, function, language, firmware etc customization
Extral Service： Provide SDK /API /CGI for secondary development
General： 165x130x29/mm(Size), 310g(Weight), Aluminum Shell
Transmission： Ethernet Port(1000 BASE-T) or WIFI(2.4G /5G)
Description

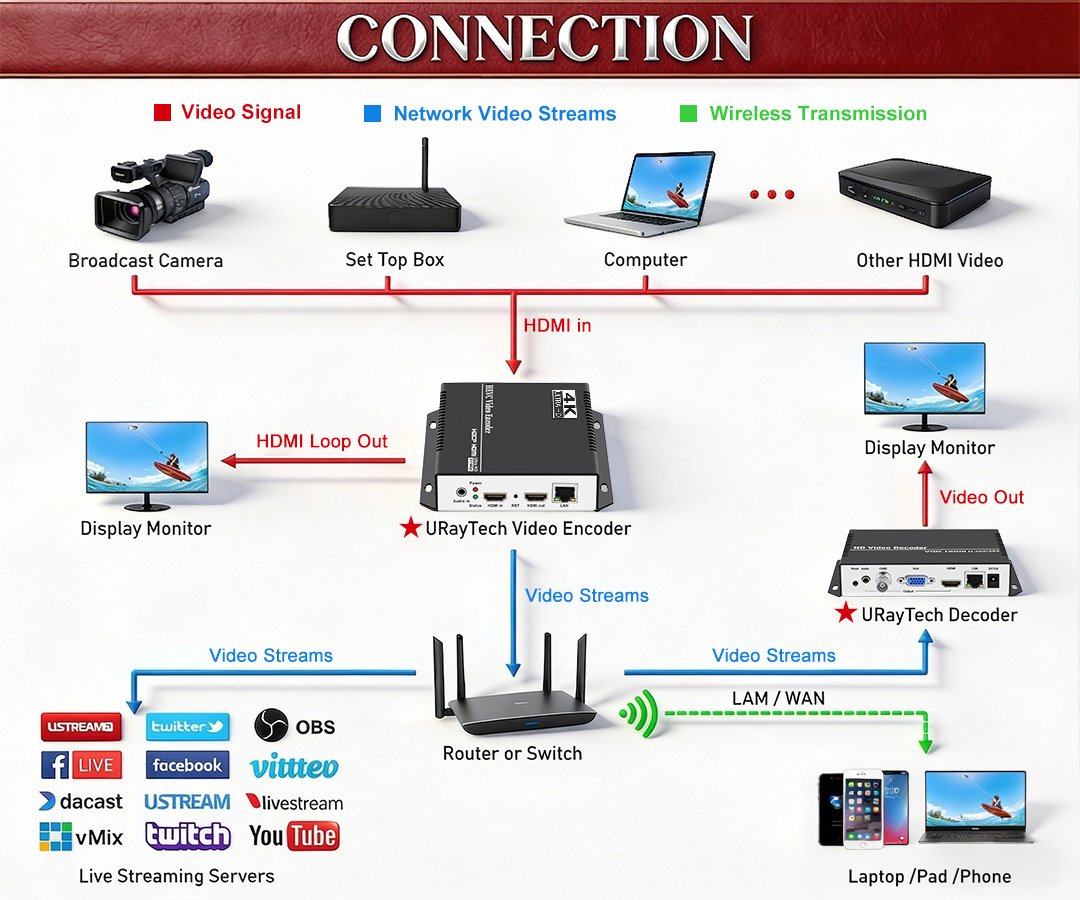

1-connection diagram.jpg





  • Support HEVC /H.265, H.264 /AVC, MJPEG video encoding

    Support AAC, AAC+, AAC++,MP3, MP2, AC3, Opus, G.711 audio encoding


  • Support to live streaming on max 4 live broadcast platforms simultaneously

    Support 4 streams output simultaneously, support different protocol transmission for each stream


  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 1920x1080P input and output

  • Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

    Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol

  • Support multiple on screen display settings, such as logo /text /scroll text /time etc

    Support customize the no signal image when there is no input signal

  • Support both HDMI audio and external audio input simultaneously

    Support to switch HDMI audio or external audio as output audio at will


  • Support single-channel HDMI signal local output for reuse

    The looped out hdmi signal is the same as the input hdmi signal without any loss


  • Support web page or APP control dashboard

    Support wide area network remote management(via port forwarding)

  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization

  • Set up for the first time, plug and play when use it later

    Not only RTMP(S), but also streaming HLS to YouTube or other server(New feature)






Model No.

UHE265-1LW

Video

Input Video

1XHDMI, support HDCP

Input Resolution

Max 1920x1080 resolution, max 60fps frame rate

Video Encoding

HEVC /H.265, MPEG-4 /H.264 AVC, MJPEG

Encoding Levels

H,265 main profile; H.264 high /main /baseline profile

Video Bitrate

Adjustable From 32kbit /s to 32mbit /s

Bitrate Control

CBR, VBR, Strong CBR

Output Resolution

It is adjustable, max 1920x1080P /60fps

Video Pre-processing

De-interlacing, noise reducing, sharpening etc

Audio

Input Audio

HDMI embedded audio or external stereo audio(3.5mm)

Output Audio

Support to switch HDMI audio or external audio at will

Sampling Rate

44.1KHz, 48KHz, Same as the input

Bitrate Control

Adjustable from 48000~320000

Audio Encoding

AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711

Network

Interface

Ethernet port(1000 BASE-T) or WIFI(2.4G /5G)

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS, ONVIF, UDP, RTP, Unitcast etc

Control Panel

Webpage UI(language customizable) Or APP

Firmware Update

Enable by uploading files to dashboard and upgrade

General

Dimension (W* L* H)

165 x 130 x 29 /mm

Net Weight

310g

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

DC 12V /1A

Material

Aluminum Shell



4-control panel.jpg

• Status Display (Click to enlarge)



• Stream Setting (Click to enlarge)

stream setting.jpg


• Video Setting (Click to enlarge)

video setting.jpg


• Audio Setting (Click to enlarge)

audio setting.jpg


• Advanced Setting (Click to enlarge)

advanced setting.jpg


• OSD Setting (Click to enlarge)

osd setting.jpg


• LOGO Upload (Click to enlarge)



• Network Setting (Click to enlarge)

network setting.jpg


• WIFI Setting (Click to enlarge)

wifi setting.jpg


• Password Setting (Click to enlarge)



• Upgrade (Click to enlarge)



• Reboot (Click to enlarge)



• Schedule Reboot (Click to enlarge)

schedule reboot.jpg


• Factory Reset (Click to enlarge)




5-app control.jpg
