Product Details

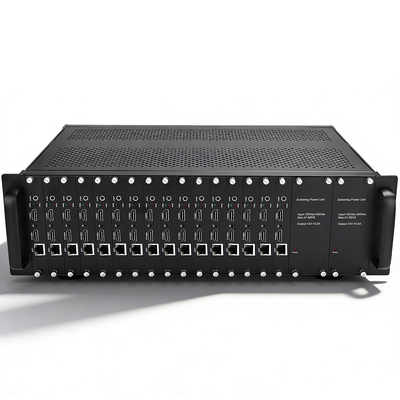

3U Rack 16 Channels H.264 H.265 HDMI Encoder With 16 HDMI Loop Out
Input: 16 x HDMI(audio bulid-in)+16 x Stereo Audio(3.5mm jack)
Model No.: UHE265-16L-3U
Output: 16xEthernet Port(1000BASE-T)
Streaming Protocol: HTTP, SRT, RTSP, RTMP, RTMPS, UDP, RTP, ONVIF, HLS(M3U8), Multicast etc
Video Resolution: Max 1920x1080P /60fps Input and Output
Video Encoding: HEVC /H.265, MPEG-4 /H.264 AVC, MJPEG
Audio Encoding: AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Bitrate Control: 32kbit /s to 32mbit /s Adjustable (CBR, Strong CBR, VBR Control Mode)
OSD Setting: Support Insert Logo and Text and Time on the Output Displayed Video
Video Stream: Up to 4 Video Streams Output Simultaneously
Upgrade: Firmware is Upgradeable
Service: Provide SDK and API and CGI for Secondary Development
Warranty: 5-year Warranty and Free Lifetime Technical Support
Description



Overview

URaytech video encoder(Model No. UHE265-16L-3U) is a HD audio and video encoding device with powerful functionality. It supports 16 channels HDMI(audio build-in) and 16 channels external stereo audio(3.5mm jack) input, H.265 /H.264 video encoding and AAC /MP3 /MP2 /AC3 /G.711 audio encoding, 4 video streams output simultaneously for each channel. It supports SRT, HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

If you input external audio, you can choose HDMI embedded audio or external audio as output audio.

We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.

All URayTech video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.


Typical Connection

1). For Live Streaming Online Connection

2). For Multi-purpose Connection

3). For IPTV Project Connection


The Feature

•   Embedded HiLinux system, stable and effective

•   Support wide area network remote management(via port forwarding)

•   Support HEVC /H.265 and MPEG-4 /H.264 AVC and MJPEG video encoding for selection

•   Support AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 audio encoding for selection

•   The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s(CBR or VBR bitrate controlling mode) for each channel

•   Support SRT, HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol

•   Support insert image, logo, text, roll text, time on the output video stream

•   Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)

•   Support HDMI local loop out for each channel

•   Support different protocol transmission for the 4 output video streams for each channel

•   Support choose HDMI embedded audio or external audio as output audio

•   Support upgrade device by upgrading new firmware

•   Support configure the encoder via webpage or APP

•   Provide SDK and API and CGI for secondary development

•   Network interface full-duplex mode with 1000M speed

•   Support HDCP and HD blue-ray

•   English webpage operating interface, language is customizable

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack

•   Provide many kinds of customization(logo print, language customization, firmware or function customization etc)

•   Multi platforms live streaming

This HDMI encoder is easy to be operated. Turn your HDMI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes. It supports multi-stream output, up to 4 video streams output simultaneously for each channel. You can push multi video stream to multi-platform at the same time.

•   Multi type video stream URL play

Not only pushing video streams to online platforms, you can also use video software or APP such as VLC or Vmix etc to play video stream URL. With these video stream URL, you can play video at anywhere, at any time. Meanwhile, you can add logo or text or time to displayed video.


The Specification

Model No.

UHE265-16L-3U

Video

Input

16xHDMI(Support HDCP)

Input Resolution

Max 1080P or 1080i resolution, Max 60fps frame rate

Encoding Type

HEVC /H.265 and H.264 /AVC and MJPEG for selection

Encoding Levels

H.265 main profile; H.264 high /main /baseline profile

Video Bitrate

Adjustable from 32kbit /s to 32mbit /s for each channel

Bitrate Control

CBR or VBR or Strong CBR for selection

Output Resolution

It is adjustable, max 1920x1080P /60fps

Video Pre-processing

De-interlacing, noise reducing and sharpening

Audio

Input

HDMI embedded audio or external stereo audio(3.5mm)

Audio Encoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 48000~320000

Sampling Accuracy

24bit

ONVIF

G.711

Network

Interface

16xEthernet port(1000M)

Streaming Protocol

SRT, HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc

Control Panel

Webpage control panel(language customizable) or APP

Firmware Upgrade

Firmware is upgradeable

General

Dimension (W x L x H)

436 x 300 x 132 /mm

Net Weight

6kg

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

AC 110V~220V

Power Consumption

5w /channel


Control Panel

1.   Status Display

2.   Video Stream Setting

3.   Audio Setting

4.   Advanced Setting

5.   OSD Setting

6.   Logo Upload

7.   Network Setting

8.   Upgrade Firmware


APP Control
