Product Details
Video Streaming Decoder with SDI Output

Video Streaming Decoder with SDI Output

Model： USD265-1S
Input： Video stream address (Max 4 URLs input simultaneously)
Output Video： SD-SDI, HD-SDI, 3G-SDI
Output Audio： SDI audio, line-out audio(3.5mm jack) output simultaneously
Video Resolution： Max 1920x1080 input and output, output resolution is adjustable
Streaming Protocol： SRT, HTTP, RTSP, RTMP, HLS(M3U8), FLV, UDP, RTP, Unitcast, etc.
Control Mode： Web、CGI command, support control the IP camera via RS-485
Customization： Provide many kinds of ODM(Shell, Logo, Function, Language, etc.)
Service： Free lifetime warranty, provide secondary development documents
General： 150x120x42/mm(Size), 360g(Weight), Aluminum Shell, Driver-free
Video Decoding： H.265, H.264
Audio Decoding： AAC, MP3, MP2
Display Mode： 1 Picture, 2 Pictures, 4 Pictures(Quarter display)
Transmission： Ethernet port(Gigabit), support wide area network remote control
Special Feature： Support to decode P2P video, PTZ setting for IP camera via RS-485
Description

USD265-1S

USD265-1S

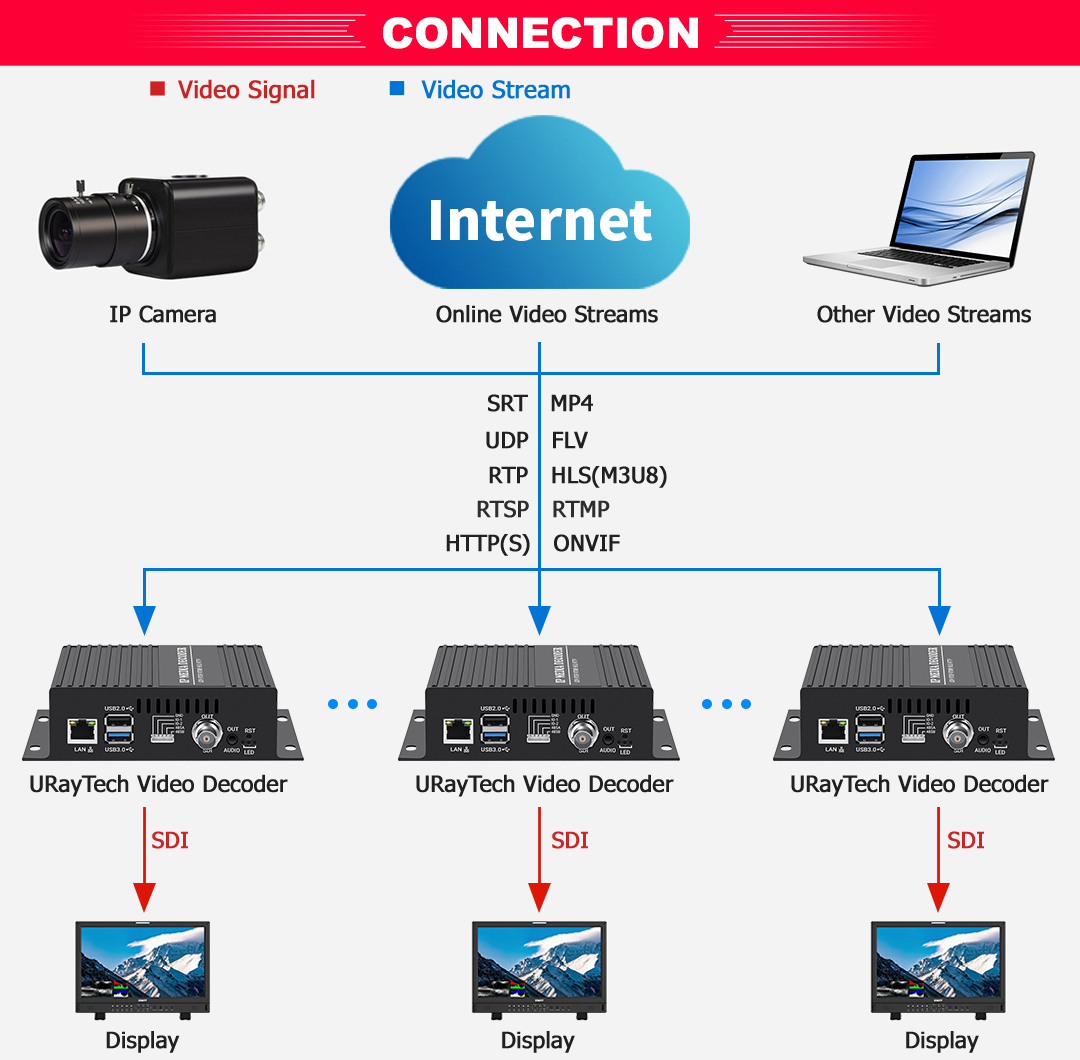

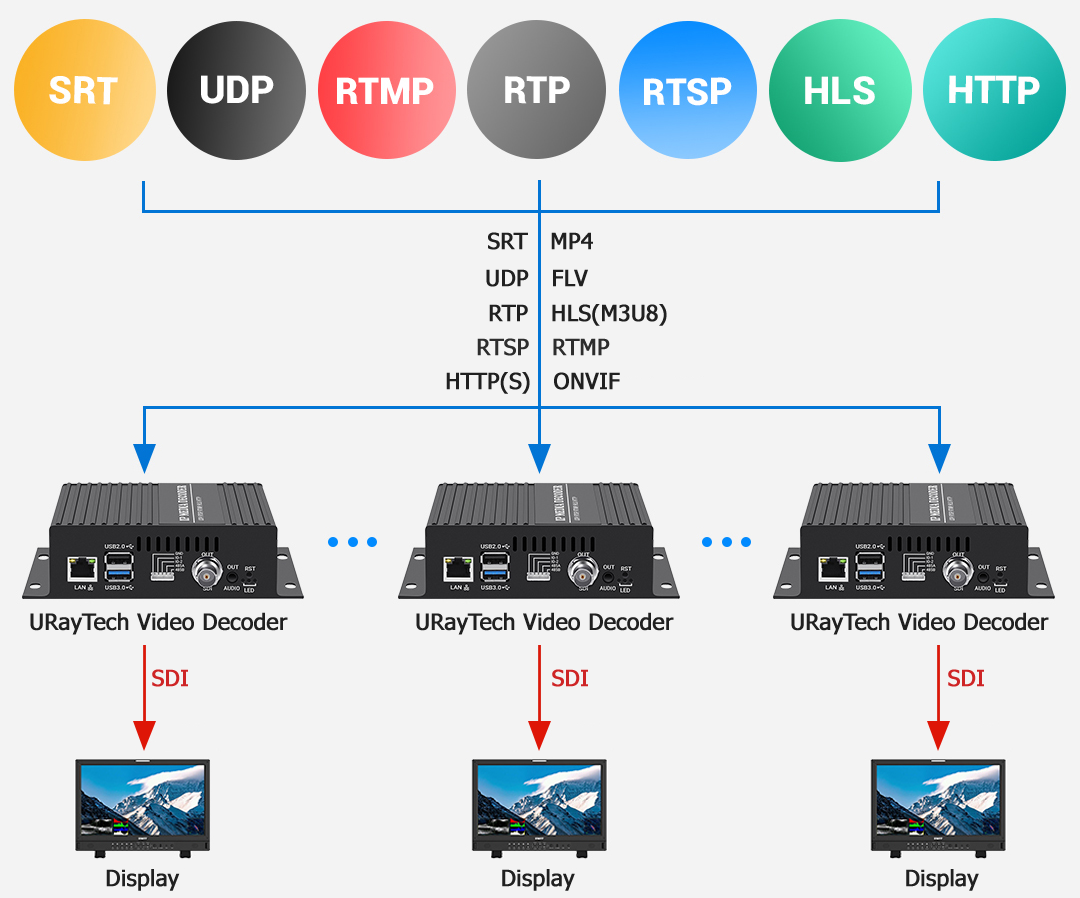

  • Support many types of video streaming address input and decoding

  • Support simultaneously outputs HDMI and CVBS(or AV)

UHACD265-1-4K

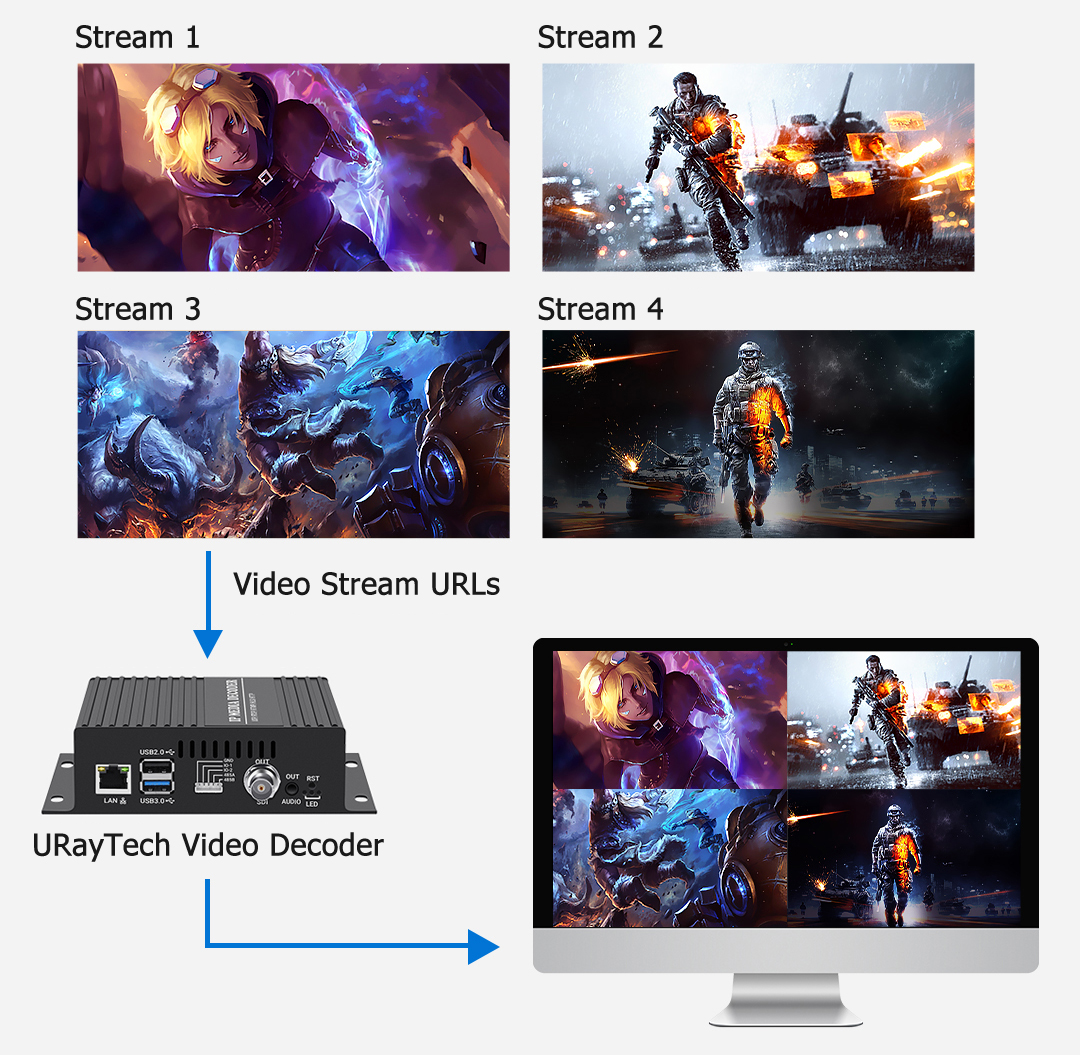

  • Max 4 channels of video stream URLs can be input and decoded simultaneously

  • Connect the decoder to the displays directly, plug and play

UHACD265-1-4K

  • Support output video resolution setting, max 3840x2160 input and output

  • Support output video frame rate setting, max 60fps input and output(Max 30fps for 4K)


  • Supports 3 display modes: 1P(single channel), 2P(dual channels), 4P(quarter)

  • You can switch the display layout in the control dashboard


  • Support connecting IP cameras via RS-485

  • Support PTZ setting for IP camera

UHACD265-1-4K

PTZ setting.jpg

  • Support logo printing /language /solution /function /system and other customizations

  • Provide lifetime free warranty service, and SDK /API /CGI files for secondary development



Model No.

UHACD265-1-4K

Video

Input Video

Video stream address (Max 4 stream URLs input and decode simultaneously)

Video Resolution

Max 3840x2160 input and output, output resolution is adjustable

Video Decoding

H.265, H.264

Output Video

HDMI and CVBS(or AV) output simultaneously

Frame Rate

Max 30fps when 4K resolution; Max 60fps when 1920x1080 or lower resolution

Display Mode

1 Picture, 2 Pictures, 4P(Quarter)

Audio

Audio Decoding

AAC, MP3, MP2

Output Audio

HDMI audio, stereo audio(3.5mm jack) output simultaneously

Stereo Audio

Selectable from channel 1 to channel 4

Network

Interface

Ethernet port(Gigabit)

Streaming Protocol

SRT, HTTP, RTSP, RTMP, HLS(M3U8), Multicast(UDP /RTP), Unitcast, etc.

Control Dashboard

Webpage dashboard, support remote management over WAN

System Update

Uploading firmware to dashboard and upgrade

General

Dimension (L x W x H)

148 x 120 x 42 /mm

Net Weight

360g

Power

DC 12V /2A

Material

Aluminum Shell


• Status Display（Click to enlarge）

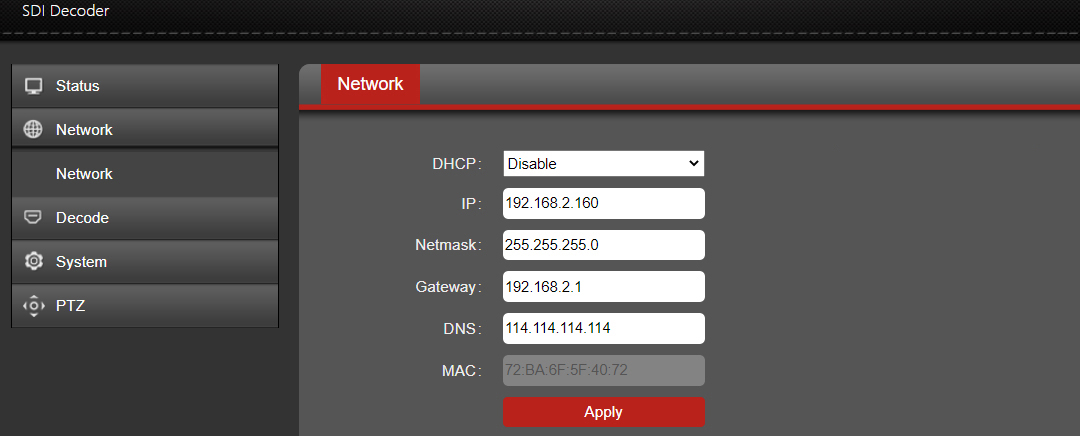

• Network Setting（Click to enlarge）

network setting.jpg

• Decode Setting - Protocol Video（Click to enlarge）

decode setting.jpg

• Decode Setting - P2P Video（Click to enlarge）

p2p video setting.jpg

• Decode Setting - SRT Setting（Click to enlarge）

srt setting.jpg

• Reset /Reboot（Click to enlarge）

reset reboot.jpg

• Password Setting（Click to enlarge）


• Upgrade（Click to enlarge）


• Schedule Reboot（Click to enlarge）

timing reboot.jpg

• PTZ Setting（Click to enlarge）

PTZ setting.jpg
