Product Details

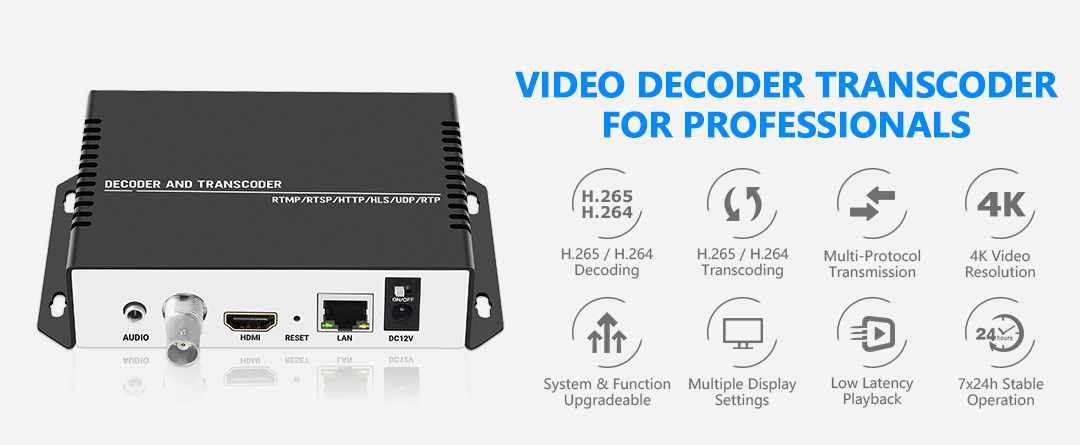

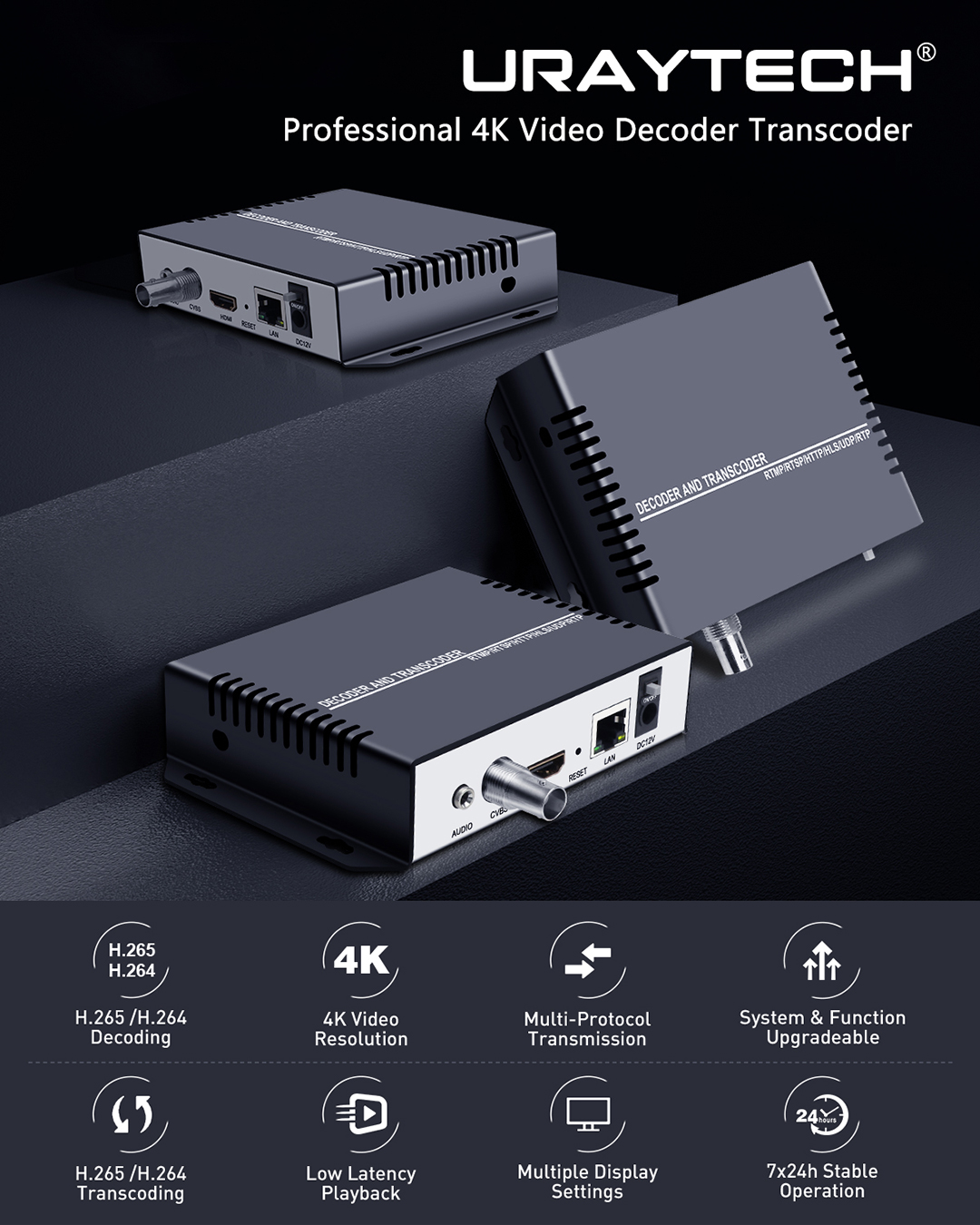

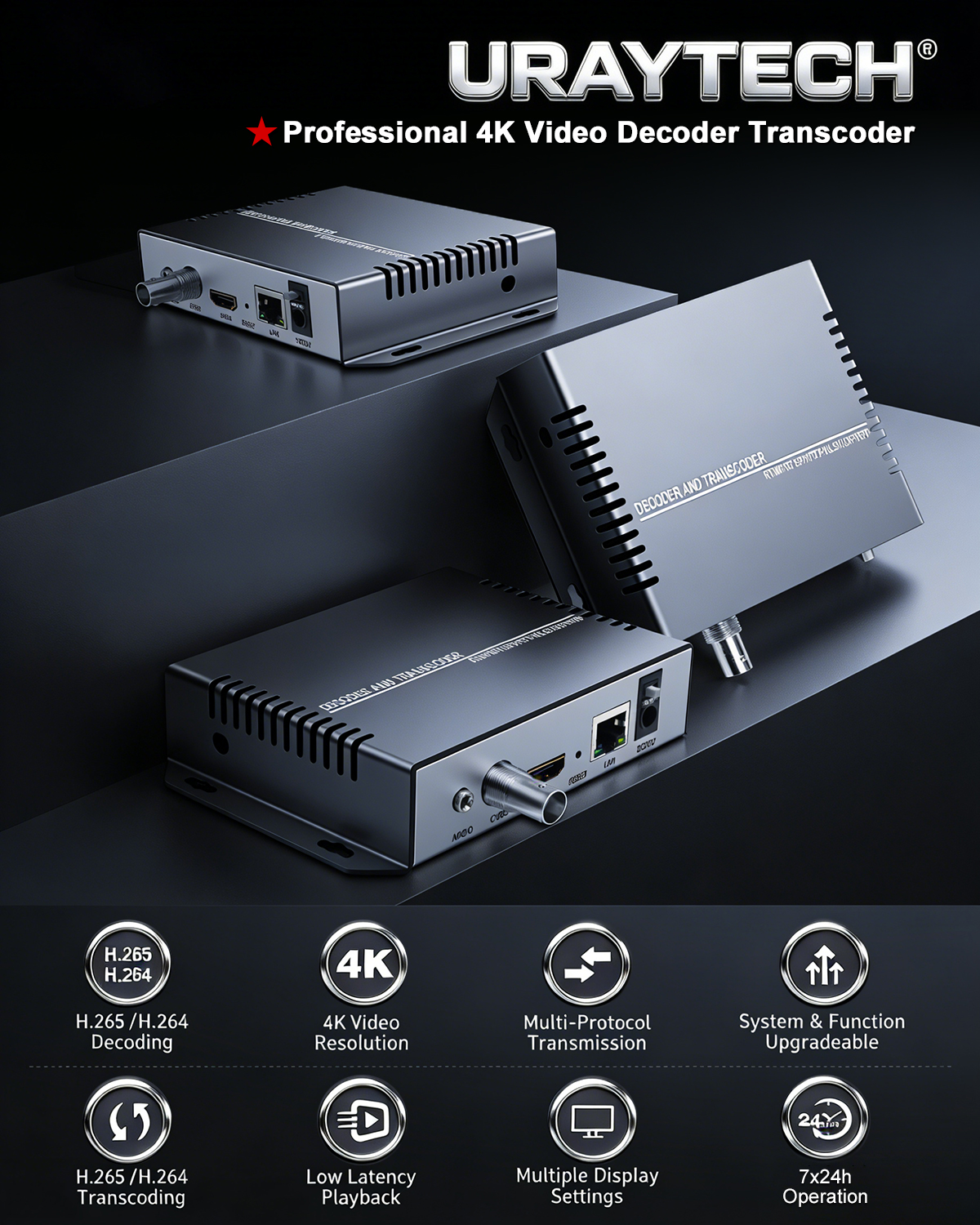

4K Decoder Transcoder with HDMI + CVBS + Video Stream Output

4K Decoder Transcoder with HDMI + CVBS + Video Stream Output

Model： UHCDT265-1-4K
Input： Video stream address
Output Video： HDMI(audio build-in), CVBS, video stream output simultaneously
Output Audio： HDMI audio, line-out audio(3.5mm jack), audio stream output
Video Resolution： Max 3840x2160@60 input and output, output resolution is adjustable
Streaming Protocol： SRT, HTTP(S), UDP, RTP, RTSP, RTMP(S), HLS(M3U8), ONVIF, MP4, etc.
Video Bitrate： Adjustable from 32kbit/s to 100mbit/s for transcoded video
Control Mode： Web、CGI command, support wide area network remote control
OSD Setting： Support adding logo, text, scroll text, time on the displayed video
Customization： Provide many kinds of ODM(Shell, Logo, Function, Language, etc.)
Service： Free lifetime warranty, provide secondary development documents
General： 120x105x30/mm(Size), 300g(Weight), Aluminum Shell, Drive Free
Video Decoding： H.265, H.264
Audio Decoding： AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Description

UHCDT265-1-4K


UHCDT265-1-4K

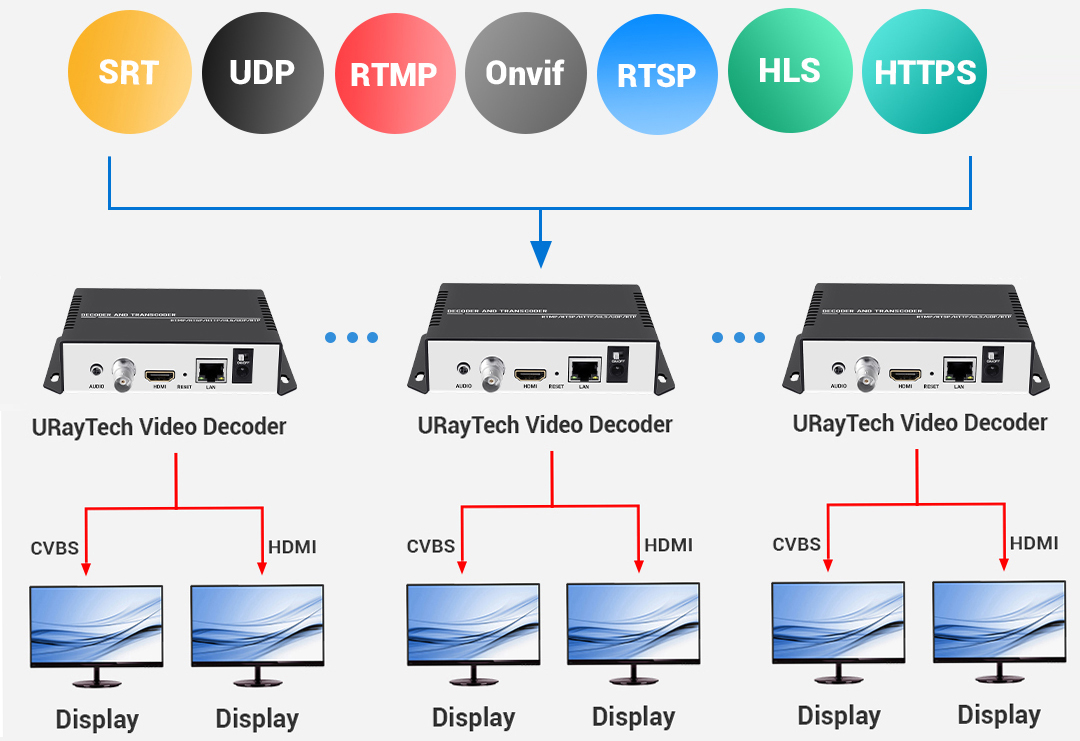

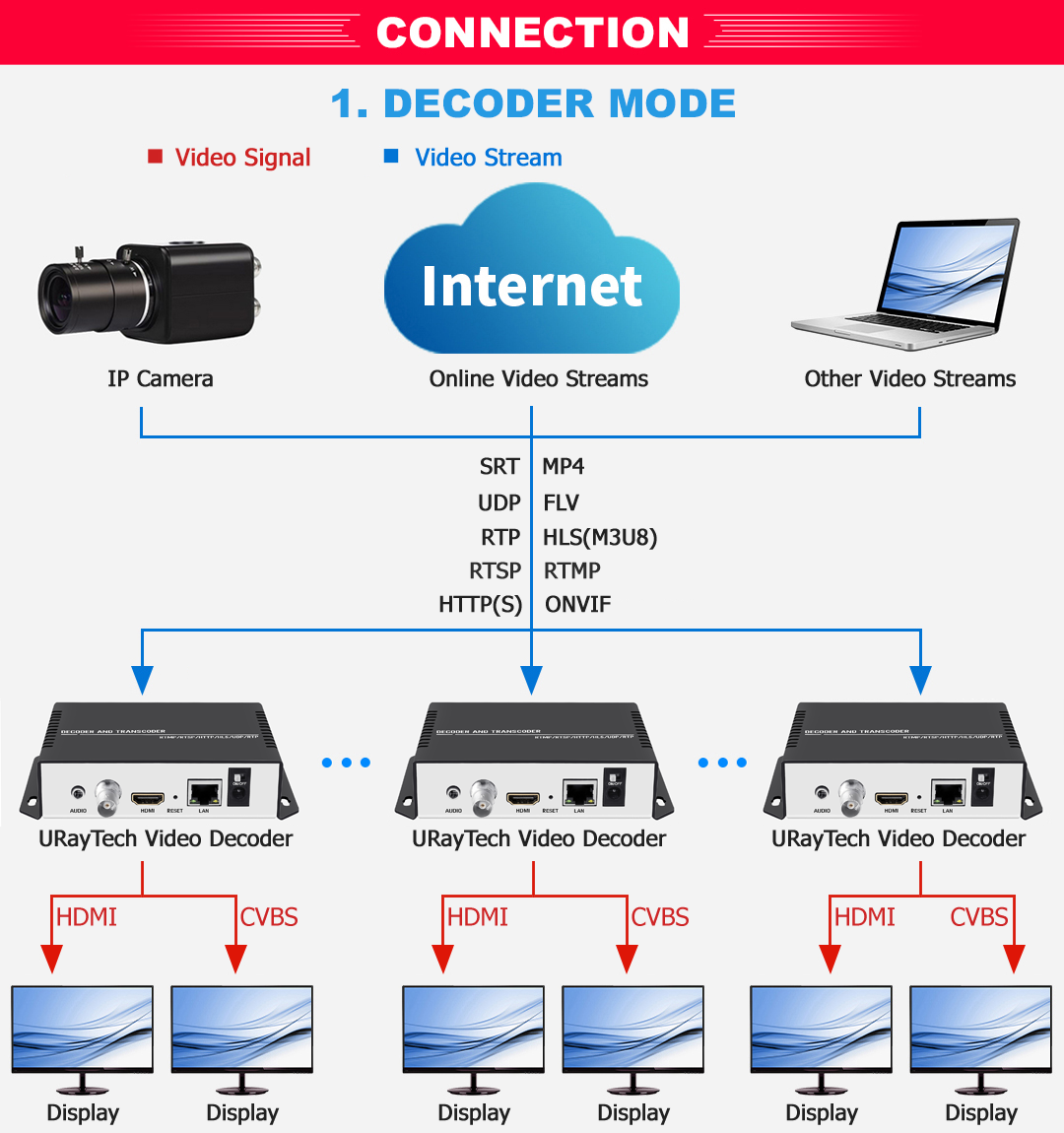

  • Support many types of video streaming address input and decoding

  • Support simultaneously output HDMI and CVBS video to the display

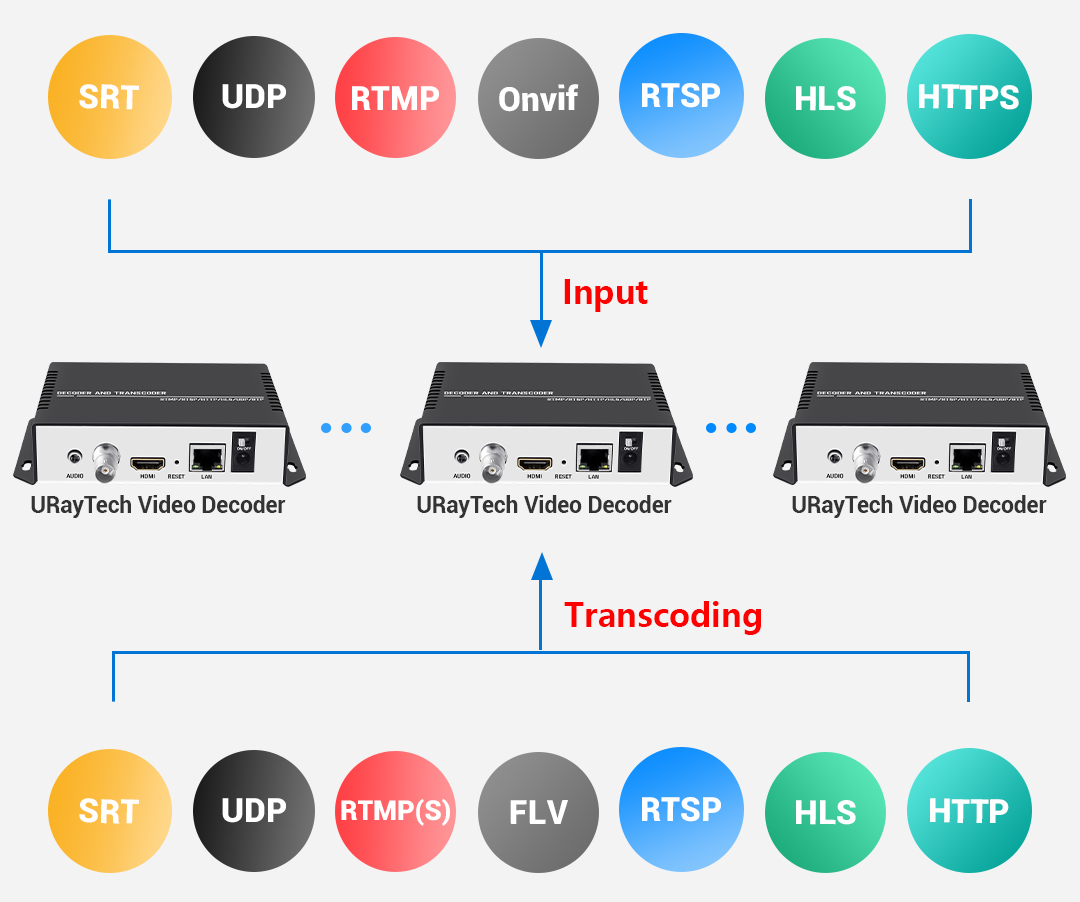

  • Support many types of video streaming protocol conversion and output

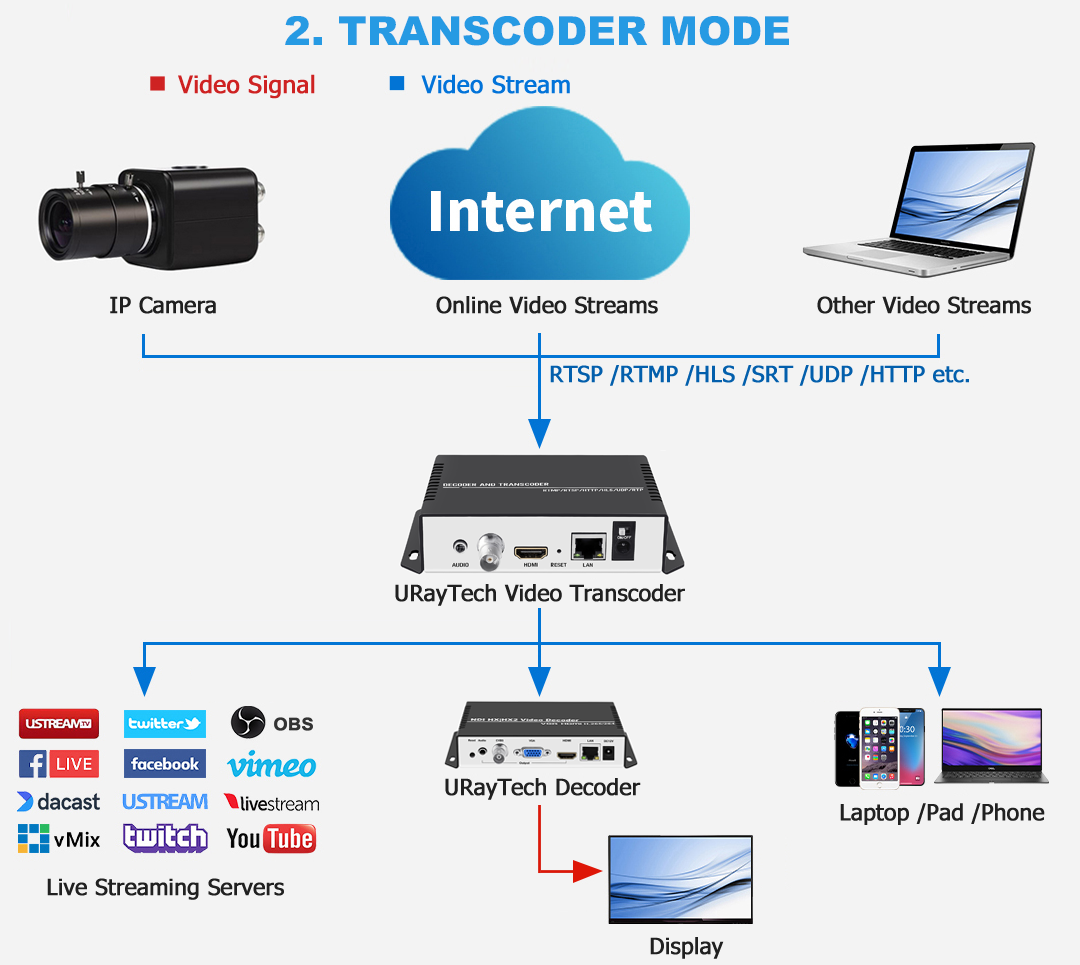

  • Supports pushing converted video stream to online platforms for live broadcast

UHCDT265-1-4K

  • Support output video resolution setting, max 3840x2160 input and output

  • Support output video frame rate setting, max 60fps input and output


  • Support multiple on screen display settings, such as logo /text /scroll text /time, etc.

  • Support customizing the display image or logo when there is no decoding signal


  • Support resolution, latency, brightness, contrast, saturation, hue, video settings

  • Web or CGI control mode, support wide area network remote management

UHCDT265-1-4K

  • Support logo printing /language /solution /function /system and other customizations

  • Provide lifetime free warranty service, and SDK /API /CGI files for secondary development



Model No.

UHCDT265-1-4K

Video

Input Video

Video stream address

Input Resolution

Max 3840x2160@60fps input

Video Decoding

H.265, H.264

Output Video

HDMI, CVBS, video stream output simultaneously

Output Resolution

Max 3840x2160@60fps output, output resolution is adjustable

Transcoded Video

Max 1920x1080@60fps output, output resolution is adjustable

Audio

Audio Decoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Output Audio

HDMI audio, stereo audio(3.5mm jack), audio stream output simultaneously

Network

Interface

Ethernet port(Gigabit)

Decoded Protocol

SRT, HTTP(S), UDP, RTP, RTSP, RTMP(S), HLS(M3U8), ONVIF, FLV, Unitcast, etc.

Transcoded Protocol

SRT, HTTP, Multicast(UDP, RTP), RTSP, RTMP(S), HLS(M3U8), FLV, Unitcast, etc.

System Update

Uploading firmware to dashboard and upgrade

General

Dimension (L x W x H)

120 x 105 x 30 /mm

Net Weight

300g

Power

DC 12V /1A

Material

Aluminum Shell


• Status Display（Click to enlarge）

‍

• Input Setting（Click to enlarge）

• Transcoding Setting（Click to enlarge）

• Display Setting（Click to enlarge）

UHCDT265-1-4K

• Network Setting（Click to enlarge）

• Password Setting（Click to enlarge）

• Output Setting（Click to enlarge）

• Upgrade（Click to enlarge）

• Reset（Click to enlarge）

• Reboot（Click to enlarge）

• Schedule Reboot（Click to enlarge）
