Product Details

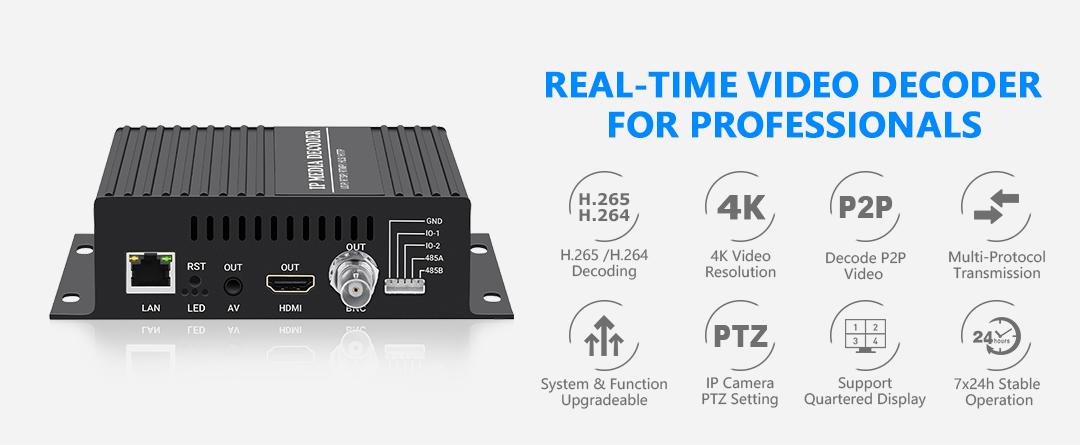

H.265 H.264 4K Video Streaming Decoder IP Camera to HDMI + CVBS AV Output for Decoding SRT HLS M3U8
Input: Ethernet Port(1000BASE-T)
Model No.: UHACD265-1-4K
Output: 1xHDMI(Audio Build-in)+1xAV(3.5mm jack) /1xCVBS(BNC)
Streaming Protocol: P2P, SRT, RTSP, RTMP, UDP, RTP, FLV, HLS(M3U8), Multicast, Unitcast
Video Decoding: HEVC /H.265, H.264 /AVC
Audio Decoding: AAC, MP3, MP2
Channel: Support Max 4 Channels URL Decoding and Display Simultaneously
Feature: Support 485A /485B Output, IO Input and Output
Input Resolution: Max 3840x2160P /60fps Video Stream Input
Output Resolution: Max 3840x2160P /30fps Output
Upgrade: Firmware is Upgradeable
Warranty: 5-year Warranty and Free Lifetime Technical Support
Description
Overview

URaytech video decoder(Model No. UHACD265-1-4K) is a UHD audio and video decoding device with powerful functionality. It supports H.265 /H.264 video decoding and AAC /MP3 /MP2 audio decoding. It supports SRT, RTSP, HTTP, UDP, RTP, RTMP, HLS(M3U8), FLV, Multicast, Unitcast etc streaming protocol decoding, HDMI and CVBS /AV output simultaneously. It supports up to 4K UHD video stream URL decoding and output. Its high integration and cost-effective design make this device widely used in variety of field such as advertisement or wall display or live broadcast ect.

Except for video decoder, video encoder is our main produced product line. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.

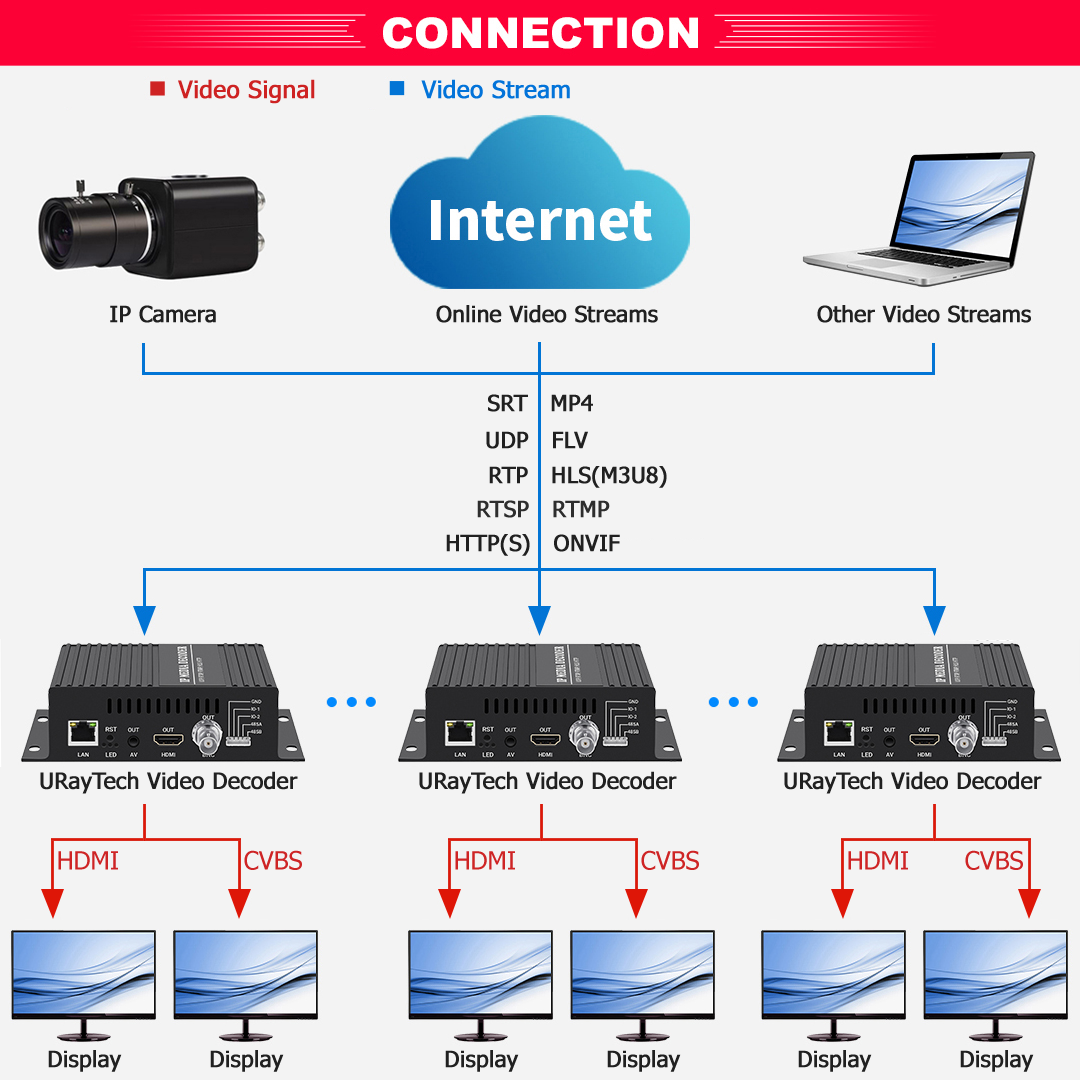

Typical Connection

The Feature

•   Embedded HiLinux system, stable and effective

•   A wide area network remote management(Friendly webpage control)

•   Support H265 /H.264 video decoding

•   Support AAC /MP3 /MP2 audio decoding

•   Support multiple-brand set-top box and IP camera decoding

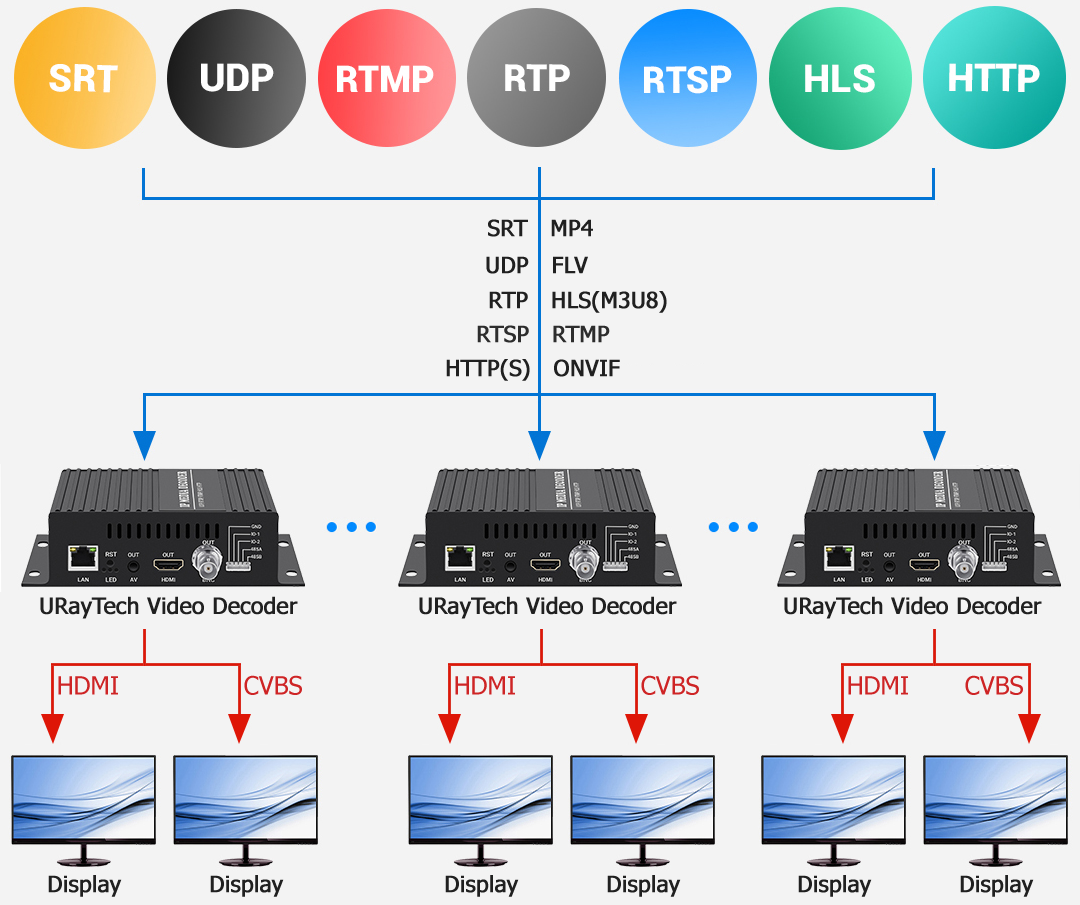

•   Support SRT, RTSP, UDP, RTP, RTMP, HLS(M3U8), FLV, Unitcast, Multicast streaming protocol

•   Support up to 3840x2160P /60fps video resolution input

•   Support output video resolution setting, max 3840x2160P /30fps output

•   Support decode P2P live video

•   Network interface full-duplex mode with 1000M speed

•   Firmware is upgradeable

•   Support english webpage control panel and language customizable

•   A wide area network remote management

•   Stable and effective, support 7x24h working time

•   A click to restore the default configuration

•   Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed

•   Provide many kinds of customization(logo print, language customization, firmware or function customization etc)

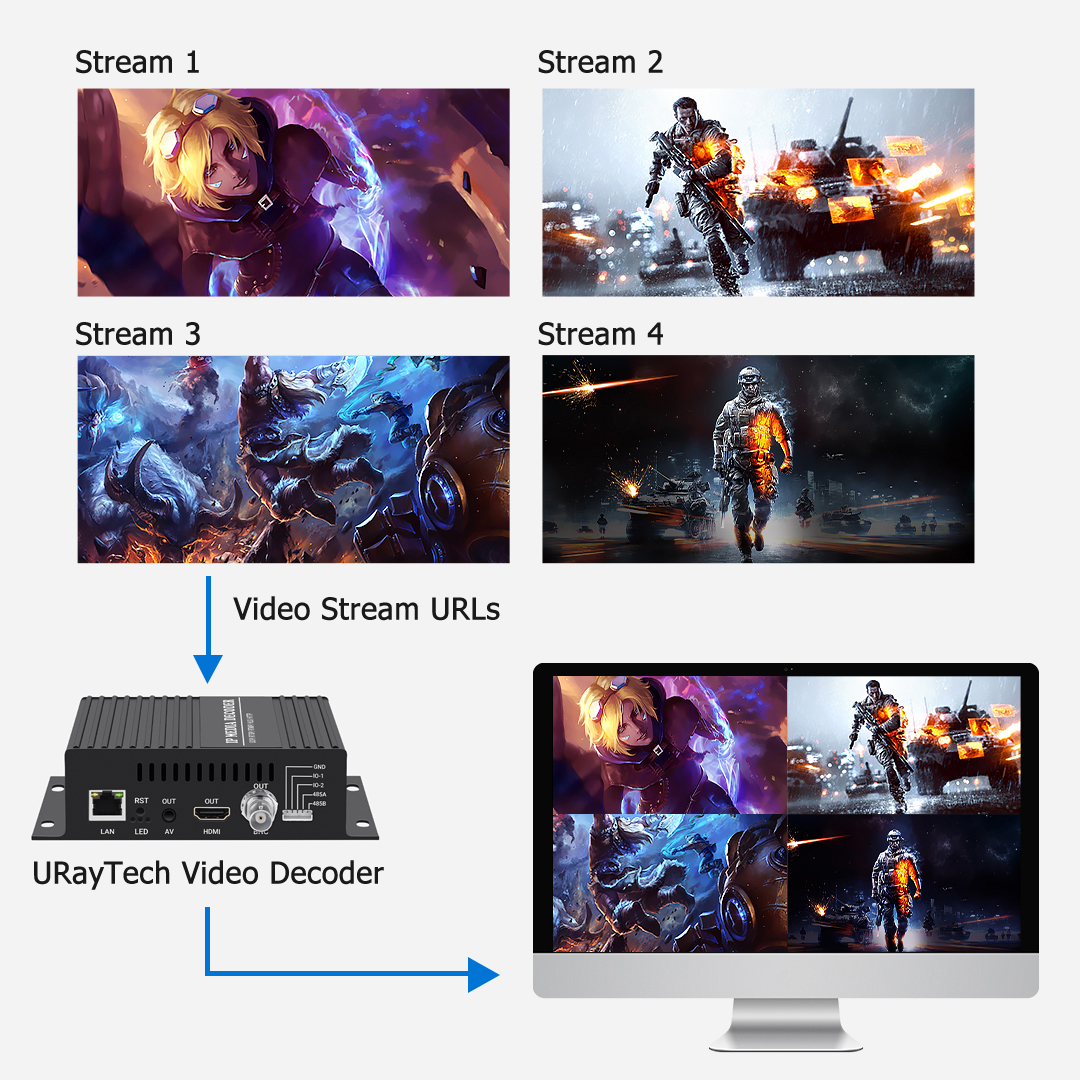

•   Support multi streaming url decoding and display simultaneously(Max 4 channels)

Specification

Model No.

UHACD265-1-4K

Video

Input

Video stream URL

Video Resolution

Max 3840x2160P /60fps decoding and output display

Output Video

1xHDMI+1xCVBS or 1xAV

Video Decoding

H.265, H.264

Each Channel

Support multi channels decoding and output simultaneously

Frame Rate

Max support 60fps

Audio

Output Audio

1xHDMI embedded audio, 1xR /L audio(3.5mm jack)

Audio Ddcoding

AAC, MP3, MP2

Network

Interface

1xEthernet port(1000BASE-T)

Streaming Protocol

HTTP, SRT, UDP, RTSP, RTMP, HLS(M3U8), Multicast, FLV RTP, Unitcast

Control Panel

Webpage UI(language customizable)

Upgrade

Firmware is upgradeable

General

Dimension(W/L/H)

180 x 130 x 30 /mm

Gross Weight

0.5KG

Temperature

0 to 45(For working),   -20 to 80(For storing)

Input Voltage

DC 12V /2A

Power

5W

Control Panel

1.   Status

2.   Network

3.   Decode Setting - Video Stream Setting

4.   Decode Setting - P2P Setting

5.   Extended - SRT Setting

6.   System - Reset /Reboot

7.   System - Upgrade Firmware
