Product Details

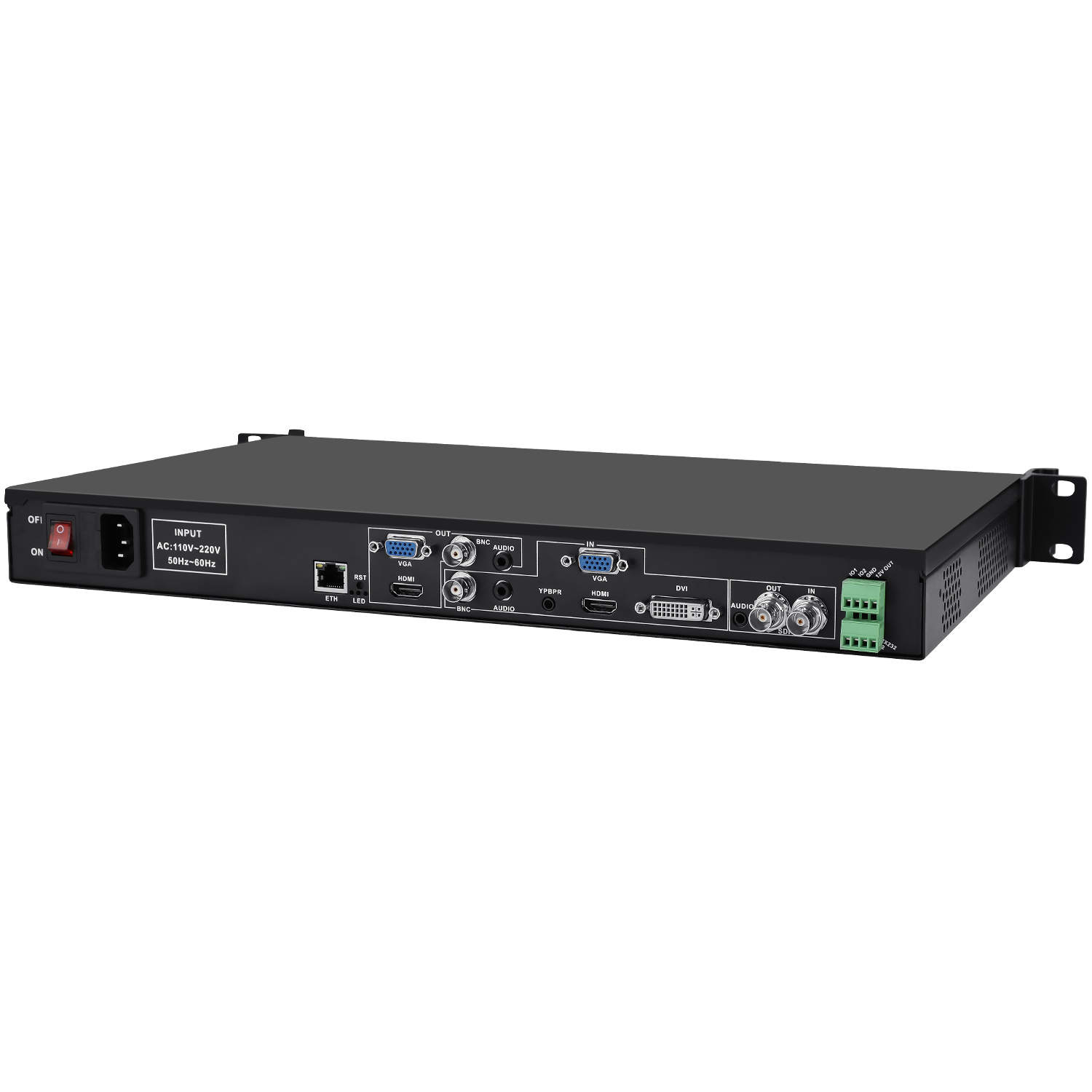

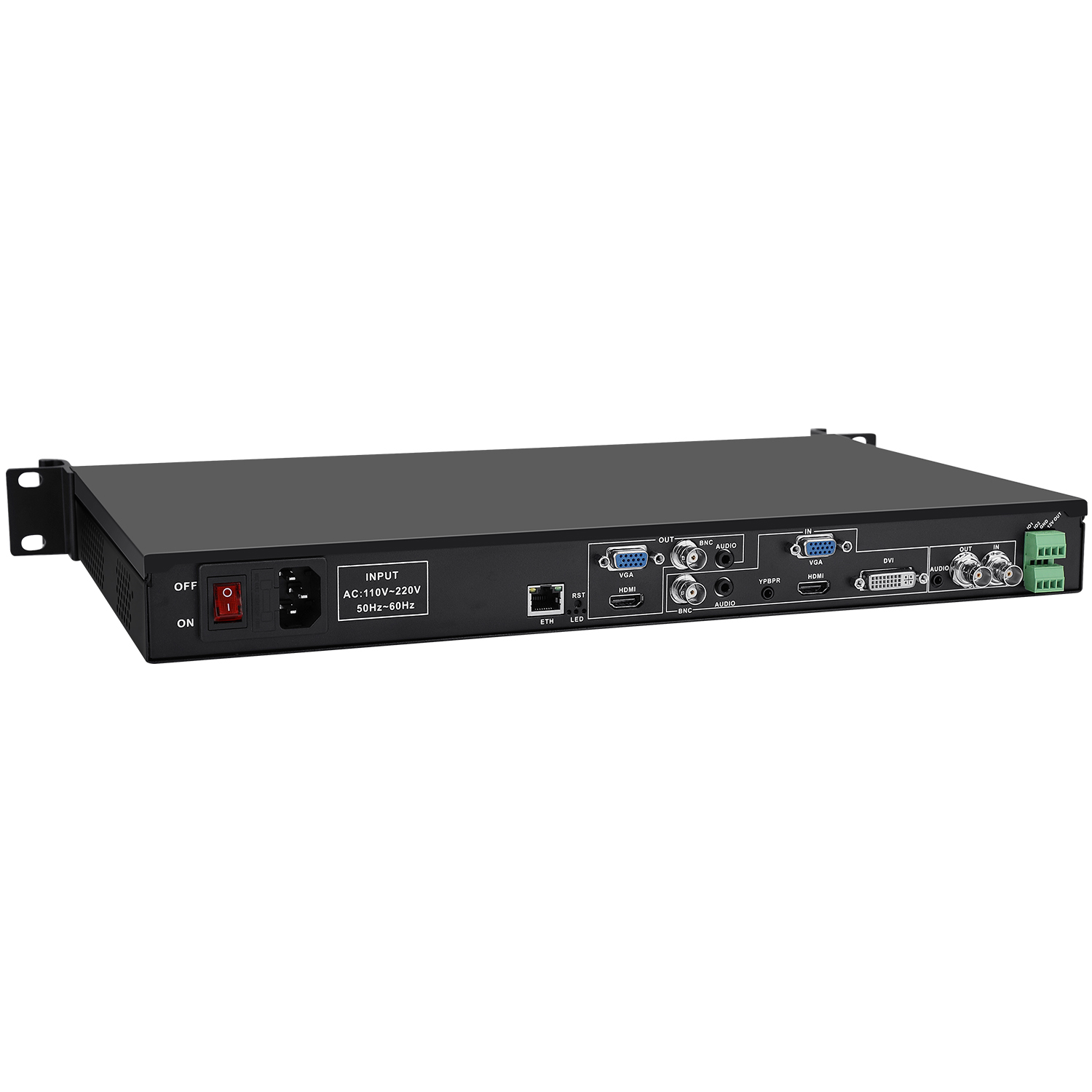

1U Rack H.265 /H.264 3 in 1 Video Encoder /Decoder /Transcoder

Model No.: UAEDT265-1-1U
Input: HDMI(audio bulid-in)+SDI(audio build-in)+VGA+CVBS+YPbPr+DVI
Video Encoding: HEVC /H.265, H.264 /AVC
Audio Encoding: AAC, MP3, MP2, G.711
Output Video: 2 video streams output simultaneously for each channel
Output Audio: Support to switch HDMI/SDI audio or external audio as output audio
Video Resolution: Adjustable, max 1920X1080@60fps input and output
Streaming Protocol: HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, Unitcast etc
Video Bitrate: Adjustable from 16kbit/s to 12mbit/s for each channel
Audio Bitrate: Adjustable from 24000kb/s to 320000kb/s
Control Mode: Web page control, support wide area network remote management
OSD Setting: Support to add logo, text on the displayed video
Customization: Provide logo, function, language, firmware etc customization
General: 490x300x45/mm(Size), 2.93kg(Weight), Aluminum Shell
Description


20220402

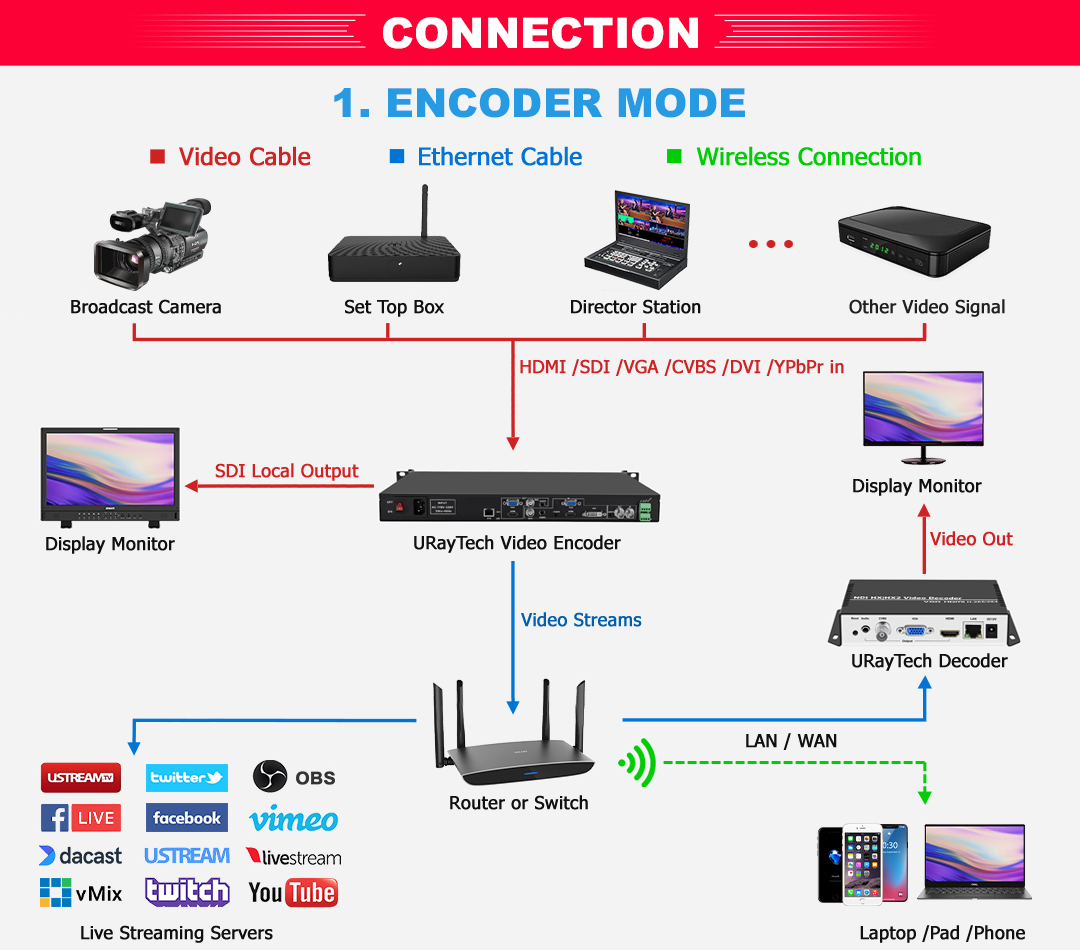

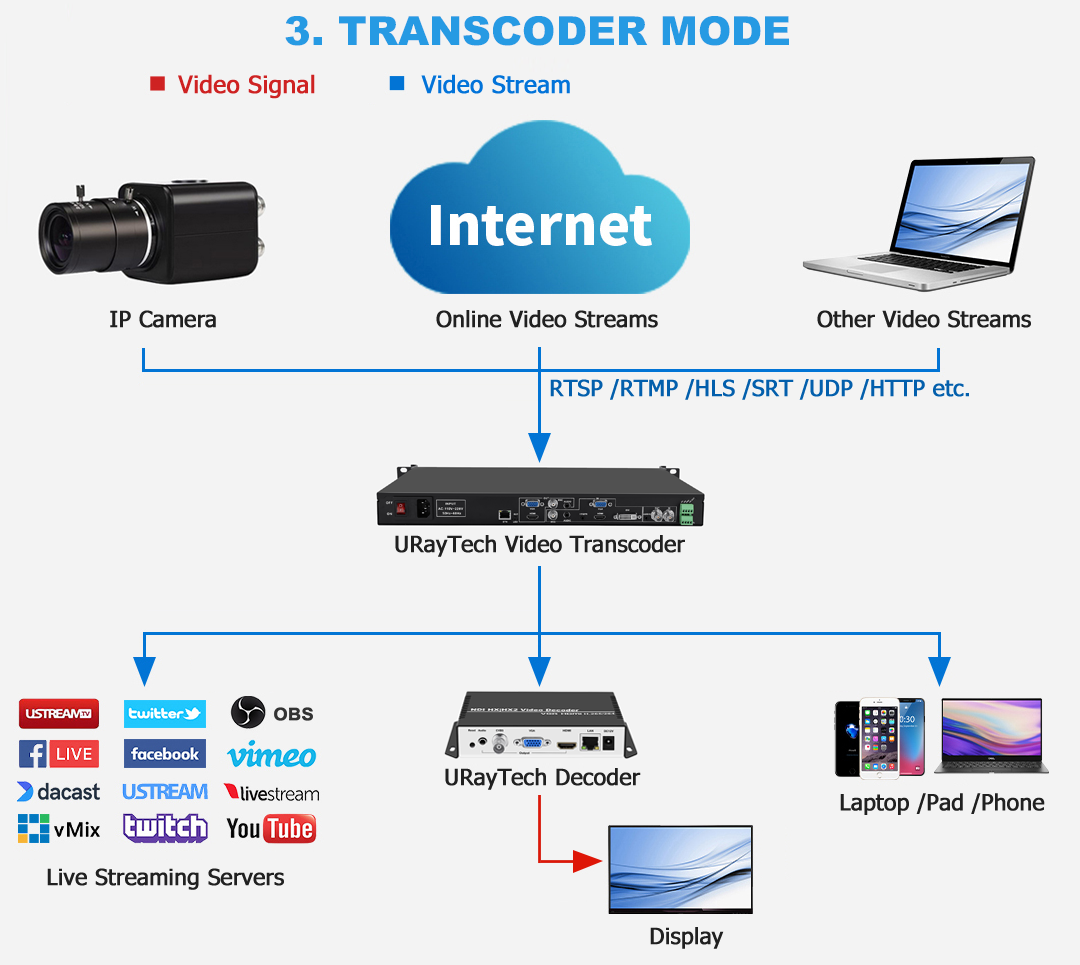

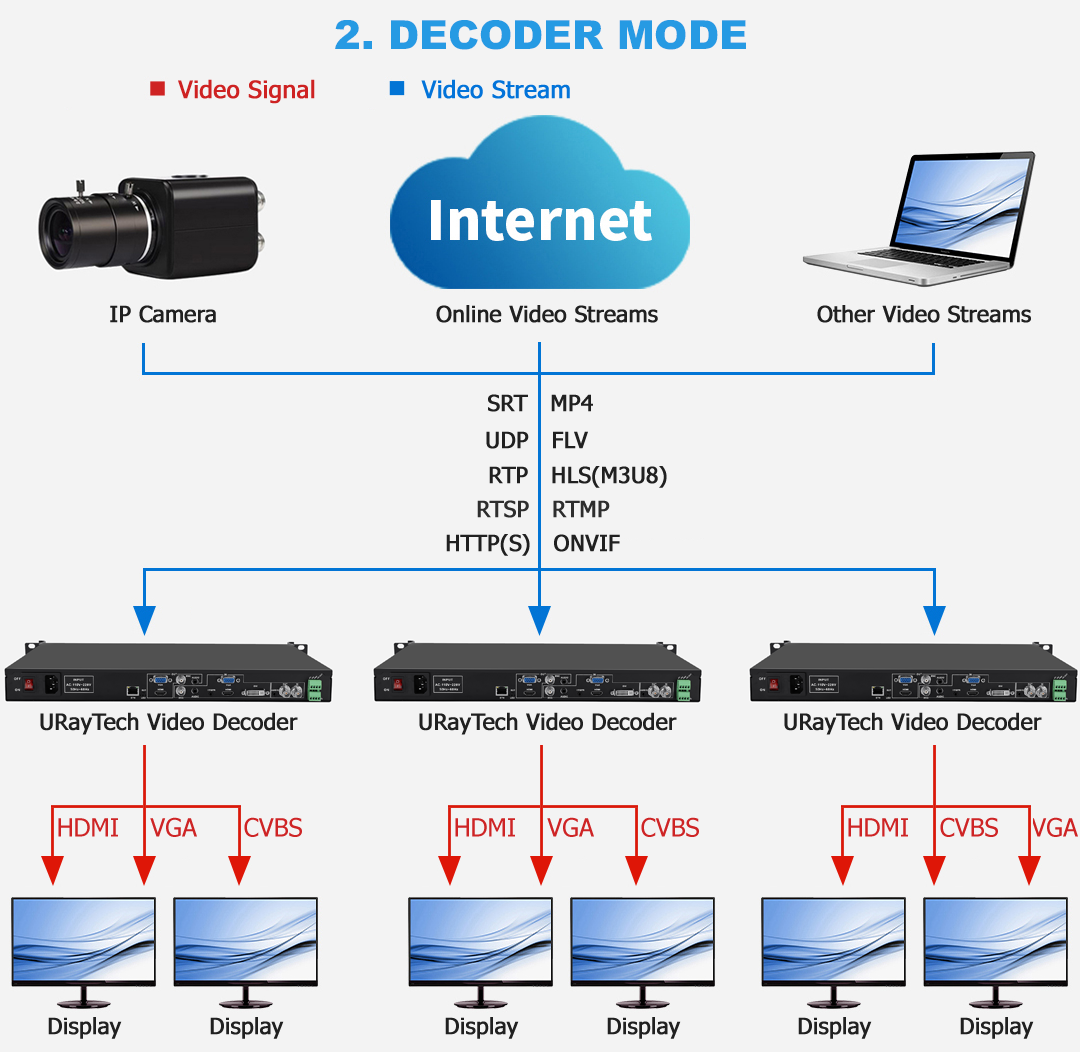

Connection Diagram.jpg




4-control panel.jpg• Access Address(Click to enlarge)

access address.jpg


• Video Parameters (Click to enlarge)

video parameters.jpg


Audio Parameters (Click to enlarge)

audio parameters.jpg


Preview (Click to enlarge)



Network Setting (Click to enlarge)

network setting.jpg


• HDMI Main Stream Setting (Click to enlarge)

HDMI main stream.jpg


• SDI Main Setting(Click to enlarge)

audio setting.jpg


• HDMI Audio Setting(Click to enlarge)

main osd setting.jpg


SDI Audio Setting(Click to enlarge)

color setting.jpg


• Main OSD Setting (Click to enlarge)

image setting.jpg


Sub OSD Setting (Click to enlarge)

RTMP-HLS setting.jpg


• Record Setting (Click to enlarge)

onvif setting.jpg


SDcard File Manage Setting (Click to enlarge)

system setting.jpg


RTMP-HLS Setting (Click to enlarge)

upgrade setting.jpg


Onvif Setting (Click to enlarge)

system setting.jpg


Time Setting (Click to enlarge)

upgrade setting.jpg


FTP Upload Setting (Click to enlarge)

system setting.jpg


System Settings (Click to enlarge)

upgrade setting.jpg


Change Password Setting (Click to enlarge)

system setting.jpg


Upgrade Settings (Click to enlarge)

upgrade setting.jpg


PTZ Setting (Click to enlarge)

system setting.jpg
