Product Details

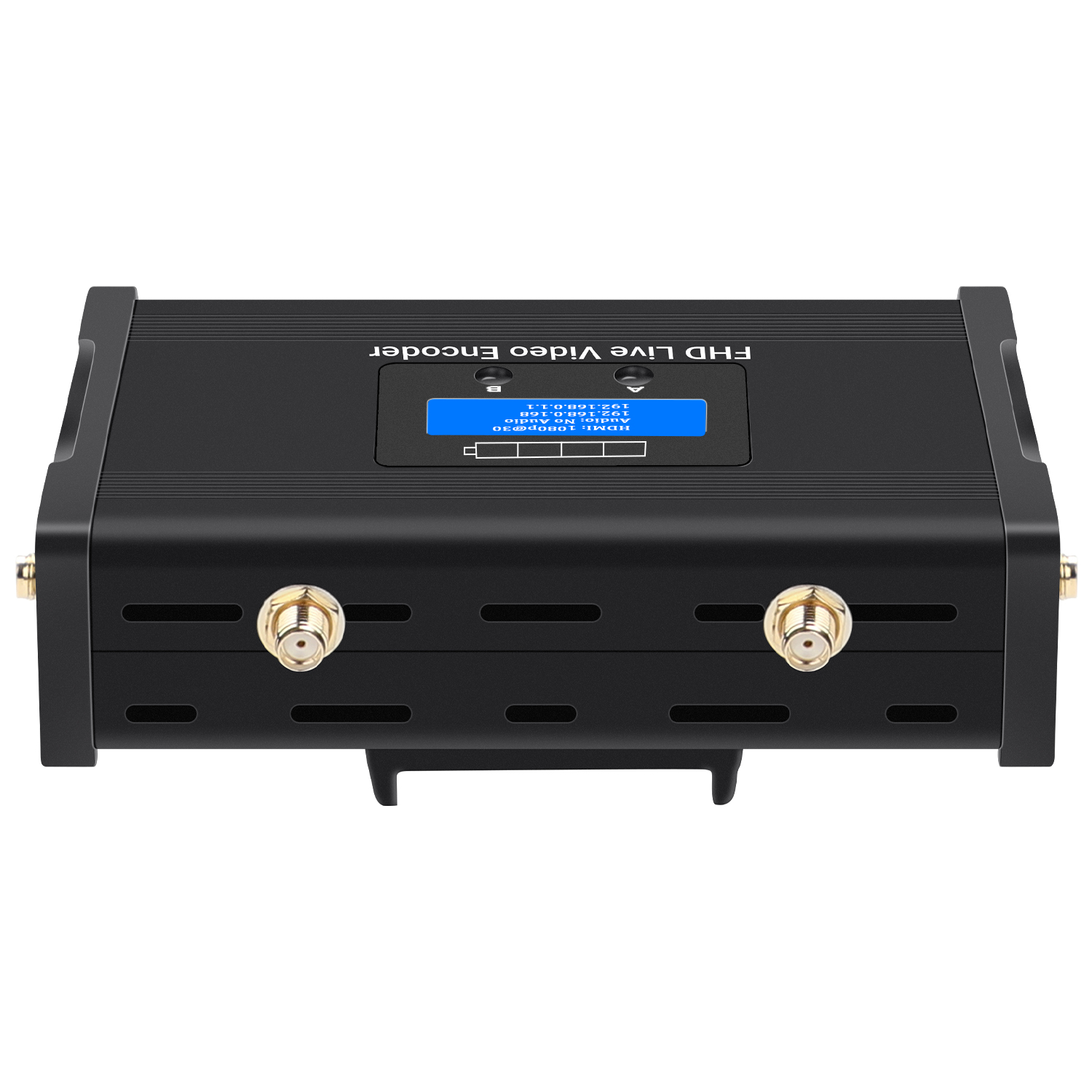

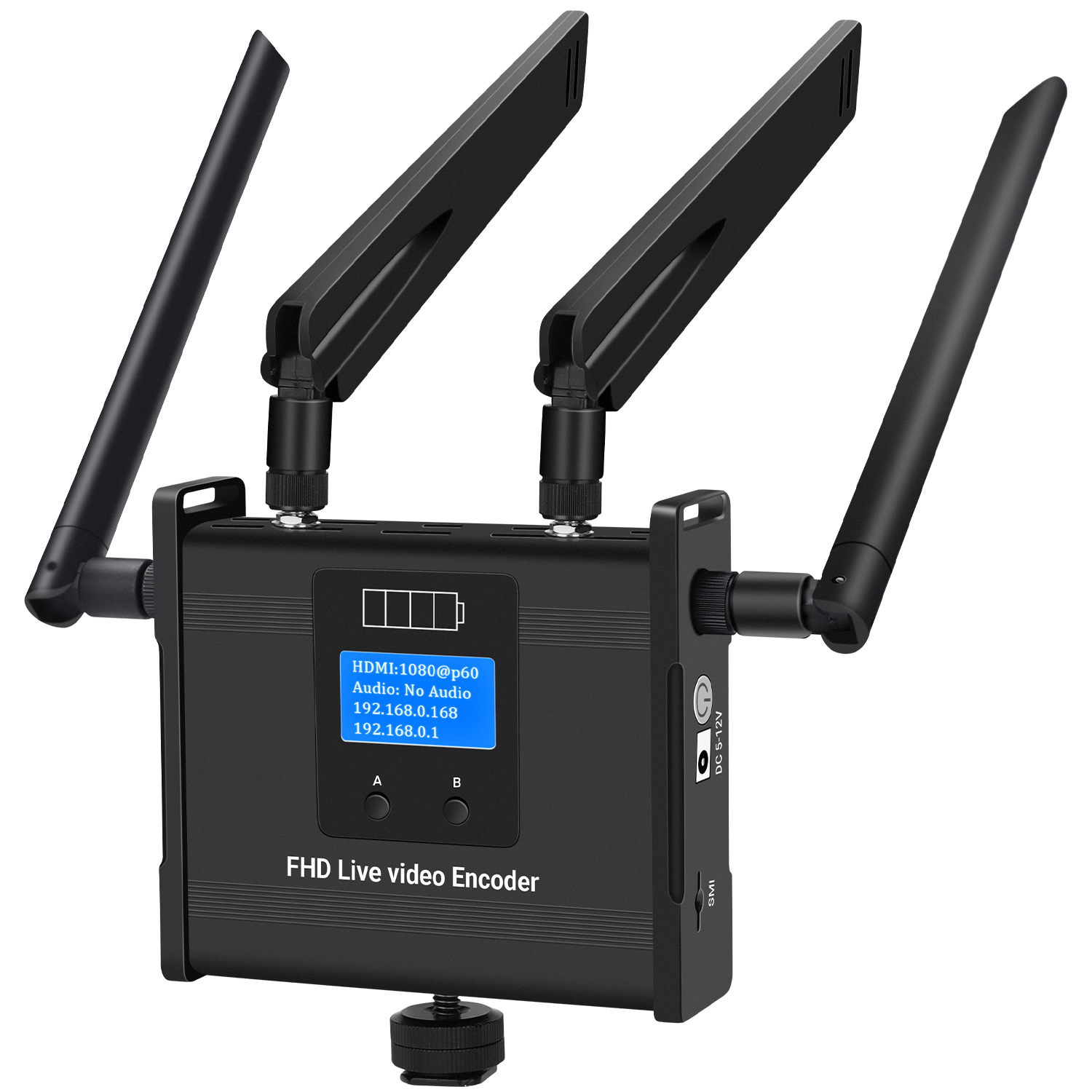

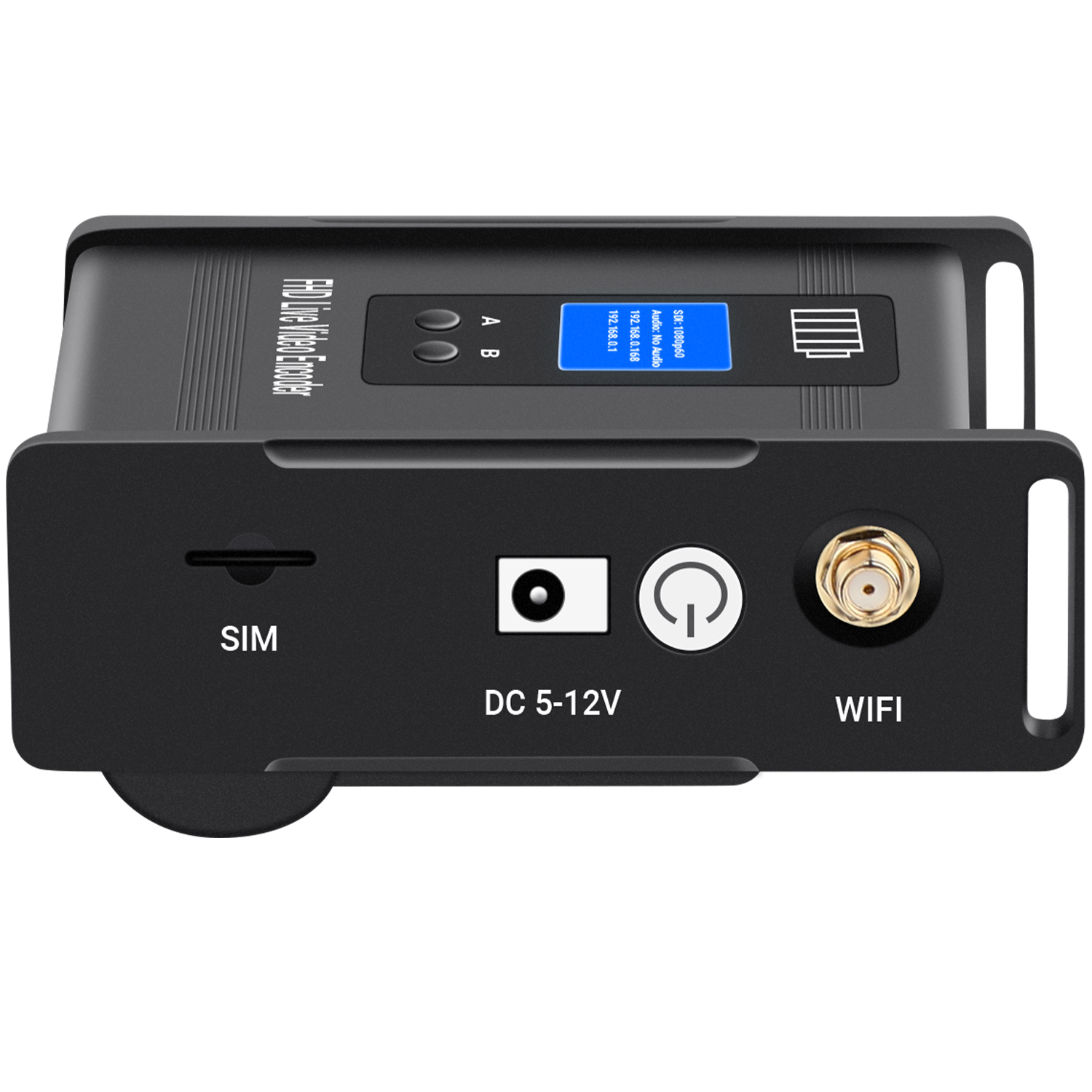

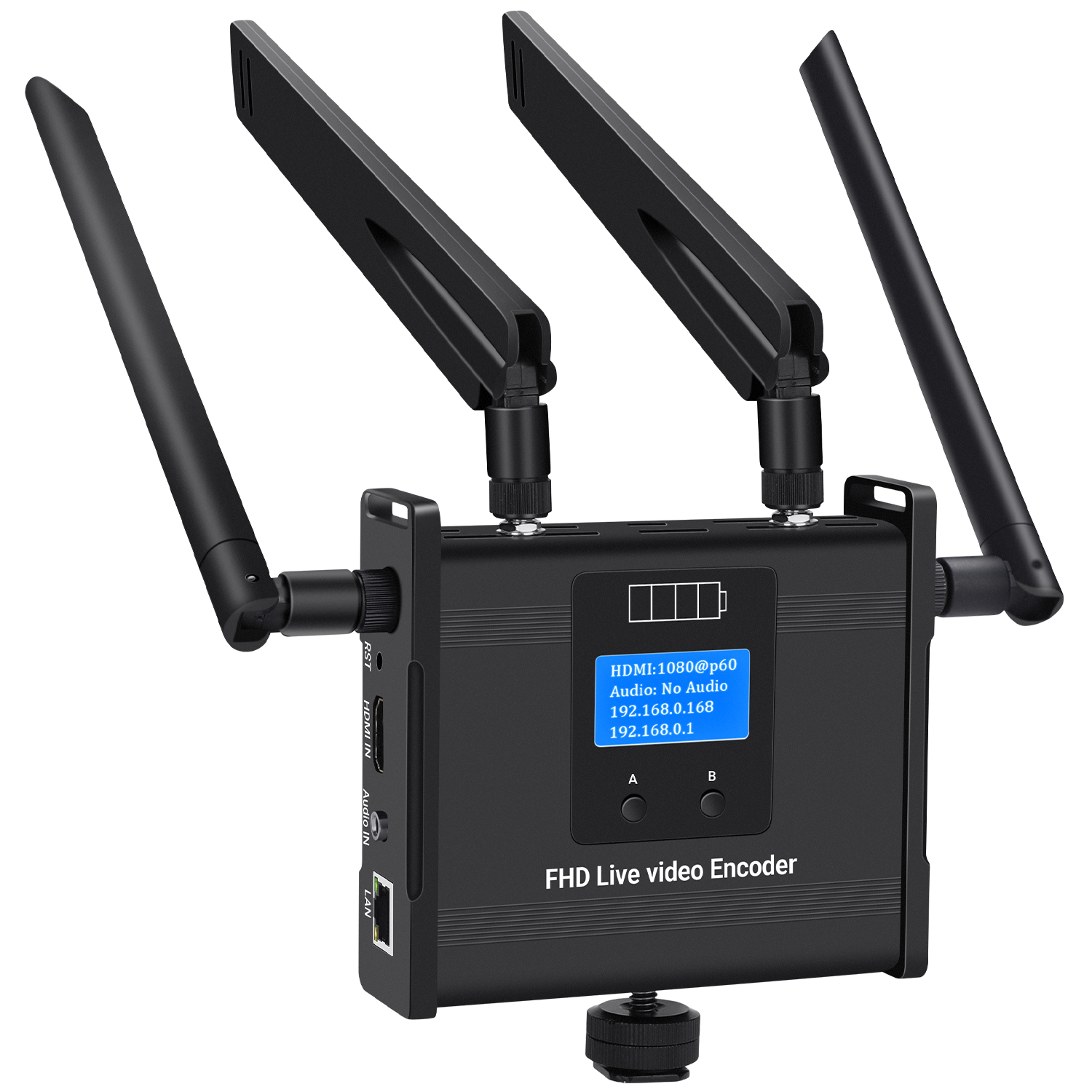

4G HDMI Encoder Support Battery with LCD Display

4G HDMI Encoder Support Battery with LCD Display

Model No.： UHE265-1WBS-4G

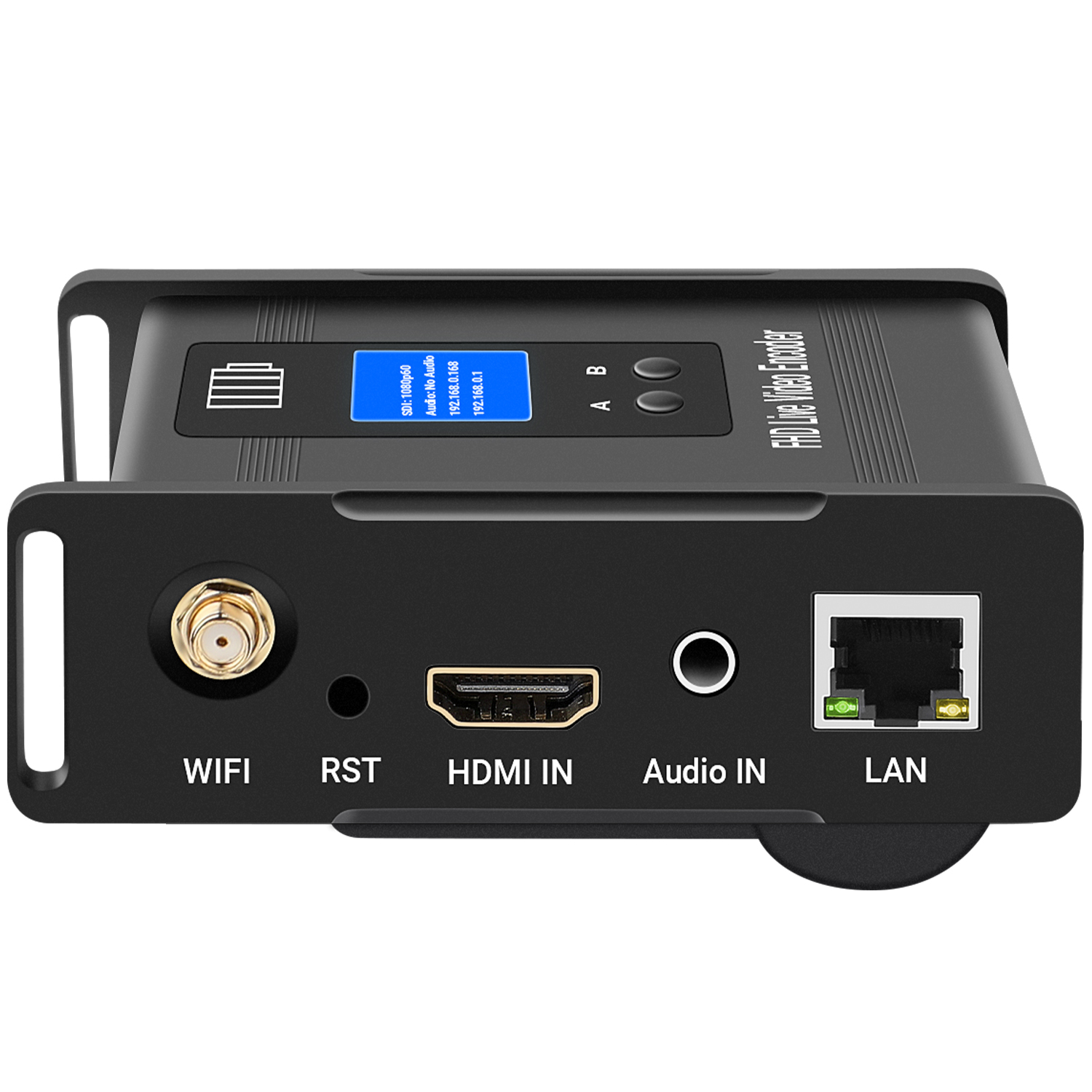

Input： HDMI(audio bulid-in)+external audio(3.5mm jack)
Video Encoding： HEVC /H.265, H.264 /AVC
Audio Encoding： AAC, AAC+, AAC++, MP3, MP2, AC3
Output Video： 2 video streams output simultaneously
Output Audio： Support to switch HDMI audio or external audio as output audio
Video Resolution： Adjustable, max 1920X1080@60fps input and output
Streaming Protocol： HTTP, SRT, RTSP, RTMP(S), HLS, FLV, UDP etc
Control Mode： Web or APP control, support wide area network remote management
OSD Setting： Support to add logo, text, scroll text, time on the displayed video
Customization： Provide logo, function, language, firmware etc customization
Extral Service： Provide SDK /API /CGI for secondary development
General： 117x105x52/mm(Size), 345g(Weight), Aluminum Shell
Transmission： Ethernet Port(1000 BASE-T) or WIFI(2.4G /5G) or 3G /4G

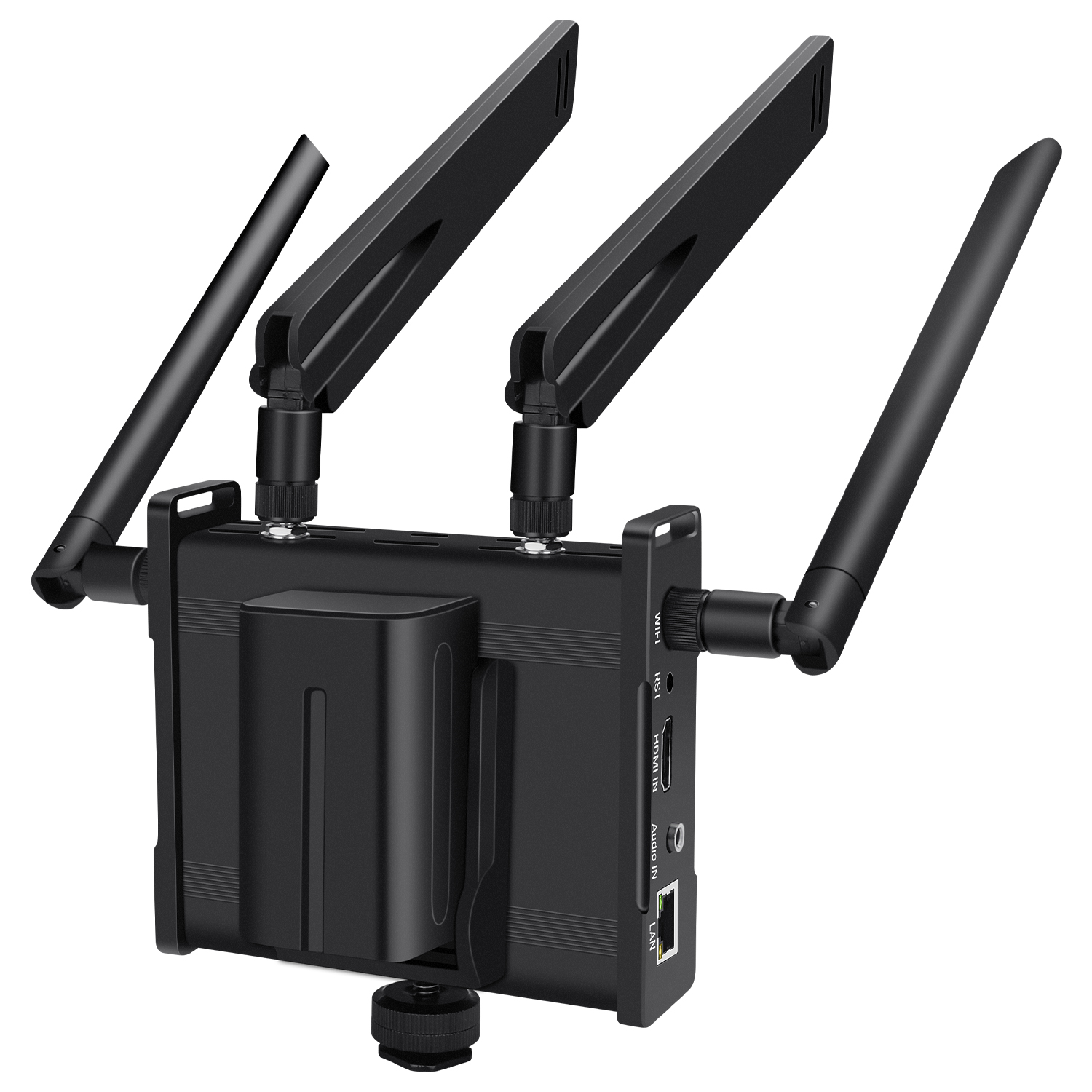

External Battery： Support SONY Battery F550, F750, F950, F970 etc
Description

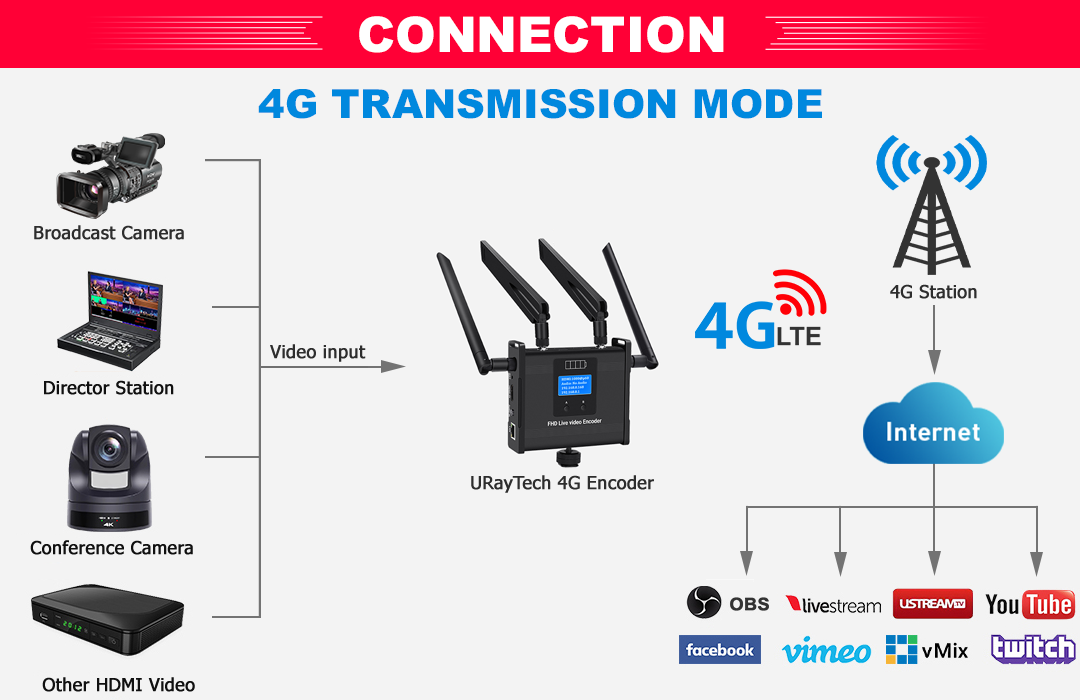

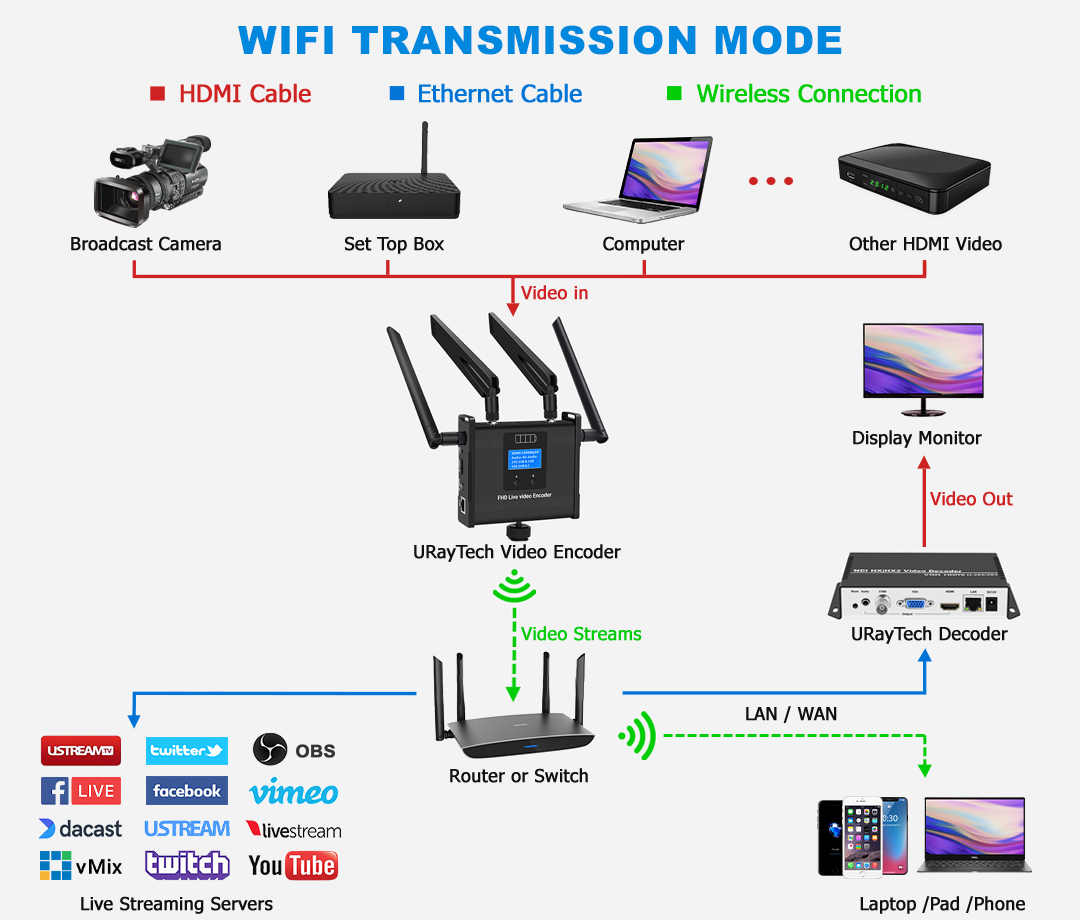

Connection Diagram.jpg

A+天线 4G HDMI.jpg







  • Support HEVC /H.265, H.264 /AVC video encoding

    Support AAC, AAC+, AAC++,MP3, MP2, AC3 audio encoding


  • Support to live streaming on 2 live broadcast platforms simultaneously

    2 streams output for each channel, support different protocol transmission for each stream

  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 1920x1080 input and output

  • Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

    Support HTTP, SRT, RTSP, RTMP(S), HLS, FLV, UDP etc protocol

  • Support on screen display settings, such as logo /text /scroll text /time etc

    Support customize the no signal image when there is no input signal

  • Support both HDMI audio and external audio input simultaneously

    Support to switch HDMI audio or external audio as output audio at will

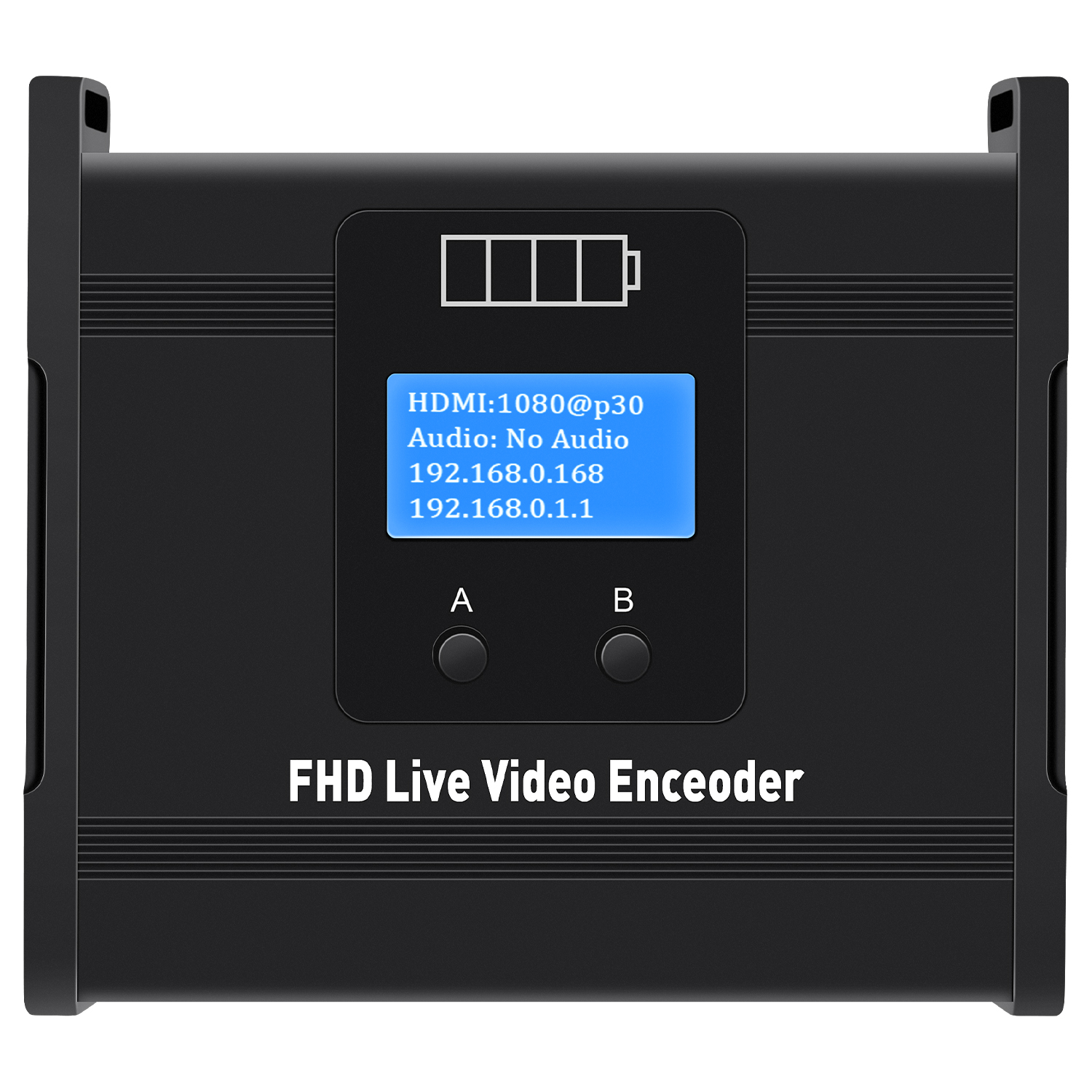

  • Equipped with LCD display, automatically obtain IP address and display

    Button A to switch status pages, button B to start /stop the stream

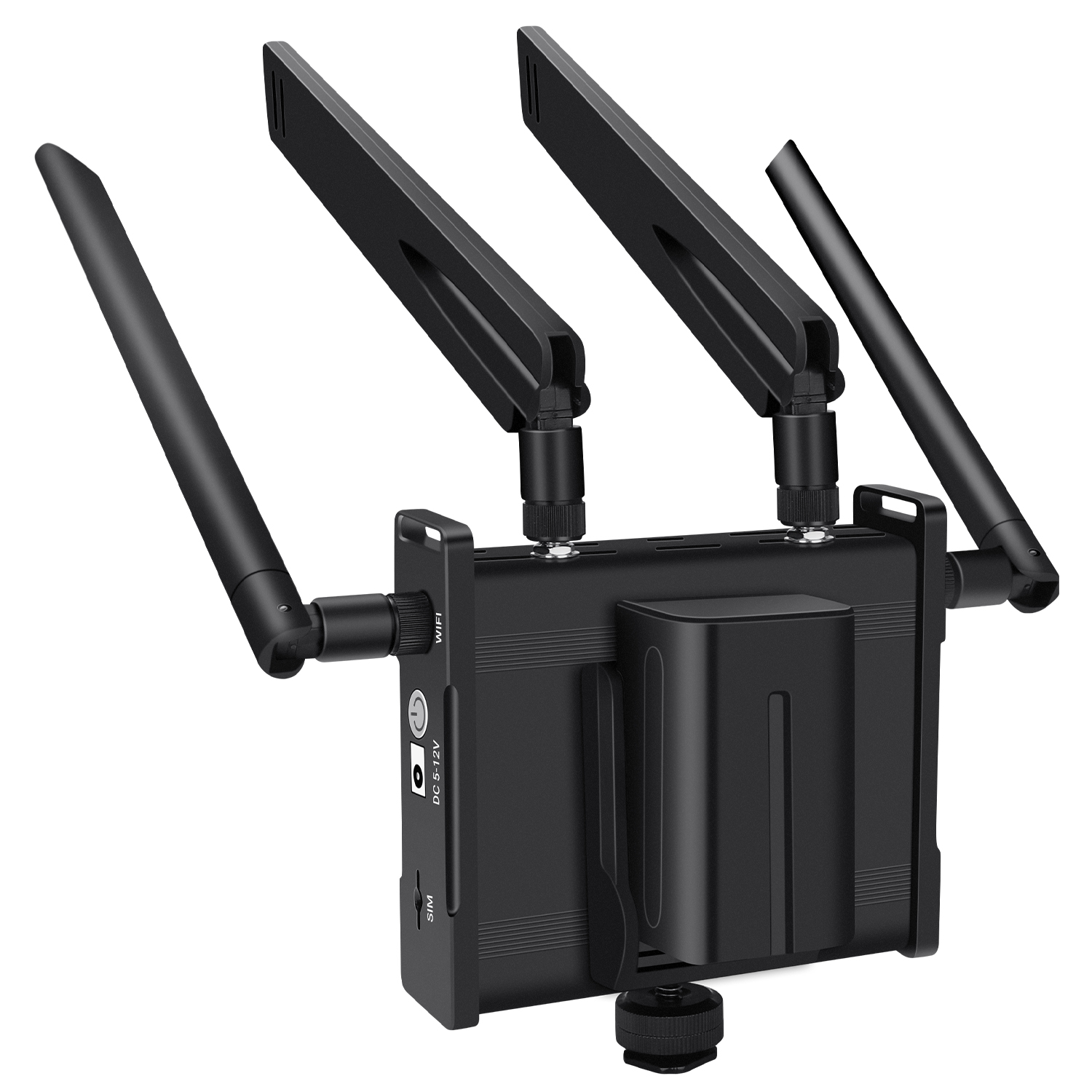

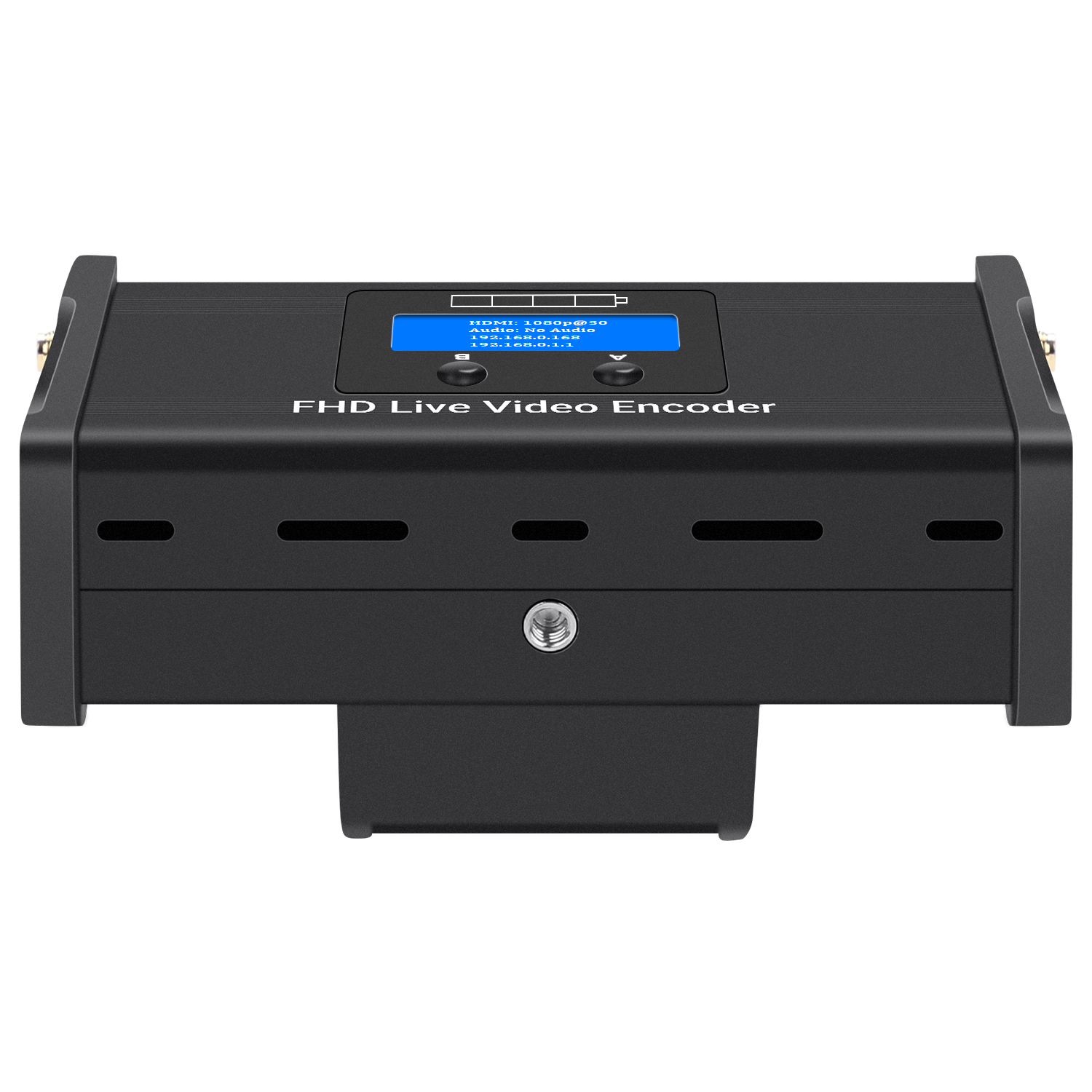

  • Support hot shoe mount at camera

    Support external SONY battery F550, F750, F970 for selection


  • Support web page or APP control dashboard

    Support wide area network remote management(via port fowarding)


  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization





Model No.

UHE265-1WBS-4G

Video

Input Video

1XHDMI, support HDCP

Input Resolution

Max 1920x1080 resolution, max 60fps frame rate

Video Encoding

HEVC /H.265, MPEG-4 /H.264 AVC

Encoding Levels

H.265 main profile; H.264 high /main /baseline profile

Video Bitrate

Adjustable From 32kbit /s to 32mbit /s

Bitrate Control

CBR, VBR, Strong CBR

Output Resolution

It is adjustable, max 1920x1080P /60fps

Video Pre-processing

De-interlacing, noise reducing, sharpening etc

Audio

Input Audio

HDMI embedded audio or external stereo audio(3.5mm)

Output Audio

Support to switch HDMI audio or external audio at will

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 48000~320000

Audio Encoding

AAC, AAC+, AAC++, MP3, MP2, AC3

Network

Interface

Ethernet port(1000 BASE-T) or WIFI(2.4G /5G) or 3G /4G

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS, FLV, UDP etc

Control Panel

Webpage UI(language customizable) Or APP

Firmware Update

Enable by uploading files to dashboard and upgrade

General

Dimension (W* L* H)

117 x 105 x 52 /mm

Net Weight

345g

Battery

SONY Battery F550, F750, F970 for selection

Input Voltage

DC 12V /2A

Hot Shoe

Yes, Included.



4-control panel.jpg

• Status Display (Click to enlarge)



• Stream Setting (Click to enlarge)

stream setting.jpg


• Video Setting (Click to enlarge)

video setting.jpg


• Audio Setting (Click to enlarge)audio setting.jpg


• Advanced Setting (Click to enlarge)advanced.jpg


• OSD Setting (Click to enlarge)

osd setting.jpg


• LOGO Upload (Click to enlarge)logo.jpg


• Network Setting (Click to enlarge)network setting.jpg


• WIFI Setting (Click to enlarge)wifi setting.jpg


• 4G Setting (Click to enlarge)4G.jpg


• Password Setting (Click to enlarge)password.jpg


• Upgrade (Click to enlarge)upgrade.jpg


• Reboot (Click to enlarge)reboot.jpg


• Schedule Reboot (Click to enlarge)schedule restart.jpg


• Factory Reset (Click to enlarge)reset.jpg



5-app control.jpg
