Product Details

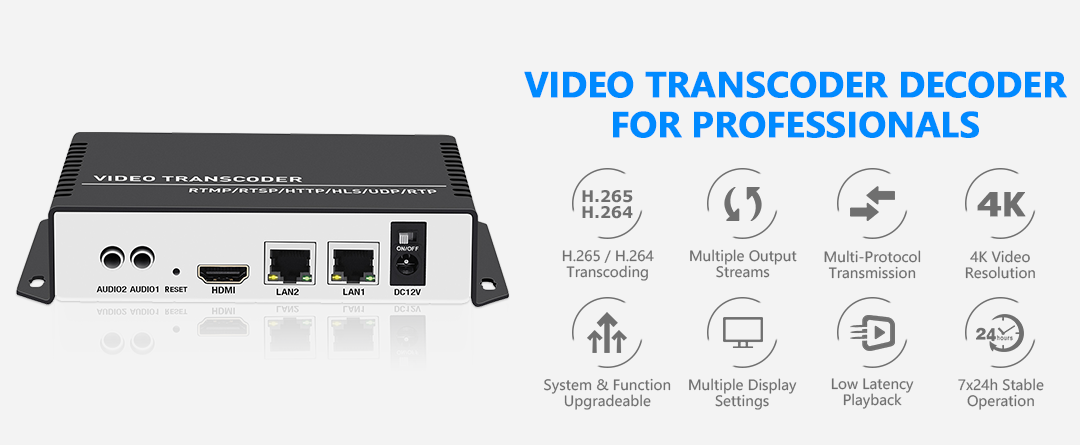

4K 8 Channels Video Streaming Transcoder Decoder

4K 8 Channels Video Streaming Transcoder Decoder

Model： UVT265-8-4K
Input： Video stream address (Max 8 channels URLs input simultaneously)
Video Encoding： H.265, H.264, MJPEG
Audio Encoding： AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Output Video： Dual video streams output simultaneously for each channel
Output Audio： Support switching input stream audio or line-in audio as output audio
Video Resolution： Max 3840x2160 input and output, output resolution is adjustable
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, UDP, RTP, FLV, MP4, etc.
Video Bitrate： Adjustable from 32kbit/s to 32mbit/s, (Strong)CBR, VBR control modes
Audio Bitrate： Adjustable from 48000kb/s to 256000kb/s
Control Mode： Web、CGI command, support wide area network remote control
OSD Setting： Support adding logo, text, scroll text, time on the transcoded video
Customization： Provide many kinds of ODM(Shell, Logo, Function, Language, etc.)
Service： Free lifetime warranty, provide secondary development documents
General： 170x105x30/mm(Size), 300g(Weight), Aluminum Shell, Driver-free
Description

UVT265-8-4K

UVT265-8-4K

UVT265-8-4K


  • Support many types of video streaming address input and transcoding

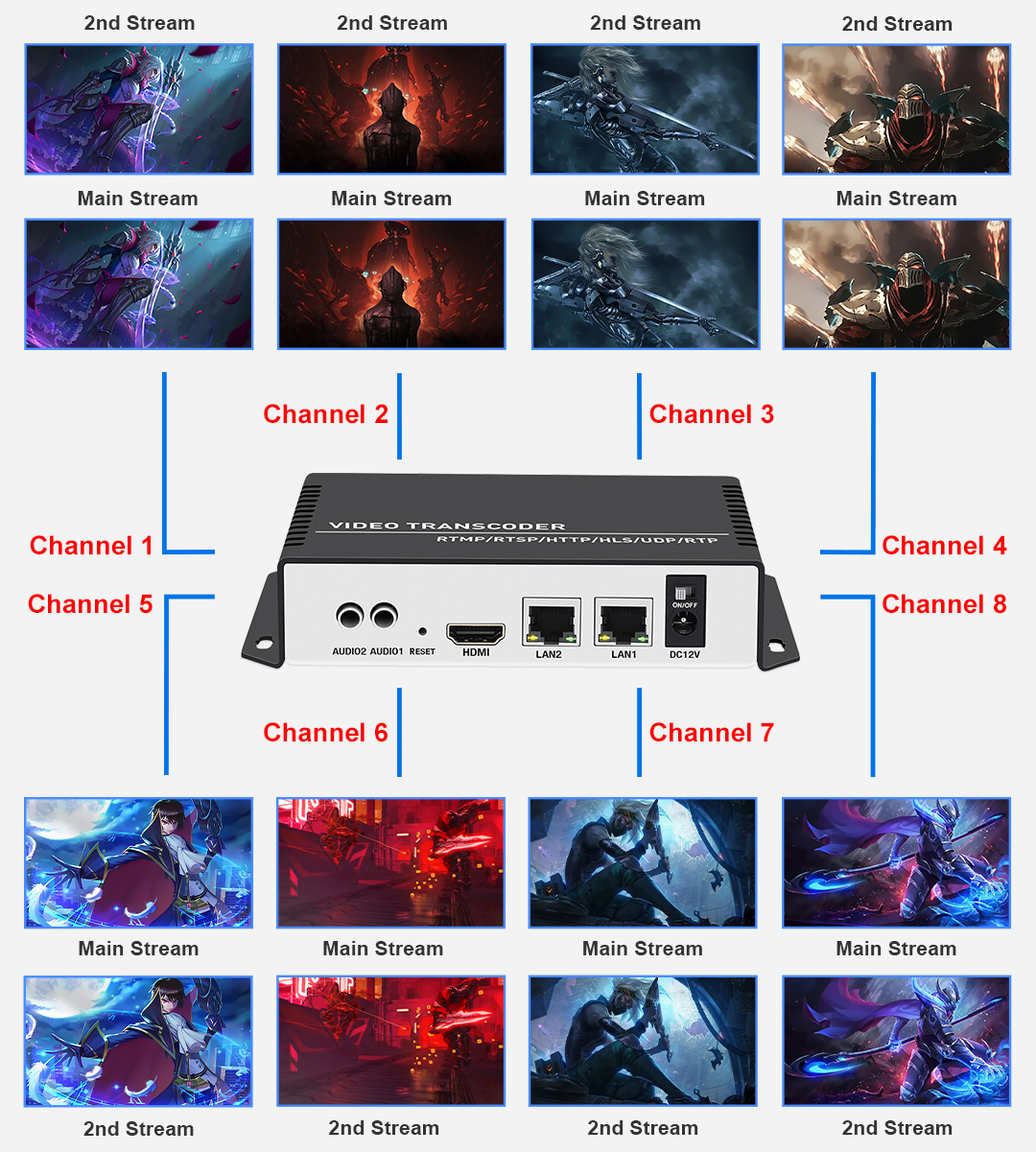

  • Support simultaneously input 8 channels video streaming URLs

UVT265-8-4K

  • Dual video streams output simultaneously for each channel

  • Support pushing the transcoded video stream to online platforms for live broadcast

UVT265-8-4K

  • Compatible with most live broadcast platforms and software

  • Support different protocol transmission for each video stream

通用

  • Support output video resolution setting, max 3840x2160 input and output

  • Support output video frame rate setting, max 60fps input and output(Max 30fps when 4K)

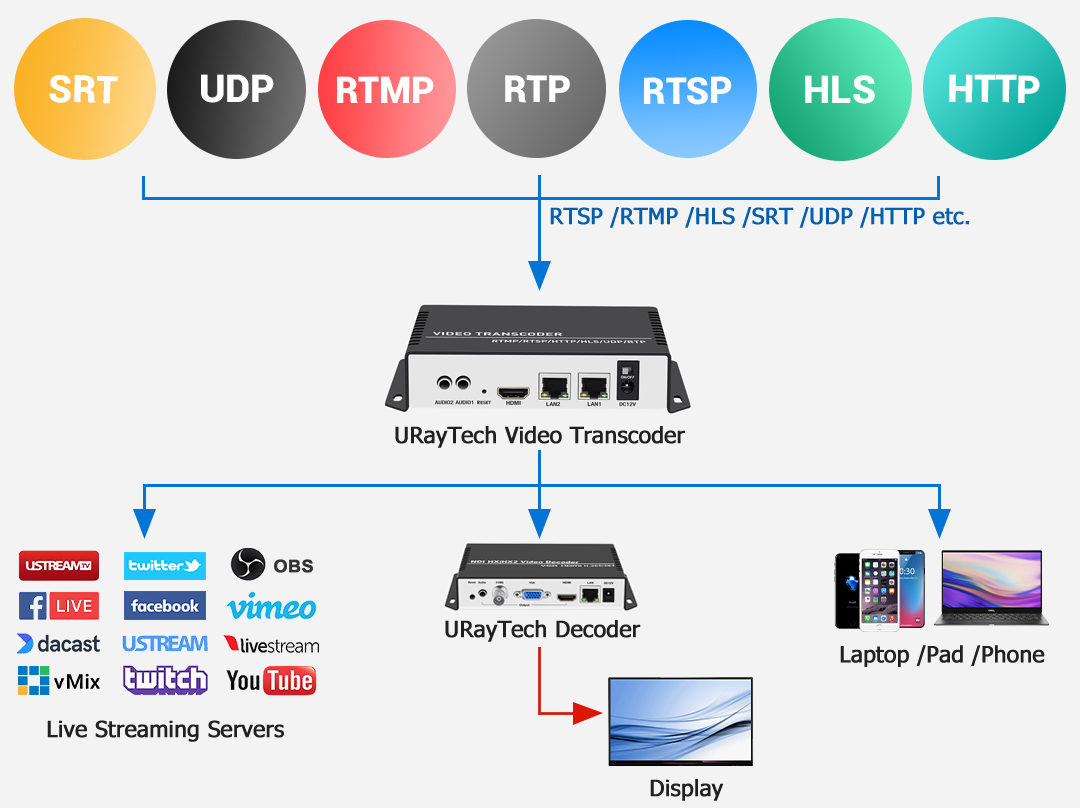

  • Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), Multicast(UDP /RTP), FLV, ONVIF, MP4, etc.

  • Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty



  • Support multiple on screen display settings, such as logo /text /scroll text /time, etc.

  • Support customizing the display image or logo when there is no input signal


  • Support resolution, latency, brightness, contrast, saturation, hue, video settings

  • Web or CGI control mode, support wide area network remote management

UHCDT265-1-4K

  • Support logo printing /language /solution /function /system and other customizations

  • Provide lifetime free warranty service, and SDK /API /CGI files for secondary development



Model No.

UVT265-8-4K

Video

Input Video

Video stream address (Max 8 channels URLs input simultaneously)

Video Transcoding

H.265, H.264, MJPEG

Bitrate Control

HDMI video and video streams output simultaneously

Video Resolution

Max 3840x2160 output and output, the output resolution is adjustable

Frame Rate

Max 60fps for 1920x1080 or lower resolution, max 30fps for 3840x2160 resolution

Audio

Audio Transcoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Output Audio

Support switching input stream audio or line-in audio(3.5mm jack) as output audio at will

Network

Interface

2 x Ethernet ports(Gigabit)

Decoded Protocol

SRT, HTTP(S), UDP, RTP, RTSP, RTMP(S), HLS(M3U8), ONVIF, FLV, Unitcast, etc.

Transcoded Protocol

SRT, HTTP, Multicast(UDP, RTP), RTSP, RTMP(S), HLS(M3U8), FLV, Unitcast, etc.

System Update

Uploading firmware to dashboard and upgrade

General

Dimension (L x W x H)

120 x 105 x 30 /mm

Net Weight

300g

Power

DC 12V /2A

Material

Aluminum Shell


• Status Display（Click to enlarge）


• Input Setting（Click to enlarge）

lnput setting.jpg

• (Main) Stream Setting（Click to enlarge）

main stream setting.jpg

• OSD Setting（Click to enlarge）

osd setting.jpg

• LOGO Upload（Click to enlarge）


• Audio Setting（Click to enlarge）

audio setting.jpg

• Network Setting（Click to enlarge）

network setting.jpg

• Advanced Setting（Click to enlarge）


• Director Setting（Click to enlarge）


• Password Setting（Click to enlarge）


• Upgrade（Click to enlarge）


• Reset（Click to enlarge）


• Reboot（Click to enlarge）


• Schedule Reboot（Click to enlarge）

schebule restart.jpg
