Product Details

- 4K H.265 /H.264 HDMI+SDI Video Encoder WIFI

Model No.: UHSE265-1WS-4K
Input: HDMI(audio bulid-in)+SDI(audio bulid-in)+external audio(3.5mm jack)
Video Encoding: HEVC /H.265, H.264 /AVC, MJPEG
Audio Encoding: AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Output Video: 4 video streams output simultaneously for each port
Output Audio: HDMI audio, SDI audio, external audio(3.5mm jack)
Video Resolution: Max 3840X2160@30fps for HDMI, max 1920X1080@60fps for SDI
Streaming Protocol: HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, FLV, Unitcast etc
Video Bitrate: Adjustable from 32kbit/s to 32mbit/s(CBR, VBR, Strong CBR))
Audio Bitrate: Adjustable from 48000kb/s to 320000kb/s
Control Mode: Web page control, support wide area network remote management
OSD Setting: Support to add logo, text, scroll text, time on the displayed video
Customization: Provide logo, function, language, firmware etc customization
Service: Provide SDK /API /CGI for secondary development
General: 183x121x39/mm(Size), 465g(Weight), Aluminum Shell
Description

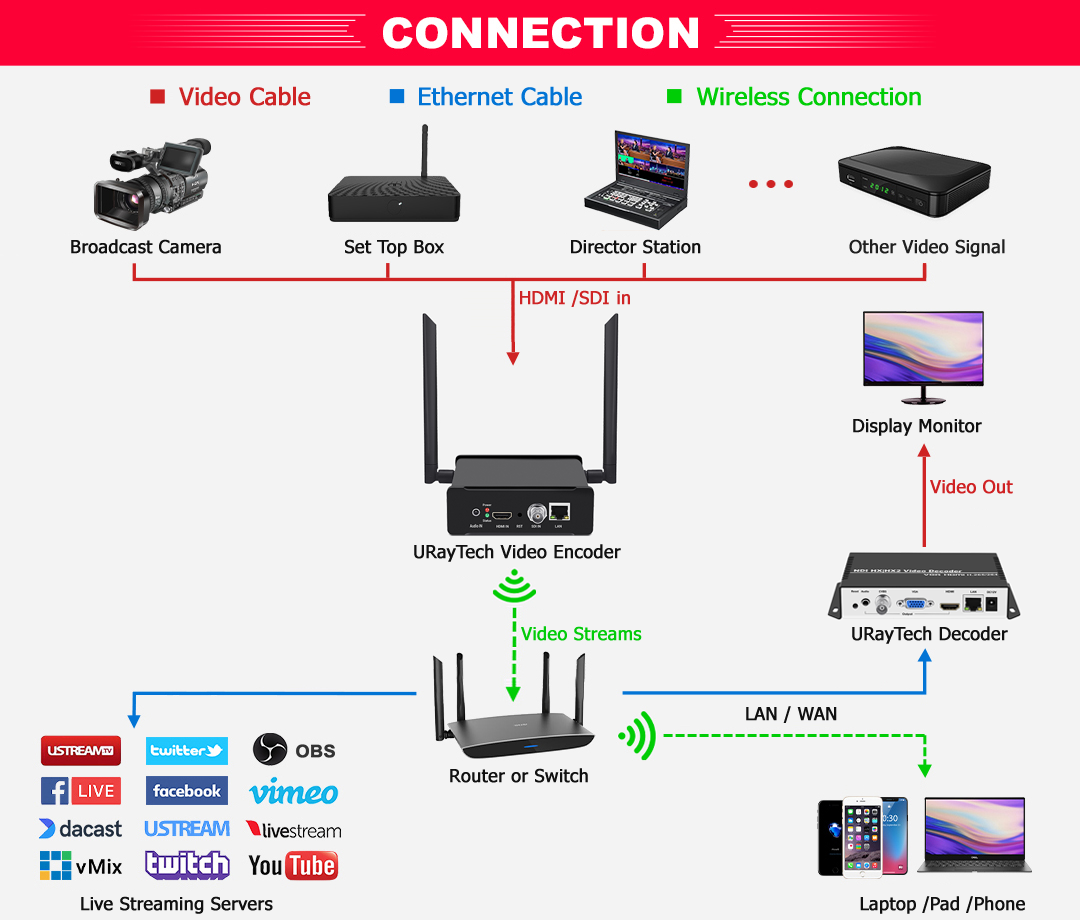

Connection Diagram.jpg





  • Support HEVC /H.265, H.264 /AVC video encoding

    Support AAC, AAC+, AAC++,MP3, MP2, AC3 audio encoding


  • Support to live streaming on 4 live broadcast platforms simultaneously

    4 streams output for each channel, support different protocol transmission for each stream

  • Support max 1920x1080@60fps input and output for SDI port

    Support max 3840x2160@30fps input and output for HDMI port

  • Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

    Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol

  • Support on screen display settings, such as logo /text /scroll text /time etc

    Support customize the no signal image when there is no input signal

  • Support HDMI audio and SDI audio and external audio input simultaneously

    Support to switch HDMI audio or SDI audio or external audio as output audio

  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization




Model No.

UHSE265-1WS-4K

Video

Input Video

HDMI(audio bulid-in)+SDI(audio bulid-in)+external audio(3.5mm jack)

Input Resolution

Max 3840X2160@30fps for HDMI, max 1920X1080@60fps for SDI

Video Encoding

HEVC /H.265, MPEG-4 /H.264 AVC, MJPEG

Encoding Levels

H,265 main profile; H.264 high /main /baseline profile

Video Bitrate

Adjustable From 32kbit /s to 32mbit /s

Bitrate Control

CBR, VBR, Strong CBR

Output Resolution

It is adjustable, Max 3840X2160@30fps for HDMI, max 1920X1080@60fps for SDI

Video Pre-processing

De-interlacing, noise reducing, sharpening etc

Audio

Input Audio

HDMI audio, SDI audio, external audio(3.5mm jack)

Output Audio

HDMI audio, SDI audio, external audio(3.5mm jack)

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 48000~320000

Audio Encoding

AAC, AAC+, AAC++, MP3, MP2, AC3

Network

Interface

Ethernet port(1000 BASE-T) or WIFI(2.4G /5G)

Streaming Protocol

HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, FLV, Unitcast etc

Control Panel

Webpage UI(language customizable)

Firmware Update

Enable by uploading firmware to dashboard and upgrade

General

Dimension (W* L* H)

183 x 121 x 39 mm

Net Weight

465 g

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

DC 12V /2A

Material

Aluminum Shell



 Status Display (Click to enlarge)



Stream Setting (Click to enlarge)main stream setting.jpg


OSD Setting (Click to enlarge)osd setting.jpg


LOGO Upload (Click to enlarge)logo.jpg


Audio Setting (Click to enlarge)audio setting.jpg


Network Setting (Click to enlarge)network setting.jpg


Advanced Setting(Click to enlarge)advanced.jpg


Password Setting (Click to enlarge)password.jpg


Upgrade (Click to enlarge)upgrade.jpg


Reboot (Click to enlarge)reboot.jpg


Schedule Reboot (Click to enlarge)schedule restart.jpg


Factory Reset (Click to enlarge)reset.jpg
