Product Details

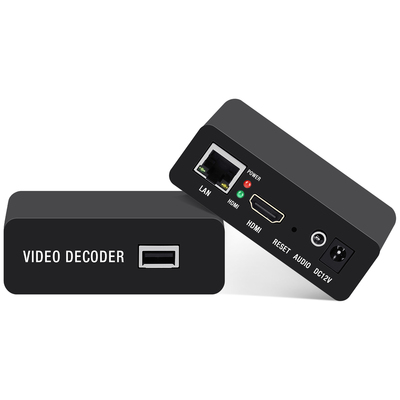

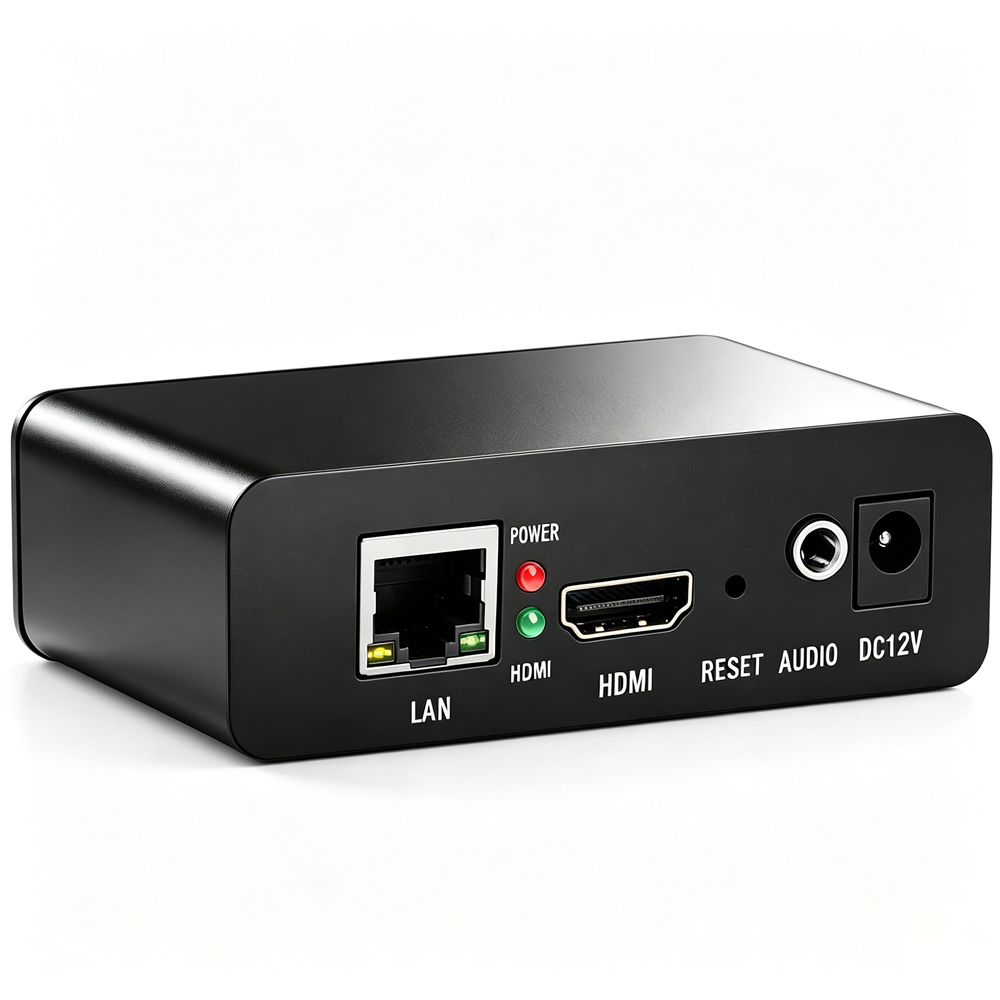

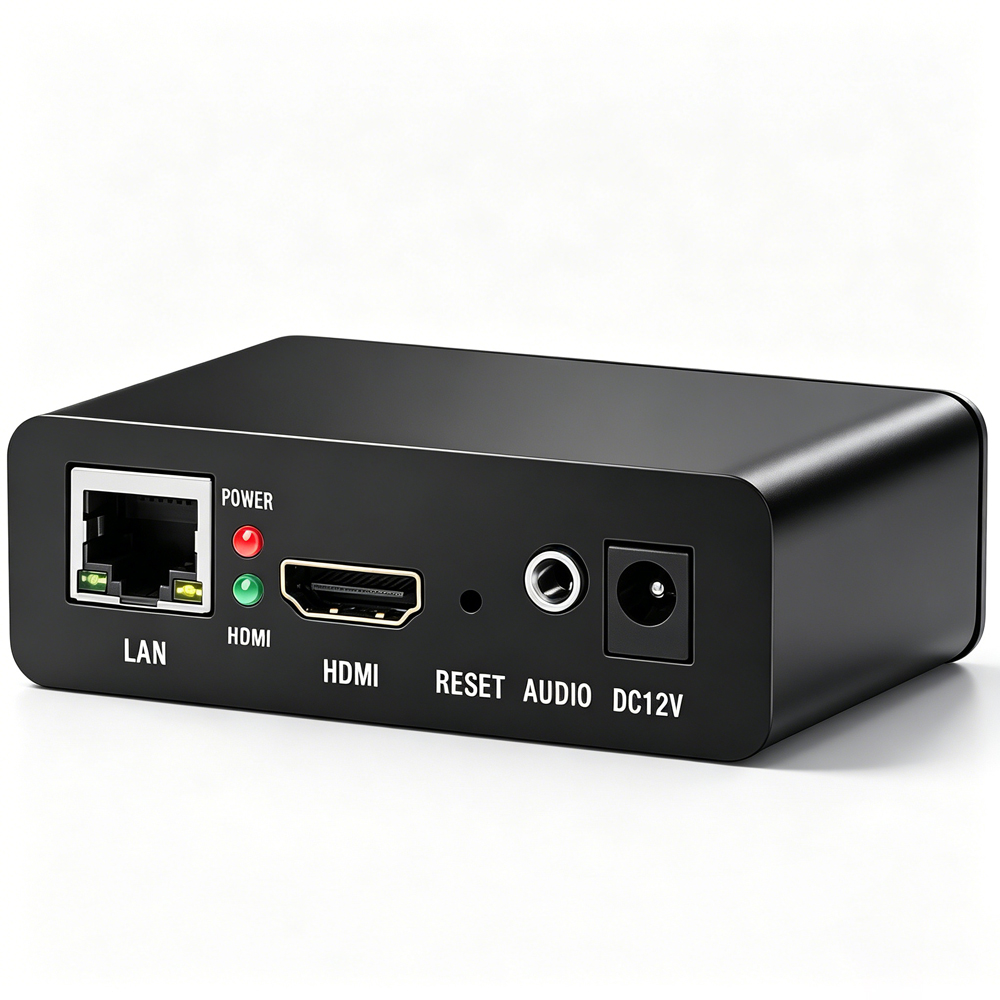

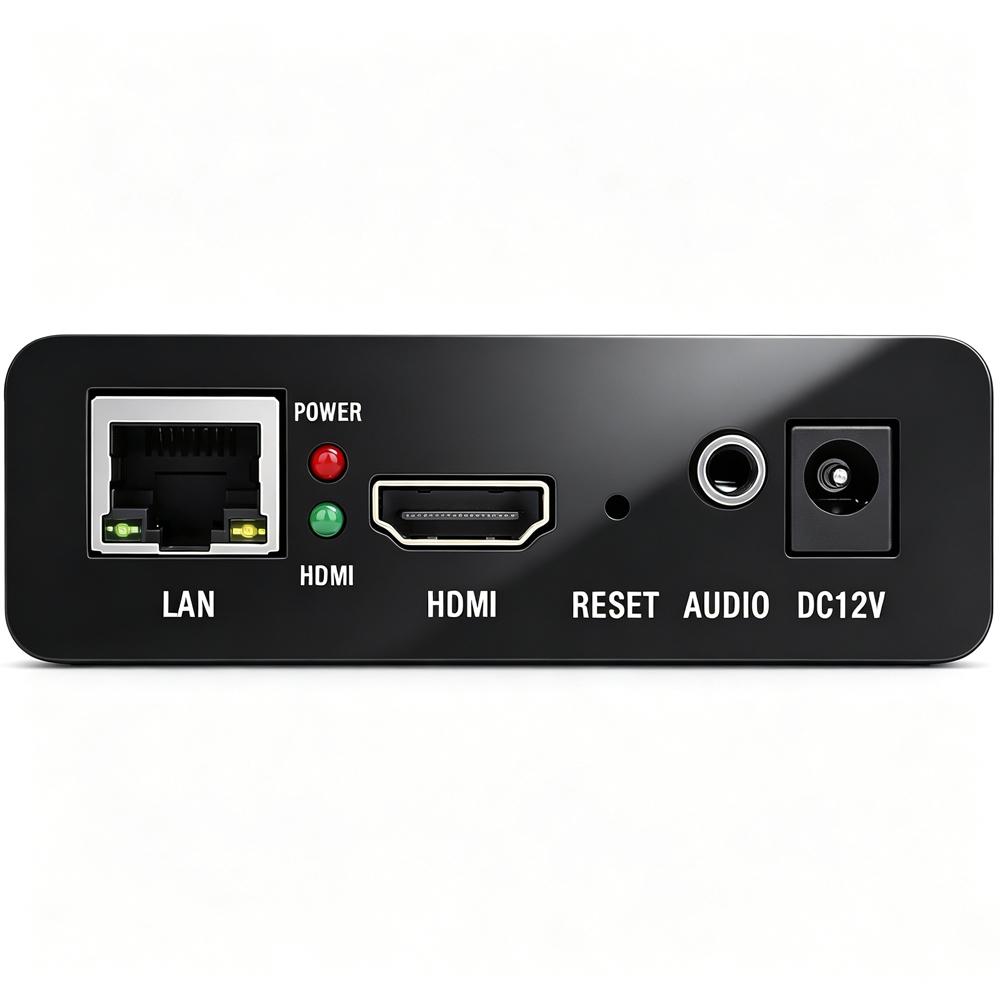

Mini Video Streaming Decoder with HDMI Output

Mini Video Streaming Decoder with HDMI Output

Model： UHD265-1-mini
Input： Video stream address (Max 4 URLs input and decode simultaneously)

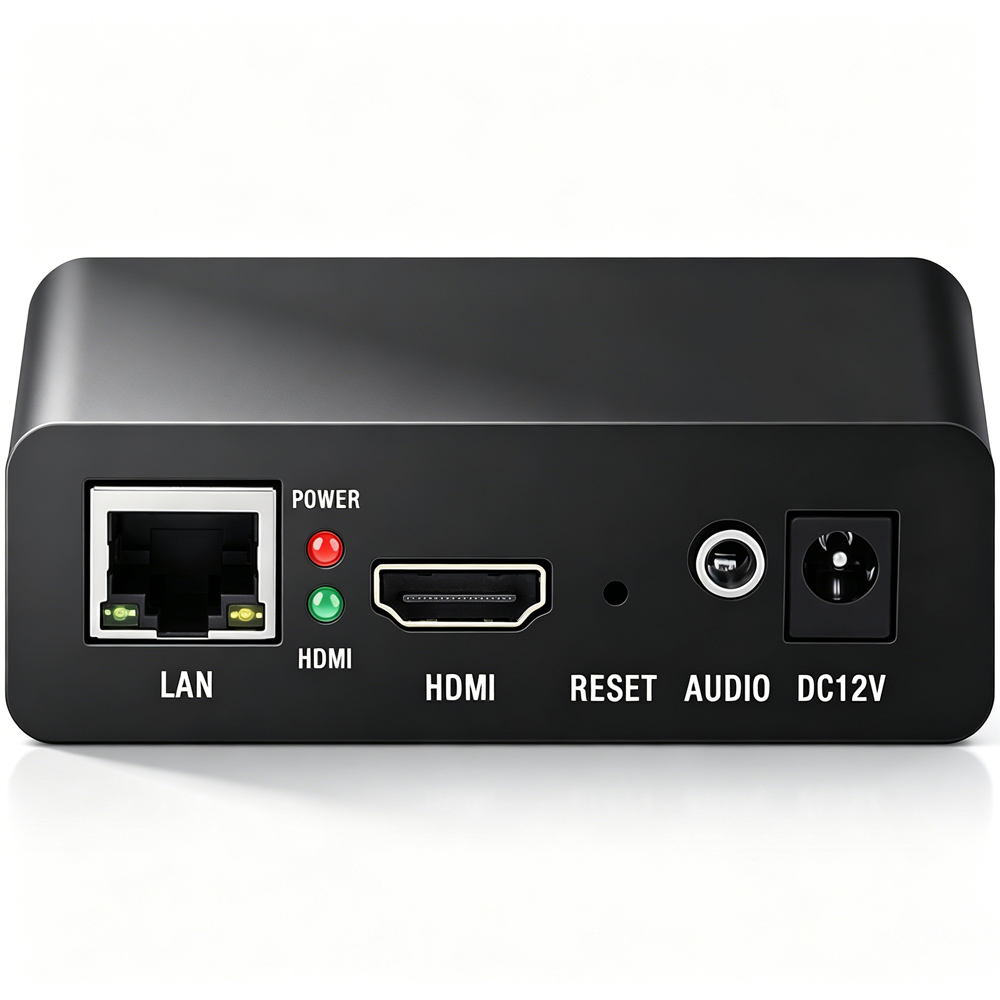

Output Video： 1 x HDMI(audio build-in) output
Output Audio： HDMI audio, line-out audio(3.5mm jack) output simultaneously
Video Resolution： Max 1920x1080@60fps input and output, output resolution adjustable
Streaming Protocol： SRT, HTTP(S), UDP, RTP, RTSP, RTMP, HLS(M3U8), ONVIF, Unitcast, etc.
Control Mode： Web、CGI command, support wide area network remote control
Customization： Provide many kinds of ODM(Shell, Logo, Function, Language, etc.)
Service： Free lifetime warranty, provide secondary development documents
General： 85x53x28 /mm(Size), 150g(Weight), Aluminum Shell, Driver-free
Video Decoding： H.265, H.264, MJPEG
Audio Decoding： AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Video Processing： Brightness, Contrast, Saturation, Hue, Scaling, etc.
Display Mode： 1 Picture, 4P(Quarter), 4P(3L1R), 4P(1L3R), 4P(3T1B), 4P(1T3B)
USB Video： Support encoding or decoding MP4 video files in USB disk
Description

UHD265-1-mini

UHD265-1-mini

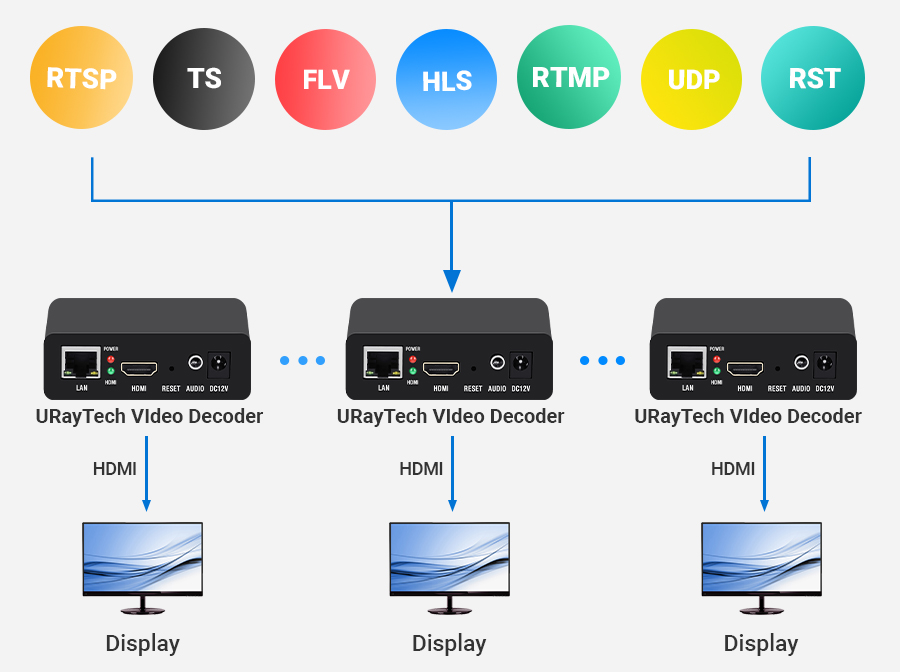

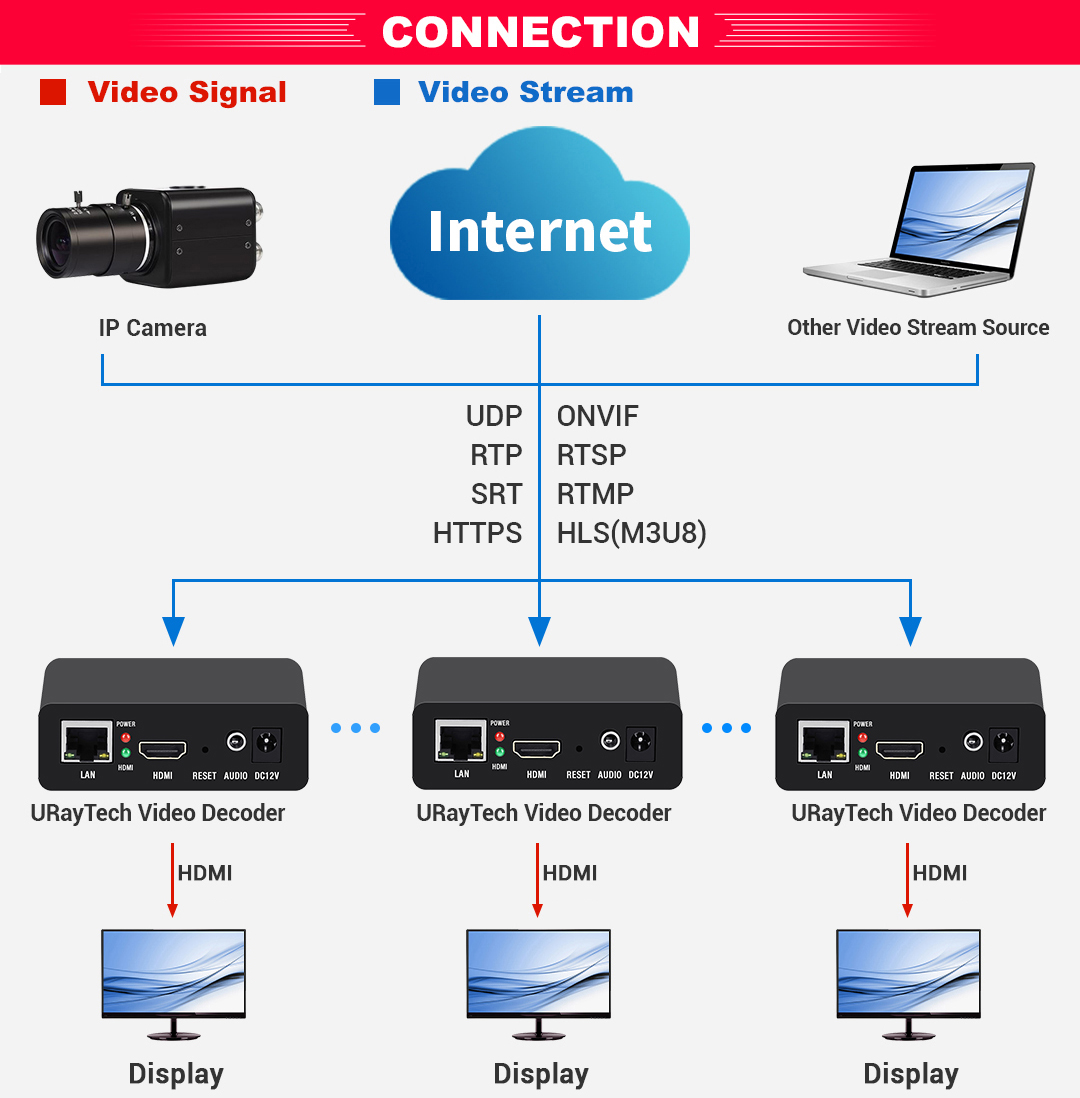

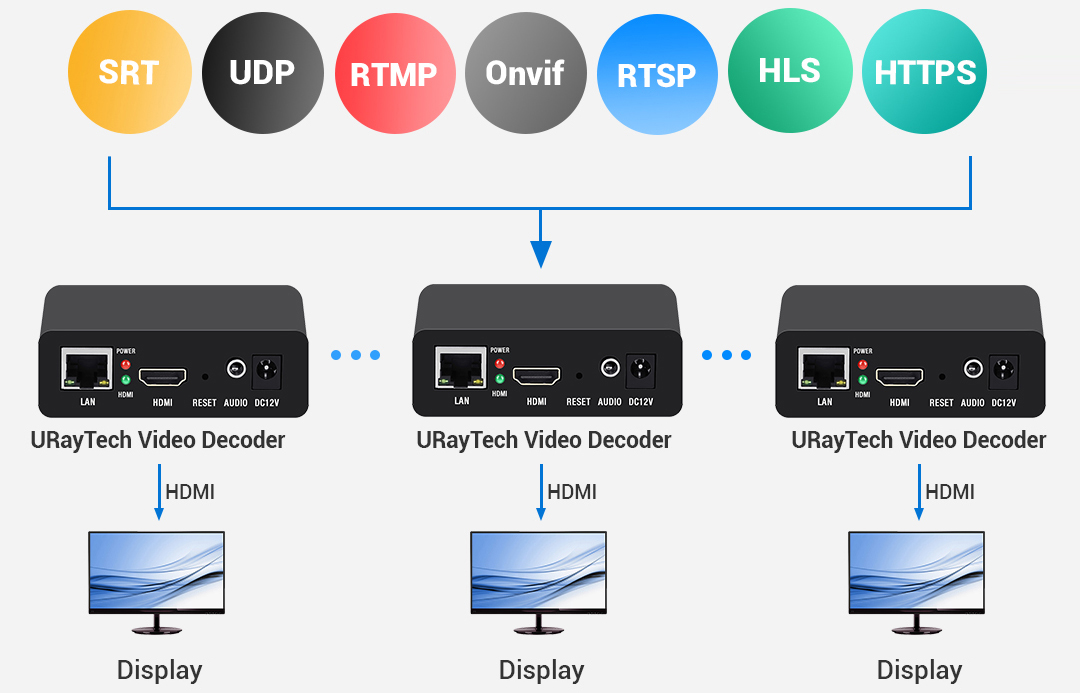

  • Support multiple types of video stream address input and decoding

  • Support protocols of SRT, HTTP(S), RTSP, UDP, RTP, RTMP, ONVIF, HLS(M3U8), FLV, MP4, etc.

UHD265-1-mini

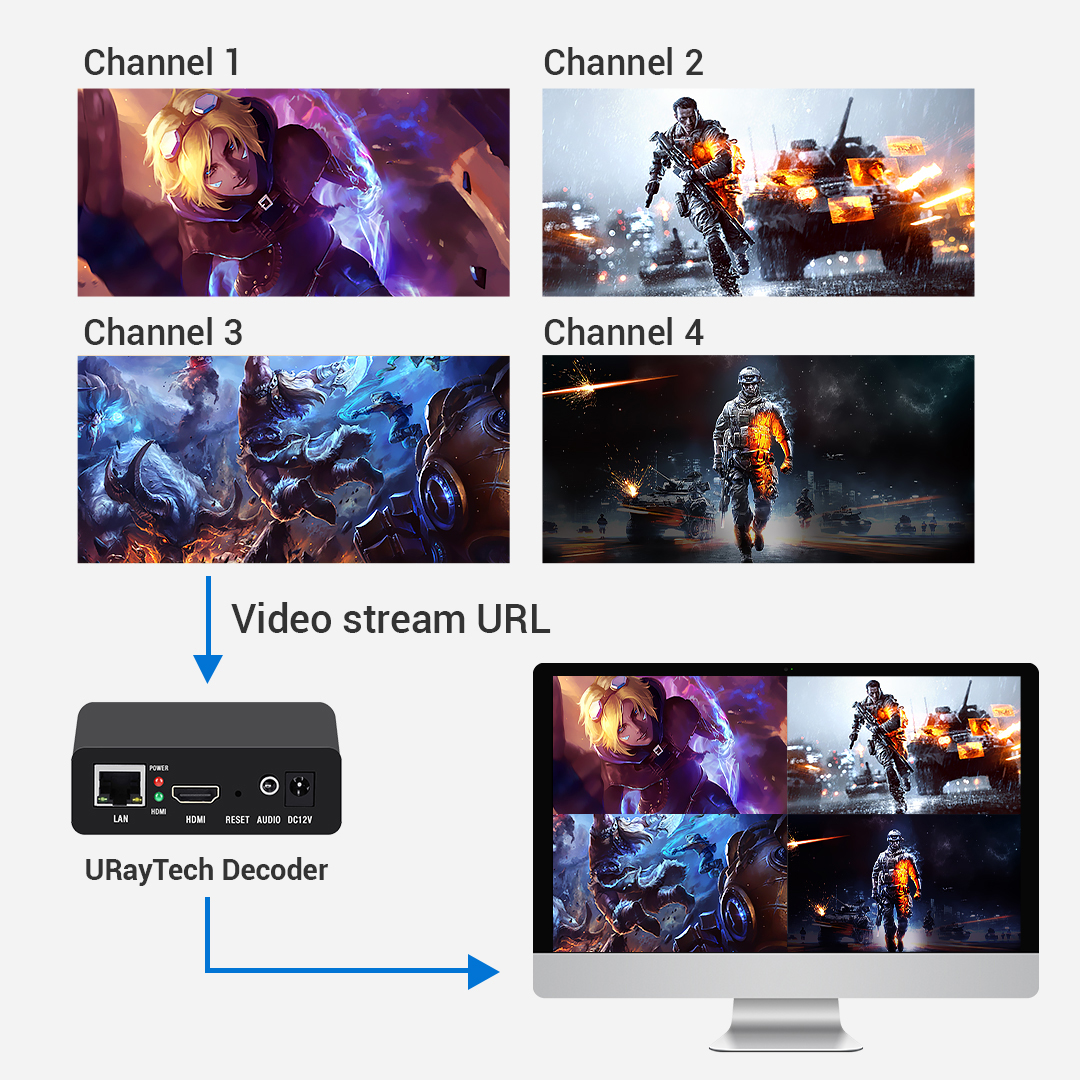

  • Max 4 video stream URLs to be input and decoded simultaneously

  • Connect the decoder directly to the monitor, plug and play

UHD265-1-mini

  • Support output video resolution setting, up to 1920x1080 input and output

  • Support output video frame rate setting, up to 60fps input and output

通用

  • Supports 6 display modes: 1P(single channel), 4P(quarter), 4P(3L1R), 4P(1L3R), 4P(3T1B), 4P(1T3B)

  • You can switch the display layout in the control dashboard（Click to preview）


  • Support resolution, brightness, contrast, saturation, hue, scaling video settings

  • Support customizing the display image or logo when there is no decoding signal

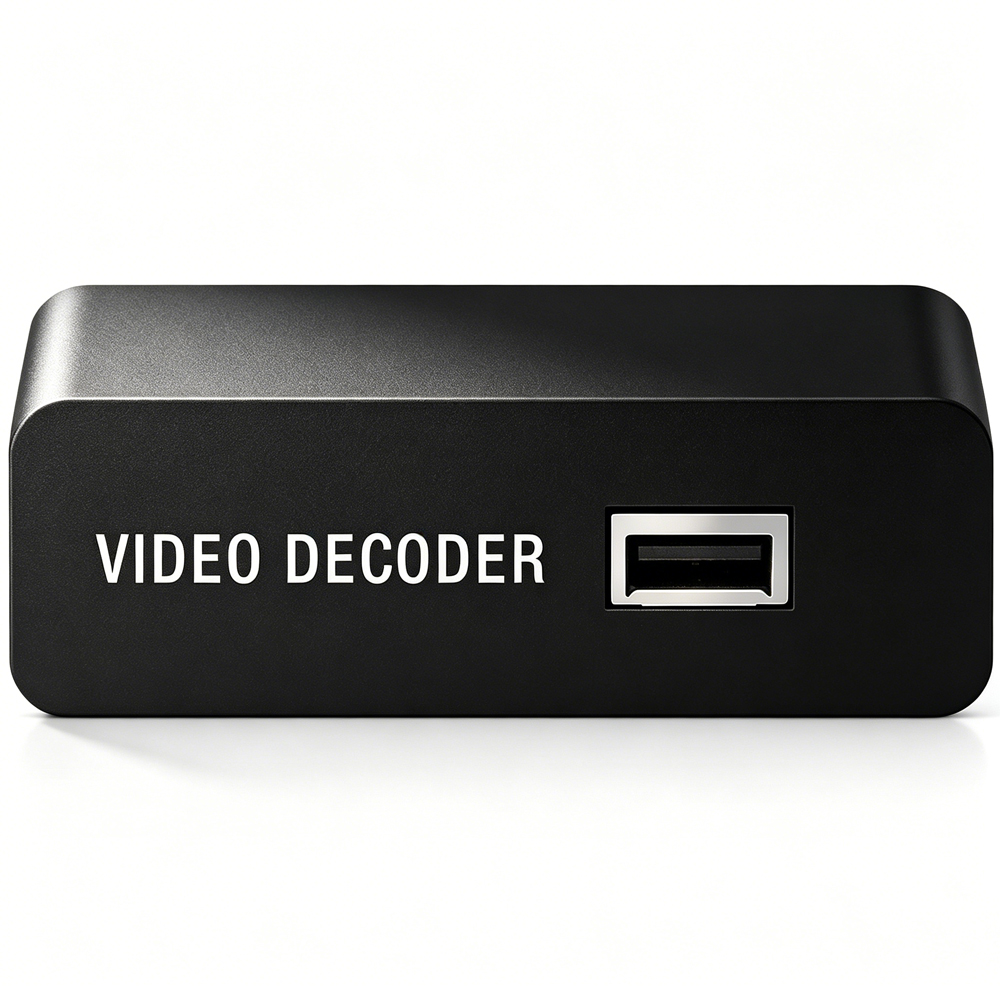

  • Support switching to play USB disk video file or decoded network video stream

  • Supports pushing USB disk videos to online live streaming servers such as YouTube, Facebook, etc.

UHD265-1-mini

  • In addition to RTMP address, it can also receive and decode RTMP stream pushed from the server

  • Input the decoder information to the server, and the RTMP stream will be pushed to the decoder

UHD265-1-mini

  • Support logo printing /language /solution /function /system and other customizations

  • Provide lifetime free warranty service, and SDK /API /CGI files for secondary development



Model No.

UHD265-1-mini

Video

Input Video

Video stream address (Max 4 stream URLs input and decode simultaneously)

Video Resolution

Max 1920x1080@60fps input and output, output resolution is adjustable

Video Decoding

H.265, H.264, MJPEG(Motion JPEG)

Output Video

1 x HDMI output

Video Processing

Resolution, Brightness, Contrast, Saturation, Hue, Scaling, etc.

Display Mode

1P, 4P(Quarter), 4P(3L1R), 4P(1L3R), 4P(3T1B), 4P(1T3B)

Audio

Audio Decoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Output Audio

HDMI audio, line-out audio(3.5mm jack) output simultaneously

Audio Source

Selectable from channel 1 to channel 4

Network

Interface

Ethernet port(Gigabit)

Streaming Protocol

SRT, HTTP(S), UDP, RTP, RTSP, RTMP, HLS(M3U8), ONVIF, FLV, Unitcast, etc.

Control Dashboard

Webpage dashboard, support remote management over WAN

System Update

Uploading firmware to dashboard and upgrade

General

Dimension (L x W x H)

85 x 53 x 28 /mm

Net Weight

150g

Power

DC 12V /1A

Material

Aluminum Shell


• Status Display（Click to enlarge）


• Address Setting（Click to enlarge）

stream address setting.jpg

• Layout Setting（Click to enlarge）

channel layout.jpg

• Network Setting（Click to enlarge）

network setting.jpg

• Serial to TCP（Click to enlarge）

serial to tcp.jpg

• Password Setting（Click to enlarge）

passwd setting.jpg

• Output Setting（Click to enlarge）

system output.jpg

• Upgrade Setting（Click to enlarge）


• Reset（Click to enlarge）

reset device.jpg

• Schedule Reboot（Click to enlarge）

schedule restart.jpg

• Reset（Click to enlarge）

reboot device.jpg
