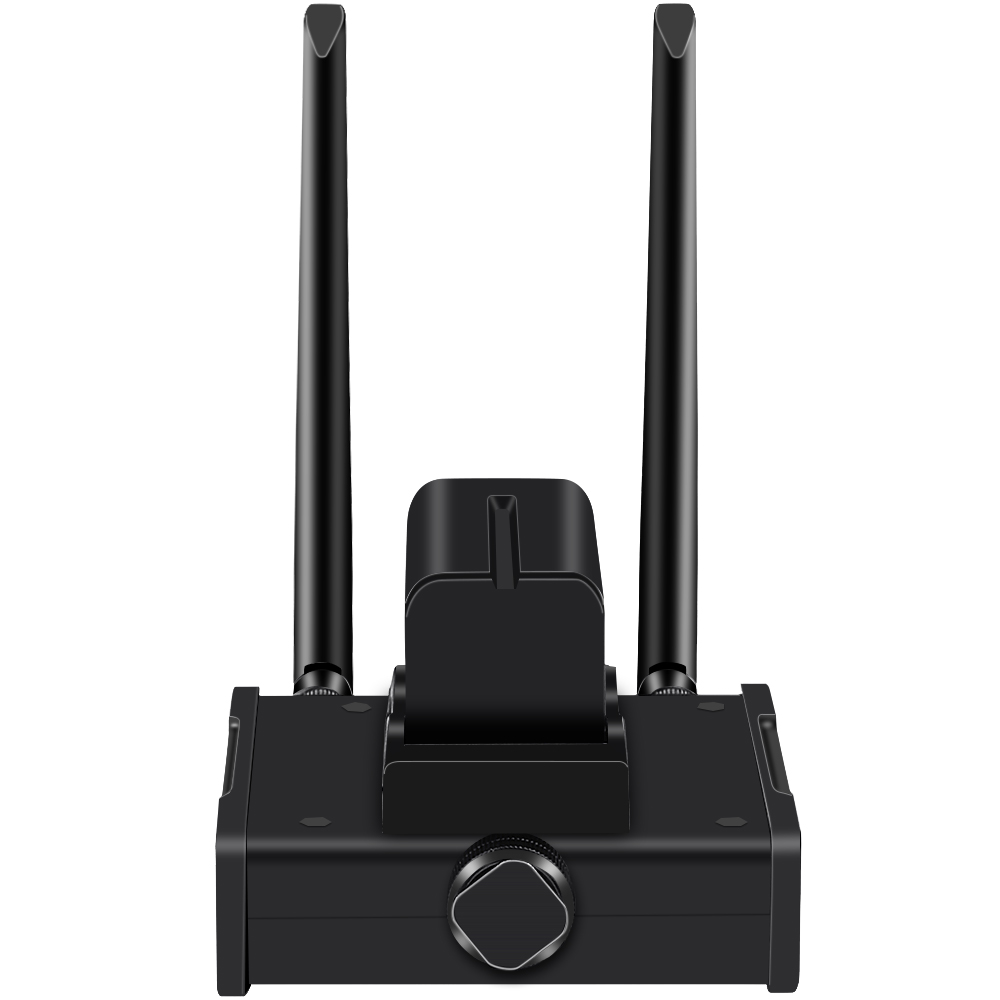

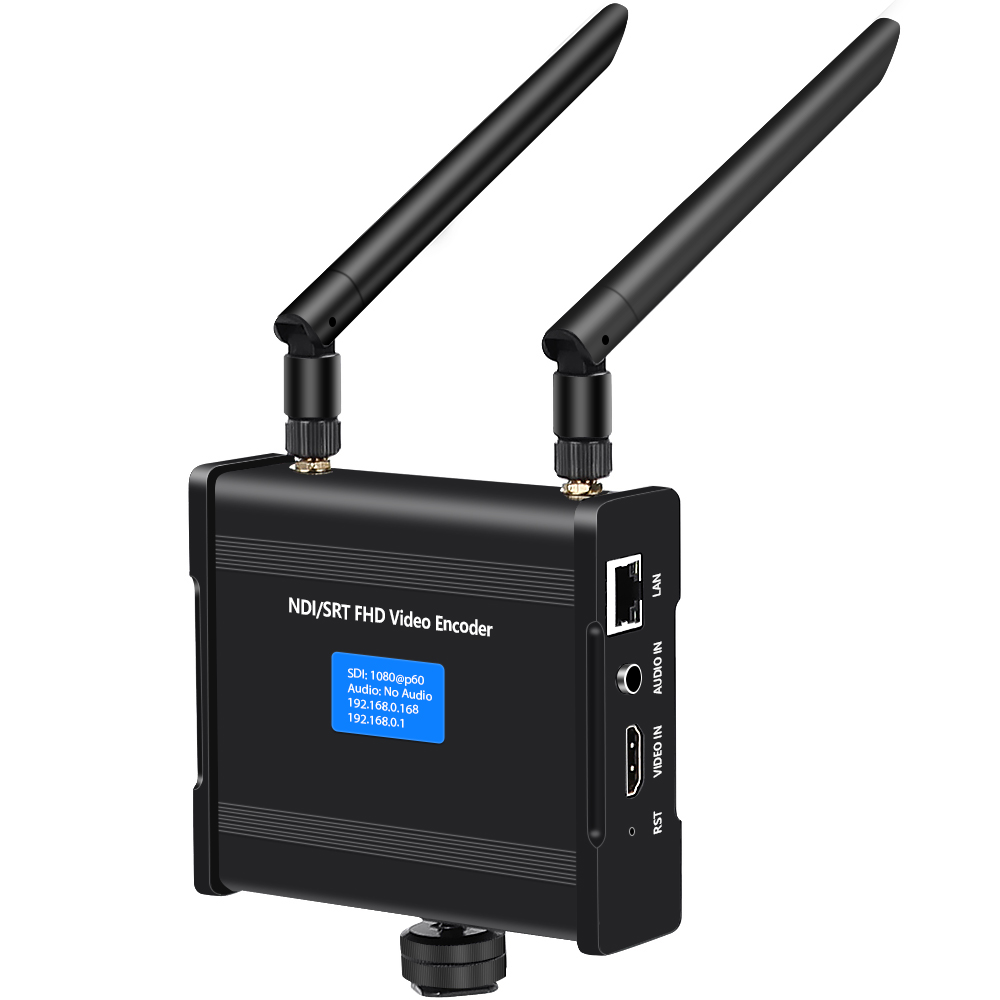

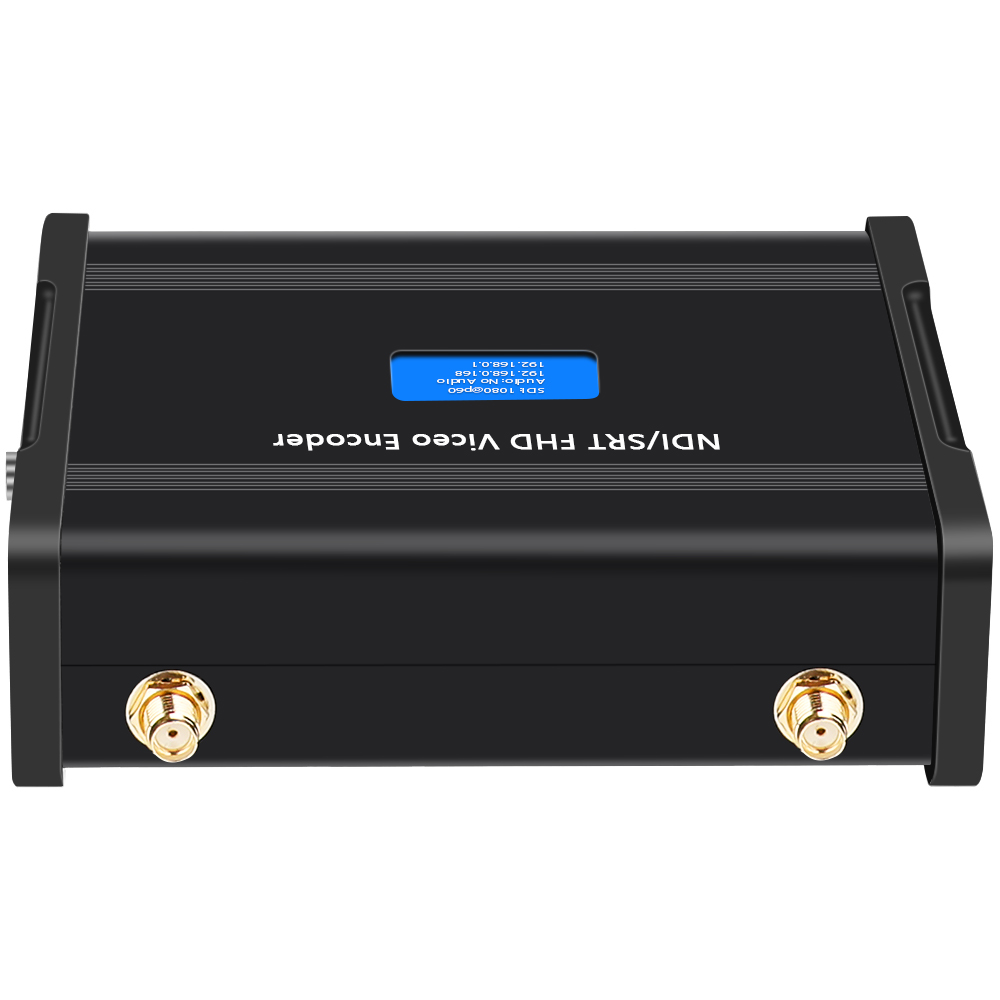

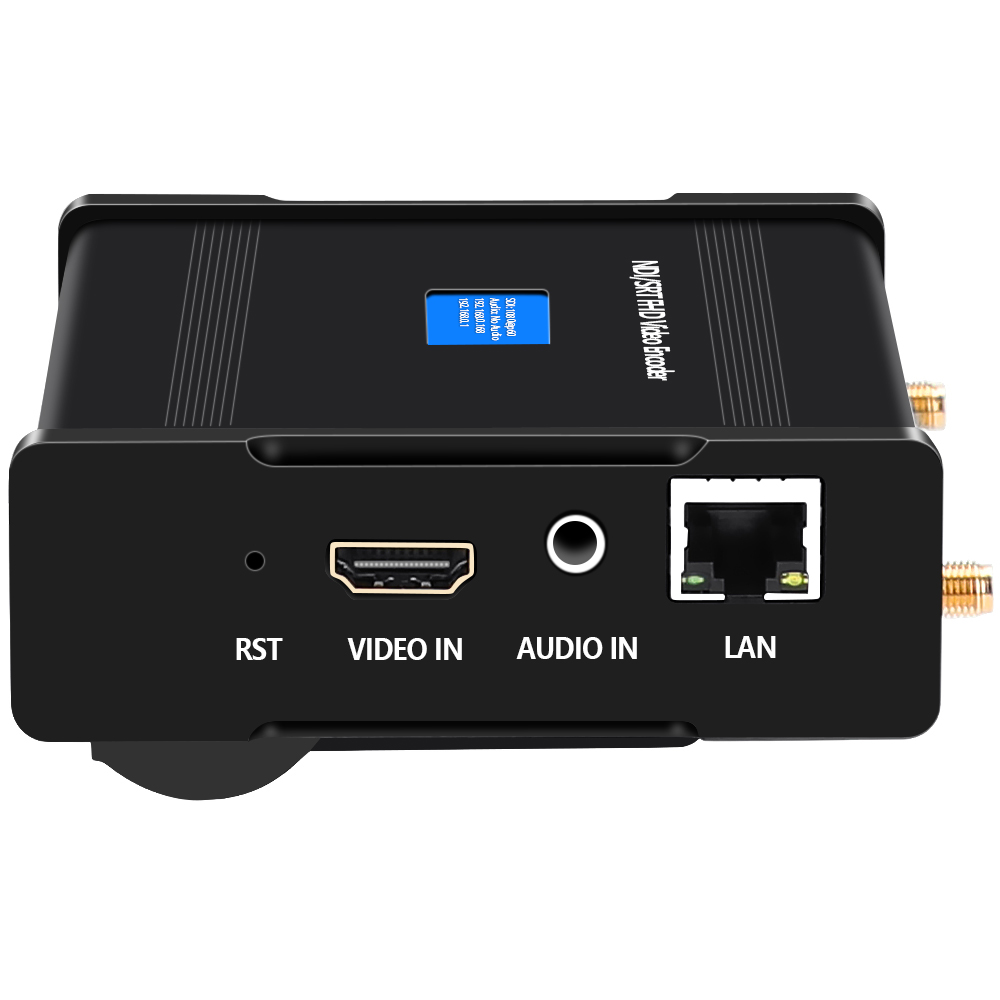

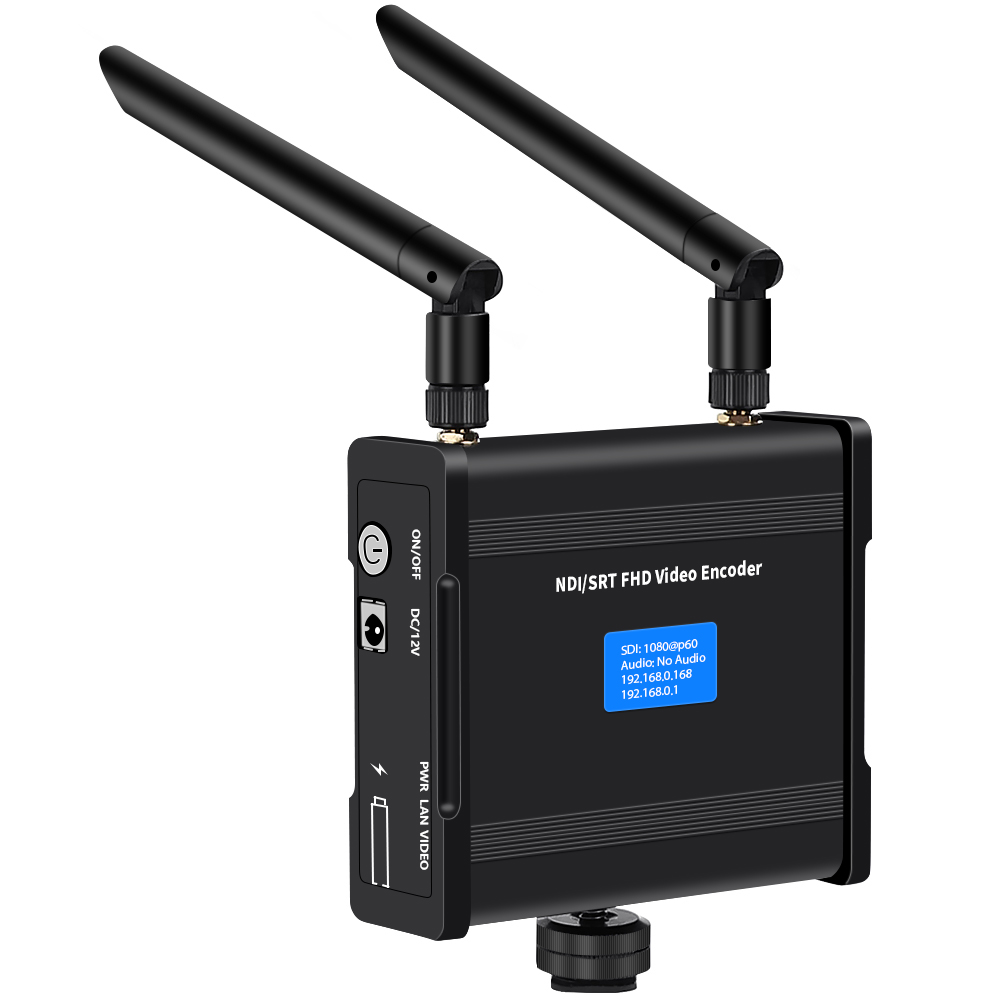

HDMI to NDI Encoder WIFI Support Battery LCD Display

HDMI to NDI Encoder WIFI Support Battery LCD Display

Model No.： UHE265-1WBS-NDI
Input： HDMI(audio bulid-in)+external audio(3.5mm jack)
Video Encoding： HEVC /H.265, H.264 /AVC
Audio Encoding： AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Output Video： 2 video streams output simultaneously
Output Audio： Support to switch HDMI audio or external audio as output audio
Video Resolution： Adjustable, max 1920X1080@60fps input and output
Streaming Protocol： NDI, RTSP, RTMP, RTMPS, SRT etc
Video Bitrate： Adjustable from 32kbit/s to 32mbit/s(CBR, VBR mode)
Audio Bitrate： Adjustable from 48000kb/s to 320000kb/s
Control Mode： Web page control, support wide area network remote management
OSD Setting： Support to add logo, text, scroll text, time on the displayed video
Customization： Provide logo, function, language, firmware etc customization
Extral Service： Provide SDK /API /CGI for secondary development
General： 109x104x45mm(Size), 345g(Weight), Aluminum Shell
Description

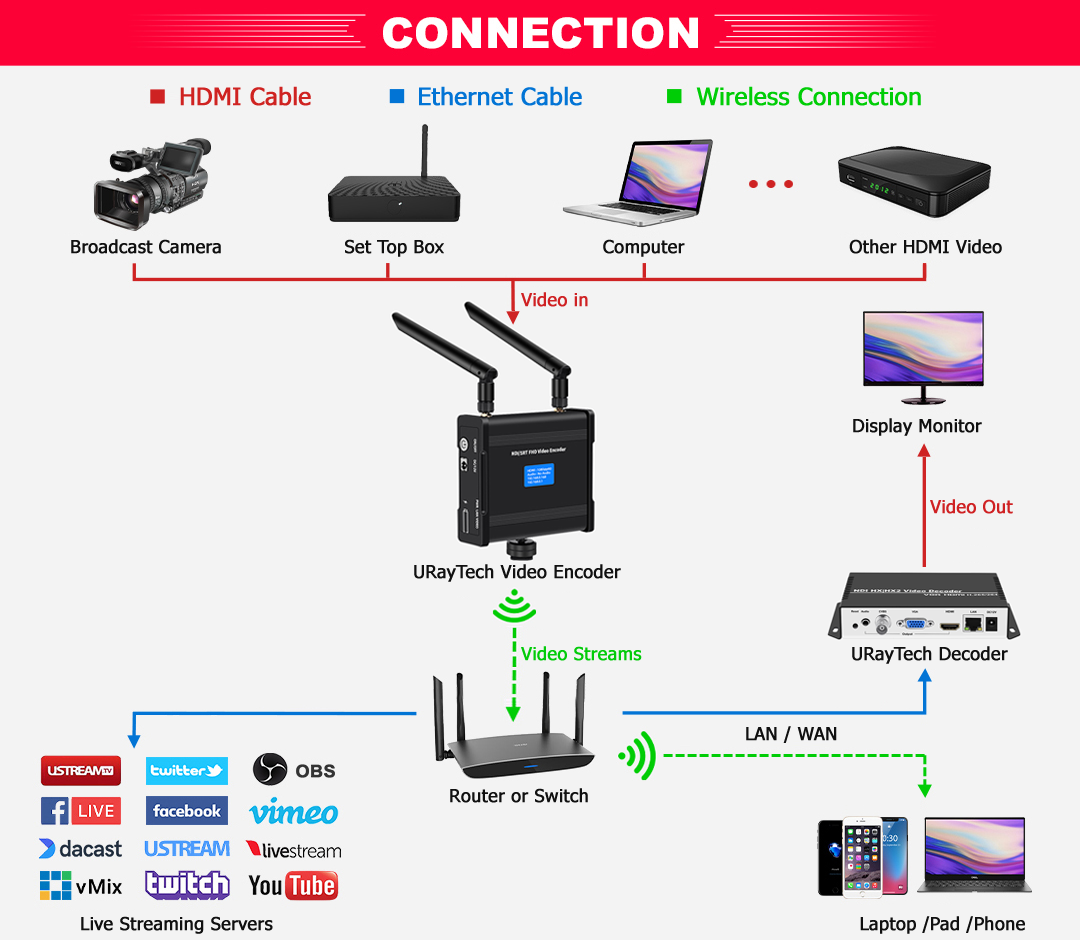

Connection Diagram.jpg





  • Support HEVC /H.265, H.264 /AVC video encoding

    Support AAC, AAC+, AAC++,MP3, MP2, AC3 audio encoding


  • Support to live streaming on 2 live broadcast platforms simultaneously

    2 streams output for each channel, support different protocol transmission for each stream

  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 1920x1080P input and output

  • Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

    Support NDI, RTSP, RTMP, RTMPS, SRT etc protocol

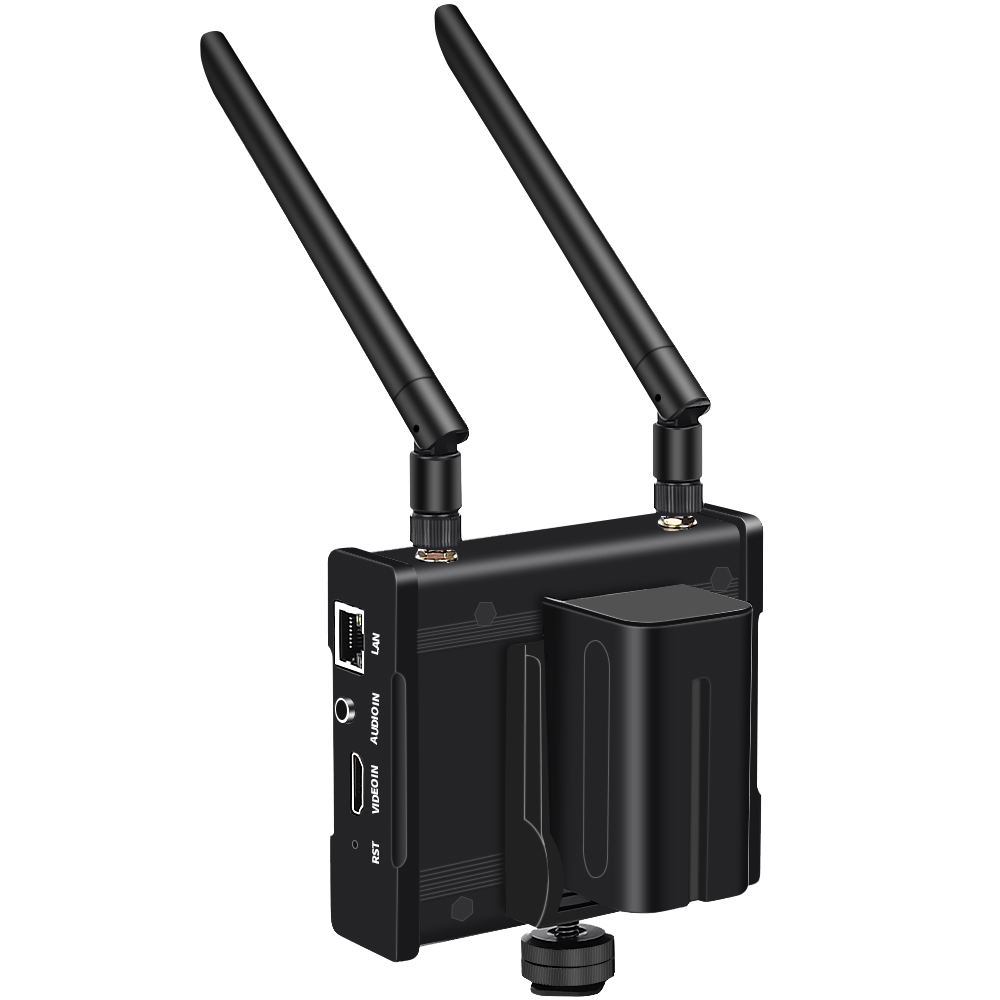

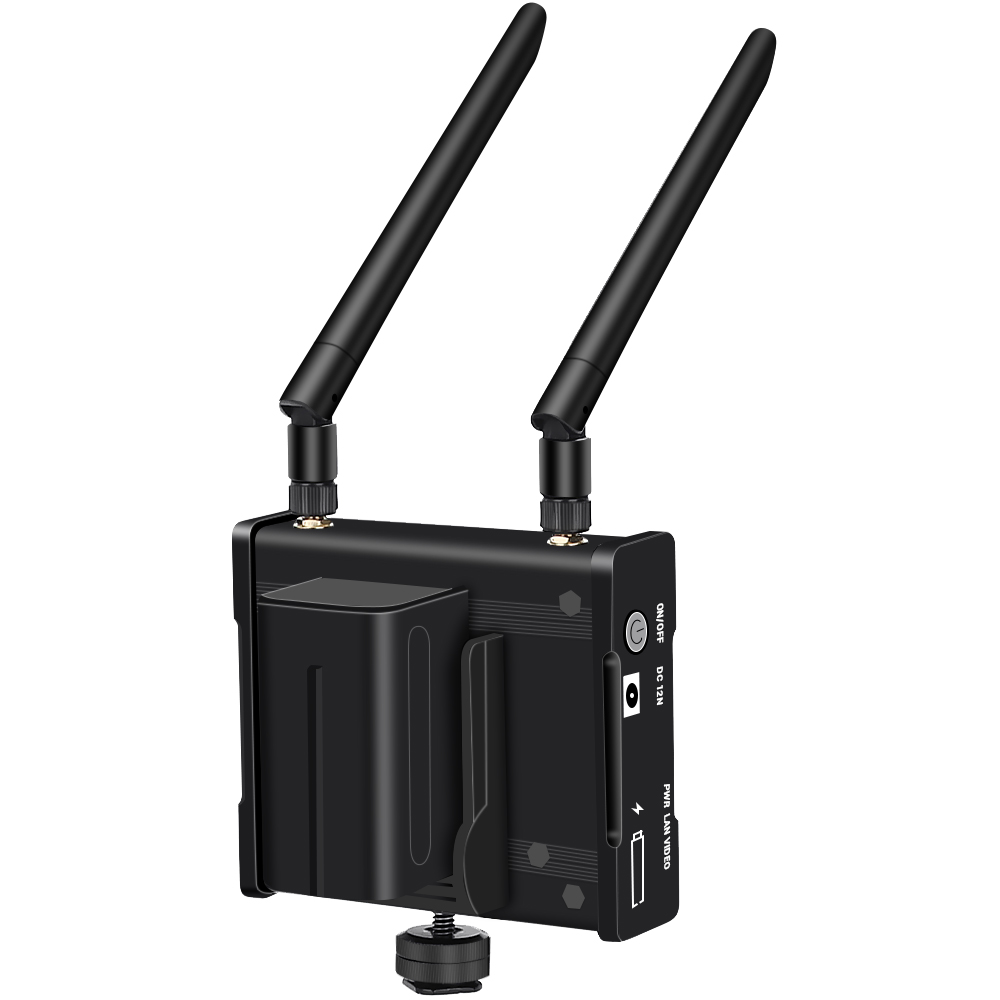

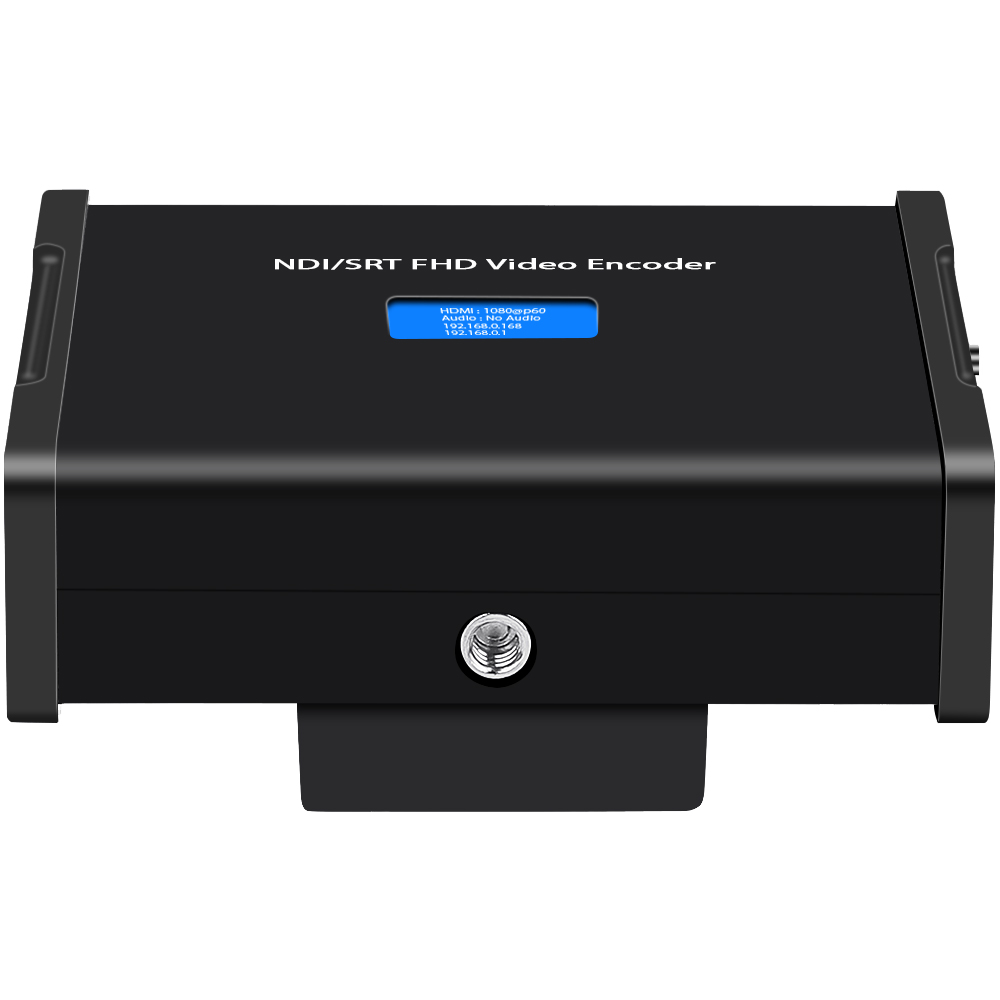

  • Support hot shoe mount at camera

    Support external SONY battery F550, F750, F970 for selection


  • Support on screen display settings, such as logo /text /scroll text /time etc

    Support customize the no signal image when there is no input signal

  • Support both HDMI audio and external audio input simultaneously

    Support to switch HDMI audio or external audio as output audio at will

  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization




Model No.

UHE265-1WBS-NDI

Video

Input Video

HDMI(Support HDCP)

Input Resolution

Max 1080P or 1080i resolution, max 60fps frame rate

Video Encoding

HEVC /H.265, MPEG-4 /H.264 AVC

Encoding Levels

H,265 main profile; H.264 high /main /baseline profile

Video Bitrate

Adjustable From 32kbit /s to 32mbit /s

Bitrate Control

CBR, VBR, Strong CBR

Output Resolution

It is adjustable, max 1920x1080P /60fps

Video Pre-processing

De-interlacing, noise reducing, sharpening etc

Audio

Input Audio

HDMI embedded audio or external stereo audio(3.5mm jack)

Output Audio

Support to switch HDMI audio or external audio at will

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 48000~320000

Audio Encoding

AAC, AAC+, AAC++, MP3, MP2, AC3

Network

Interface

Ethernet port(1000 BASE-T)

Streaming Protocol

NDI, RTSP, RTMP, RTMPS, SRT etc

Control Panel

Webpage UI(language customizable)

Firmware Update

Enable by uploading firmware to dashboard and upgrade

General

Dimension (W* L* H)

109 x 104 x 45 /mm

Net Weight

345g

Temperature

0 to 45(For working), -20 to 80(For storing)

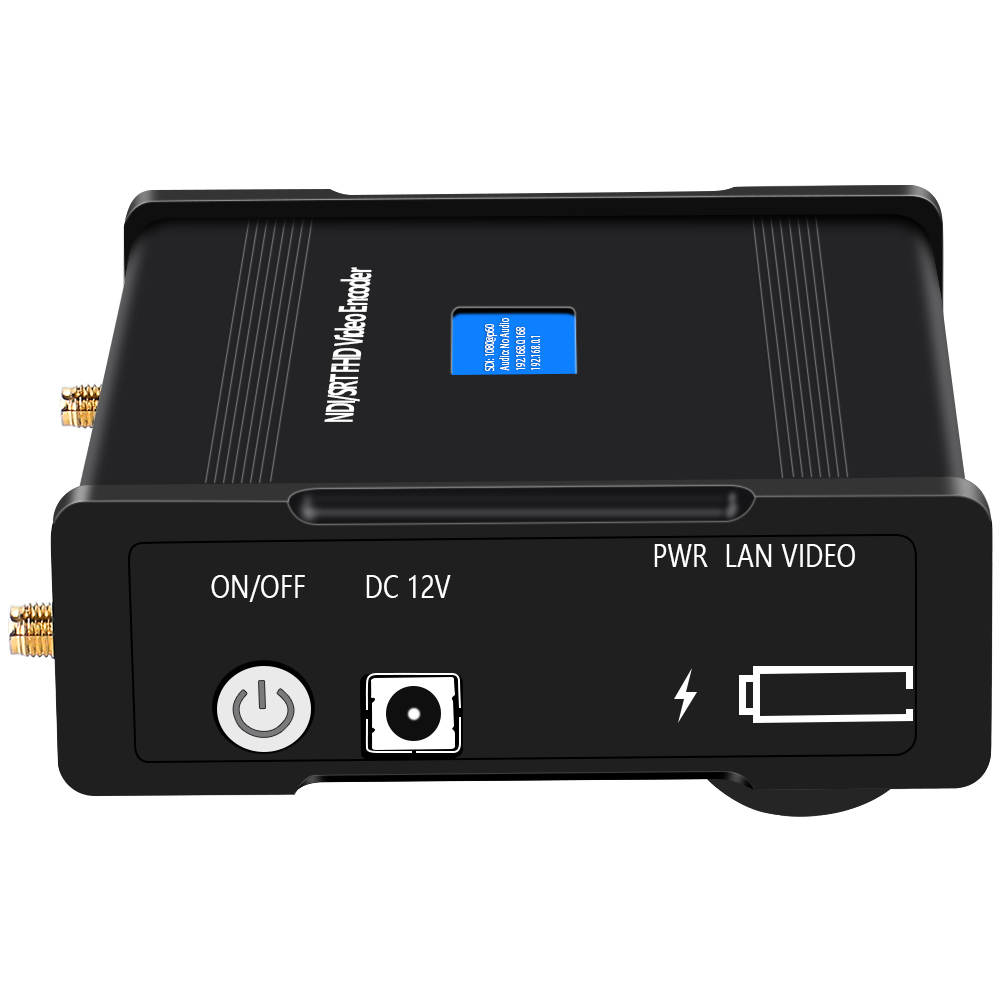

Input Voltage

DC 12V /2A

Material

Aluminum Shell



4-control panel.jpg• Status Display (Click to enlarge)



• Stream Setting (Click to enlarge)

stream setting.jpg


• Video Setting (Click to enlarge)

video setting.jpg


• Audio Setting (Click to enlarge)

audio setting.jpg


• Advanced Setting (Click to enlarge)



• OSD Setting (Click to enlarge)

osd setting.jpg


• LOGO Upload (Click to enlarge)



• Network Setting (Click to enlarge)

network setting.jpg


• WIFI Setting (Click to enlarge)

wifi setting.jpg


• Password Setting (Click to enlarge)



• Upgrade (Click to enlarge)



• Reboot (Click to enlarge)



• Schedule Reboot (Click to enlarge)

schedule restart.jpg


• Factory Reset (Click to enlarge)
