Product Details

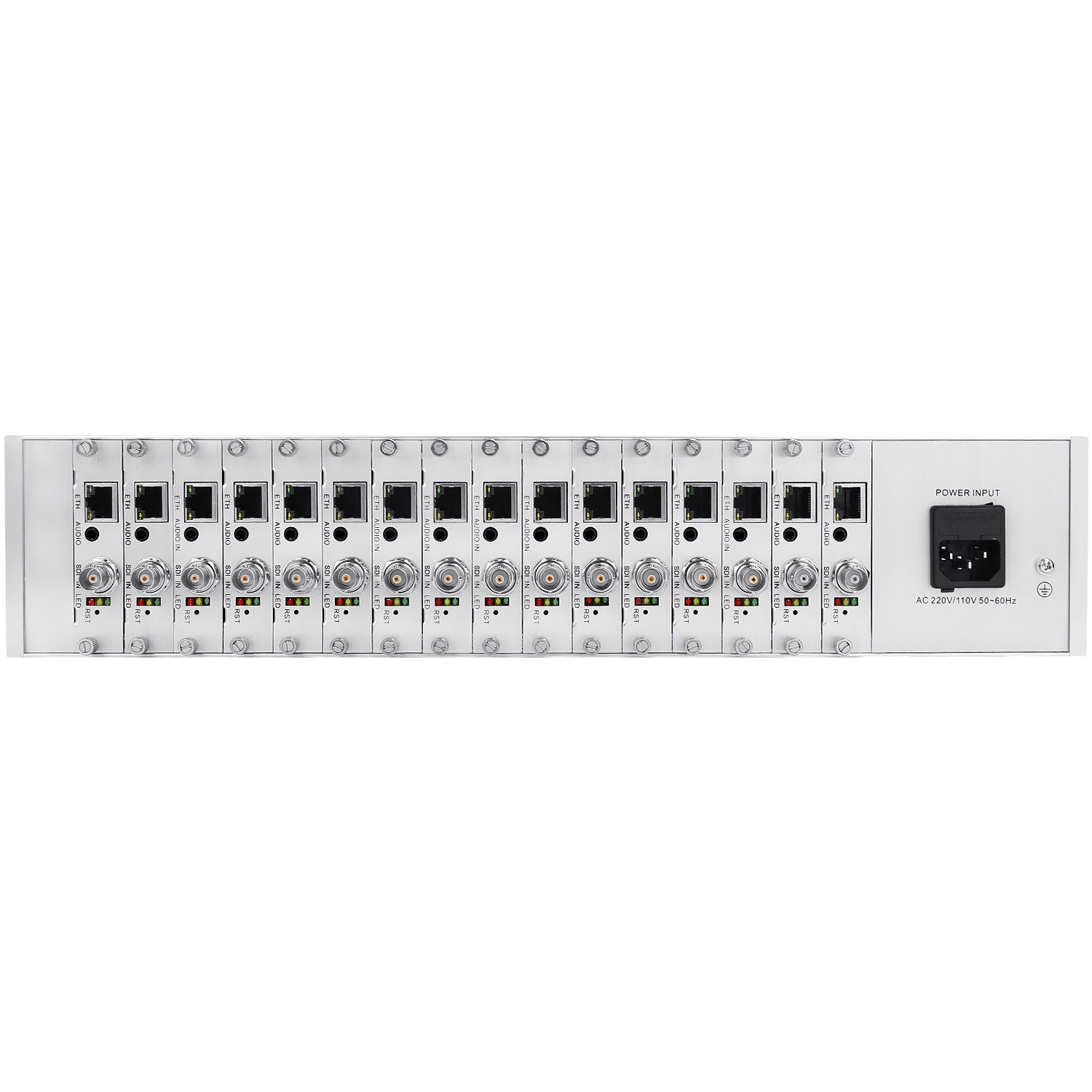

2U Rack 16 Channels SDI Video Encoder Supports SDI Loop Out

Model: USE265-16LX-2U
Input: 16 x SDI(audio bulid-in) + 16 x line-in audio(3.5mm jack)
Video Encoding: H.265, H.264
Audio Encoding: AAC, MP3, MP2, G.711
Output Video: Dual video streams output simultaneously for each encoder card
Output Audio: Support switching SDI audio or line-in audio as output audio
Video Resolution: Max 1920x1080@60 input and output, output resolution is adjustable
Streaming Protocol: HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, Multicast(UDP /RTP), etc.
Video Bitrate: Adjustable from 16kbit/s to 12000kbit/s for each encoder card
Audio Bitrate: Adjustable from 24000kb/s to 320000kb/s for each encoder card
Control Mode: Web、CGI command, support wide area network remote control
Display Settings: Support adding logo or text on the displayed video
Service: Free lifetime warranty & technical supports, ODM(Logo, Function, etc.)
General: 483x330x89/mm(Size), 4.85kg(Weight), Aluminum Shell, Driver-free
Description

通用

USE265-16LX-2U


通用(Feature)

  • Supports HEVC /H.265, H.264 /AVC video encoding

  • Supports AAC, MP3, MP2, G.711 audio encoding


  • Each encoder card simultaneously output 2-channel video streams with different protocols

  • Simultaneously push video streams to multiple live streaming platforms with one click


  • Compatible with multiple live broadcast platforms and playback software

  • Supports different protocol transmission for each video stream

通用协议

  • Free switching output video resolution, max 1920x1080 resolution input and output

  • Supports output video frame rate setting, max 60fps input and output

通用1080p

  • Supports SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), Multicast(UDP /RTP), ONVIF, Unitcast, etc

  • Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty

通用

通用

  • Supports multiple on screen display settings, such as logo, text, etc

  • Supports customizing the display image or logo when there is no input signal

通用

  • Supports both SDI audio and line-in audio input simultaneously

  • Supports switching SDI audio or line-in audio as output audio


  • 16-channel SDI signal loop out for reuse

  • Zero-lag passthrough without any loss


  • Embedded dual power supplies inside, stable and efficient operation

  • Supports single power supply to power the entire chassis, even if another fails

  • Supports logo printing, language, solution, function, system and other customizations

  • Lifetime free warranty and technical supports, system firmware continuously updated



Model No. USE265-16LX-2U
Video
Input Video 16 x SD /HD /3G SDI
Input Resolution Max 1920x1080@60fps
Video Encoding HEVC /H.265, H.264 /AVC
Video Bitrate Adjustable from 16kbit/s ~ 12000kbit/s for each encoder card
Bitrate Control CBR(Constant Bitrate), VBR(Variable Bitrate)
Output Resolution It is adjustable, max 1920x1080p@60fps
Audio
Input Audio 16 x SDI audio + 16 x line-in audio(3.5mm jack)
Output Audio Supports switching SDI audio or line-in audio at will
Sampling Rate 44.1KHz, 48KHz
Audio Bitrate Adjustable from 24000kbit/s ~ 320000kbit/s for each encoder card
Audio Encoding AAC, MP3, MP2, G.711
Network
Interface 16 x Ethernet ports(Gigabit)
Streaming Protocol HTTP, SRT, RTSP, RTMP(S), HLS(M3U8), ONVIF, Multicast(UDP /RTP), Unitcast, etc.
Control Dashboard Webpage dashboard, support remote management over WAN
System Update Uploading firmware to dashboard and upgrade (System firmware constantly updated)
OSD
Transparency 0 - 255 adjustable
Position (Horizontal) 0 - 1920 adjustable
Position (Vertical) 0 - 1080 adjustable
Font size 8 - 72 adjustable
Background White /Black /Transparent
Font Color Adjustable in RGB colors
Logo Max 4 LOGOs can be uploaded for selection
General
Dimension (L x W x H) 483 x 300 x 89 /mm
Net Weight 4.85kg
Temperature 0 to 45℃(working), -20℃ to 80℃(storing)
Power AC 110V~120V ; Output 12V - 10.5A
MaterialAluminum Shell


• Access Address(Click to enlarge)

access address.jpg‍

• Video Parameters(Click to enlarge)

video parameters.jpg

• Audio Parameters(Click to enlarge)

audio parameters.jpg

• Preview(Click to enlarge)


• Network Setting(Click to enlarge)

SDI编码器后台Network

• Main Stream Setting(Click to enlarge)

stream setting.jpg

• Audio Setting(Click to enlarge)

audio setting.jpg

• Display Setting(Click to enlarge)

main osd setting.jpg

• Color Setting(Click to enlarge)

color setting.jpg

• Image Setting(Click to enlarge)

image setting.jpg

• RTMP-HLS Setting(Click to enlarge)

RTMP-HLS setting.jpg

• ONVIF Setting(Click to enlarge)

onvif setting.jpg

• Reboot /Reset(Click to enlarge)

system setting.jpg

• Upgrade Setting(Click to enlarge)

upgrade setting.jpg
