Product Details
- 4K H.265 4 Channels HDMI Video Encoder

- 4K H.265 4 Channels HDMI Video Encoder

Model No.： UHE265-4-4K

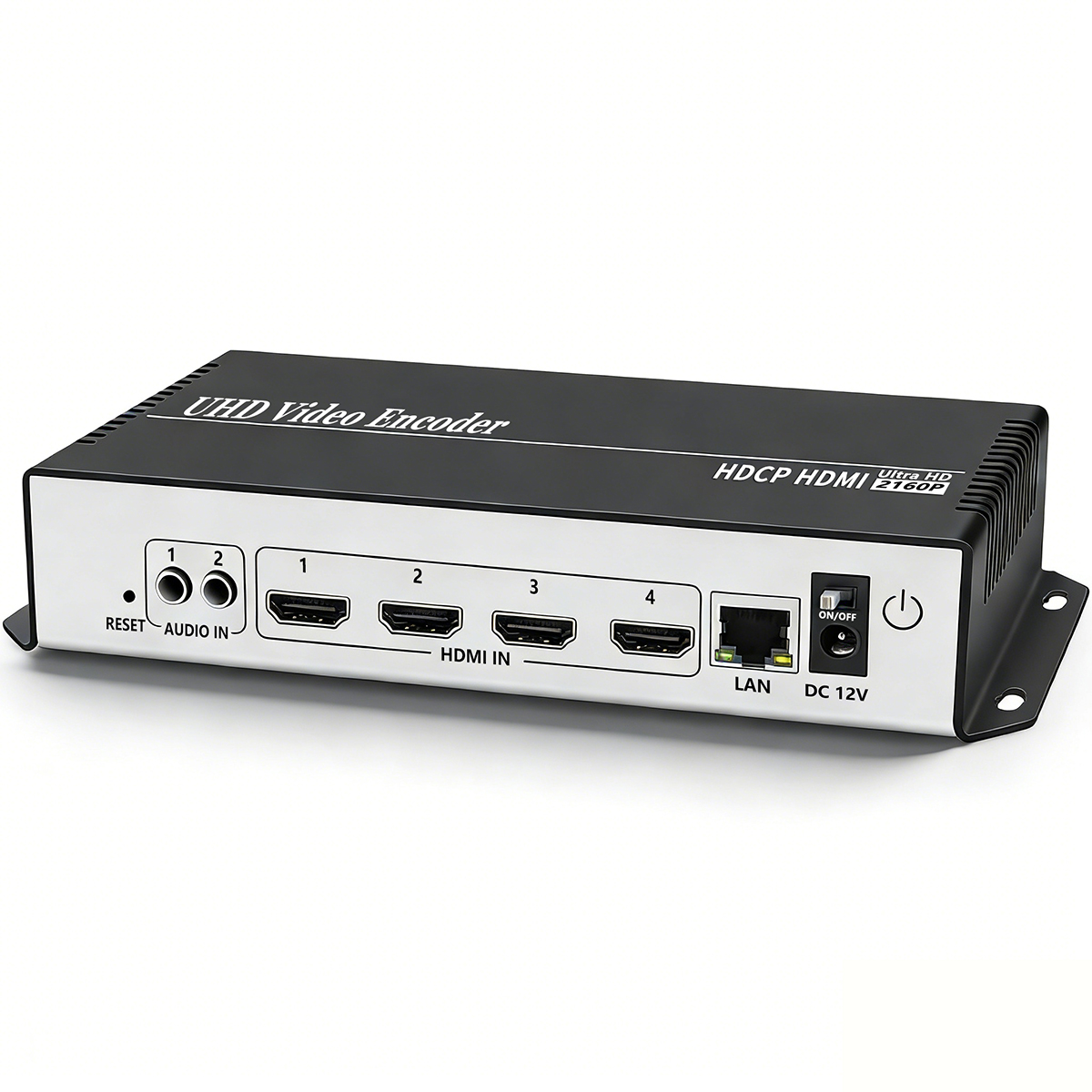

Input： 4xHDMI(audio bulid-in)+2xexternal audio(3.5mm jack)
Video Encoding： HEVC /H.265, H.264 /AVC, MJPEG
Audio Encoding： AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Output Video： 4 video streams output simultaneously for each channel
Output Audio： Support to switch HDMI audio or external audio as output audio
Video Resolution： Max 3840X2160@30(port 1,2), max 1920x1080P@60(port 3,4)
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, FLV, Unitcast etc
Video Bitrate： Adjustable from 32kbit/s to 32mbit/s(CBR, VBR, Strong CBR))
Audio Bitrate： Adjustable from 48000kb/s to 320000kb/s
Control Mode： Web page control, support wide area network remote management
OSD Setting： Support to add logo, text, scroll text, time on the displayed video
Customization： Provide logo, function, language, firmware etc customization
Extral Service： Provide SDK /API /CGI for secondary development
General： 199x105x37mm(Size), 355g(Weight), Aluminum Shell
Description

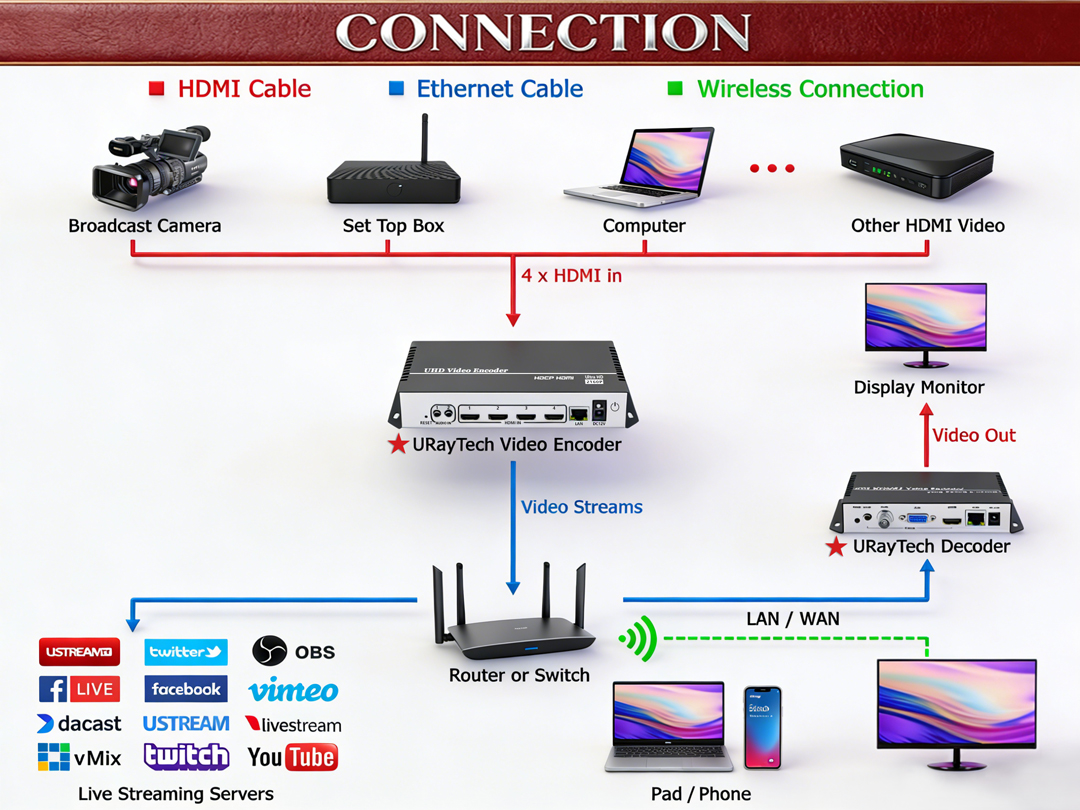

Connection Diagram.jpg

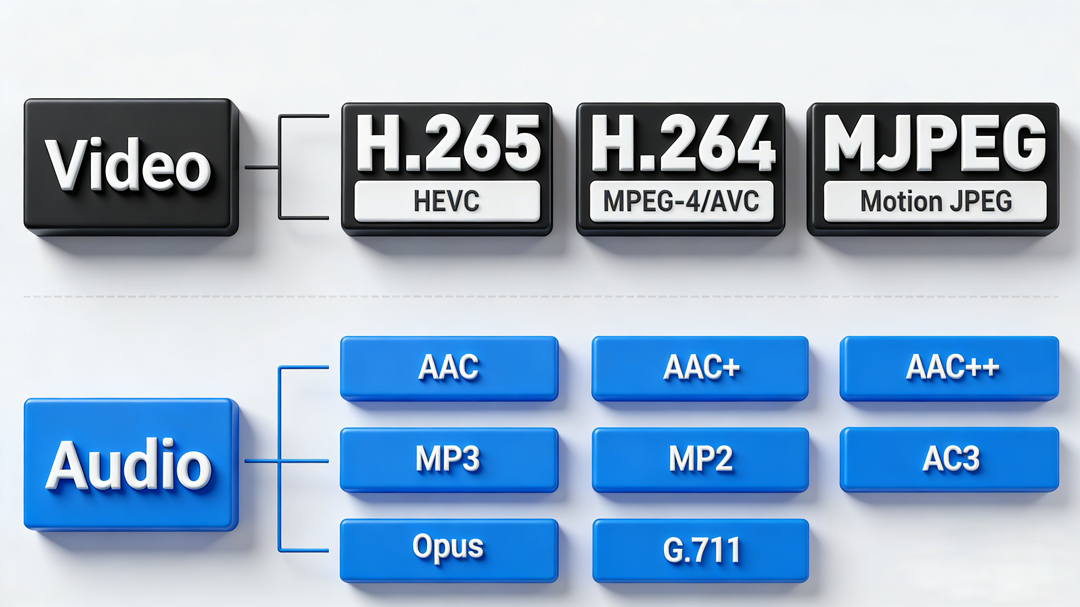

  • Support H.265 /HEVC, H.264 /AVC, MJPEG video encoding

    Support AAC, AAC+, AAC++,MP3, MP2, AC3, G.711 audio encoding

‍

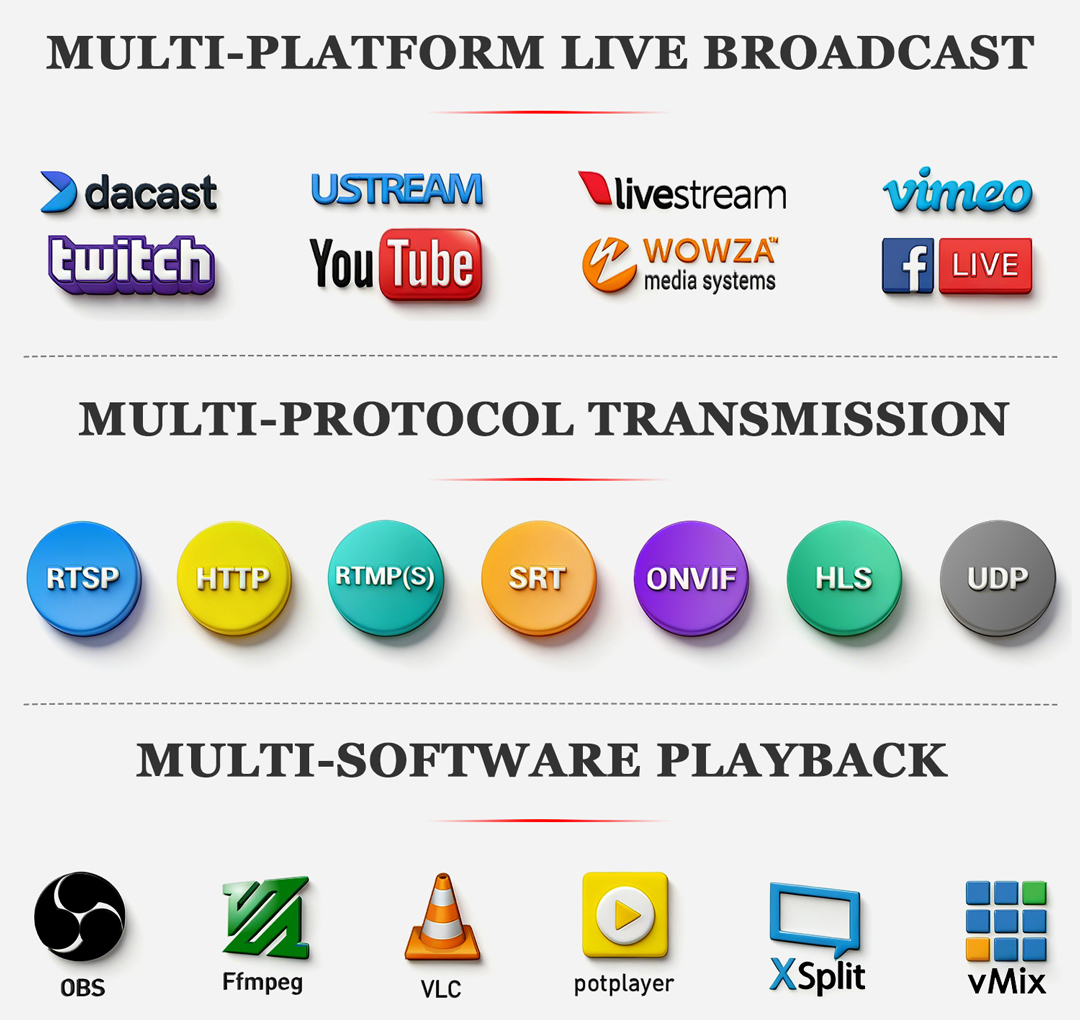

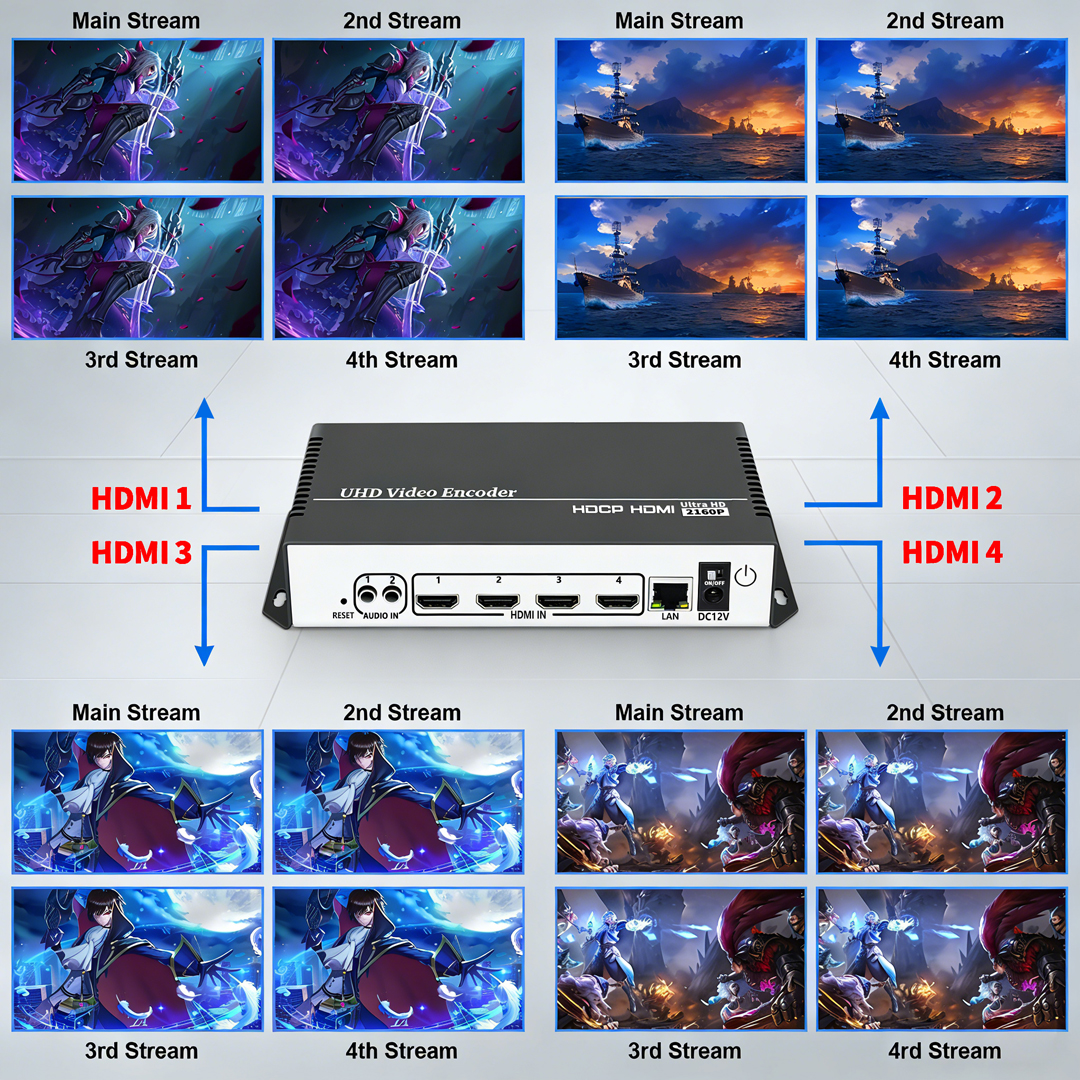

  • Support to live streaming on 4 live broadcast platforms simultaneously for each channel

    4 streams output for each channel, support different protocol transmission

  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 3840x2160P input and output for port 1 and 2

  • Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

    Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol

  • Support on screen display settings, such as logo /text /scroll text /time etc

    Support customize the no signal image when there is no input signal

  • For HDMI port 1 and 2, support both HDMI audio and external audio input simultaneously

    For HDMI port 1 and 2, support to switch HDMI audio or external audio as output audio at will

  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization




Model No.

UHE265-4-4K

Video

Input Video

4xHDMI(Support HDCP)

Input Resolution

Max 3840x2160 resolution for port 1 and 2 , support max 60fps frame rate when input resolution 1920x1080 or lower, max 30fps when input 3840x2160

Video Encoding

H.265 /HEVC, MPEG-4 /H.264 AVC, MJPEG

Encoding Levels

H.265 main profile; H.264 high /main /baseline profile

Video Bitrate

Adjustable From 32kbit /s to 32mbit /s

Bitrate Control

CBR, VBR, Strong CBR

Output Resolution

It is adjustable, max 3840x2160P for port 1 and 2

Video Pre-processing

De-interlacing, noise reducing, sharpening etc

Audio

Input Audio

HDMI embedded audio or external stereo audio(3.5mm jack)

Output Audio

Support to switch HDMI audio or external audio at will

Sampling Rate

44.1KHz, 48KHz, Same as the input

Bitrate Control

Adjustable from 48000~320000

Audio Encoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Network

Interface

Ethernet port(1000 BASE-T)

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS, ONVIF, UDP, RTP, Unitcast etc

Control Panel

Webpage UI(language customizable)

Firmware Update

Enable by uploading firmware to dashboard and upgrade

General

Dimension (W* L* H)

199 x 105 x 37 /mm

Net Weight

355g

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

DC 12V /2A

Material

Aluminum Shell



• Status Display (Click to enlarge)



• Stream Setting (Click to enlarge)

stream setting.jpg


• Video Setting (Click to enlarge)



• Audio Setting (Click to enlarge)



• Advanced Setting (Click to enlarge)



• OSD Setting (Click to enlarge)

OSD-Main stream.jpg


• LOGO Upload (Click to enlarge)



• Network Setting (Click to enlarge)



• Password Setting (Click to enlarge)



• Upgrade (Click to enlarge)



• Reboot (Click to enlarge)



• Schedule Reboot (Click to enlarge)



• Factory Reset (Click to enlarge)
