Product Details

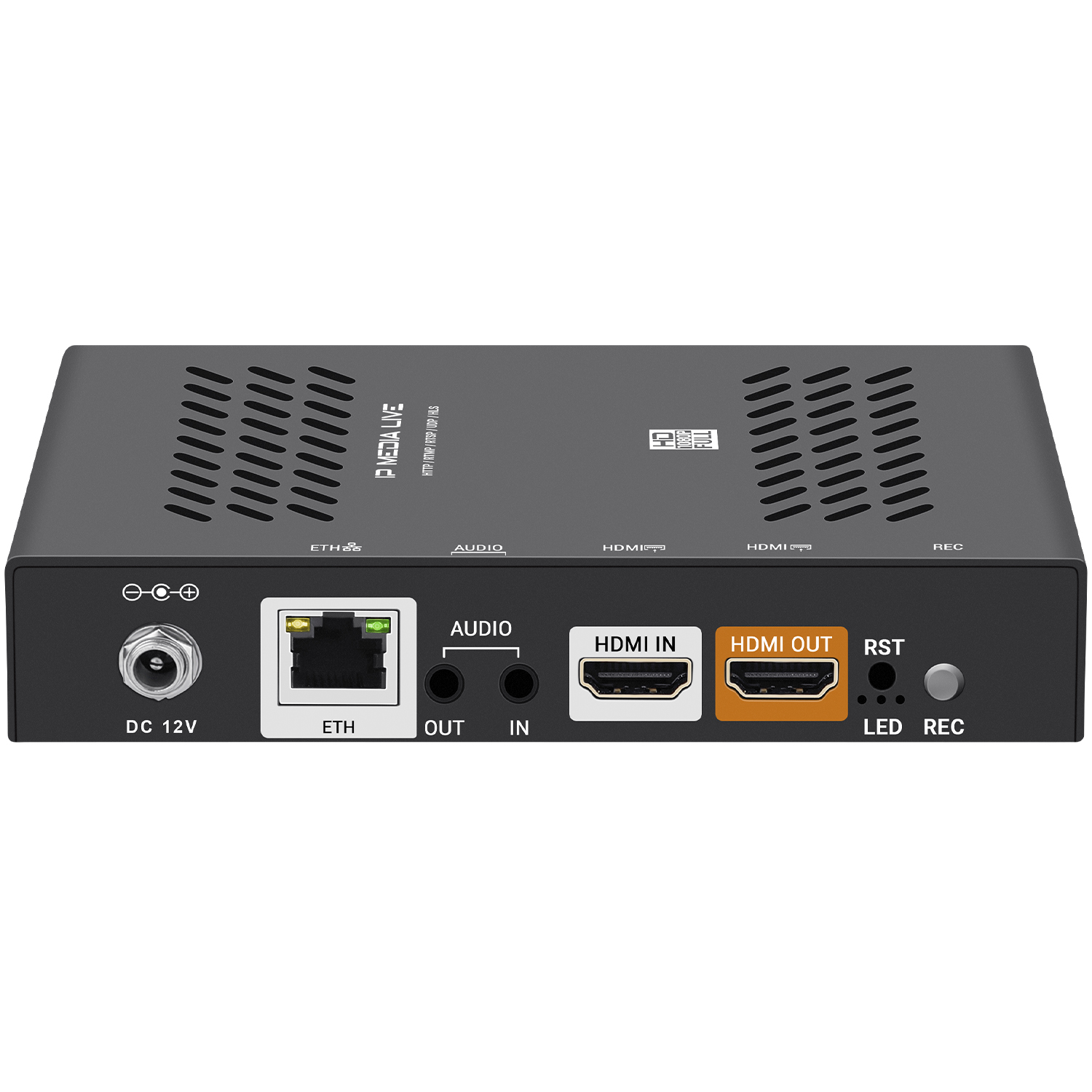

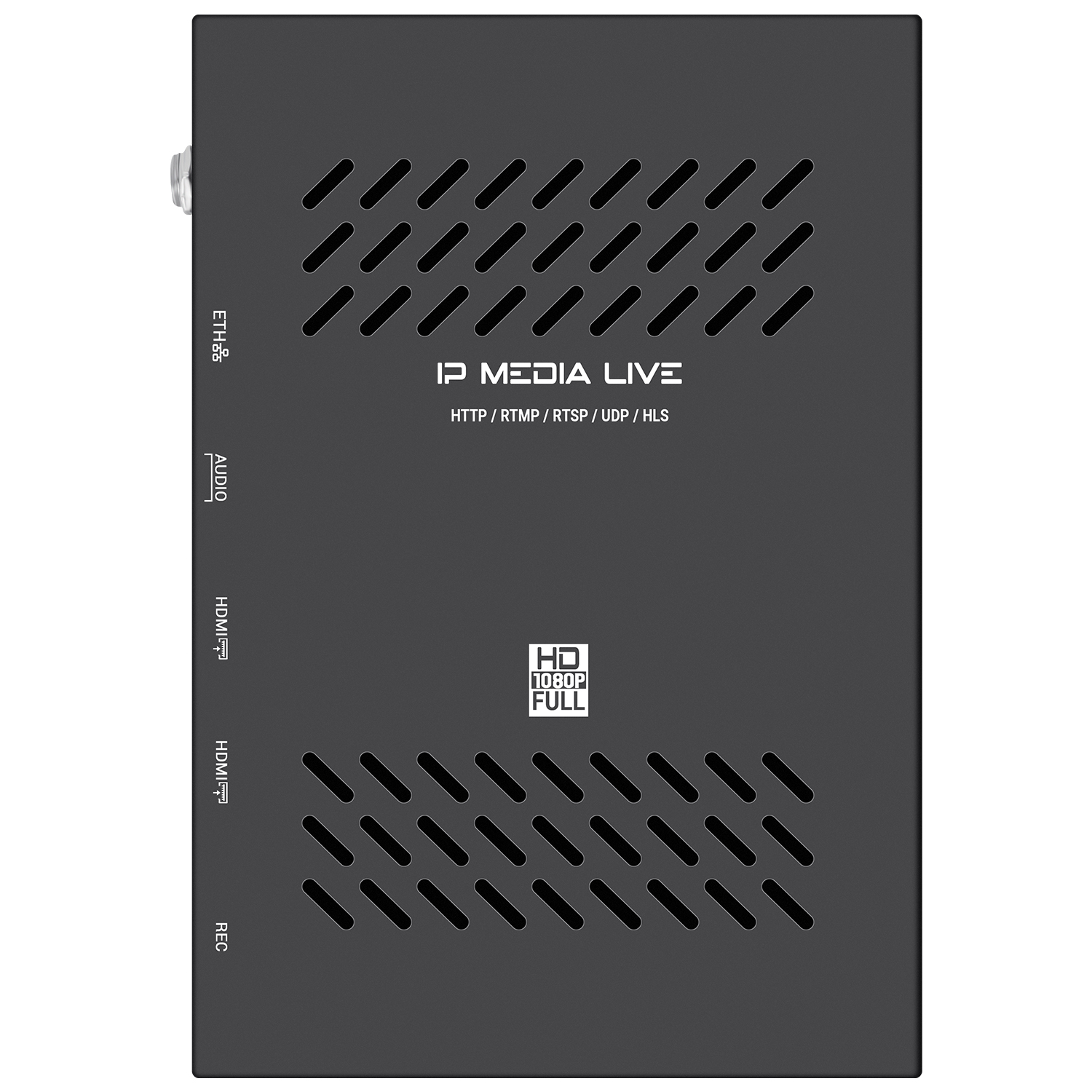

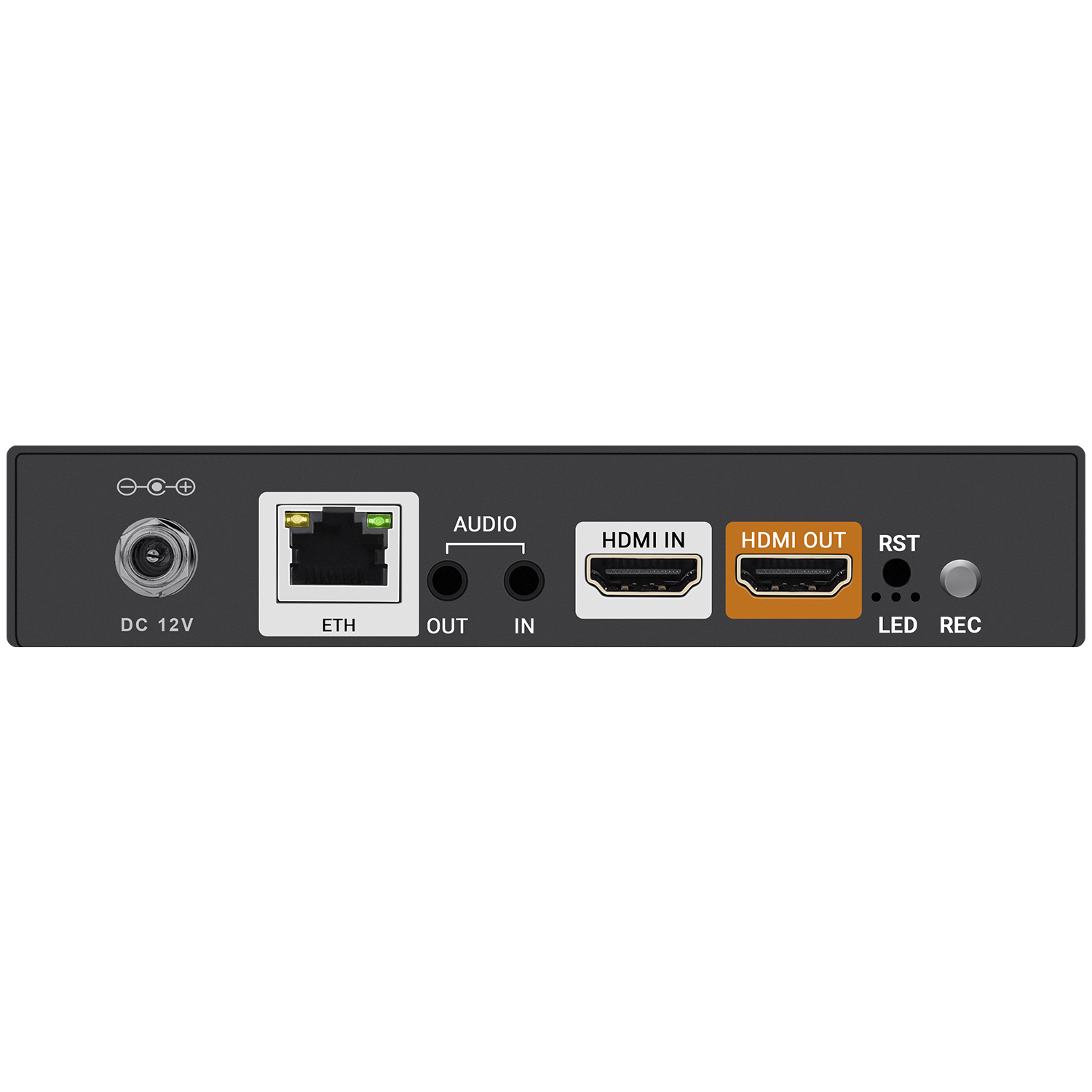

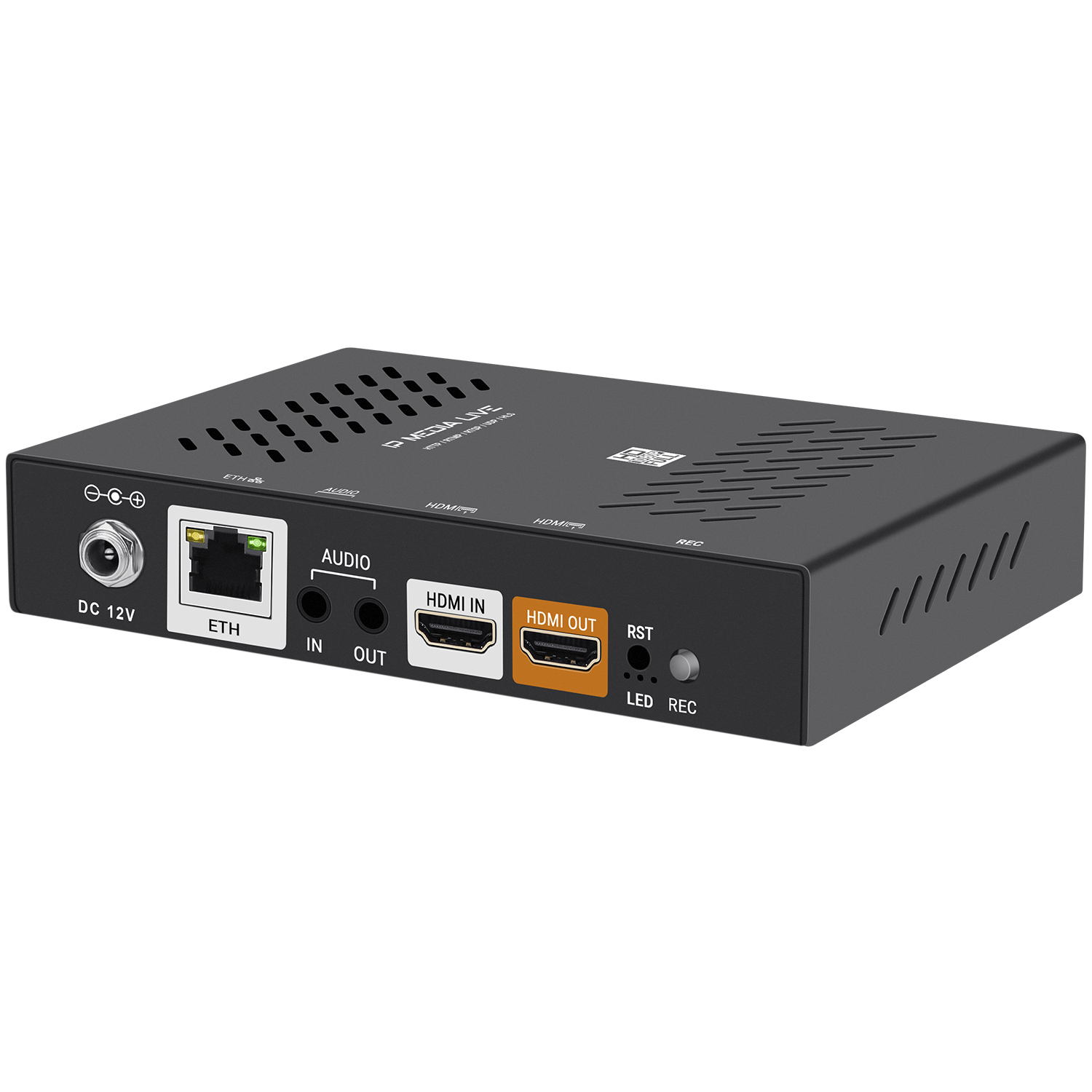

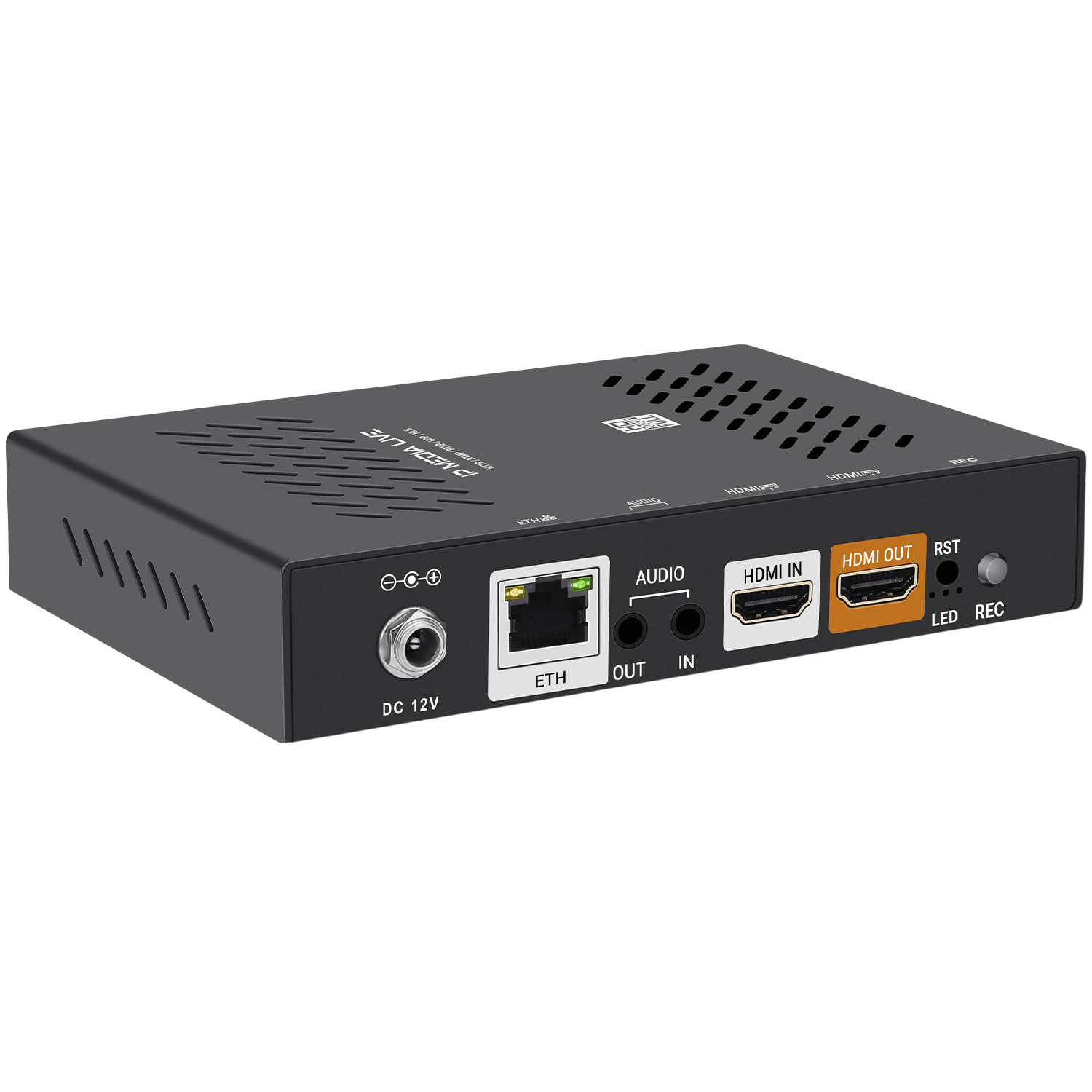

H.265 HDMI Loop Video Encoder

H.265 HDMI Loop Video Encoder

Model No.： UHE265-1L-X
Input： HDMI(audio bulid-in)+ external audio(3.5mm jack)
Video Encoding： HEVC /H.265, MPEG-4 /H.264 AVC
Audio Encoding： AAC, G.711
Output Video： 4 video streams output simultaneously
Output Audio： HDMI embedded audio and stereo audio
Video Resolution： Adjustable, max 1920X1080P@60fps input and output
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, Unitcast etc
Video Bitrate： Adjustable from 16kbit/s to 12mbit/s(CBR, VBR)
Audio Bitrate： Adjustable from 24000kb/s to 256000kb/s
Control Mode： Web page control, support wide area network remote management
OSD Setting： Support to add logo and text on the displayed video
Extral Service： Provide SDK and API and CGI for Secondary Development
General： 150x101x28/mm(Size), 465g(Weight), Aluminum Shell
Transmission： Ethernet Port(1000 BASE-T)
Upgrade： Support upgrade the device by uploading new firmware
Description






1-connection diagram.jpg





  • Support HEVC /H.265, H.264 /AVC video encoding

    Support AAC, G.711 audio encoding


  • Support to live streaming on max 4 live broadcast platforms simultaneously

    Support 4 streams output simultaneously, support different protocol transmission for each stream


  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 1920x1080P input and output


  • Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

    Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, ONVIF, Unitcast etc protocol

  • Support multiple on screen display settings, such as logo /text etc

    Support customize the no signal image when there is no input signal

  • Support both HDMI audio and external audio input simultaneously

    Support to switch HDMI audio or external audio as output audio at will

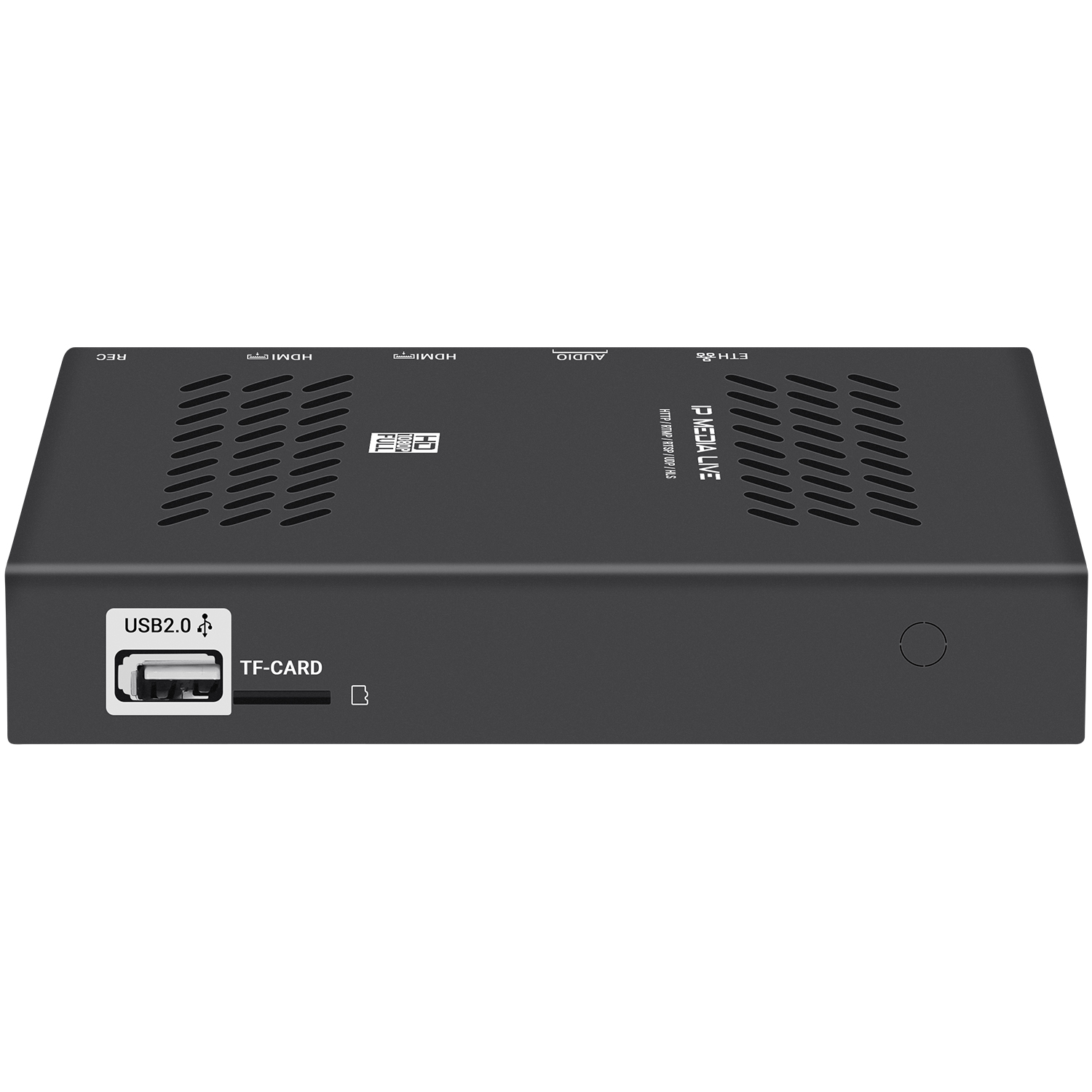

  • Support to record the output video via USB disc or TF-card

音频图TF 900.jpg

  • Support single-channel HDMI signal local output for reuse

    The looped out HDMI signal is the same as the input HDMI signal without any loss


  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization




Model No.

UHE265-1L-X

Video

Input Video

1XHDMI

Input Resolution

Max 1920x1080 resolution, max 60fps frame rate

Video Encoding

HEVC /H.265, MPEG-4 /H.264 AVC

Encoding Levels

H,265 main profile; H.264 high /main /baseline profile

Video Bitrate

Adjustable From 16kbit /s to 12mbit /s

Bitrate Control

CBR, VBR

Output Resolution

It is adjustable, max 1920x1080P /60fps

Video Pre-processing

De-interlacing, noise reducing, sharpening etc

Audio

Input Audio

HDMI embedded audio or external stereo audio(3.5mm jack)

Output Audio

HDMI embedded audio or external stereo audio(3.5mm jack)

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 24000~320000

Audio Encoding

AAC, G.711

Network

Interface

Ethernet port(1000 BASE-T)

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS, ONVIF, UDP, RTP, Unitcast etc

Control Panel

Webpage UI(language customizable)

Firmware Update

Enable by uploading files to dashboard and upgrade

General

Dimension (W* L* H)

150 x 101 x 28 /mm

Net Weight

465 g

Temperature

0 to 45(For working), -20 to 80(For storing)

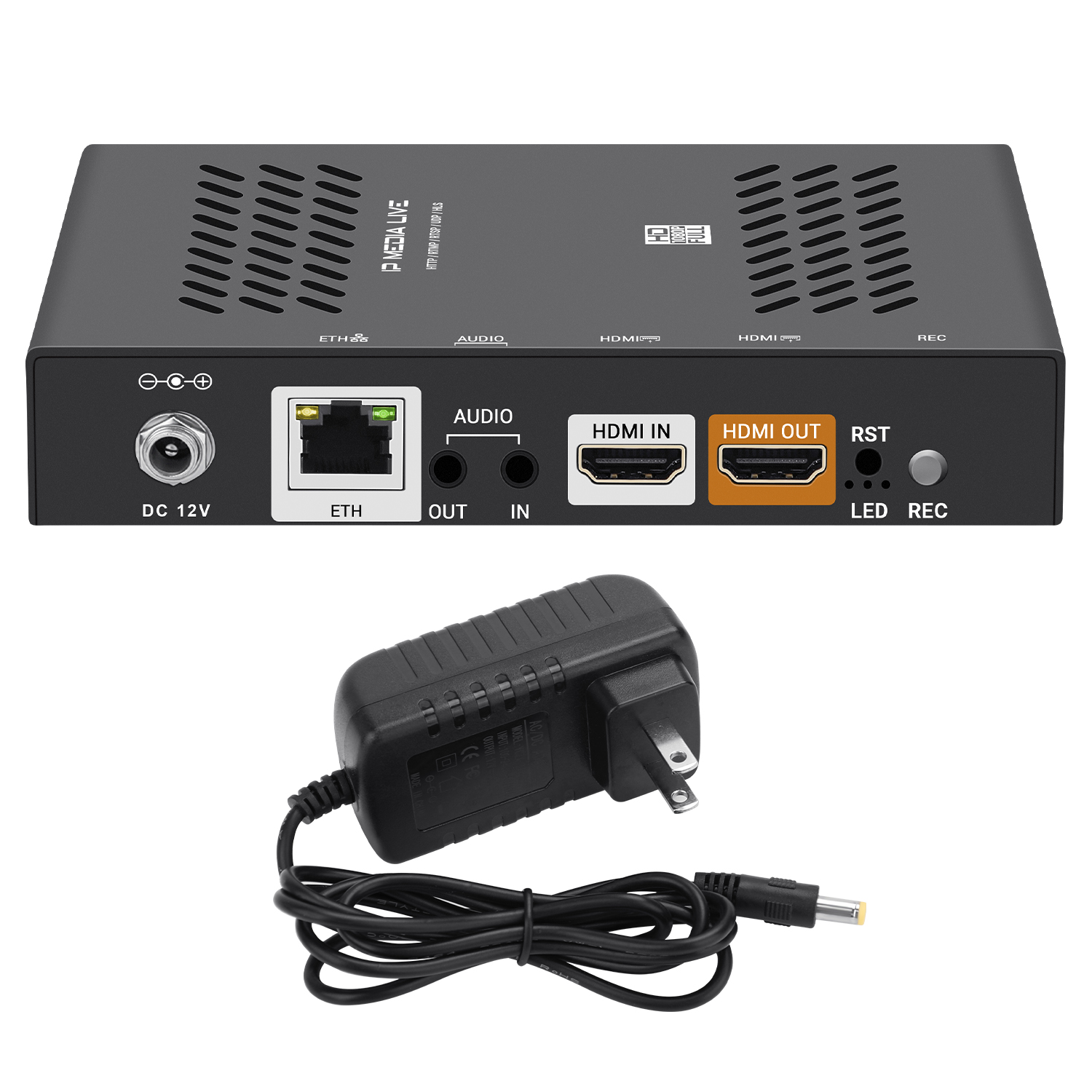

Input Voltage

DC 12V /2A

Material

Aluminum Shell



4-control panel.jpg

• Access Address(Click to enlarge)

access address.jpg


• Video Parameters (Click to enlarge)

video parameters.jpg


• Audio Parameters (Click to enlarge)

audio parameters.jpg


• Network (Click to enlarge)



• Main Stream Settings (Click to enlarge)

不带wifi的network setting.jpg


• Audio Setting (Click to enlarge)

HDMI main stream .jpg


• OSD Setting(Click to enlarge)

audio setting.jpg


• RTMP-HLS Setting (Click to enlarge)

main osd setting.jpg


• HDMI Setting (Click to enlarge)

color setting.jpg


• Record Setting (Click to enlarge)

image setting.jpg


• File Manage (Click to enlarge)

RTMP-HLS setting.jpg


• Reboot and Reset (Click to enlarge)

onvif setting.jpg


• Upgrade (Click to enlarge)

system setting.jpg
