Product Details
4K 4 Channels SDI Video Encoder Supports 6G-SDI

4K 4 Channels SDI Video Encoder Supports 6G-SDI

Model： USE265-4-4K
Input： 4 x SDI(audio bulid-in) + 2 x line-in audio(3.5mm jack)
Video Encoding： H.265, H.264, MJPEG
Audio Encoding： AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711
Output Video： 4 video streams output simultaneously for each SDI input
Output Audio： Support to switch SDI audio or line-in audio as output audio
Video Resolution： Max 3840x2160@30(port 1,2), max 1920x1080@60(port 3,4)
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, UDP, RTP, FLV, MP4, etc.
Video Bitrate： Adjustable from 32kbit/s to 32mbit/s, (Strong)CBR, VBR control modes
Audio Bitrate： Adjustable from 48000kb/s to 320000kb/s
Control Mode： Web、CGI command, support wide area network remote control
OSD Setting： Support adding logo, text, scroll text, time on the displayed video
Customization： Provide many kinds of ODM(Shell, Logo, Function, Language, etc.)
Service： Free lifetime warranty, provide secondary development documents
General： 200x107x37/mm(Size), 355g(Weight), Aluminum shell, Driver-free
Description

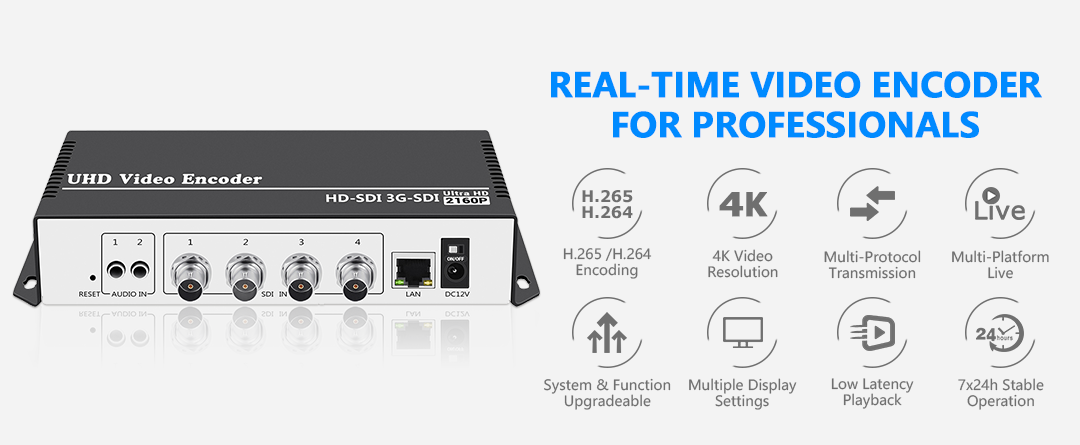

USE265-4-4K

USE265-4-4K


  • H.265, H.264, MJPEG video encoding

  • AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711 audio encoding


  • Max 4 video streams output simultaneously for each SDI input

  • Live broadcast on max 4 platforms simultaneously for each SDI input

USE265-4-4K

  • Compatible with most live broadcast platforms and software

  • Support different protocol transmission for each video stream


  • Free switching output video resolution, max 3840x2160 input and output for port 1 and 2

  • Output video frame rate adjustable, max 60fps input and output (Max 30fps for 3840x2160)


  • Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), Multicast(UDP /RTP), FLV, ONVIF, MP4, etc.

  • Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty



  • Support multiple on screen display settings, such as logo, text, scroll tect, time, etc.

  • Support customizing the display image or logo when there is no decoding signal


  • For SDI port 1 and 2, support both SDI audio and line-in audio input simultaneously

  • For SDI port 1 and 2, support to switch SDI audio or line-in audio as output audio

USE265-4-4K

  • Support logo printing /language /solution /function /system and other customizations

  • Provide lifetime free warranty service, and SDK /API /CGI files for secondary development


  • Support pushing RTMP(S) /HLS /SRT video streams to the servers, such as YouTube, Facebook, etc.

  • Set up once and then plug and play. Very convenient and flexible for indoor outdoor live broadcasting.

‍ABUIABACGAAgmobingYowMn78QYwhAc4zwQ.jpg‍


Model No.

USE265-4-4K

Video

Input Video

2 x 6G /3G /HD /SD SDI + 2 x 3G /HD /SD SDI

Input Resolution

Max 3840x2160 for port 1 and 2, max 1920x1080 for port 3 and 4

Video Encoding

H.265, H.264, MJPEG(Motion JPEG)

Video Bitrate

Adjustable from 32kbit/s ~ 32000kbit/s

Bitrate Control

CBR, Strong CBR, VBR

Output Resolution

It is adjustable, max 3840x2160p for port 1 and 2; max 1920x1080p for port 3 and 4

Frame Rate

Max 60fps for 1920x1080 or lower, max 30fps for 3840x2160

Audio

Input Audio

4 x SDI audio, 2 x line-in audio(3.5mm jack)

Output Audio

Support to switch SDI audio or line-in audio at will

Sampling Rate

44.1KHz, 48KHz, Same as Input

Audio Bitrate

Adjustable from 48000kbit/s ~ 320000kbit/s

Audio Encoding

AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711

Network

Interface

Ethernet port(Gigabit)

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS(M3U8), ONVIF, UDP, RTP, MP4, FLV, Unitcast, etc.

Control Dashboard

Webpage dashboard, support remote management over WAN

System Update

Uploading firmware to dashboard and upgrade

General

Dimension (L x W x H)

200 x 107 x 37 /mm

Net Weight

355g

Temperature

0 to 45℃(working), -20℃ to 80℃(storing)

Power

DC 12V /2A

Material

Aluminum Shell


• Status Display（Click to enlarge）

UHE265-4-4K

• Main Stream Setting（Click to enlarge）

UHE265-4-4K

• Video Setting（Click to enlarge）

UHE265-4-4K

• Audio Setting（Click to enlarge）

UHE265-4-4K

• Advanced Setting（Click to enlarge）

UHE265-4-4K

• Display Setting（Click to enlarge）

UHE265-4-4K

• Logo Upload（Click to enlarge）

UHE265-4-4K

• Network Setting（Click to enlarge）

UHE265-4-4K

• Password（Click to enlarge）

UHE265-4-4K

• Upgrade and Backup（Click to enlarge）

UHE265-4-4K

• Reboot（Click to enlarge）

UHE265-4-4K

• Schedule Reboot（Click to enlarge）

UHE265-4-4K

• Reset（Click to enlarge）

UHE265-4-4K
