Product Details

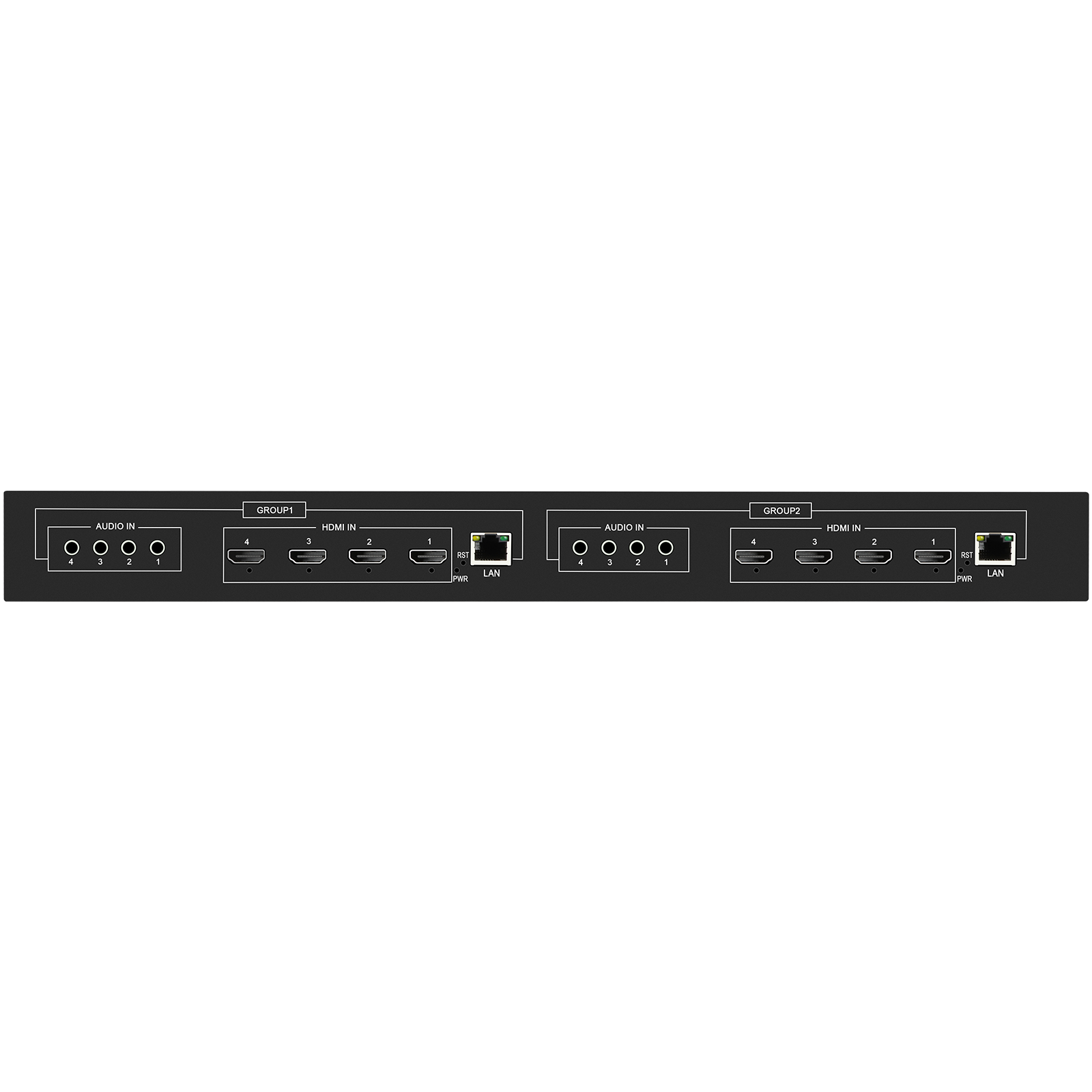

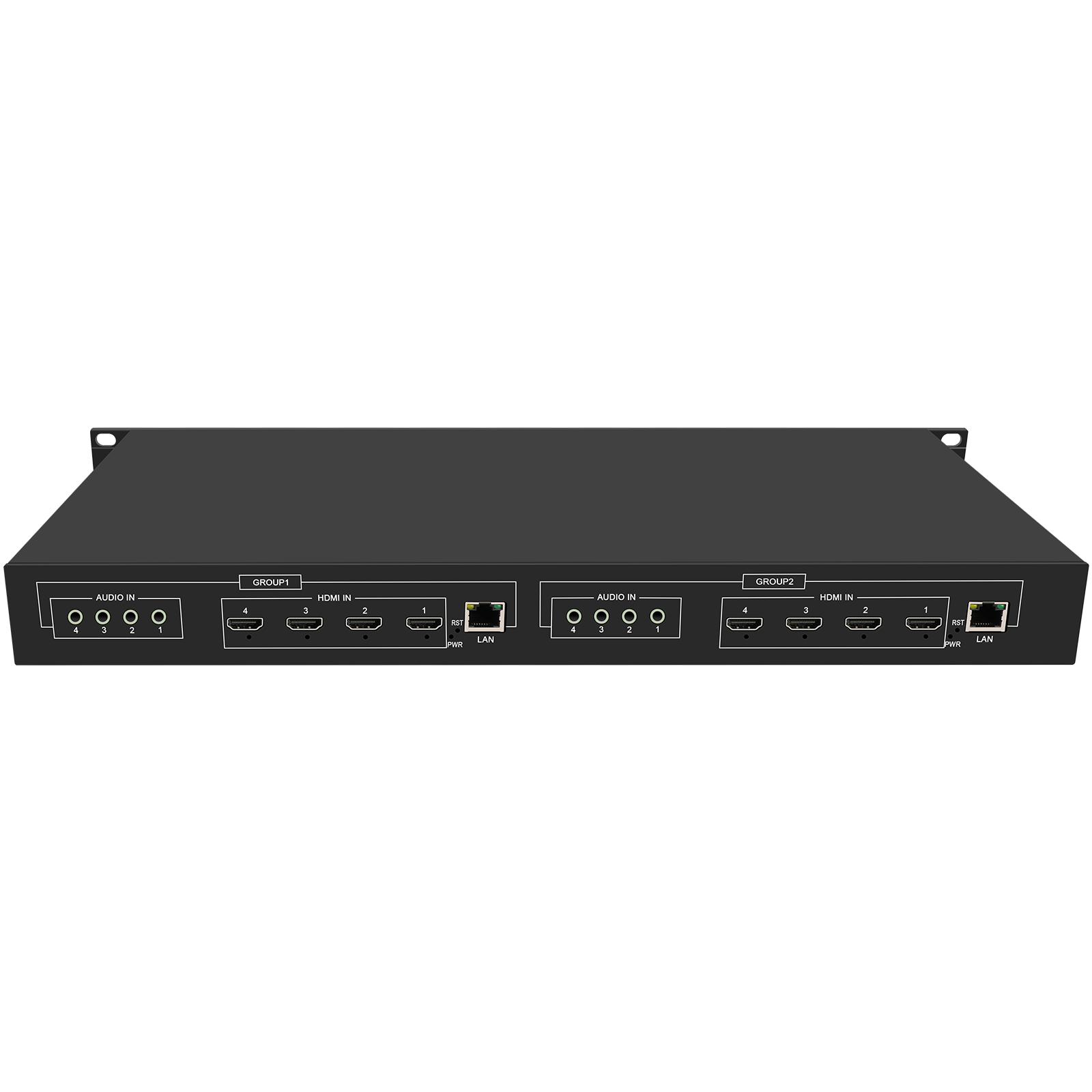

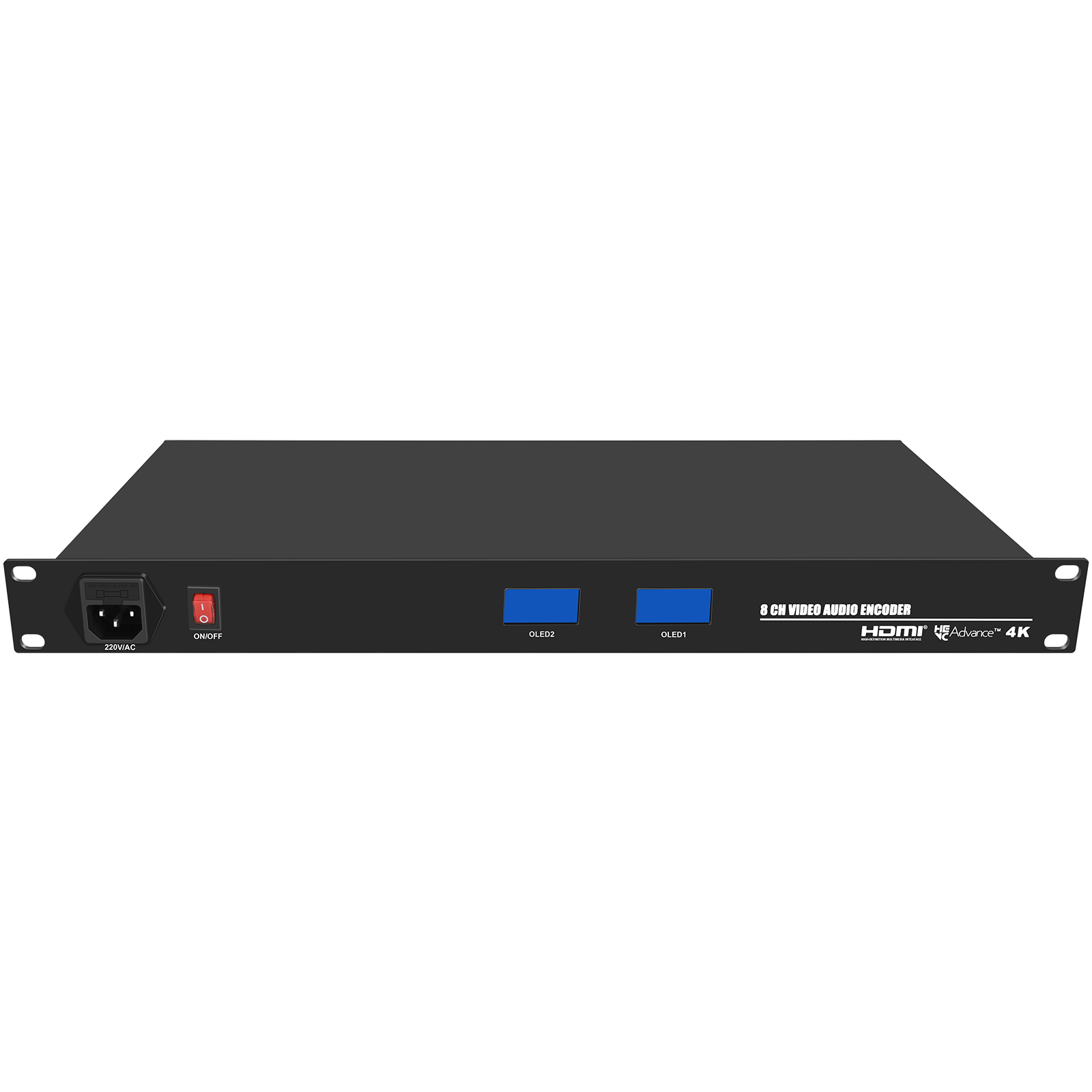

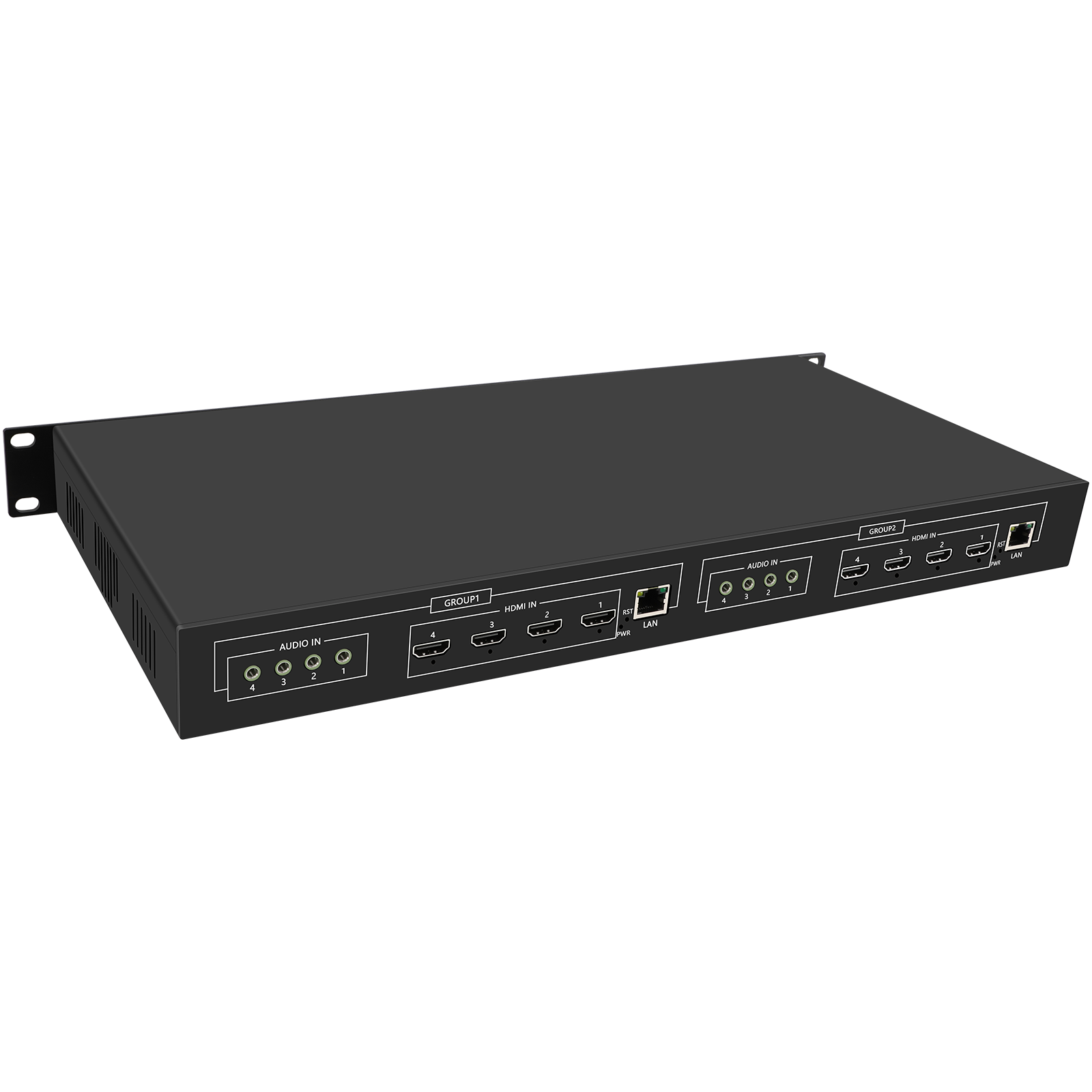

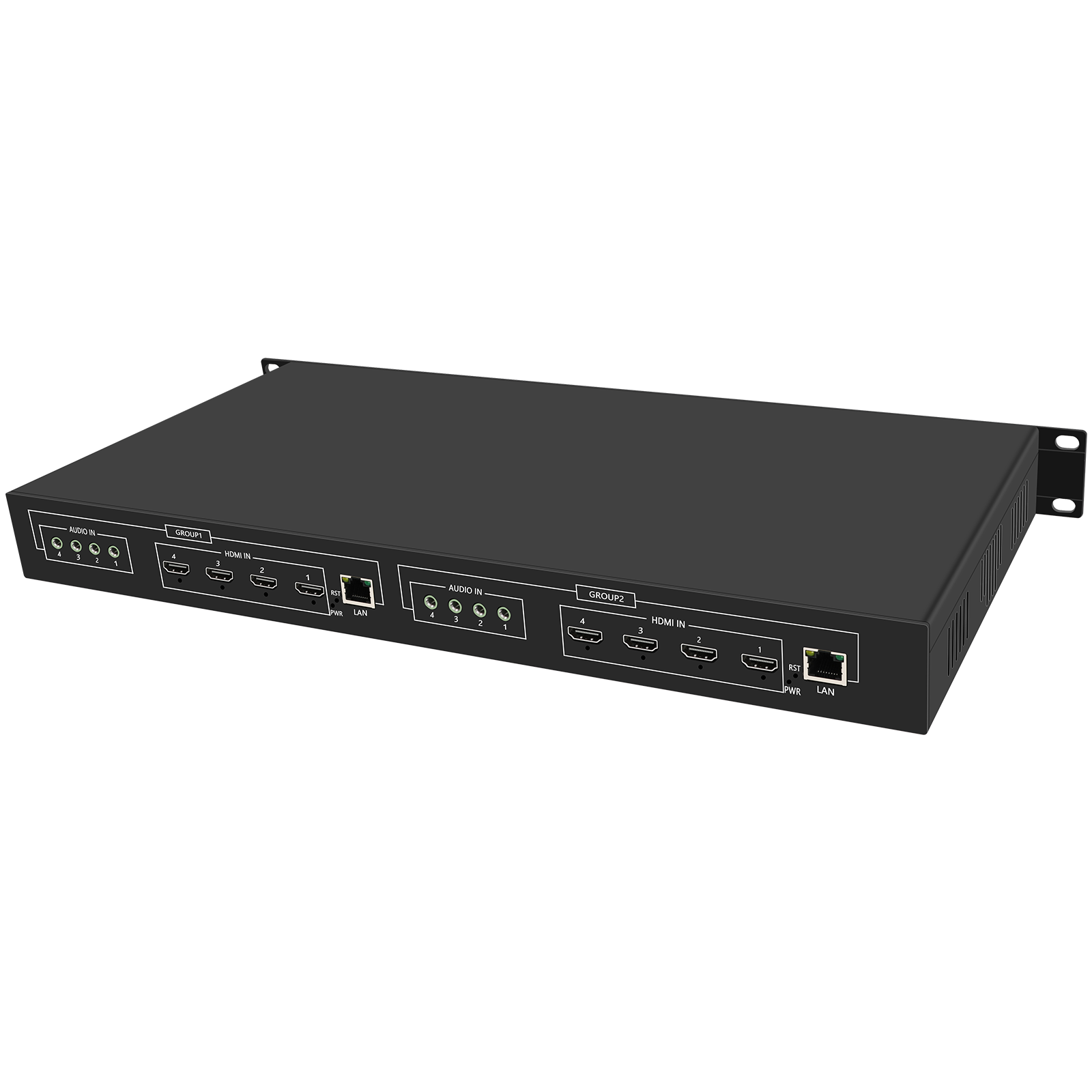

1U Rack 4K 8 Channels HDMI Video Encoder

1U Rack 4K 8 Channels HDMI Video Encoder

Model： UHE265-8S-4K
Input： 8 x HDMI(audio bulid-in) + 8 x line-in audio(3.5mm jack)
Video Encoding： H.265, H.264, MJPEG
Audio Encoding： ACCLC, EAAC, EAACPLUS, AC3, MP2, G.711
Output Video： 8 video streams output simultaneously
Output Audio： Support to switch HDMI audio or line-in audio as output audio
Video Resolution： Adjustable, max 3840x2160 input and output
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, UDP, RTP, etc.
Video Bitrate： Adjustable from 16kbit/s to 12mbit/s for each Ethernet port
Audio Bitrate： Adjustable from 48000kb/s to 256000kb/s for each Ethernet port
Control Mode： Web、CGI command, support wide area network remote control
OSD Setting： Support to add logo and text on the displayed video
Customization： Shell, logo, function, language, solution, system, etc.
Service： Free lifetime warranty, provide secondary development documents
General： 480x200x45/mm(Size), 1.70kg(Weight), Aluminum Shell, Drive Free
Description




  • H.265, H.264, MJPEG video encoding

  • ACCLC, EAAC, EAACPLUS, AC3, MP2, G.711 audio encoding

  • Max 8 video streams output simultaneously

  • Live broadcast on max 8 platforms simultaneously


  • Compatible with most live broadcast platforms and software

  • Support different protocol transmission for each video stream


  • Support output video resolution setting, max 3840x2160 resolution input and output

  • Support output video frame rate setting, max 60fps input and output (Max 30fps for 4K)


  • Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), Multicast(UDP /RTP), ONVIF, etc.

  • Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty



  • Support multiple on screen display settings, such as logo, text, etc.

  • Support customize the no signal image when there is no input signal


  • Support both HDMI audio and line-in audio input simultaneously

  • Support to switch HDMI audio or line-in audio as output audio


  • Provide SDK /API /CGI for secondary development

  • Support logo printing /language /solution /function /system and other customizations

微信图片_20241102112445.jpg‍


Model No.

UHE265-8S-4K

Video

Input Video

8xHDMI, Support HDCP

Input Resolution

Max 3840x2160 resolution input and output

Frame Rate

Max 60fps for 1920x1080 and below, max 30fps for 3840x2160

Video Encoding

H.265, H.264, MJPEG(Motion JPEG)

Video Bitrate

Adjustable From 16kbit/s ~ 12mbit/s for each Ethernet port

Bitrate Control

CBR, VBR

Output Resolution

It is adjustable, max 3840x2160p@30fps(Max 60fps for 1080p and below)

Audio

Input Audio

HDMI audio and line-in stereo audio(3.5mm jack)

Output Audio

Support to switch HDMI audio or line-in audio at will

Sampling Rate

44.1KHz, 48KHz, Same as Input

Audio Bitrate

Adjustable from 48000kbit/s ~ 256000kbit/s for each Ethernet port

Audio Encoding

ACCLC, EAAC, EAACPLUS, AC3, MP2, G.711

Network

Interface

2xEthernet port(Gigabit)

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS(M3U8), ONVIF, UDP, RTP, Unitcast, etc.

Control Dashboard

Webpage dashboard, support remote management over WAN

System Update

Uploading firmware to dashboard and upgrade

General

Dimension (L x W x H)

480 x 200 x 45 /mm

Net Weight

1.70kg

Temperature

0 to 45(For working), -20 to 80(For storing)

Power

Input: AC 100V~240V;   Output: 12V - 10.5A

Material

Aluminum Shell


• Status Display → Globe（Click to enlarge）


• Status Display → Preview（Click to enlarge）


• Stream Setting → Encoder（Click to enlarge）


• Stream Setting → Server（Click to enlarge）


• Stream Setting → Client（Click to enlarge）


• Stream Setting → Text（Click to enlarge）


• Stream Setting → OSD（Click to enlarge）


• Stream Setting → Advance（Click to enlarge）


• Audio Setting（Click to enlarge）


• Input → Input Setting（Click to enlarge）


• Input → EDID Setting（Click to enlarge）


• Protocol → SRT Setting（Click to enlarge）


• Protocol → GB28281 Setting（Click to enlarge）


• Protocol → ONVIF Setting（Click to enlarge）


• Protocol → CPCP Setting（Click to enlarge）


• Protocol → Advance Setting（Click to enlarge）


• Network Setting → Nerwork（Click to enlarge）


• Nerwork Setting → Advance（Click to enlarge）


• Nerwork Setting → Intercom（Click to enlarge）


• Nerwork Setting → Remote uart（Click to enlarge）


• System Setting → Time（Click to enlarge）


• System Setting → Scheduler（Click to enlarge）


• System Setting → Login（Click to enlarge）


• Upgrade → Upgrade（Click to enlarge）


• Upgrade → Backup（Click to enlarge）


• Upgrade → Logo（Click to enlarge）
