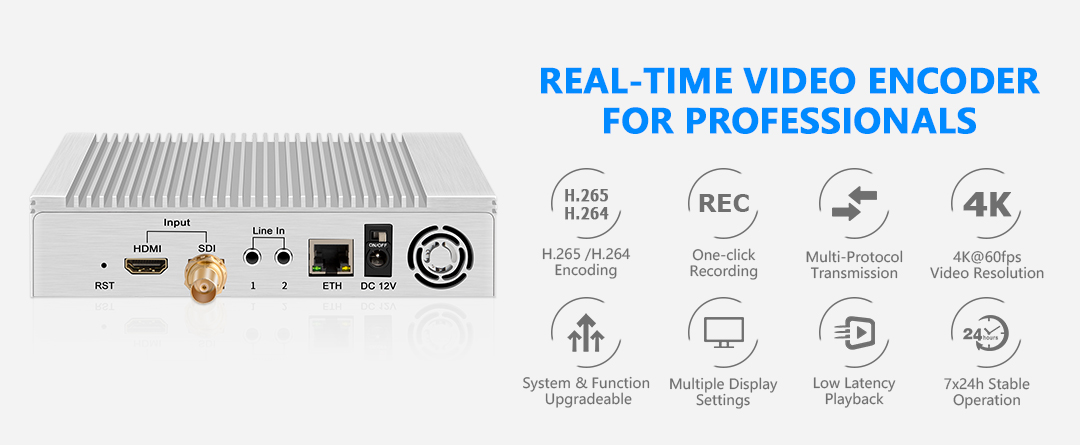

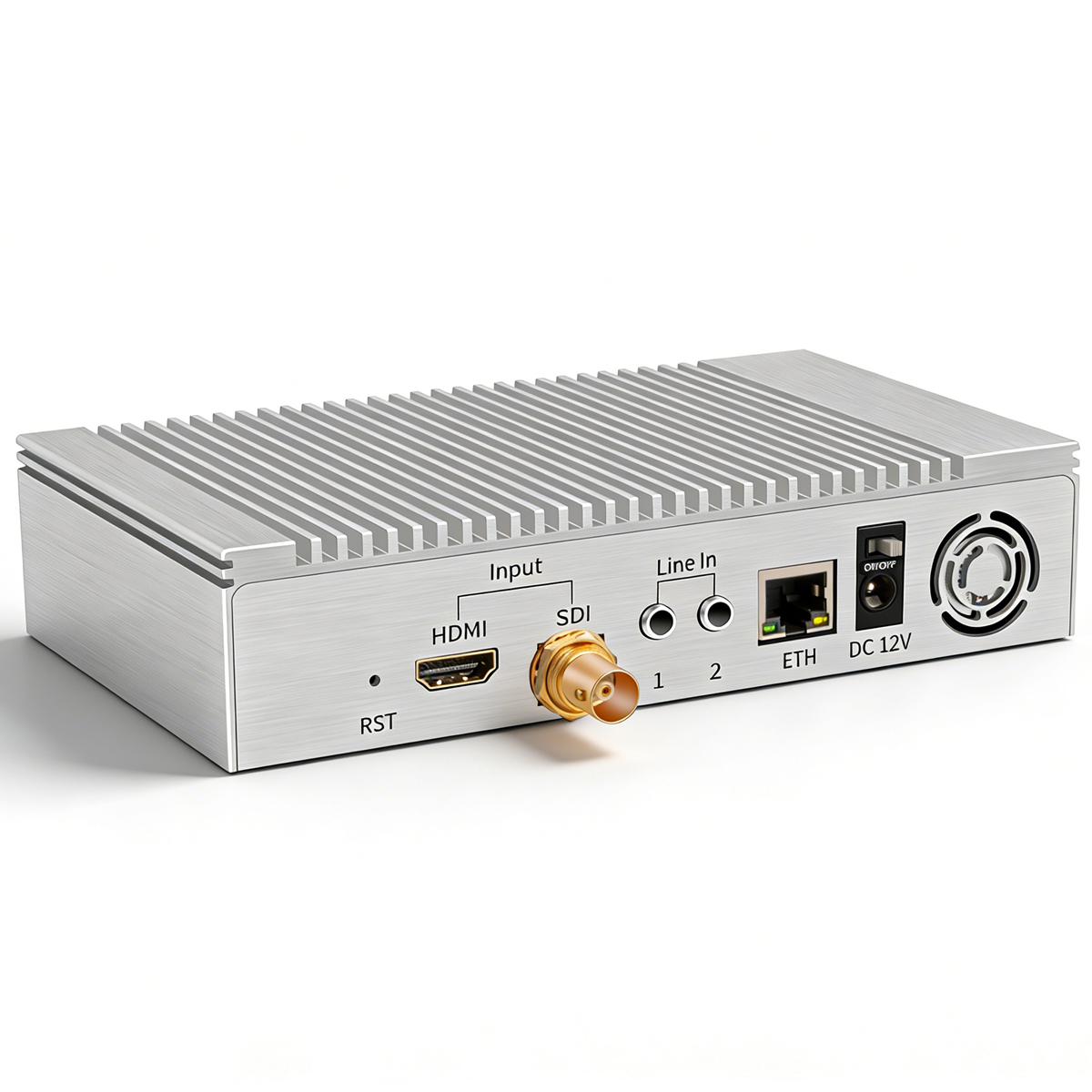

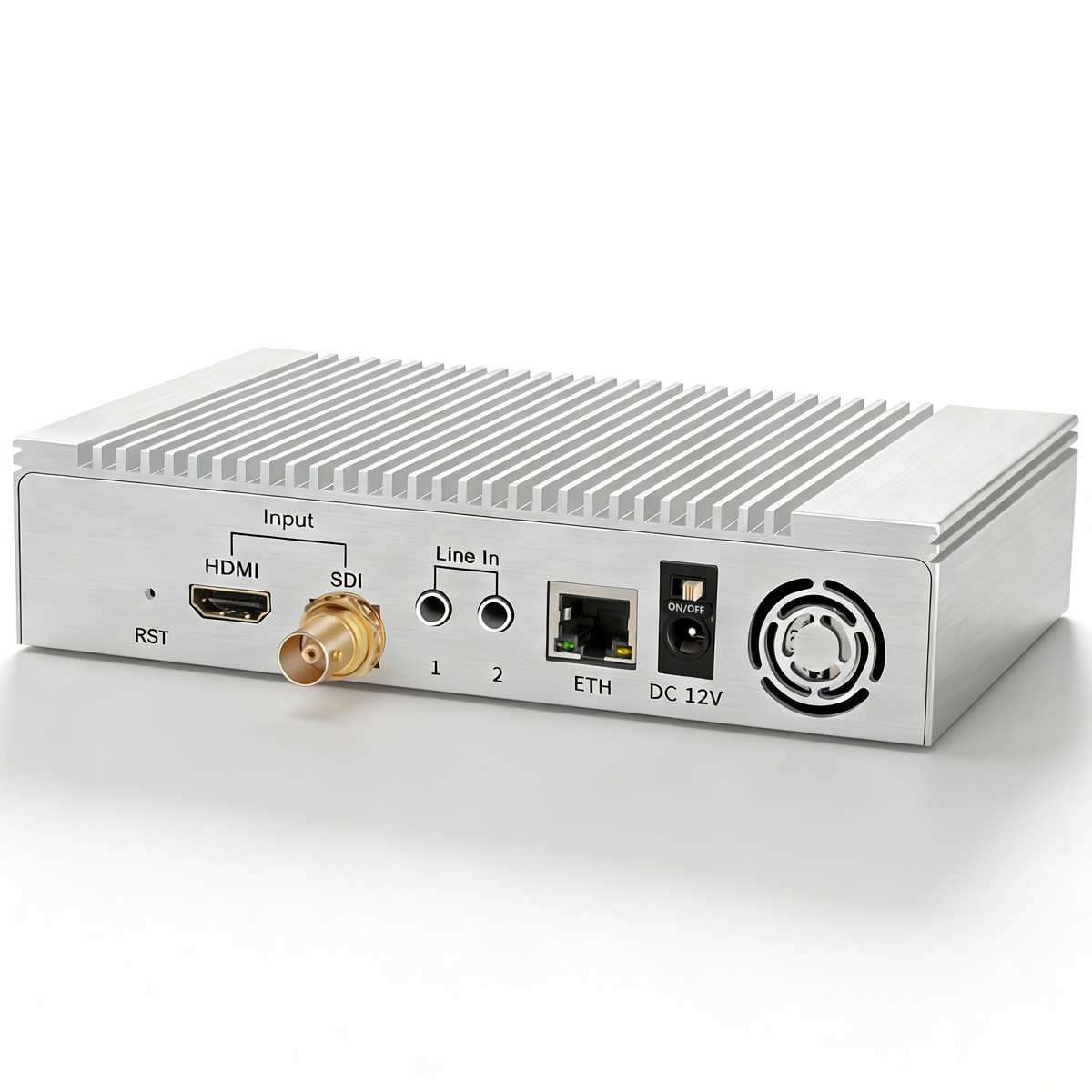

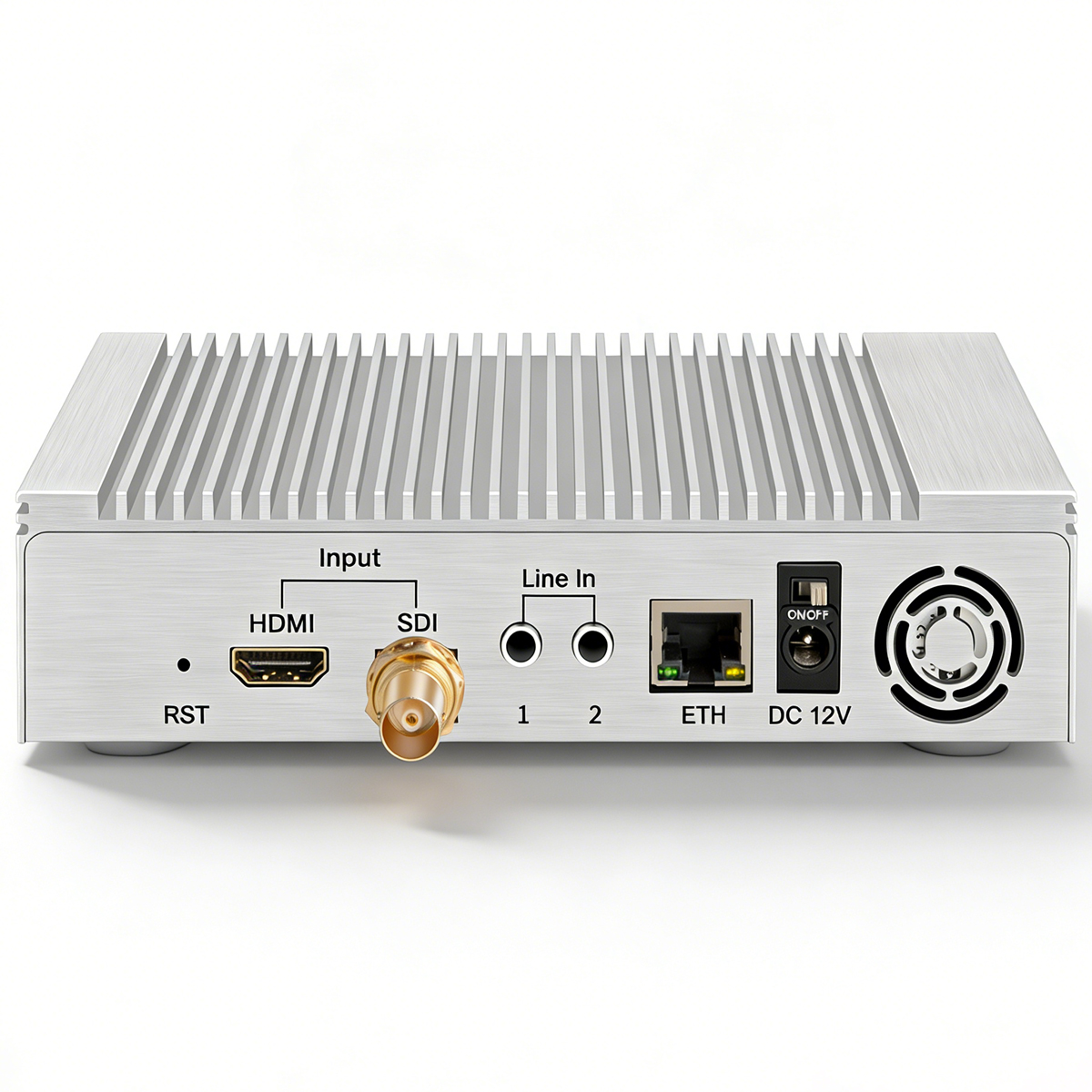

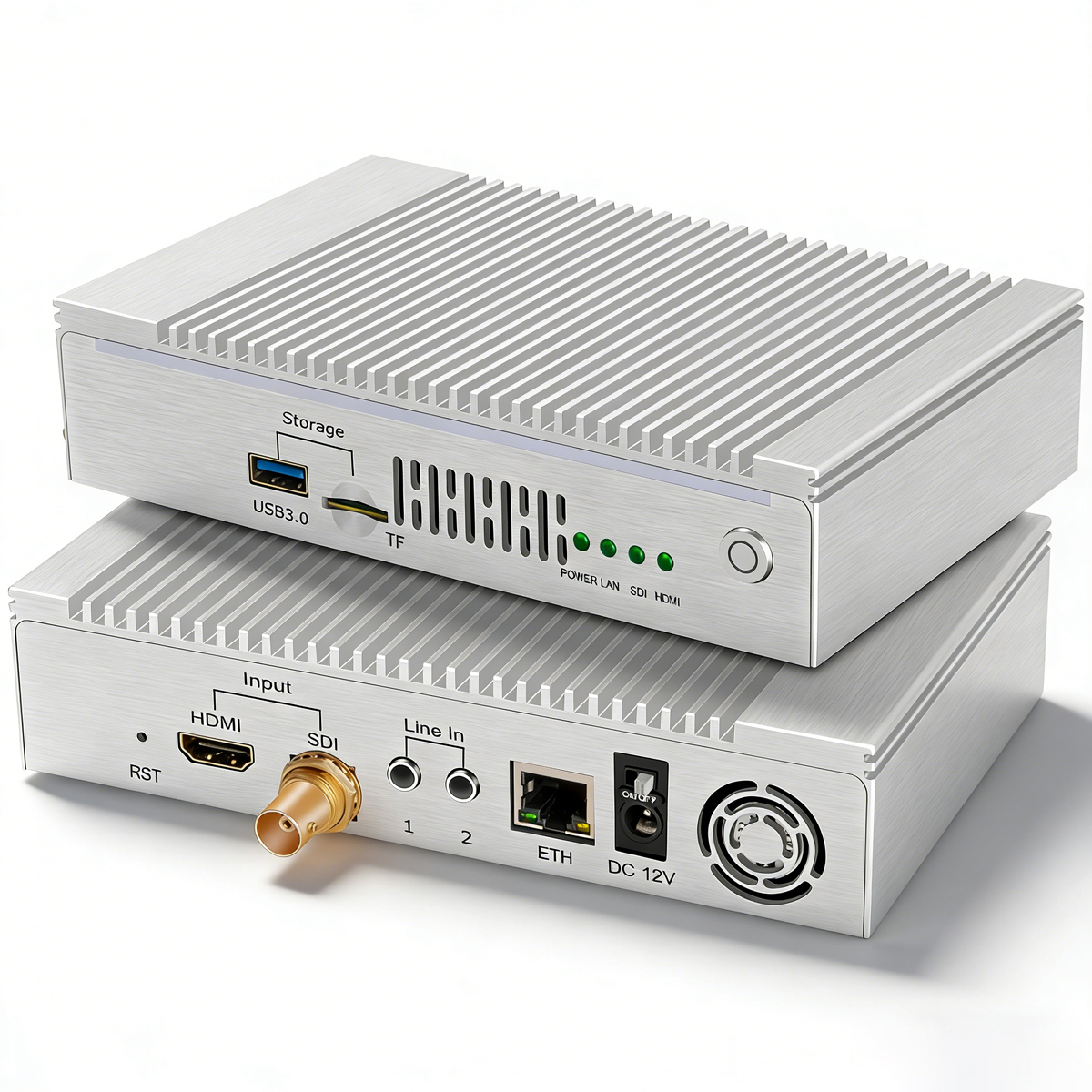

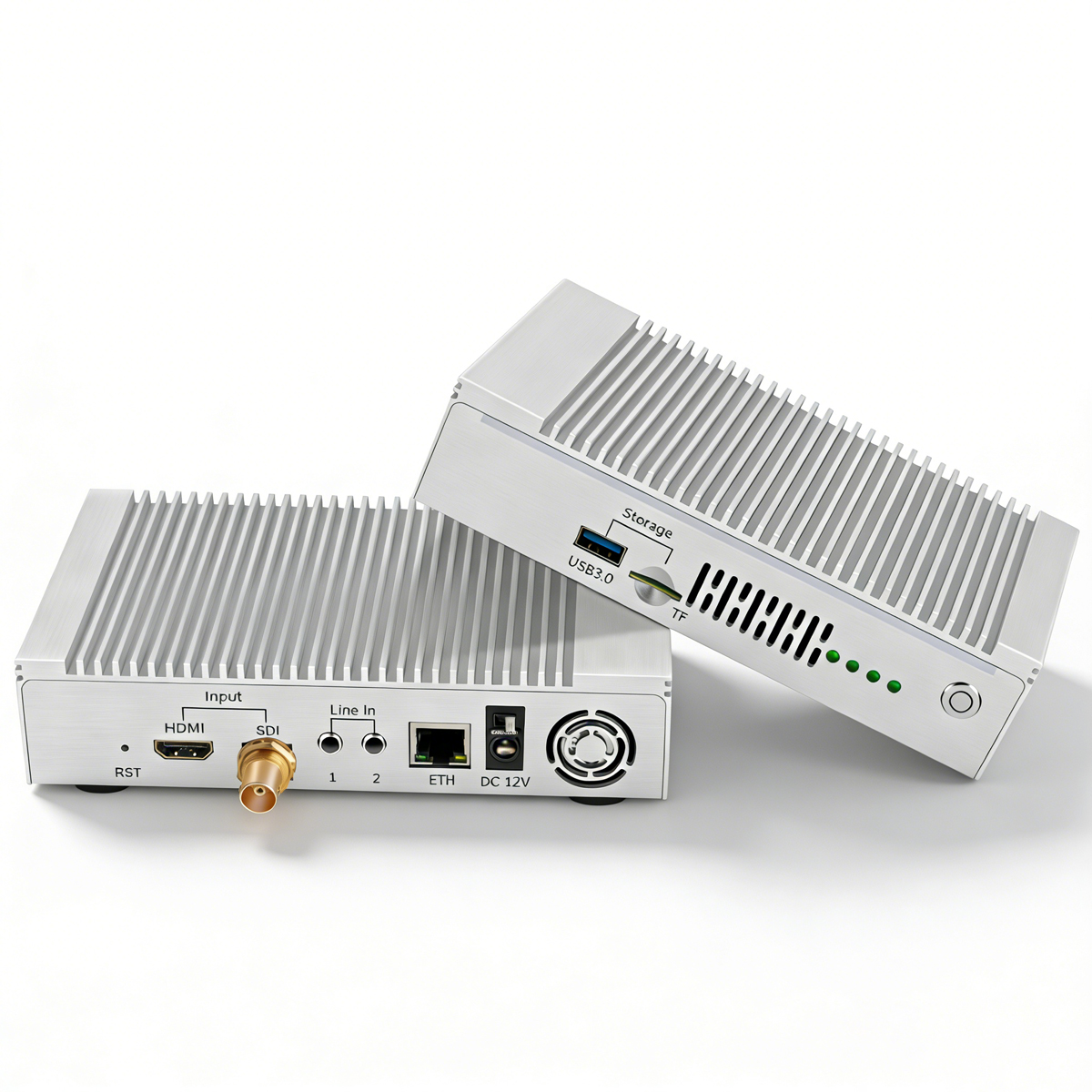

12G-SDI + 4K60 HDMI Video Streaming Encoder Supports Recording

12G-SDI + 4K60 HDMI Video Streaming Encoder Supports Recording

Model： UHSE265-1R-4K60

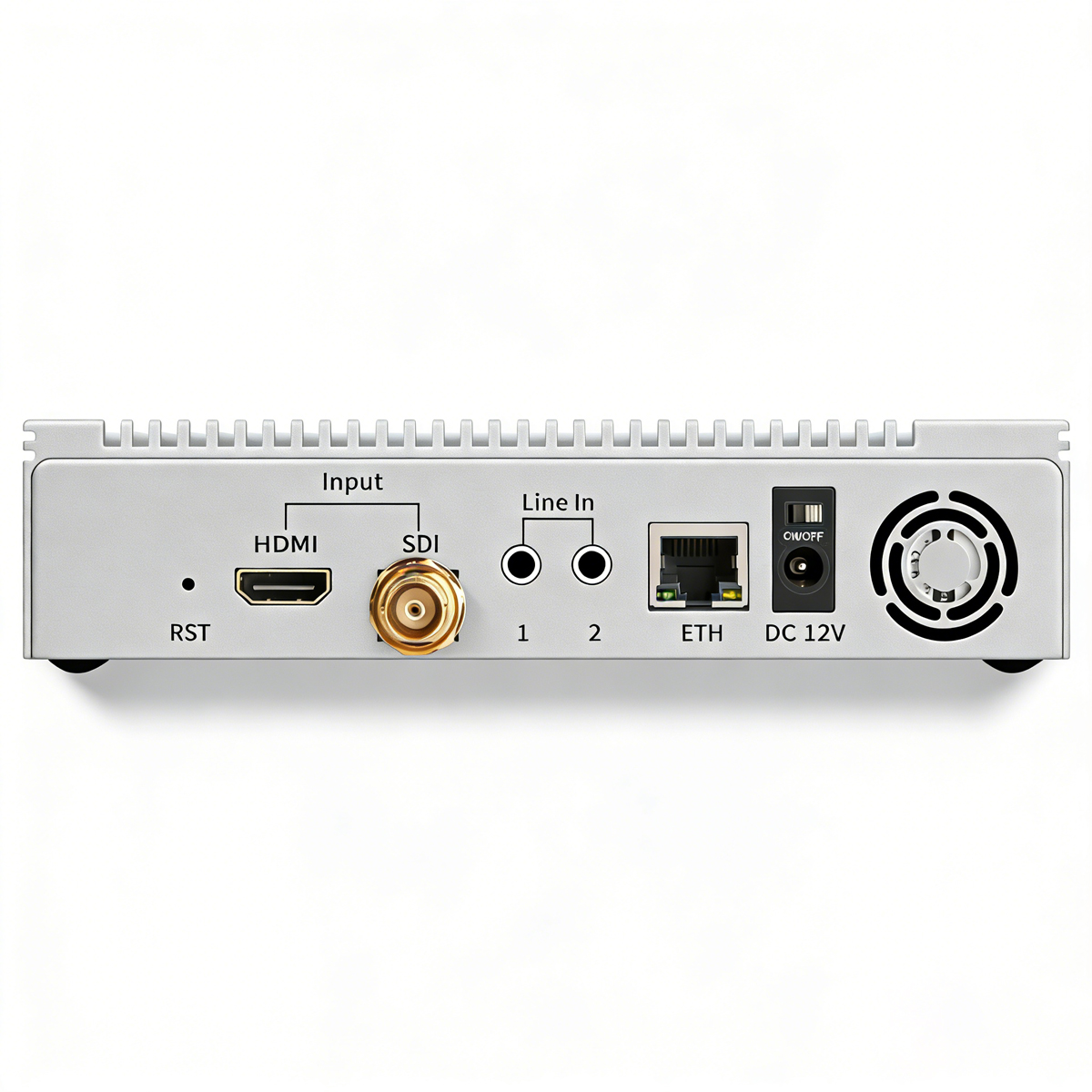

Input： SDI + HDMI + 2 x line-in audio(3.5mm jack)
Video Encoding： HEVC /H.265, MPEG-4 /H.264 AVC
Audio Encoding： AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711
Output Video： Dual streams output, support switching HDMI or SDI as output video
Output Audio： Support switching SDI /HDMI audio or line-in audio as output audio
Video Resolution： Adjustable, max 4096x2160@60fps input and output
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, UDP, RTP, FLV, MP4, etc.
Video Bitrate： Adjustable from 32kbit/s to 32mbit/s
Audio Bitrate： Adjustable from 48000kb/s to 320000kb/s
Control Mode： Web、CGI command, support wide area network remote control
Display Settings： Support adding logo, text, scroll text, time on the displayed video
General： 170x123x38/mm(Size), 610g(Weight), Aluminum Shell, Driver-free

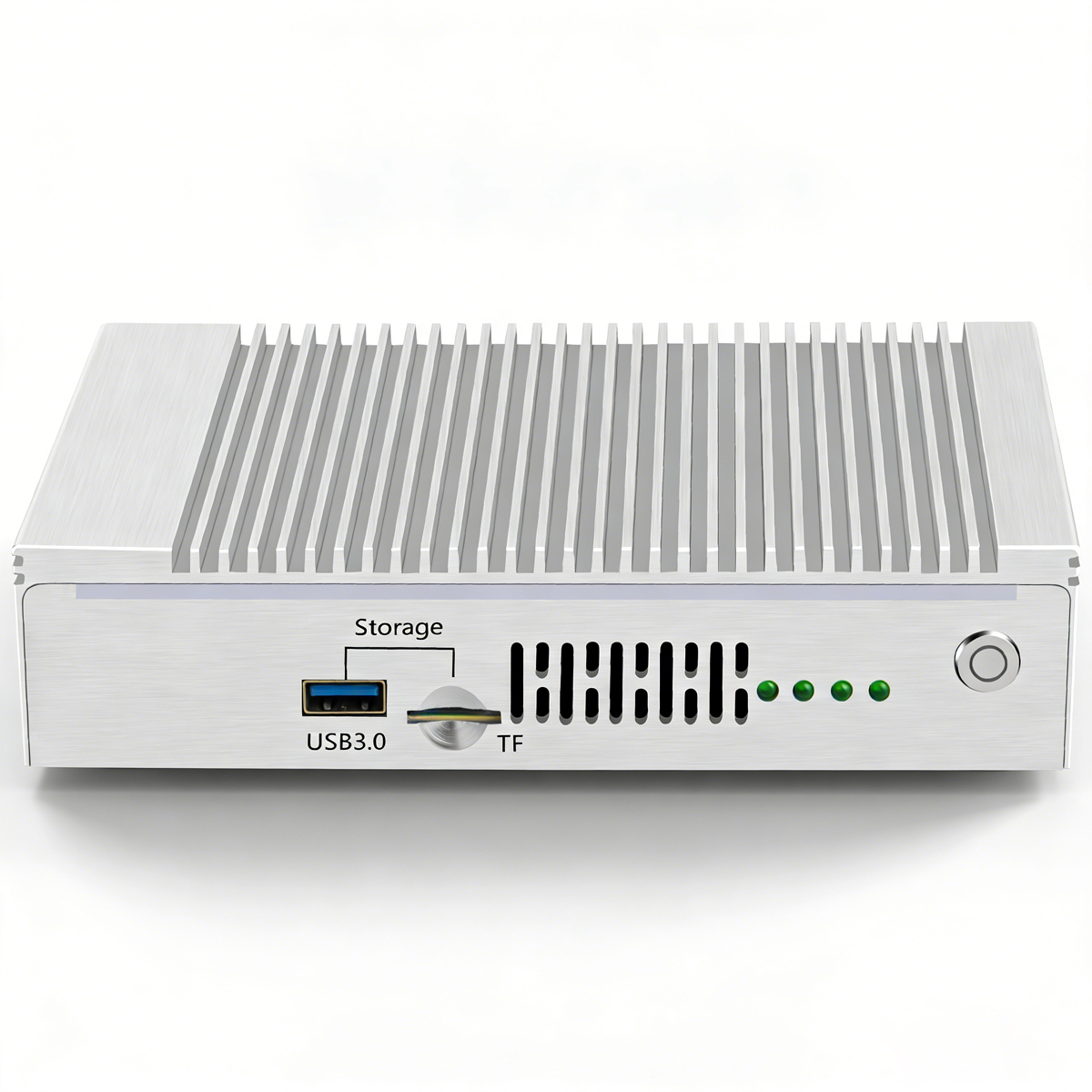

Special Feature： Record video streams to TF-card or USB flash disk
Description


‍通用




  • Supports HEVC /H.265, H.264 /AVC video encoding

  • AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711 audio encoding


  • Supports simultaneously output dual channels video streams with different protocols

  • Simultaneously push video streams to multiple live streaming platforms with one click


  • Compatible with multiple live broadcast platforms and playback software

  • Supports using different protocol transmission for each video stream


  • Free switching output video resolution, max 4096x2160 resolution input and output

  • Supports output video frame rate setting, max 60fps input and output


  • Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), Multicast(UDP /RTP /PTL), FLV, ONVIF, MP4, etc.

  • Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty

通用


  • Supports multiple on screen display settings, such as logo, text, scroll text, time, etc.

  • Supports customizing the display image or logo when there is no input signal


  • Supports switching HDMI or SDI video as output video for each video stream

  • Supports switching HDMI audio or SDI audio or line-in audio as output audio


  • One-click start /stop recording video streams

  • Saving recorded video files in the TF-card or USB flash disk

微信图片_20260330144115_300_308.jpg‍

  • Supports logo printing, language, solution, function, system and other customizations

  • Lifetime free warranty and technical supports, system firmware continuously updated



Model No.

UHSE265-1R-4K60

Video

Input Video

Support HDMI and SD /HD /3G /6G /12G SDI input simultaneously

Input Resolution

Max 4096x2160@60fps 10bit（Downward compatible）

Video Encoding

H.265, H.264

Encoding Format

4:2:0 8bit, 4:2:2 8bit, 4:0:0 8bit, 4:2:0 10bit, 4:2:2 10bit, 4:0:0 10bit

Encoding Profile

Please see the following ''Dashboard → Stream Setting''

Video Bitrate

Adjustable from 32kbit/s ~ 32000kbit/s, CBR /Strong CBR /VBR control modes

GOP

Adjustable from 1 ~ 300

Output Resolution

It is adjustable, max 4096x2160@60fps 10bit

Video Processing

De-interlacing, noise reducing, sharpening, flip, mirror, crop, etc.

Audio

Input Audio

HDMI audio, SDI audio, 2 x line-in audio(3.5mm jack)

Output Audio

Support switching HDMI audio or SDI audio or encoded line-in audio

Sampling Rate

44.1KHz, 48KHz, Same as Input

Audio Bitrate

Adjustable from 48000kbit/s ~ 320000kbit/s

Audio Encoding

AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711

Network

Interface

Ethernet port(Gigabit)

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS(M3U8), ONVIF, Multicast(UDP /RTP /PTL), MP4, Unitcast, etc.

Control Dashboard

Webpage or CGI command, support remote management over WAN

System Update

Uploading firmware to dashboard and upgrade

OSD

Display Area

Zone 1 /Zone 2 /Zone 3

Transparency

0 - 255 adjustable

Position (Horizontal)

0 - 1920 adjustable

Position (Vertical)

0 - 1080 adjustable

Logo

Max 4 LOGOs can be uploaded for selection

Font size

8 - 72 adjustable

Background

White /Black /Transparent

Font Color

Adjustable in RGB colors

Recording

Storage

USB3.0 USB flash drive, TF-card card in NTFS /EXFAT /FAT32 format

Preview

SMB /CIFS file share: \\192.168.1.168\encoder\

Format

TS /MP4 Format

General

Dimension (W x L x H)

170 x 123 x 38 /mm

Net Weight

610g

Temperature

-20℃ to 60℃(working), -20℃ to 80℃(storing)

Power

DC 12V /2A

Material

Aluminum Shell


• Status Display（Click to enlarge）

• (Main) Stream Setting（Click to enlarge）

• Video Setting（Click to enlarge）

• Audio Setting（Click to enlarge）

• Display Setting（Click to enlarge）

• Network Setting（Click to enlarge）

• Advanced Setting（Click to enlarge）

• LOGO Upload（Click to enlarge）

• Password（Click to enlarge）

• Upgrade and Backup（Click to enlarge）

• Reboot（Click to enlarge）

• Schedule Reboot（Click to enlarge）

• Reset（Click to enlarge）
