Product Details

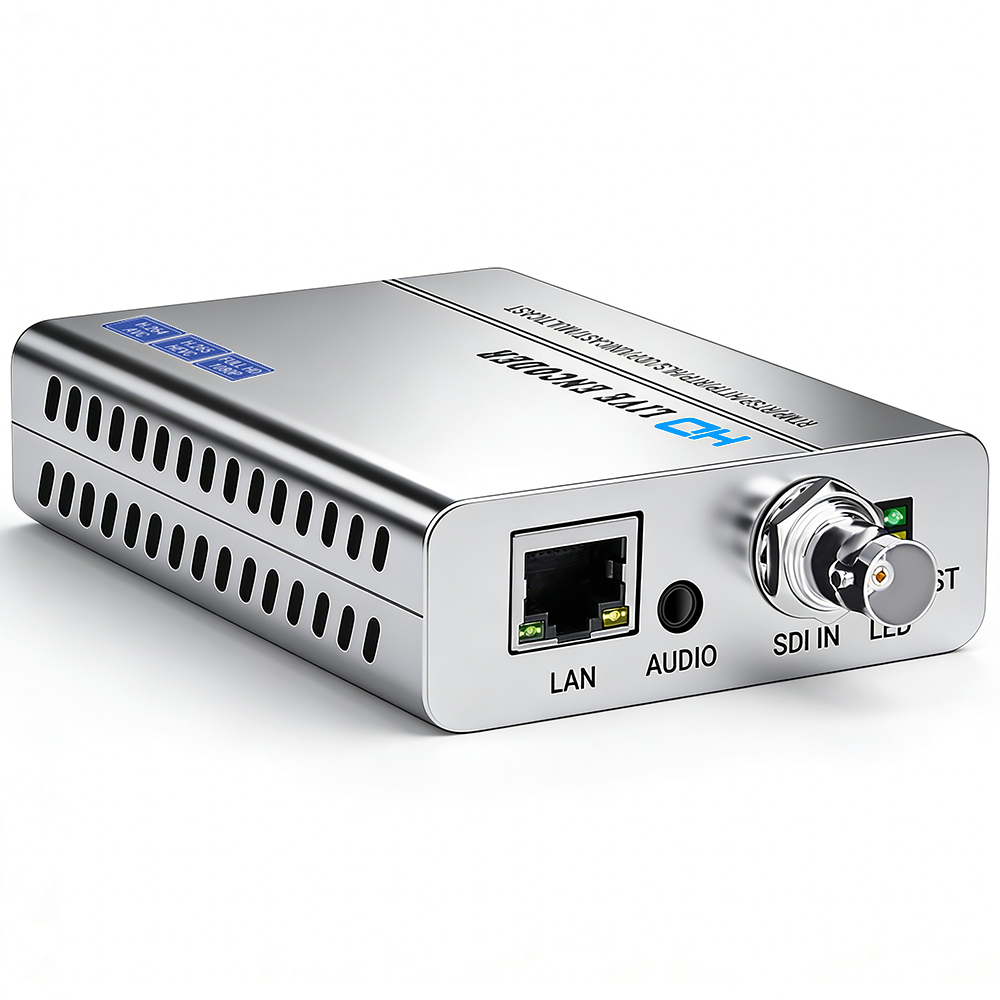

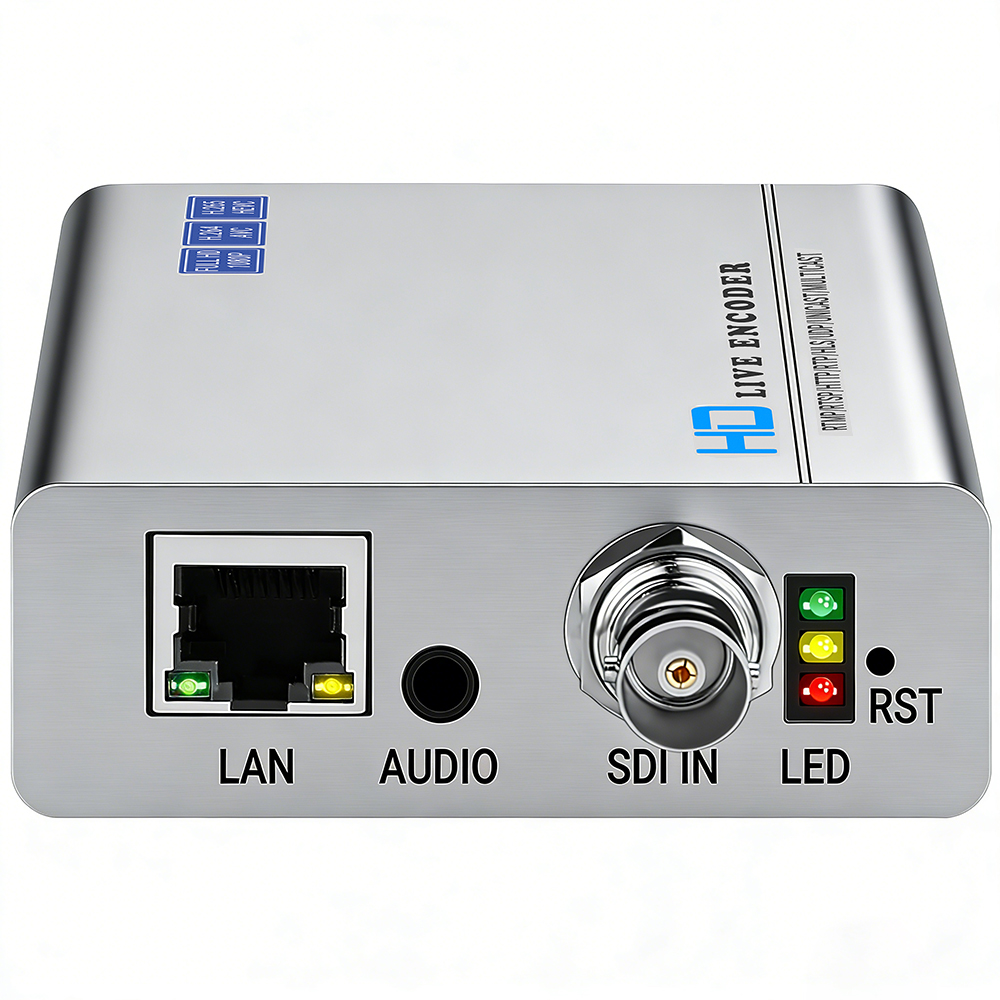

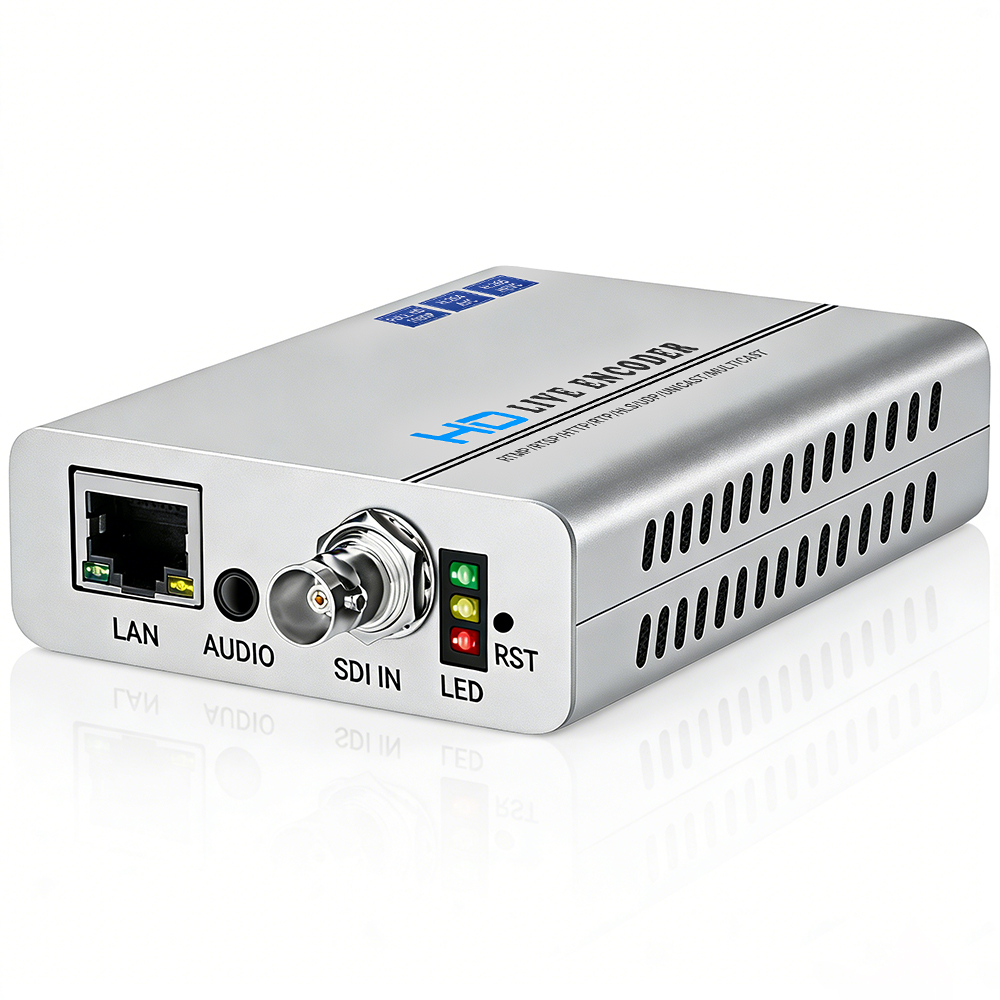

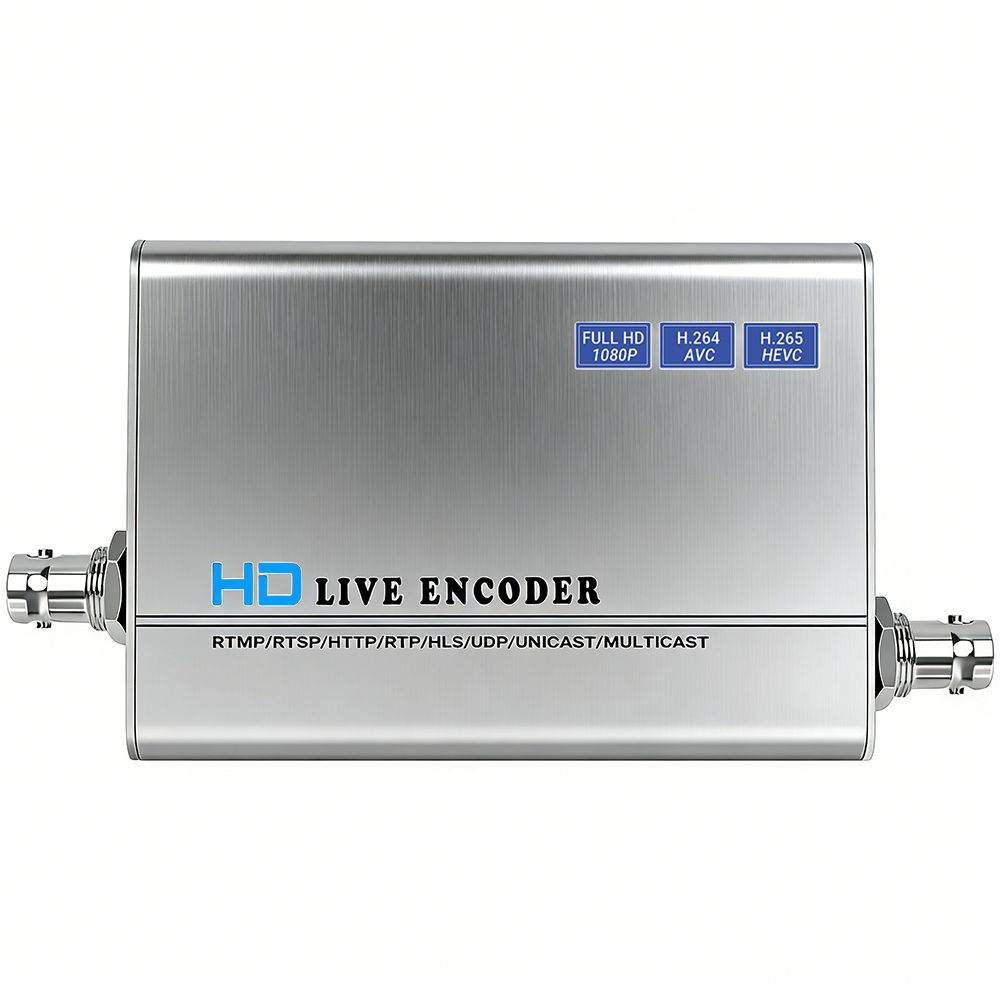

Mini SDI Video Encoder Supports SDI Loop Out

Mini SDI Video Encoder Supports SDI Loop Out

Model： USE265-1LX-mini
Input： SDI(audio bulid-in) + line-in audio(3.5mm jack)
Video Encoding： H.265, H.264
Audio Encoding： AAC, MP3, MP2, G.711
Output Video： Dual video streams output simultaneously + SDI loopout
Output Audio： Support switching SDI audio or line-in audio as output audio
Video Resolution： Max 1920x1080@60 input and output, output resolution is adjustable
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, Multicast(UDP /RTP), etc.
Video Bitrate： Adjustable from 16kbit/s to 12000kbit/s
Audio Bitrate： Adjustable from 24000kb/s to 320000kb/s
Control Mode： Web、CGI command, support wide area network remote control
Display Settings： Support adding logo or text on the displayed video
Customization： Provide many kinds of ODM(Shell, Logo, Function, Language, etc.)
Service： Free lifetime warranty & technical supports, ODM(Logo, Function, etc.)
General： 107x72x27/mm(Size), 190g(Weight), Aluminum Shell, Plug and play
Description




通用（Feature）

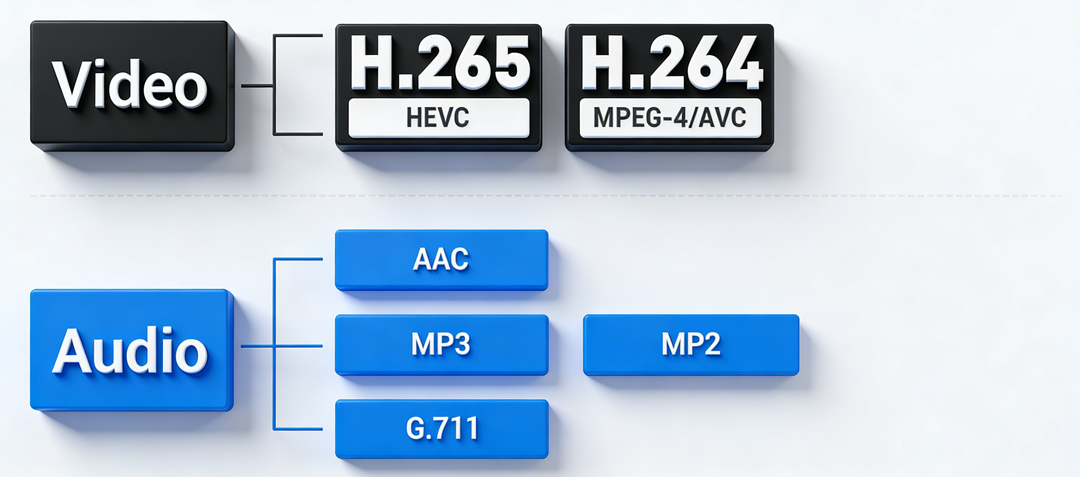

  • Supports HEVC /H.265, H.264 /AVC video encoding

  • Supports AAC, MP3, MP2, G.711 audio encoding


  • Supports simultaneously output 2-channel video streams with different protocols

  • Simultaneously push video streams to multiple live streaming platforms with one click


  • Compatible with multiple live broadcast platforms and playback software

  • Supports different protocol transmission for each video stream

通用协议

  • Free switching output video resolution, max 1920x1080 resolution input and output

  • Supports output video frame rate setting, max 60fps input and output

通用1080p

  • Supports SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), Multicast(UDP /RTP), ONVIF, Unitcast, etc

  • Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty

通用

通用

  • Supports multiple on screen display settings, such as logo, text, etc

  • Supports customizing the display image or logo when there is no input signal


  • Supports both SDI audio and line-in audio input simultaneously

  • Supports switching SDI audio or line-in audio as output audio

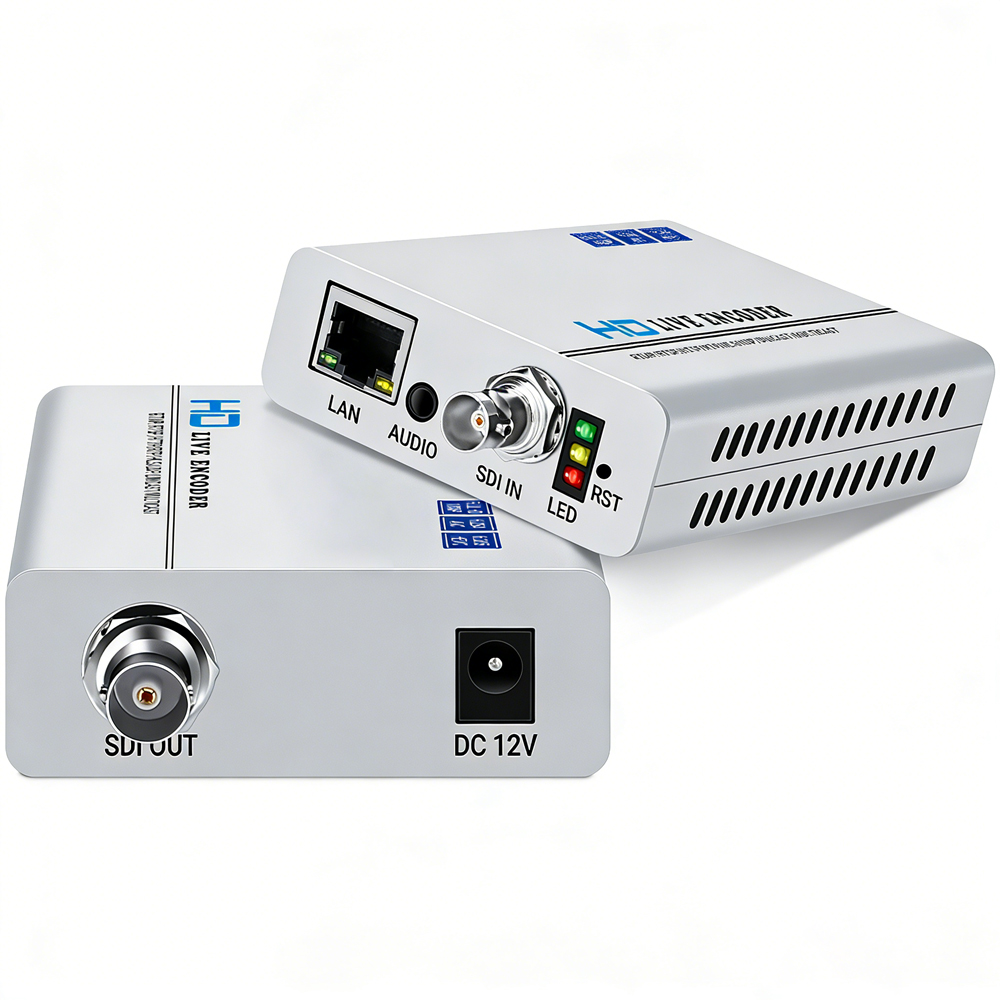

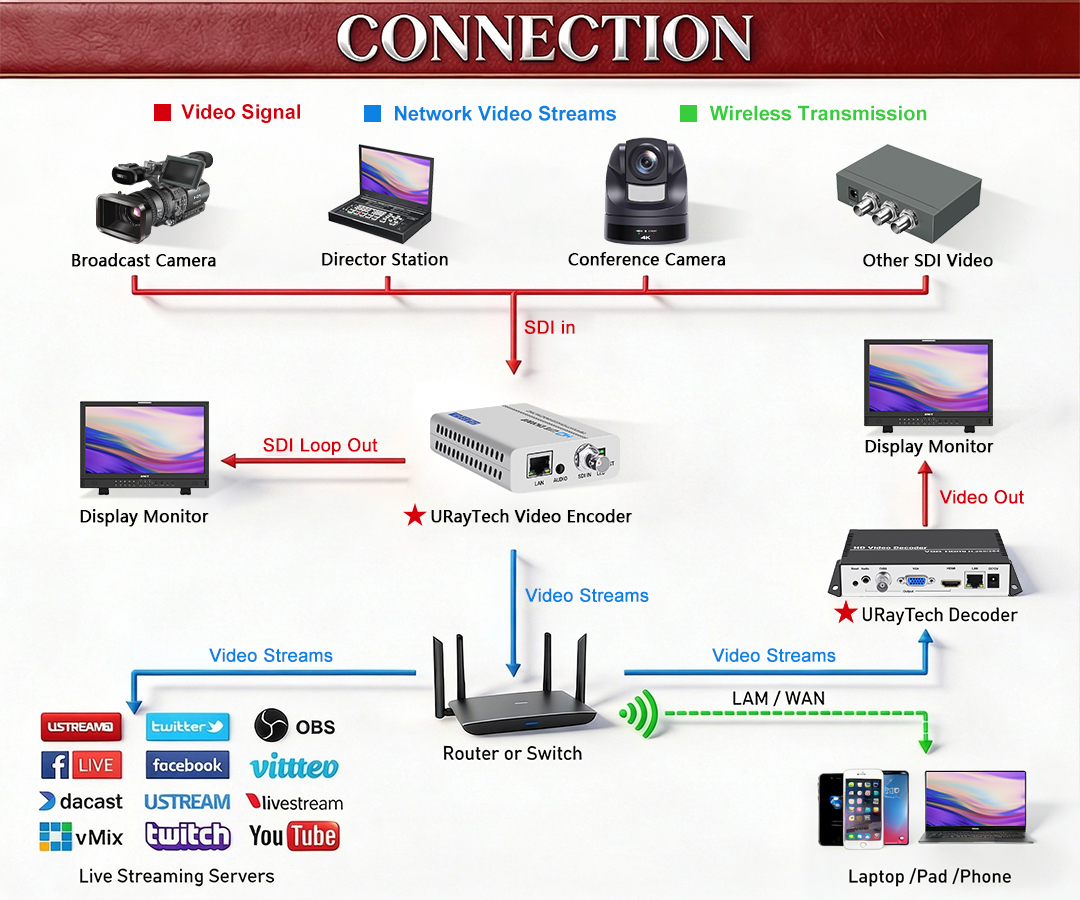

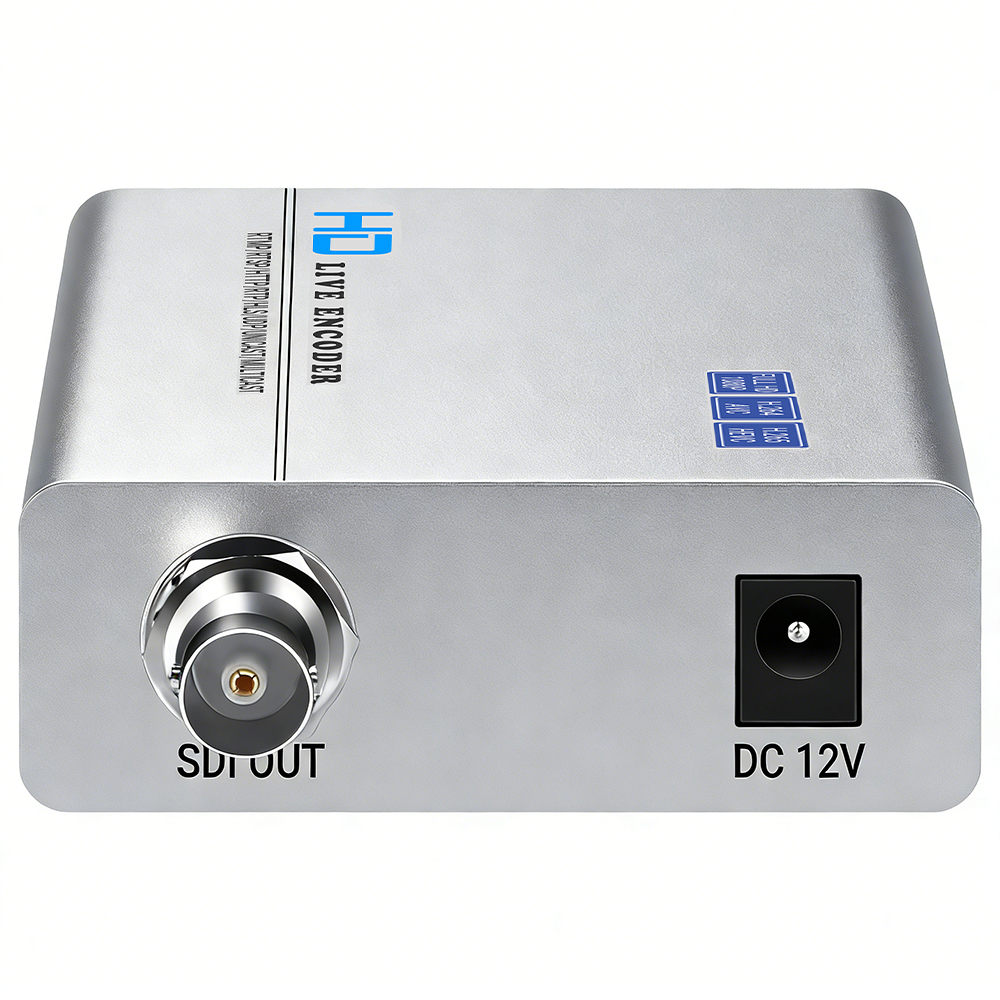

  • 1-channel SDI signal loop out for reuse

  • Zero-lag passthrough without any loss


  • Supports logo printing, language, solution, function, system and other customizations

  • Lifetime free warranty and technical supports, system firmware continuously updated


  • Support pushing RTMP(S) /HLS /SRT video streams to the servers, such as YouTube, Facebook, etc

  • Set up once and then plug and play. Very convenient and flexible for indoor outdoor live broadcasting

‍编码器通用


Model No. USE265-1LX-mini
Video

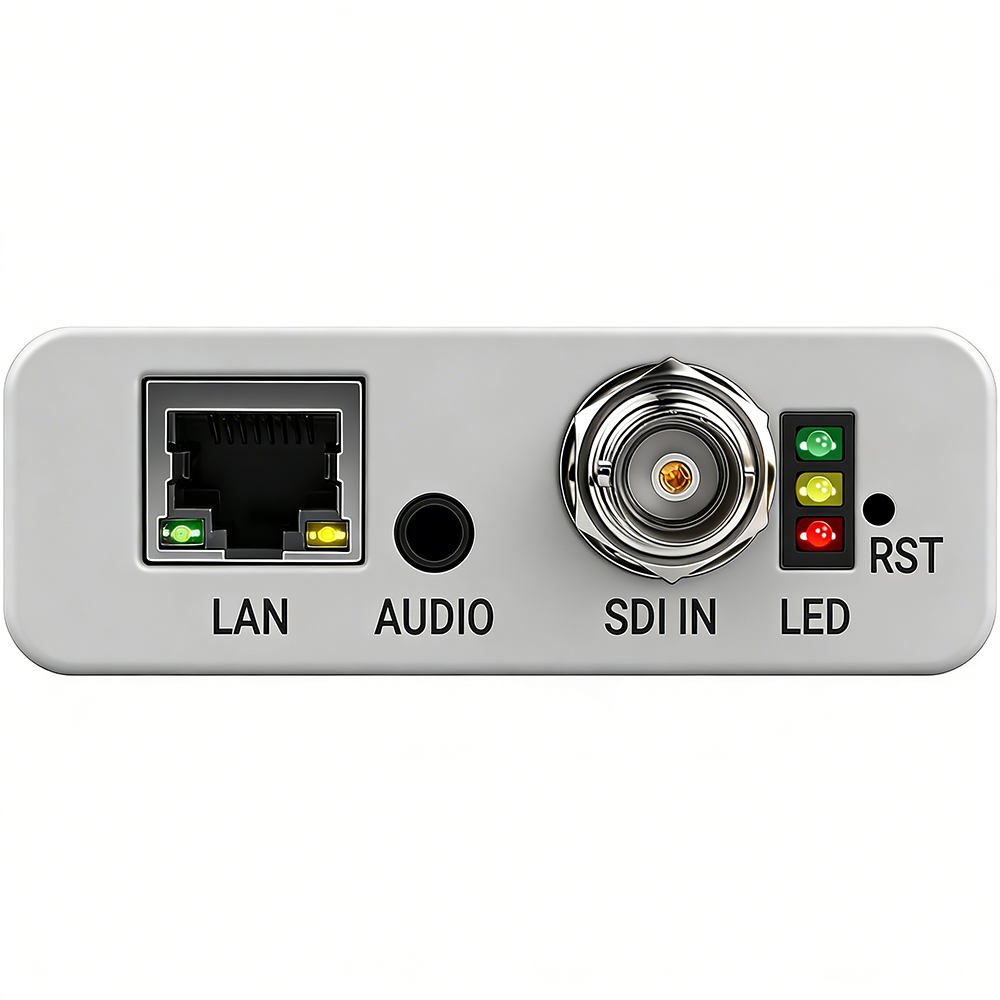

Input Video SD /HD /3G SDI
Input Resolution Max 1920x1080@60fps
Video Encoding HEVC /H.265, H.264 /AVC
Video Bitrate Adjustable from 16kbit/s ~ 12000kbit/s
Bitrate Control CBR(Constant Bitrate), VBR(Variable Bitrate)
Output Resolution It is adjustable, max 1920x1080p@60fps
Audio
Input Audio SDI audio + line-in audio(3.5mm jack)
Output Audio Supports switching SDI audio or line-in audio at will
Sampling Rate 44.1KHz, 48KHz
Audio Bitrate Adjustable from 24000kbit/s ~ 320000kbit/s
Audio Encoding AAC, MP3, MP2, G.711
Network
Interface Ethernet ports(Gigabit)
Streaming Protocol HTTP, SRT, RTSP, RTMP(S), HLS(M3U8), ONVIF, Multicast(UDP /RTP), Unitcast, etc.
Control Dashboard Webpage dashboard, support remote management over WAN
System Update Uploading firmware to dashboard and upgrade (System firmware constantly updated)
OSD
Transparency 0 - 255 adjustable
Position (Horizontal) 0 - 1920 adjustable
Position (Vertical) 0 - 1080 adjustable
Font size 8 - 72 adjustable
Background White /Black /Transparent
Font Color Adjustable in RGB colors
Logo Max 4 LOGOs can be uploaded for selection
General
Dimension (L x W x H) 107 x 72 x 27 /mm
Net Weight 190g
Temperature 0 to 45℃(working), -20℃ to 80℃(storing)
Power DC 12V /2A
MaterialAluminum Shell


• Access Address（Click to enlarge）

access address.jpg‍

• Video Parameters（Click to enlarge）

video parameters.jpg

• Audio Parameters（Click to enlarge）

audio parameters.jpg

• Preview（Click to enlarge）


• Network Setting（Click to enlarge）

SDI编码器后台Network

• Main Stream Setting（Click to enlarge）

stream setting.jpg

• Audio Setting（Click to enlarge）

audio setting.jpg

• Display Setting（Click to enlarge）

main osd setting.jpg

• Color Setting（Click to enlarge）

color setting.jpg

• Image Setting（Click to enlarge）

image setting.jpg

• RTMP-HLS Setting（Click to enlarge）

RTMP-HLS setting.jpg

• ONVIF Setting（Click to enlarge）

onvif setting.jpg

• Reboot /Reset（Click to enlarge）

system setting.jpg

• Upgrade Setting（Click to enlarge）

upgrade setting.jpg
