Product Details

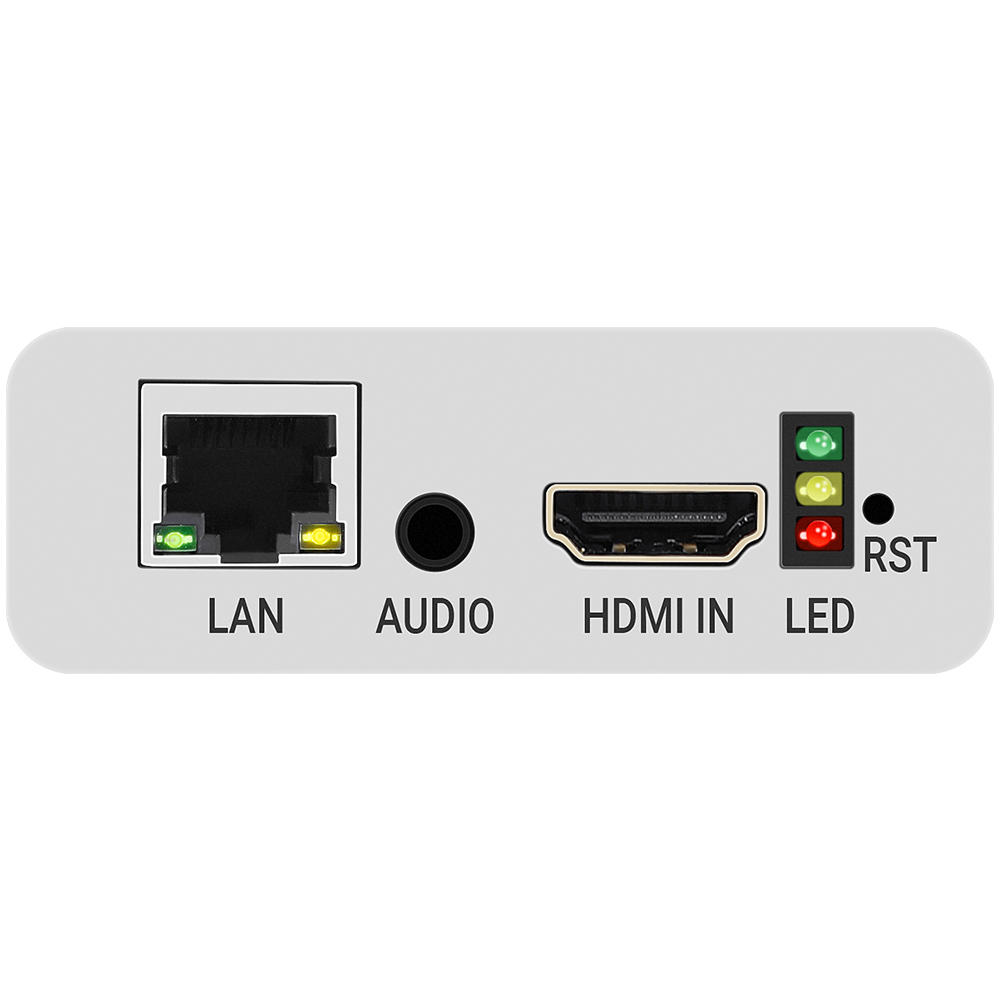

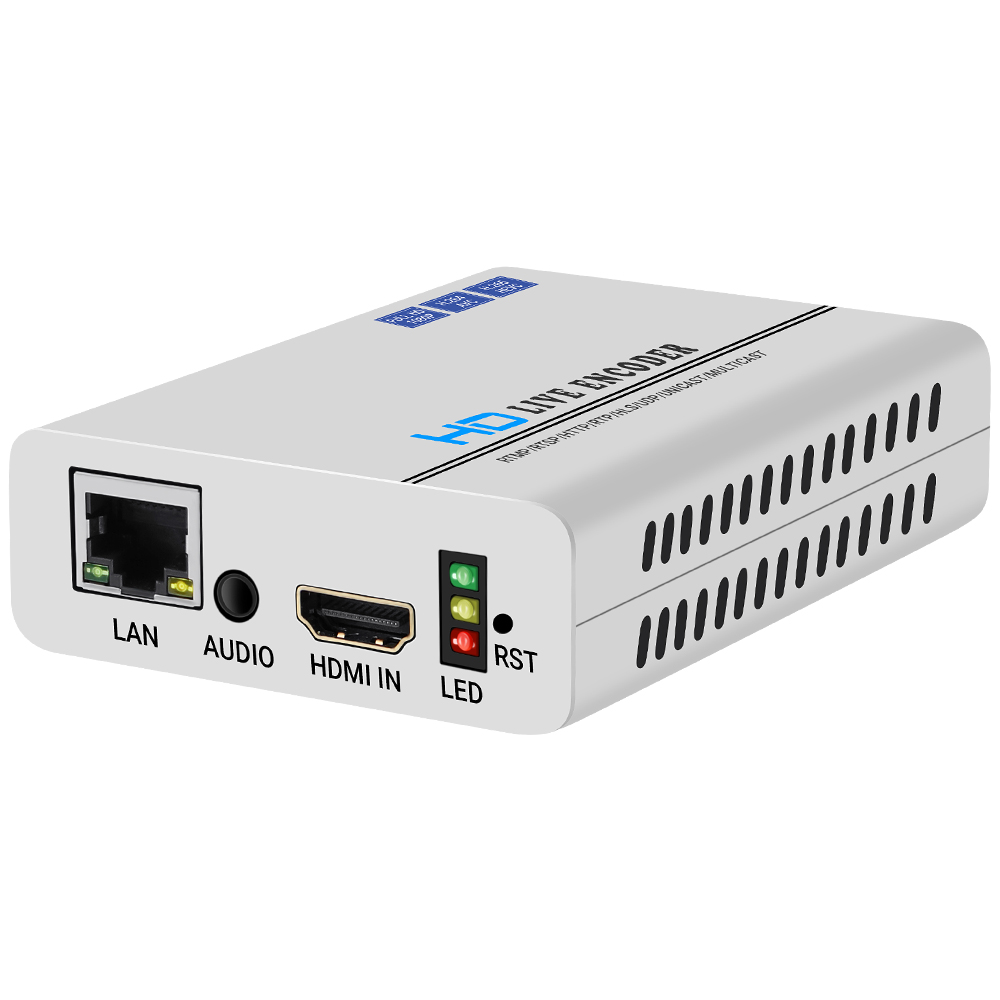

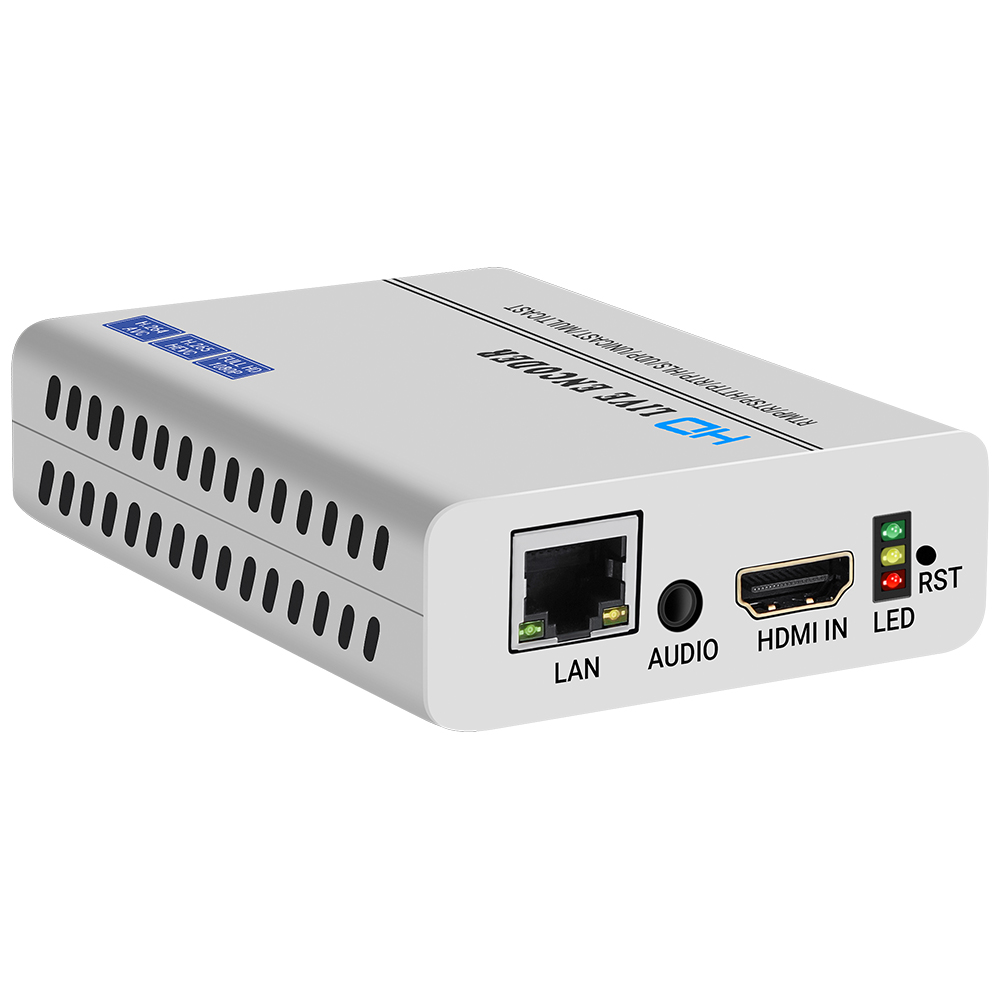

Portable Mini HDMI Video Streaming Encoder

Portable Mini HDMI Video Streaming Encoder

Model： UHE265-1H-mini
Input： HDMI(audio bulid-in) + line-in audio(3.5mm jack)
Video Encoding： H.265, H.264
Audio Encoding： AAC, MP3, MP2, G.711
Output Video： Dual video streams output simultaneously
Output Audio： Support switching HDMI audio or line-in audio as output audio
Video Resolution： Max 1920x1080@60 input and output, output resolution is adjustable
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, Multicast(UDP /RTP), etc.
Video Bitrate： Adjustable from 16kbit/s to 12mbit/s, CBR or VBR control modes
Audio Bitrate： Adjustable from 24000kb/s to 320000kb/s
Control Mode： Web、CGI command, support wide area network remote control
Display Settings： Support adding logo or text on the displayed video
Customization： Provide many kinds of ODM(Shell, Logo, Function, Language, etc.)
Service： Free lifetime warranty, provide secondary development documents
General： 103x72x27/mm(Size), 190g(Weight), Aluminum Shell, Driver-free
Description

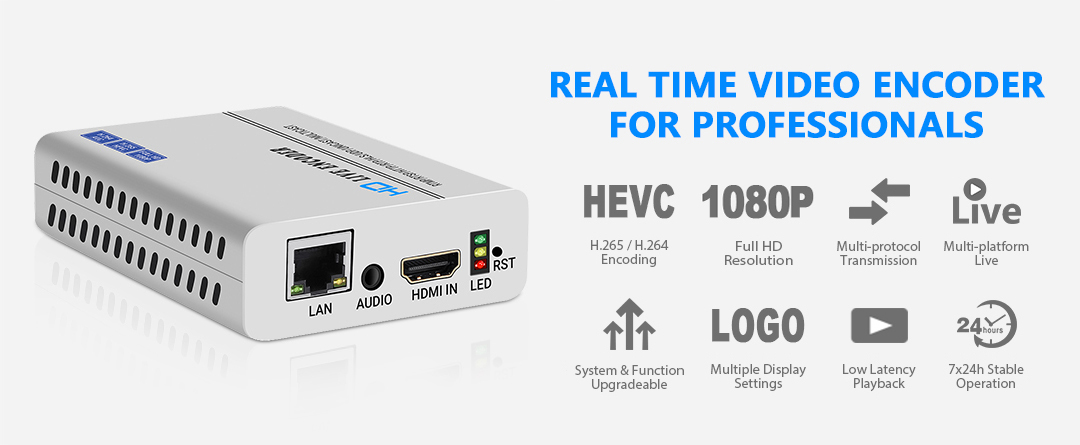

UHE265-1H-mini


通用（Feature）

H.265, H.264 video encoding

  • AAC, MP3, MP2, G.711 audio encoding

ABUIABACGAAg94eSuQYo47DrxAQwuAg43wM (1).jpg

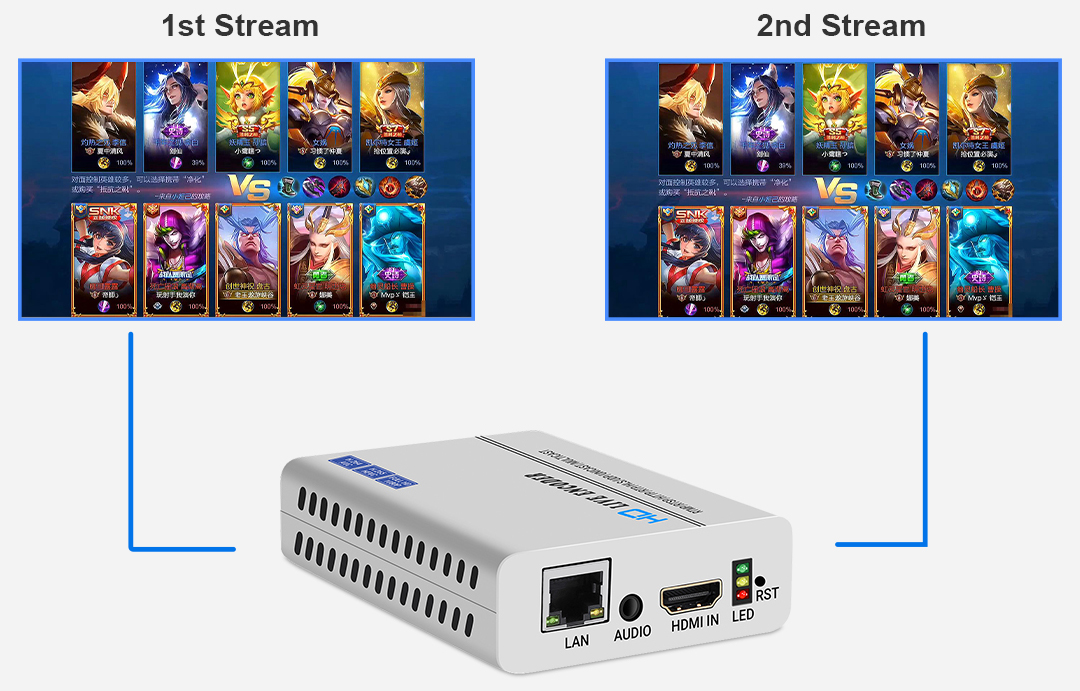

  • Dual video streams output simultaneously

  • Live broadcast on dual platforms simultaneously

UHE265-1H-mini

  • Compatible with most live broadcast platforms and software

  • Support different protocol transmission for each video stream

通用协议

  • Free switching output video resolution, max 1920x1080 resolution input and output

  • Support output video frame rate setting, max 60fps input and output

通用1080p

  • Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), Multicast(UDP /RTP), ONVIF, Unitcast, etc.

  • Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty

通用


  • Support multiple on screen display settings, such as logo, text, etc.

  • Support customizing the display image or logo when there is no input signal


  • Support both HDMI audio and line-in audio input simultaneously

  • Support switching HDMI audio or line-in audio as output audio

UHE265-1H-mini

  • Support logo printing /language /solution /function /system and other customizations

  • Provide lifetime free warranty service, and SDK /API /CGI files for secondary development

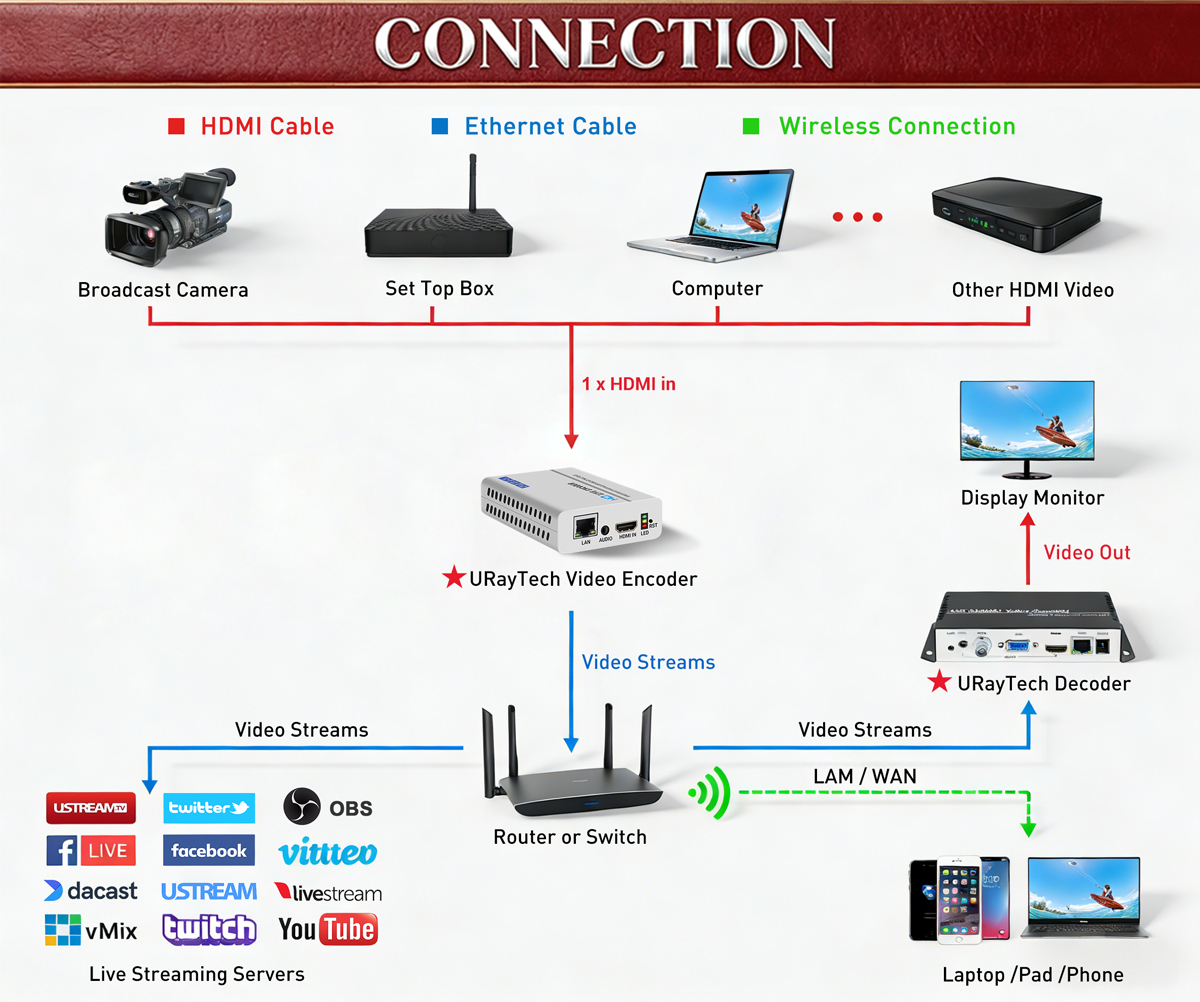

  • Support pushing RTMP(S) /HLS /SRT video streams to the servers, such as YouTube, Facebook, etc.

  • Set up once and then plug and play. Very convenient and flexible for indoor outdoor live broadcasting.

‍编码器通用

通用specification

Model No.

UHE265-1H-mini

Video

Input Video

1 x HDMI, support HDCP

Input Resolution

Max 1920x1080@60fps

Video Encoding

H.265, H.264

Video Bitrate

Adjustable from 16kbit/s ~ 12000kbit/s

Bitrate Control

CBR, VBR

Output Resolution

It is adjustable, max 1920x1080p@60fps

Video Processing

De-interlacing, noise reducing, sharpening, flip, mirror, crop, etc.

Audio

Input Audio

HDMI audio + line-in audio

Output Audio

Support switching HDMI audio or line-in audio at will

Sampling Rate

44.1KHz, 48KHz

Audio Bitrate

Adjustable from 24000kbit/s ~ 320000kbit/s

Audio Encoding

AAC, MP3, MP2, G.711

Network

Interface

Ethernet port(Gigabit)

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS(M3U8), ONVIF, Multicast(UDP /RTP), Unitcast, etc.

Control Dashboard

Webpage dashboard, support remote management over WAN

System Update

Uploading firmware to dashboard and upgrade

General

Dimension (L x W x H)

103 x 72 x 27 /mm

Net Weight

190g

Temperature

0 ~ 45℃(working), -20℃ ~ 80℃(storing)

Power

DC 12V /2A

Material

Aluminum Shell

通用dashboard

• Access Address（Click to enlarge）

access address.jpg‍

• Video Parameters（Click to enlarge）

video parameters.jpg

• Audio Parameters（Click to enlarge）

audio parameters.jpg

• Preview（Click to enlarge）


• Network Setting（Click to enlarge）

UHAE265-1-mini

• Main Stream Setting（Click to enlarge）

UHE265-1H-mini

• Audio Setting（Click to enlarge）

audio setting.jpg

• Display Setting（Click to enlarge）

main osd setting.jpg

• Color Setting（Click to enlarge）

color setting.jpg

• Image Setting（Click to enlarge）

image setting.jpg

• RTMP-HLS Setting（Click to enlarge）

RTMP-HLS setting.jpg

• ONVIF Setting（Click to enlarge）

onvif setting.jpg

• Reboot /Reset（Click to enlarge）

system setting.jpg

• Upgrade Setting（Click to enlarge）

upgrade setting.jpg
