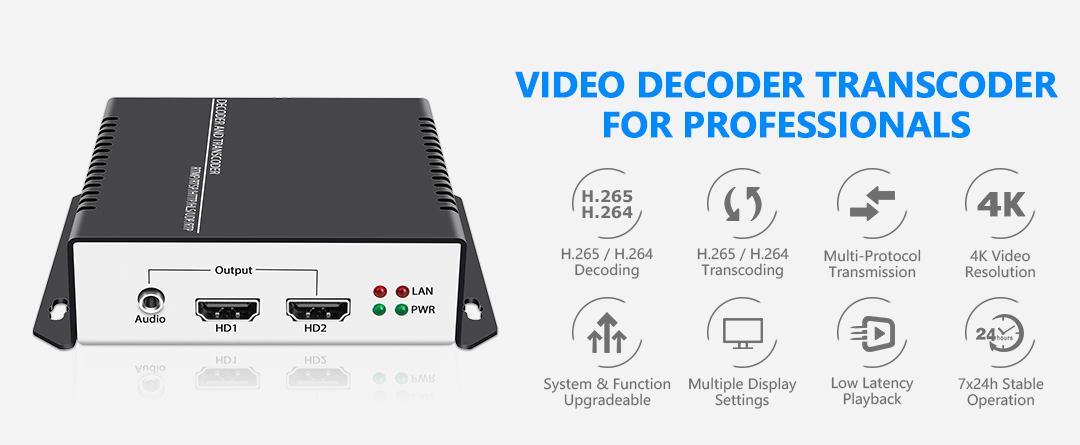

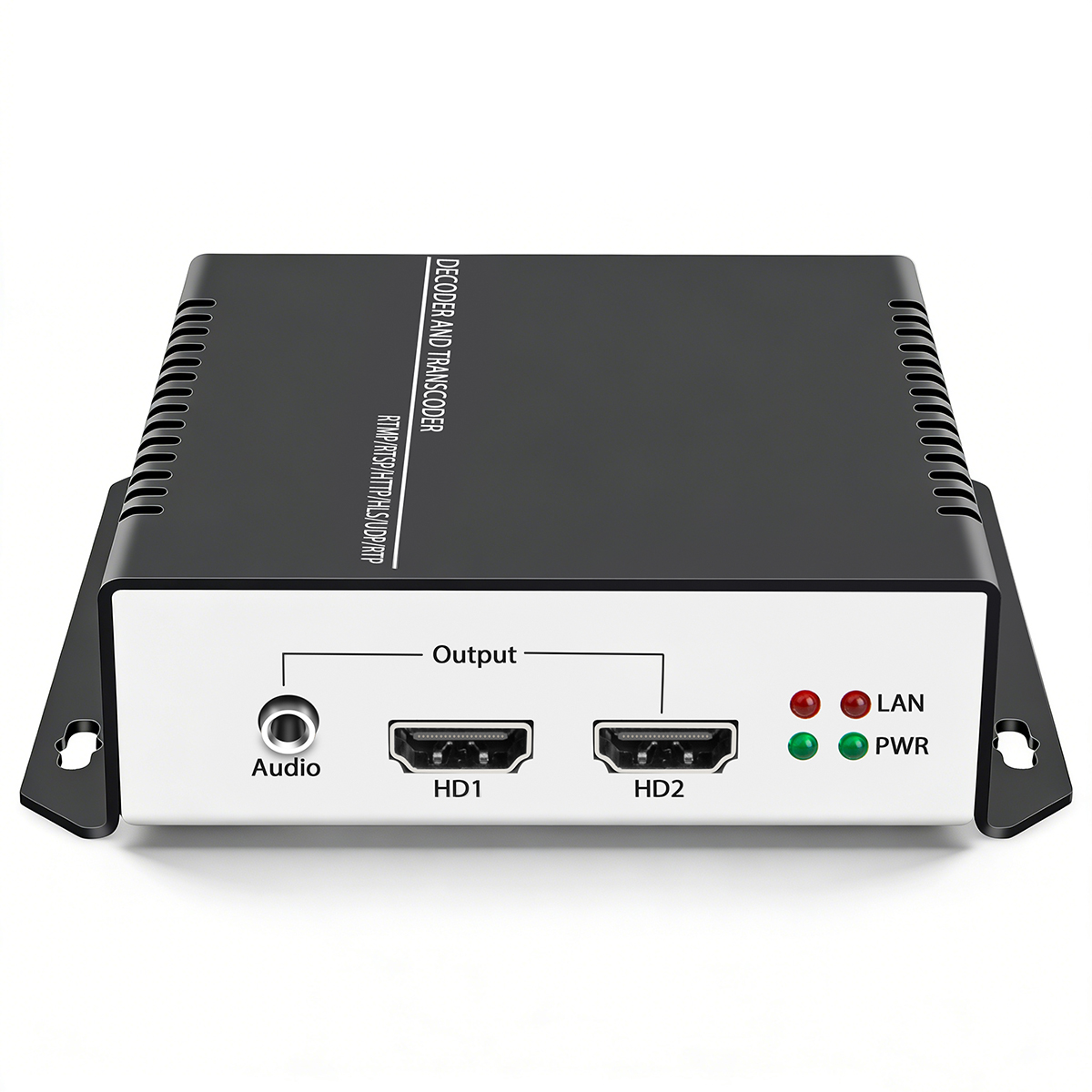

4K@60fps Video Decoder Transcoder with 2 x HDMI + Video Stream Output

4K@60fps Video Decoder Transcoder with 2 x HDMI + Video Stream Output

Model： UHDT265-2-4K60
Input： Video stream address
Output Video： 2 x HDMI(audio build-in) + transcoded video stream
Output Audio： HDMI audio + line-out audio(3.5mm jack) + transcoded audio
Video Resolution： Max 4096x2160@60 input and output, output resolution is adjustable
Streaming Protocol： SRT, HTTP(S), UDP, RTP, RTSP, RTMP(S), HLS(M3U8), ONVIF, MP4, etc.
Video Bitrate： Adjustable from 32kbit/s to 100mbit/s for transcoded video
Control Mode： Web、CGI command, support wide area network remote control
Display Settings： Support adding logo, text, scroll text, time on the displayed video
Customization： Provide many kinds of ODM(Shell, Logo, Function, Language, etc.)
Service： Free lifetime warranty, provide secondary development documents
Video Decoding： H.265, H.264
Audio Decoding： AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Special Feature： Decode and transcode input video stream simultaneously
Description


UHDT265-2-4K

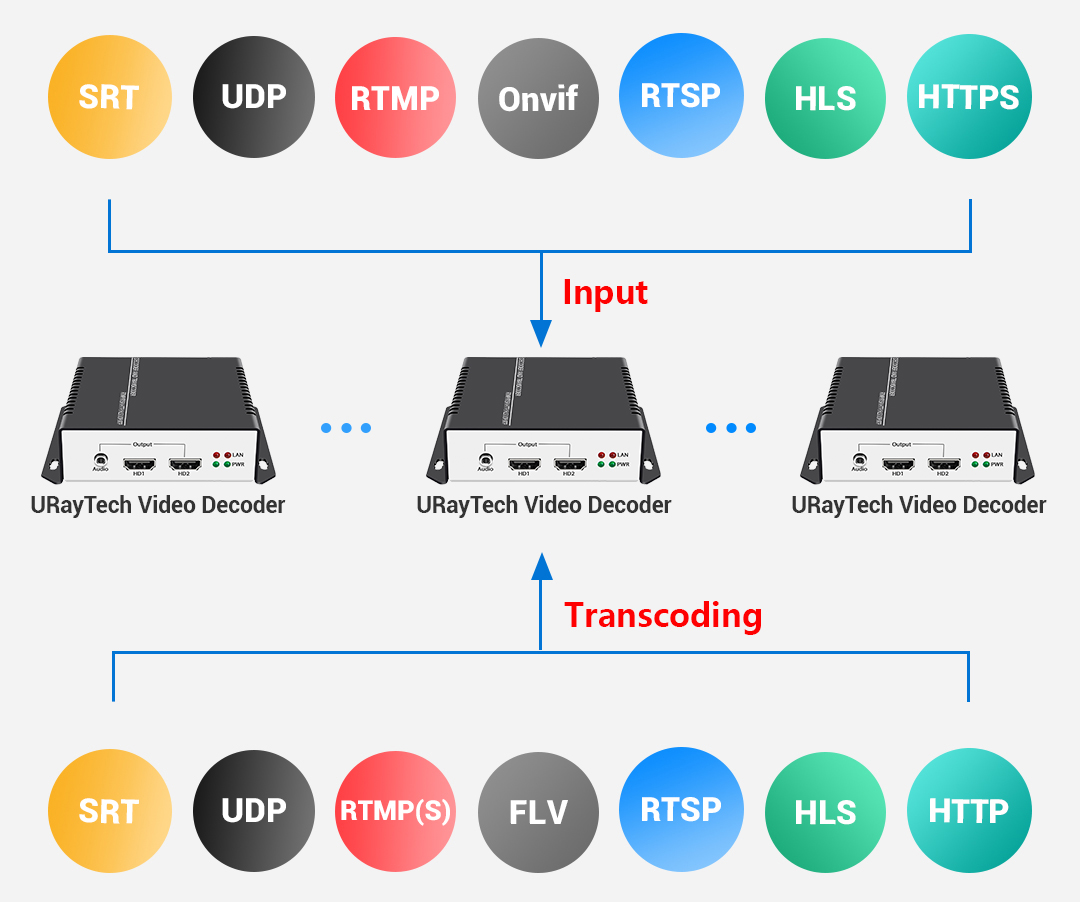

  • Support many types of video streaming address input and decoding

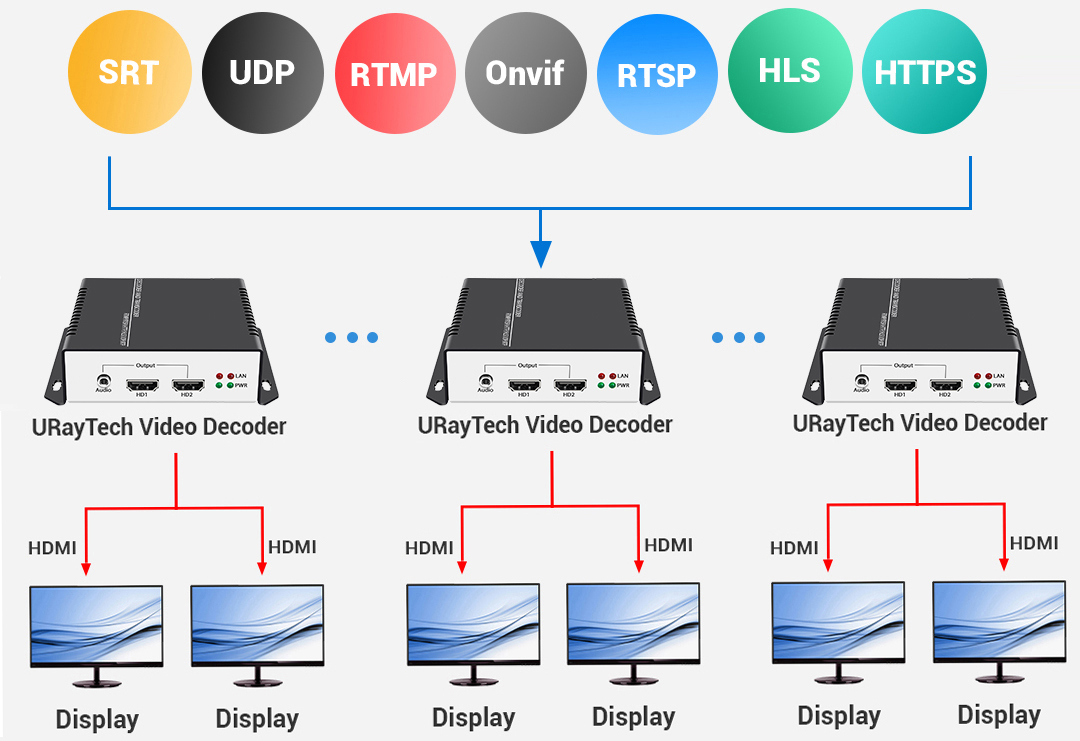

  • Support simultaneously output dual HDMI video to the display

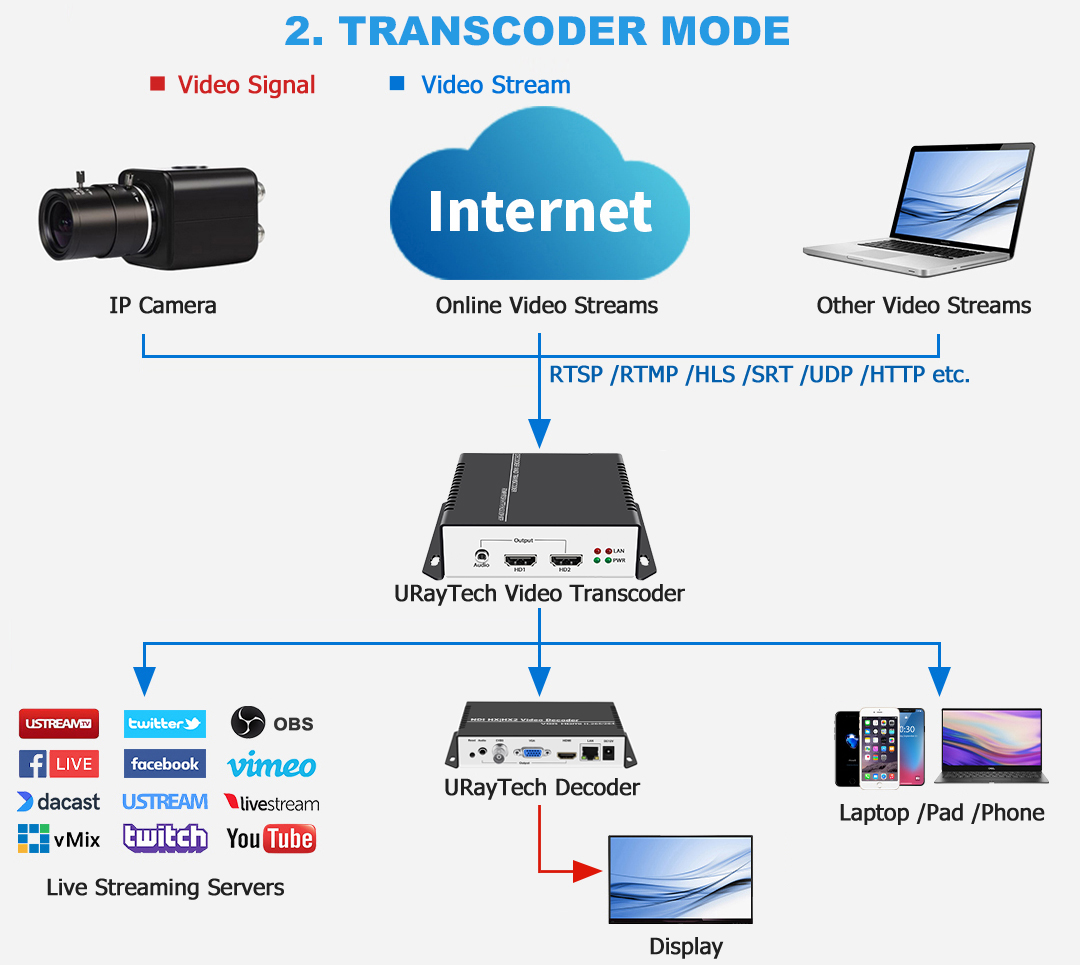

  • Support many types of video streaming protocol conversion and output

  • Supports pushing converted video stream to online platforms for live broadcast


  • Support output video resolution setting, max 4096x2160 input and output

  • Support output video frame rate setting, max 60fps input and output


  • Support multiple on screen display settings, such as logo /text /scroll text /time, etc.

  • Support customizing the display image or logo when there is no decoding signal


  • Support resolution, latency, brightness, contrast, saturation, hue, video settings

  • Web or CGI control mode, support wide area network remote management

UHCDT265-1-4K

  • Support logo printing /language /solution /function /system and other customizations

  • Provide lifetime free warranty service, and SDK /API /CGI files for secondary development



Model No.

UHDT265-2-4K60

Video

Input Video

Video stream URLs

Input Resolution

Max 4096x2160@60fps input

Decoding /Transcoding

H.265, H.264

Output Video

2 x HDMI + transcoded video stream output simultaneously

Decode Resolution

Max 4096x2610@60fps output, output resolution is adjustable

Transcoded Resolution

Max 1920x1080@60fps output, output resolution is adjustable

Stream Types

Support Interlaced and Progressive Scanning input and decode

Transcoded Bitrate

Adjustable from 32kbit/s ~ 32000kbit/s, CBR /Strong CBR /VBR control modes

GOP

Adjustable from 1 ~ 300

Audio

Audio Decoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Output Audio

HDMI audio + line-out audio(3.5mm jack) + transcoded audio output simultaneously

Network

Interface

Ethernet port(Gigabit)

Decoded Protocol

SRT, HTTP(S), UDP, RTP, RTSP, RTMP(S), HLS(M3U8), ONVIF, FLV, Unitcast, etc.

Transcoded Protocol

SRT, HTTP, Multicast(UDP, RTP), RTSP, RTMP(S), HLS(M3U8), FLV, Unitcast, etc.

System Update

Uploading firmware to dashboard and upgrade

OSD

Display Area

Zone 1 /Zone 2 /Zone 3

Transparency

0 - 255 adjustable

Position (Horizontal)

0 - 1920 adjustable

Position (Vertical)

0 - 1080 adjustable

Logo

Max 4 LOGOs can be uploaded for selection

Font size

8 - 72 adjustable

Background

White /Black /Transparent

Font Color

Adjustable in RGB colors

General

Dimension (W x L x H)

118 x 104 x 30 /mm

Net Weight

210g

Temperature

-20℃ to 60℃(working), -20℃ to 80℃(storing)

Power

DC 12V /1A

Material

Aluminum Shell

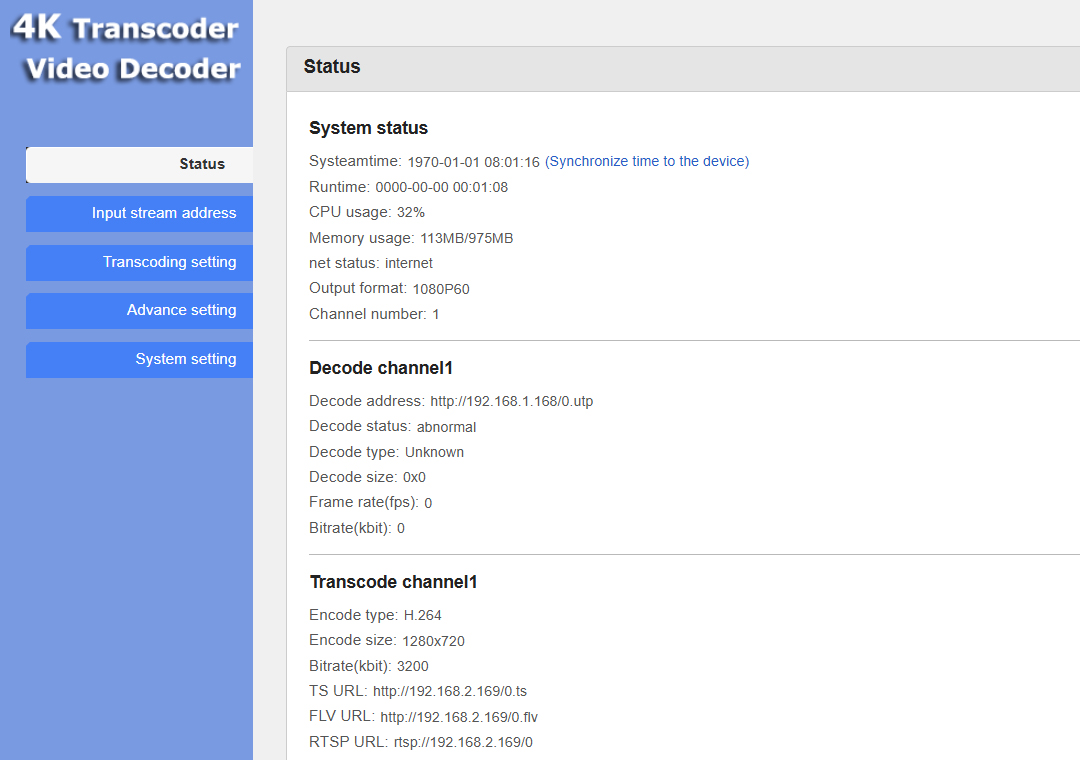

• Status Display（Click to enlarge）

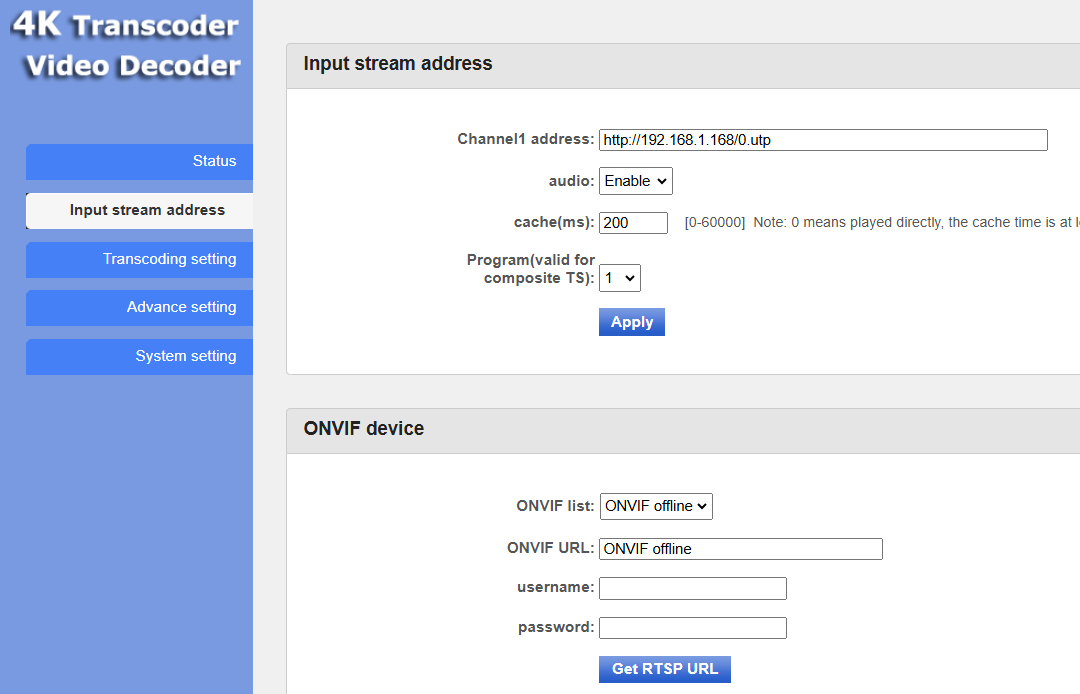

• Input Setting（Click to enlarge）

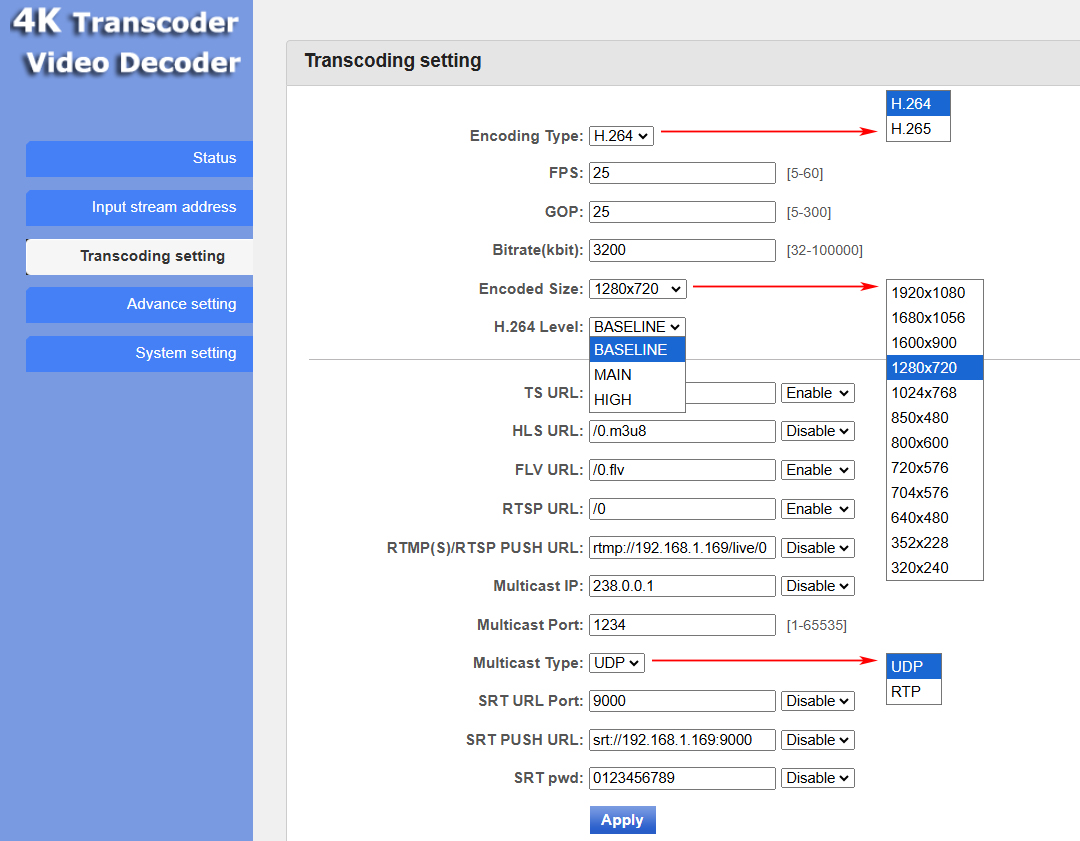

• Transcoding Setting（Click to enlarge）

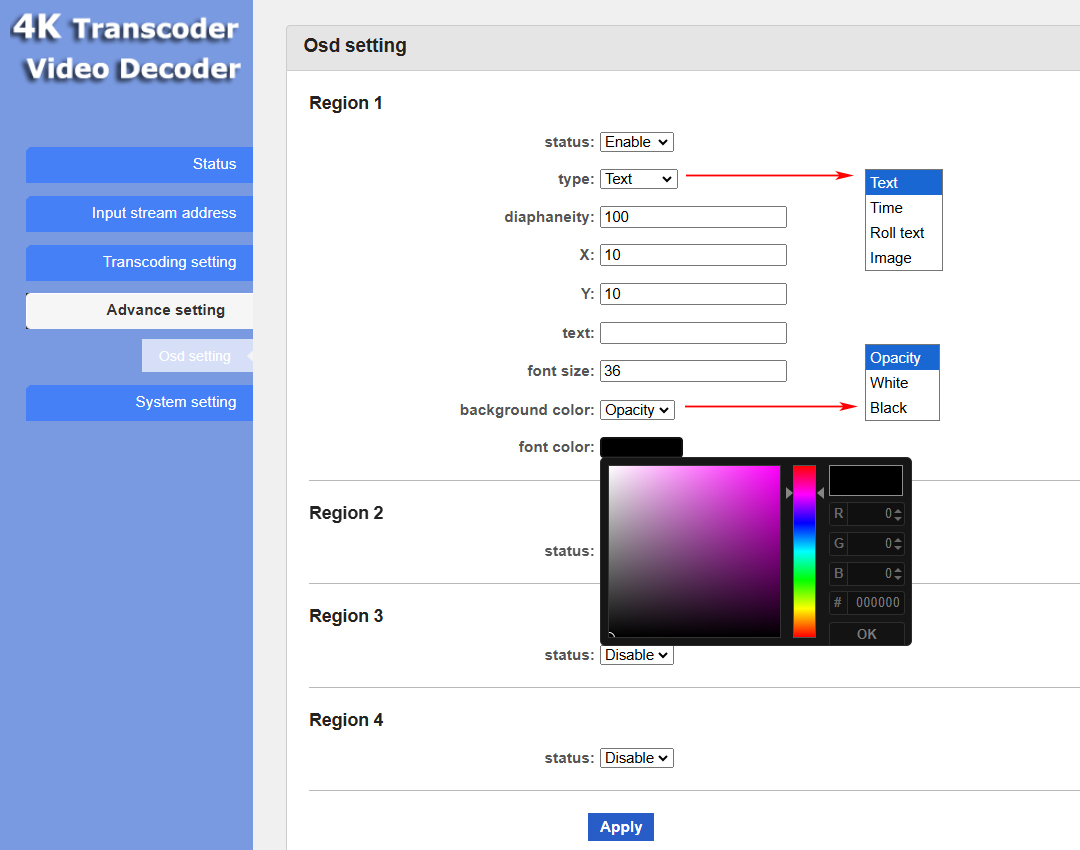

• OSD Setting（Click to enlarge）

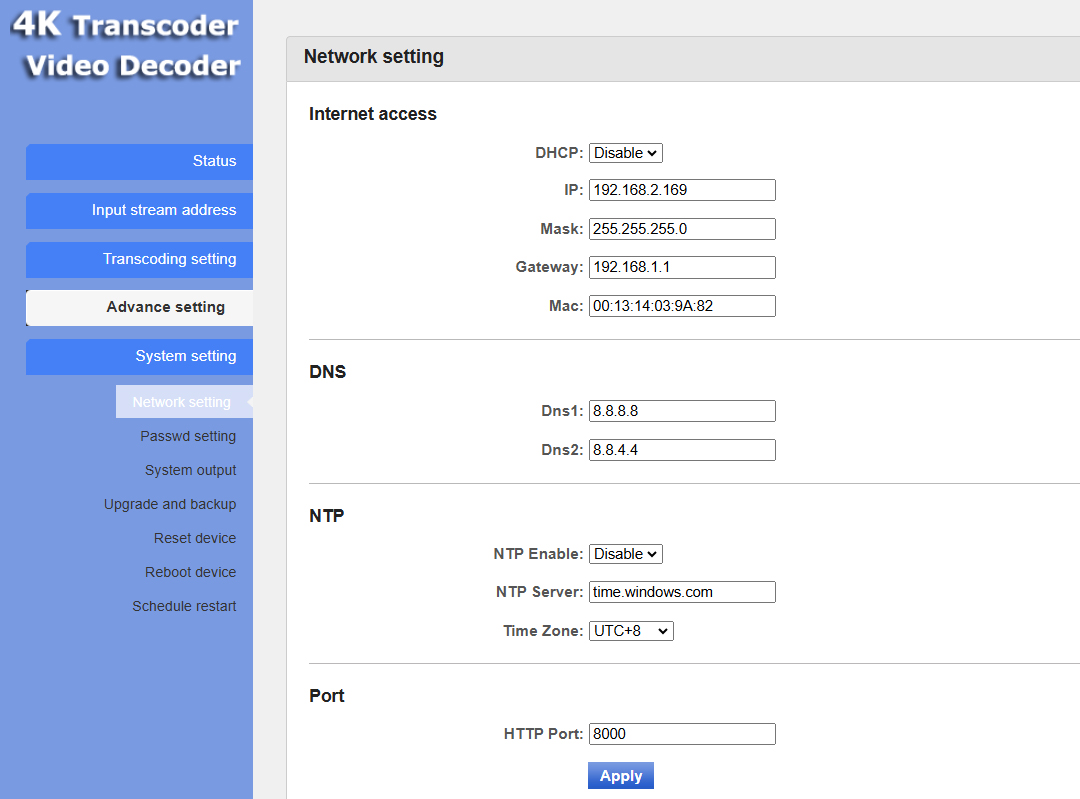

• Network Setting（Click to enlarge）

• Password Setting（Click to enlarge）

• Output Setting（Click to enlarge）

• Upgrade（Click to enlarge）

• Reset（Click to enlarge）

• Reboot（Click to enlarge）

• Schedule Restart（Click to enlarge）
