Product Details

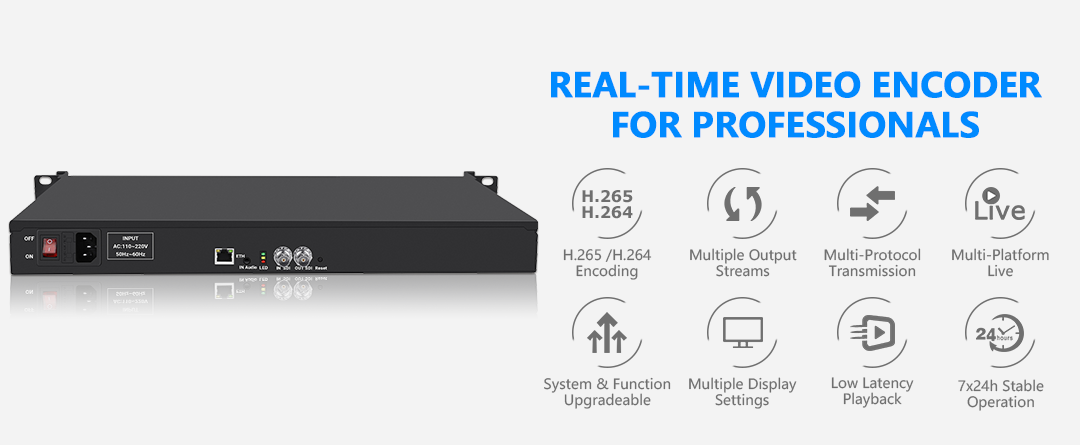

1U Rack SDI Video Encoder with SDI Loop Out

1U Rack SDI Video Encoder with SDI Loop Out

Model： USE265-1LX-1U
Input： SDI(audio bulid-in) + line-in audio(3.5mm jack)
Video Encoding： H.265, H.264
Audio Encoding： AAC, MP3, MP2, G.711
Output Video： Dual video streams output simultaneously
Output Audio： Support switching SDI audio or line-in audio as output audio
Video Resolution： Max 1920x1080@60 input and output, output resolution is adjustable
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, Multicast(UDP /RTP), etc.
Video Bitrate： Adjustable from 16kbit/s to 12mbit/s, CBR or VBR control modes
Audio Bitrate： Adjustable from 24000kb/s to 320000kb/s
Control Mode： Web、CGI command, support wide area network remote control
OSD Setting： Support adding logo or text on the displayed video
Customization： Provide many kinds of ODM(Shell, Logo, Function, Language, etc.)
Service： Free lifetime warranty, provide secondary development documents
General： 483x300x44.5/mm(Size), 2.93kg(Weight), Aluminum Shell, Driver-free
Description




  • H.265, H.264 video encoding

  • AAC, MP3, MP2, G.711 audio encoding

ABUIABACGAAg94eSuQYo47DrxAQwuAg43wM (1).jpg

  • Dual video streams output simultaneously for each Ethernet port

  • Live broadcast on dual platforms simultaneously for each Ethernet port

USE265-4L-1U

  • Compatible with most live broadcast platforms and software

  • Support different protocol transmission for each video stream


  • Free switching output video resolution, max 1920x1080 resolution input and output

  • Support output video frame rate setting, max 60fps input and output


  • Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), Multicast(UDP /RTP), ONVIF, Unitcast, etc.

  • Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty



  • Support multiple on screen display settings, such as logo, text, etc.

  • Support customizing the display image or logo when there is no decoding signal


  • Support both SDI audio and line-in audio input simultaneously

  • Support to switch SDI audio or line-in audio as output audio

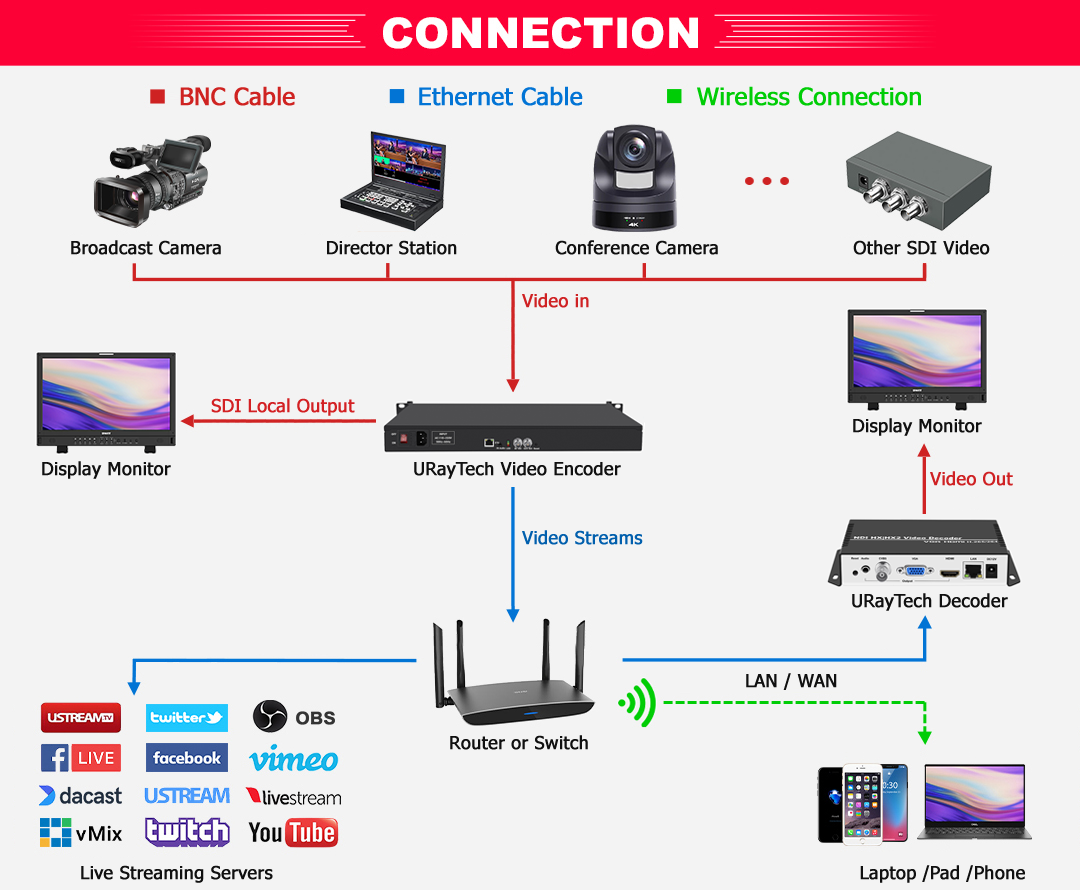

  • Support single-channel SDI signal local output for reuse

  • The looped out SDI signal is the same as the input SDI signal without any loss

USE265-4L-1U

  • Support logo printing /language /solution /function /system and other customizations

  • Provide lifetime free warranty service, and SDK /API /CGI files for secondary development


  • Support pushing RTMP(S) /HLS /SRT video streams to the servers, such as YouTube, Facebook, etc.

  • Set up once and then plug and play. Very convenient and flexible for indoor outdoor live broadcasting.

‍ABUIABACGAAgmobingYowMn78QYwhAc4zwQ.jpg‍


Model No.

USE265-4LX-1U

Video

Input Video

4 x SD /HD /3G SDI

Input Resolution

Max 1920x1080@60fps

Video Encoding

H.265, H.264

Video Bitrate

Adjustable from 16kbit/s ~ 12000kbit/s for each Ethernet port

Bitrate Control

CBR, VBR

Output Resolution

It is adjustable, max 1920x1080p@60fps

Audio

Input Audio

4 x SDI audio + 4 x line-in audio(3.5mm jack)

Output Audio

Support to switch SDI audio or line-in audio at will

Sampling Rate

44.1KHz, 48KHz

Audio Bitrate

Adjustable from 24000kbit/s ~ 320000kbit/s for each Ethernet port

Audio Encoding

AAC, MP3, MP2, G.711

Network

Interface

4 x Ethernet ports(Gigabit)

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS(M3U8), ONVIF, Multicast(UDP /RTP), Unitcast, etc.

Control Dashboard

Webpage dashboard, support remote management over WAN

System Update

Uploading firmware to dashboard and upgrade

General

Dimension (L x W x H)

483 x 300 x 44.5 /mm

Net Weight

2.93kg

Temperature

0 to 45℃(working), -20℃ to 80℃(storing)

Power

AC 110V~120V ; Output 12V - 10.5A

Material

Aluminum Shell

通用（Dashboard）

• Access Address（Click to enlarge）

access address.jpg‍

• Video Parameters（Click to enlarge）

video parameters.jpg

• Audio Parameters（Click to enlarge）

audio parameters.jpg

• Preview（Click to enlarge）


• Network Setting（Click to enlarge）

SDI编码器后台Network

• Main Stream Setting（Click to enlarge）

stream setting.jpg

• Audio Setting（Click to enlarge）

audio setting.jpg

• Display Setting（Click to enlarge）

main osd setting.jpg

• Color Setting（Click to enlarge）

color setting.jpg

• Image Setting（Click to enlarge）

image setting.jpg

• RTMP-HLS Setting（Click to enlarge）

RTMP-HLS setting.jpg

• ONVIF Setting（Click to enlarge）

onvif setting.jpg

• Reboot /Reset（Click to enlarge）

system setting.jpg

• Upgrade Setting（Click to enlarge）

upgrade setting.jpg
