Product Details

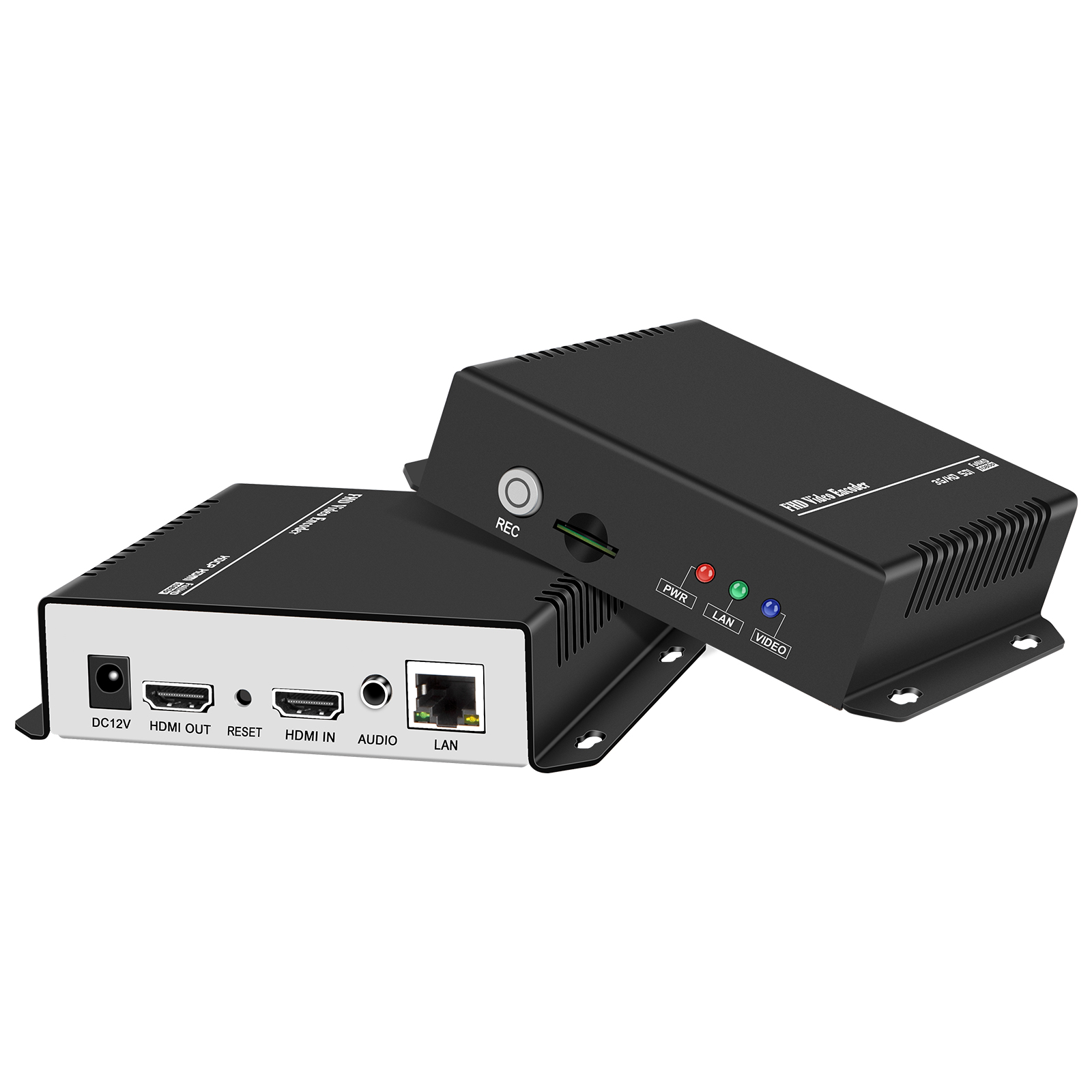

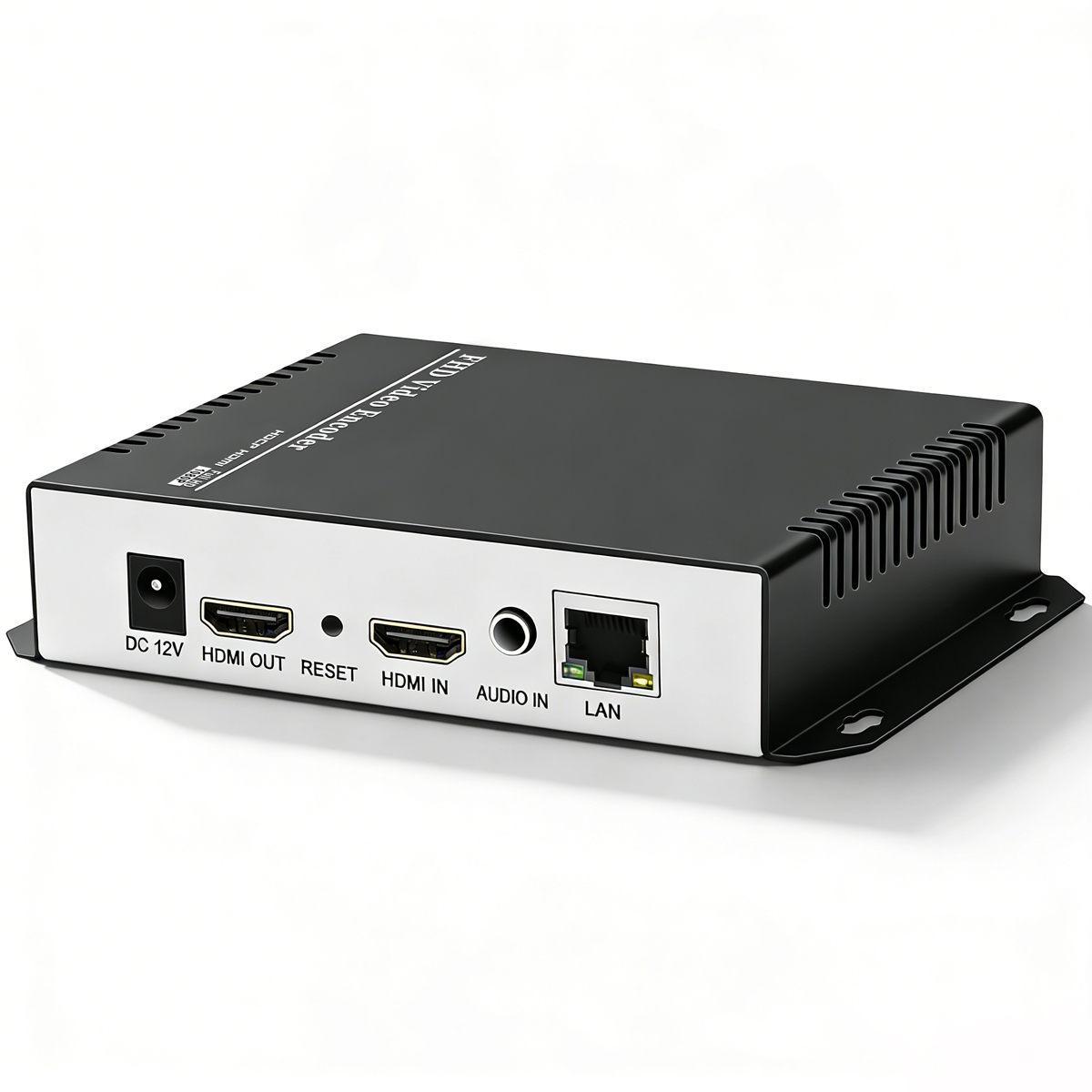

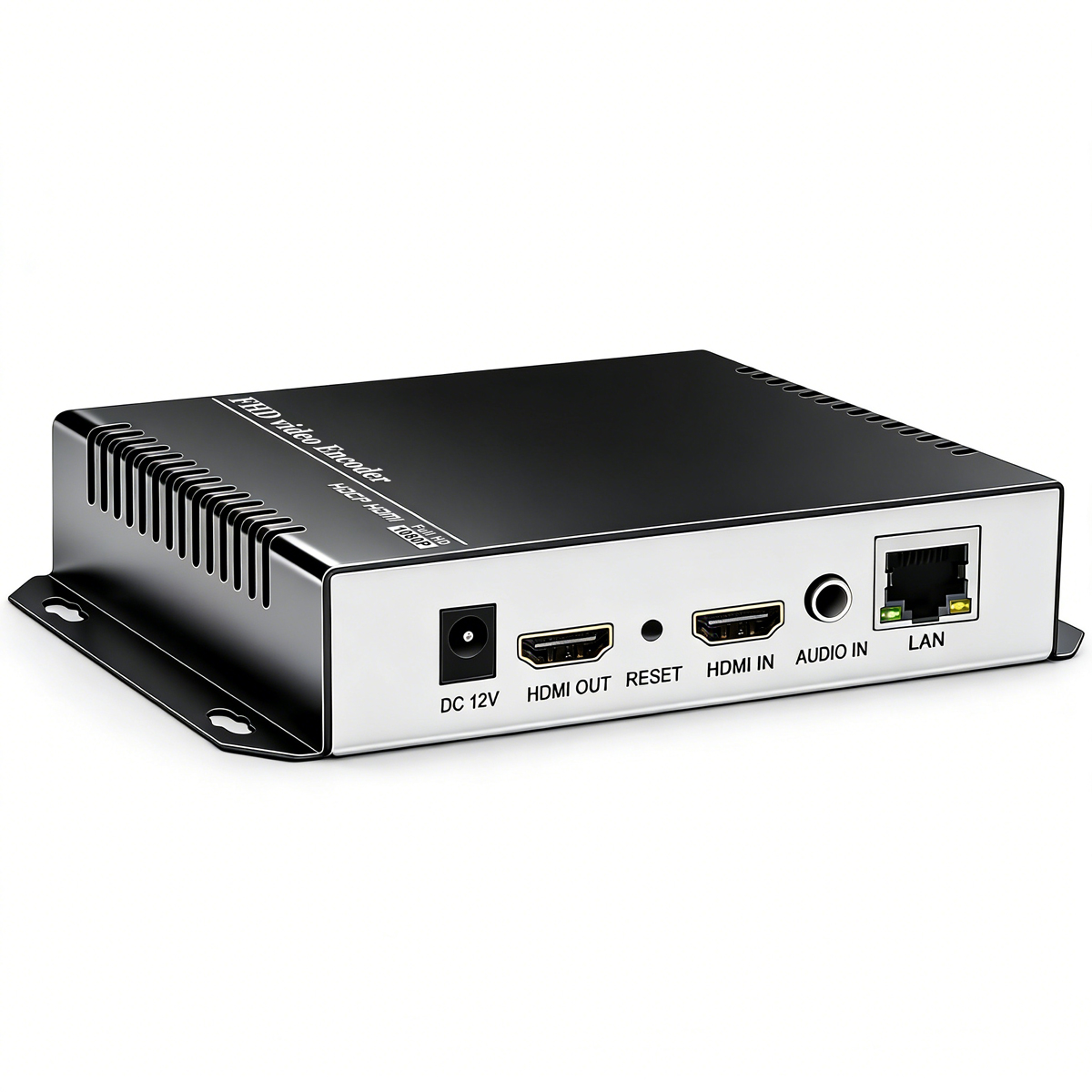

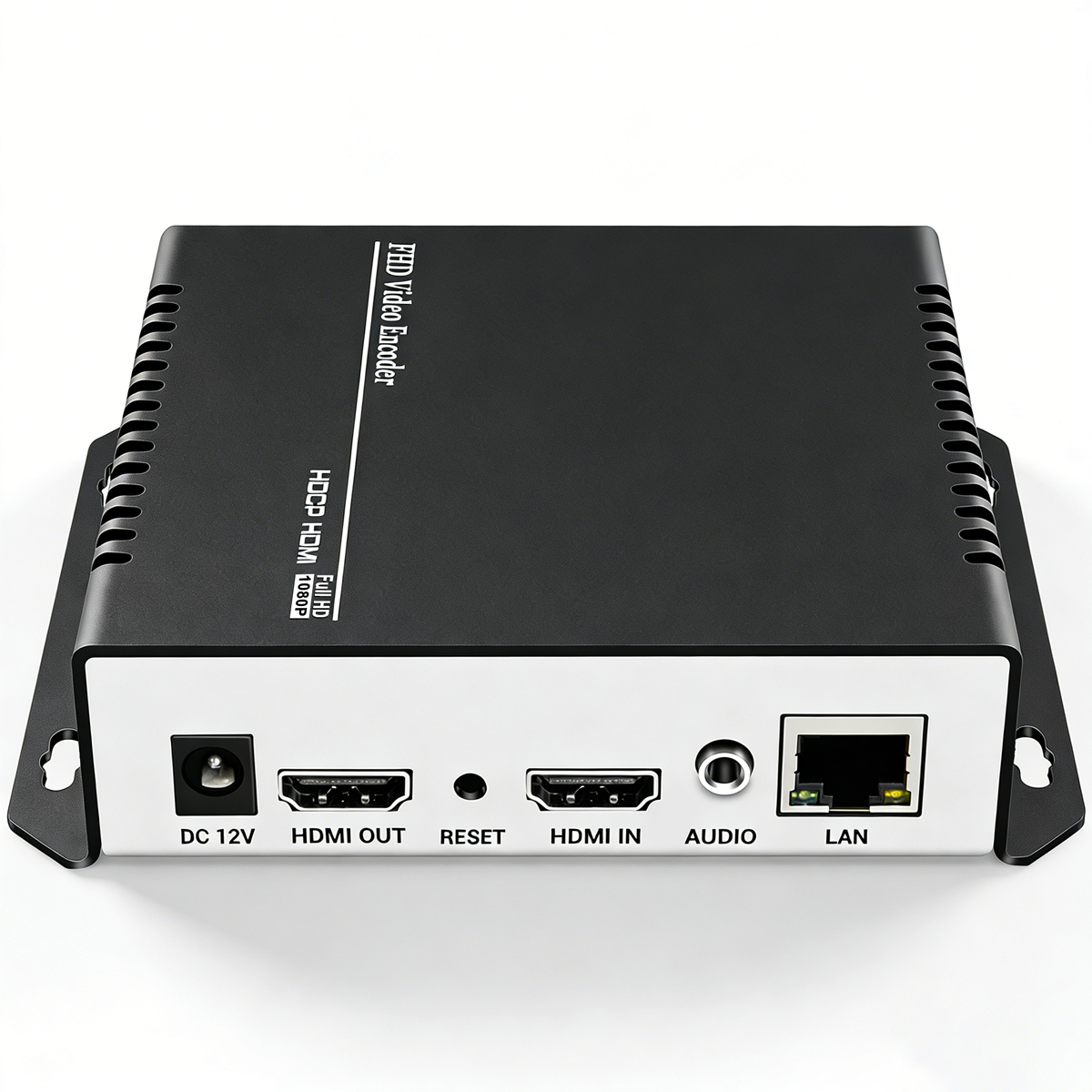

⭐4K HDMI Video Encoder Supports Recording and 4K HDMI Loop Out

⭐4K HDMI Video Encoder Supports Recording and 4K HDMI Loop Out

Model： UHE265-1LR-4K
Input： HDMI(audio bulid-in) + line-in audio(3.5mm jack)
Video Encoding： HEVC /H.265, MPEG-4 /H.264 AVC, MJPEG
Audio Encoding： AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711
Output Video： 4 video streams output simultaneously + HDMI loopout
Output Audio： Supports switching HDMI audio or line-in audio as output audio
Video Resolution： Max 3840x2160 input and output, output resolution is adjustable
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, Multicast(UDP, RTP, PTL), Unitcast, FLV, MP4, WebRTC, ICECAST, etc.
Video Bitrate： Adjustable from 32kbit/s to 32000kbit/s
Audio Bitrate： Adjustable from 48000kb/s to 320000kb/s
Control Mode： Web、APP、CGI command, support wide area network remote control
Display Settings： Supports adding logo, text, scroll text, time on the displayed video
Special Feature： Recording video streams to USB flash disk
Description

通用


UHE265-1L-4K


  • Supports HEVC /H.265, H.264 /AVC, MJPEG video encoding

  • Supports AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711 audio encoding

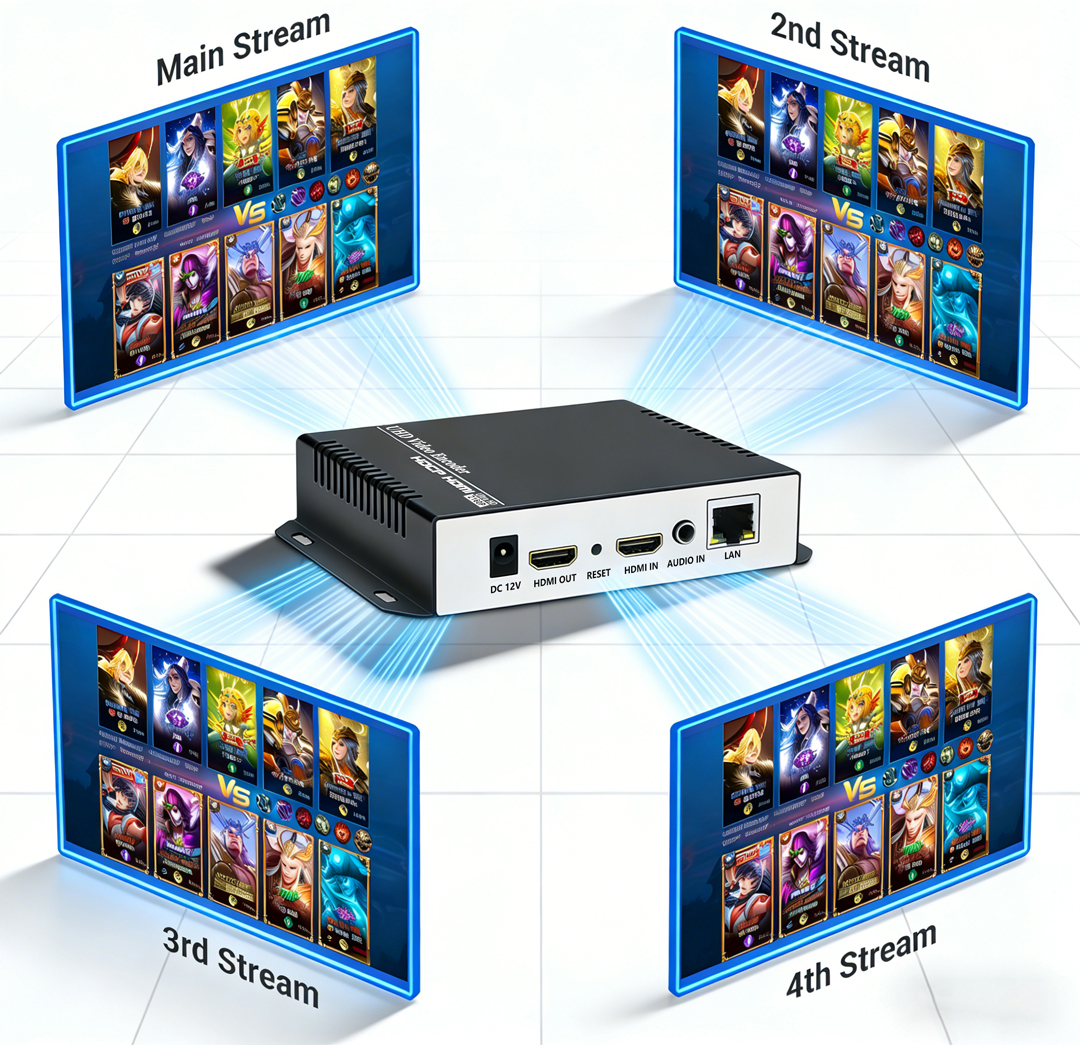

  • Supports simultaneously output 4-channel video streams with different protocols

  • Simultaneously push video streams to multiple live streaming platforms with one click

UHE265-1L-4K

  • Compatible with multiple live broadcast platforms and playback software

  • Supports using different protocol transmission for each video stream


  • Free switching output video resolution, max 3840x2160 resolution input and output

  • Supports output video frame rate setting, max 120fps input and output(Max 30fps when 4K resolution)


  • Supports SRT, HTTP, RTSP, RTMP(S), HLS, UDP, RTP, ONVIF, FLV, MP4, WebRTC, ICECAST, etc.

  • Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty

通用


  • Supports multiple on screen display settings, such as logo, text, scroll tect, time, etc.

  • Supports customizing the display image or logo when there is no input signal


  • Supports both HDMI audio and line-in audio input simultaneously

  • Supports switching HDMI audio or line-in audio as output audio


  • 1-channel HDMI signal loop out for reuse

  • Zero-lag passthrough without any loss

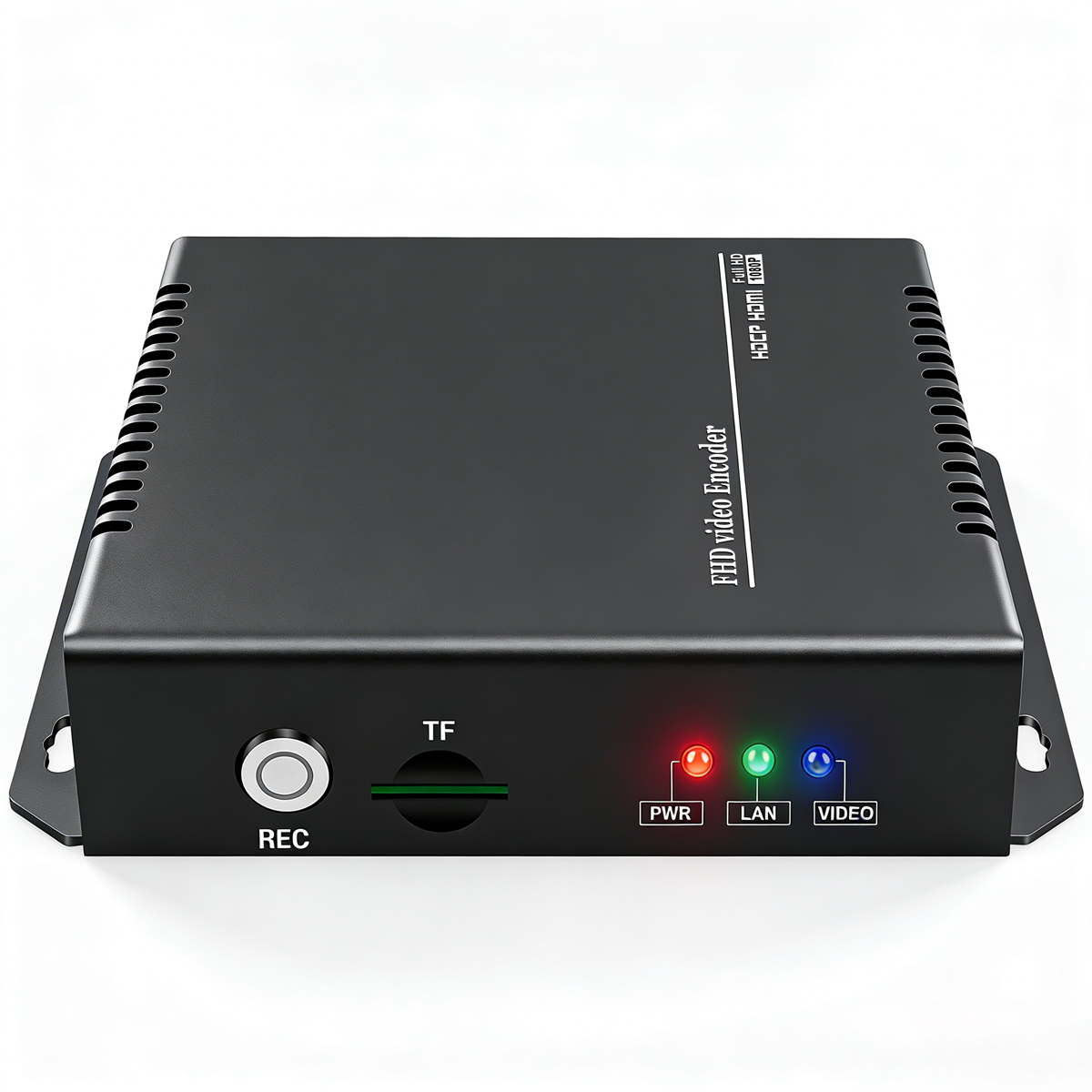

  • One-click start /stop recording video stream

  • Saving recorded video files in the USB flash disk


  • Supports web page /APP /CGI command 3 control modes

  • Supports wide area network remote management


  • Supports logo printing, language, solution, function, system and other customizations

  • Lifetime free warranty and technical supports, system firmware continuously updated



Model No.

UHE265-1LR-4K

Video

Input Video

1 x HDMI, Support HDCP(ver 1.4)

Input Resolution

Max 3840x2160 input

Video Encoding

H.265, H.264, MJPEG(Motion JPEG)

Video Bitrate

Adjustable from 32kbit/s ~ 32000kbit/s

Bitrate Control

CBR, Strong CBR, VBR

Output Resolution

It is adjustable, max 3840x2160 output

Frame Rate

Max 120fps for 2K or lower resolution, max 30fps for 3840x2160 4K resolution

Audio

Input Audio

HDMI audio, line-in audio(3.5mm jack)

Output Audio

Support switching HDMI audio or line-in audio at will

Sampling Rate

44.1KHz, 48KHz, Same as Input

Audio Bitrate

Adjustable from 48000kbit/s ~ 320000kbit/s

Audio Encoding

AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711

Network

Interface

1 x Ethernet port(Gigabit)

Streaming Protocol

HTTP, SRT, RTSP, RTMP(S), HLS, ONVIF, Multicast(UDP, RTP, PTL), MP4, WebRTC, etc.

Control Dashboard

Web or APP dashboard, support remote management over WAN

System Update

Uploading firmware to dashboard and upgrade

Recording

Storage

USB flash disk in NTFS /EXFAT /FAT32 format

Preview

SMB /CIFS file share: \\192.168.1.168\encoder\

Format

TS /MP4 Format

General

Dimension (L x W x H)

125 x 105 x 30 /mm

Net Weight

270g

Temperature

0 ~ 45℃(working), -20℃ ~ 80℃(storing)

Power

DC 12V /1A or 12V /2A

Material

Aluminum Shell


🔴 Status Display（Click to enlarge）


🔴 Stream Setting → Encoding（Click to enlarge）


🔴 Stream Setting → TS /Multicast Protocol（Click to enlarge）


🔴 Stream Setting → RTSP Protocol（Click to enlarge）


🔴 Stream Setting → RTMP（Click to enlarge）


🔴 Stream Setting → SRT Protocol（Click to enlarge）


🔴 Stream Setting → WebRTC Protocol（Click to enlarge）


🔴 Stream Setting → HLS Protocol（Click to enlarge）


🔴 Stream Setting → MP4 /FLV /ICECAST /Shoutcast（Click to enlarge）


🔴 Video Setting → Input Setting（Click to enlarge）


🔴 Video Setting → Brightness Adjustment（Click to enlarge）


🔴 Audio Setting → Normal Setting（Click to enlarge）


🔴 Audio Setting → ONVIF Audio（Click to enlarge）


🔴 Display Setting（Click to enlarge）

osd-setting.jpg‍

🔴 Display Setting → Logo Upload（Click to enlarge）


🔴 System → Network Setting（Click to enlarge）

network.jpg‍

🔴 Advanced Setting（Click to enlarge）


🔴 System → Password（Click to enlarge）


🔴 System → Transport（Click to enlarge）


🔴 System → Upgrade and Backup（Click to enlarge）


🔴 System → Reboot（Click to enlarge）


🔴 System → Schedule Reboot（Click to enlarge）


🔴 System → Reset（Click to enlarge）
