Product Details

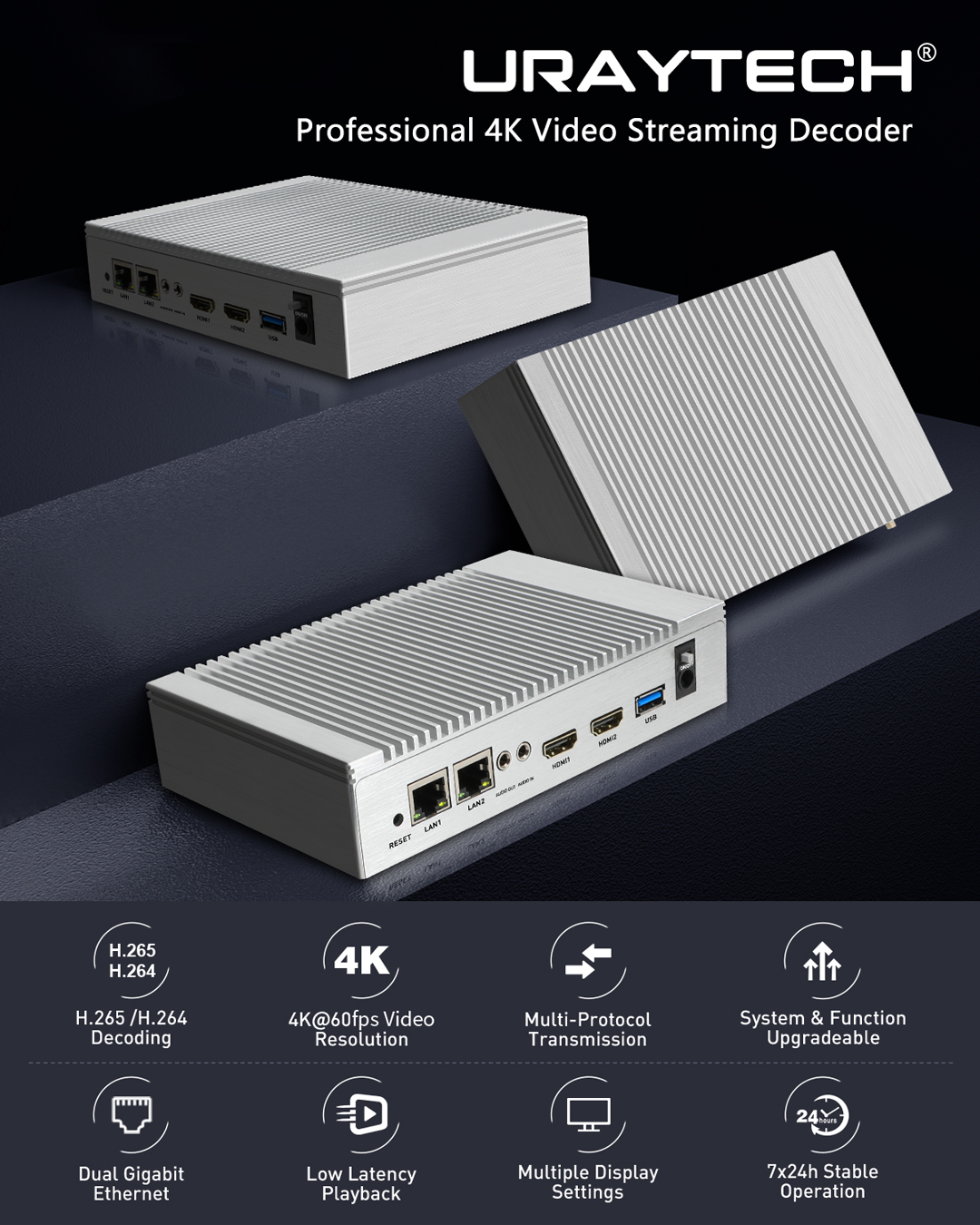

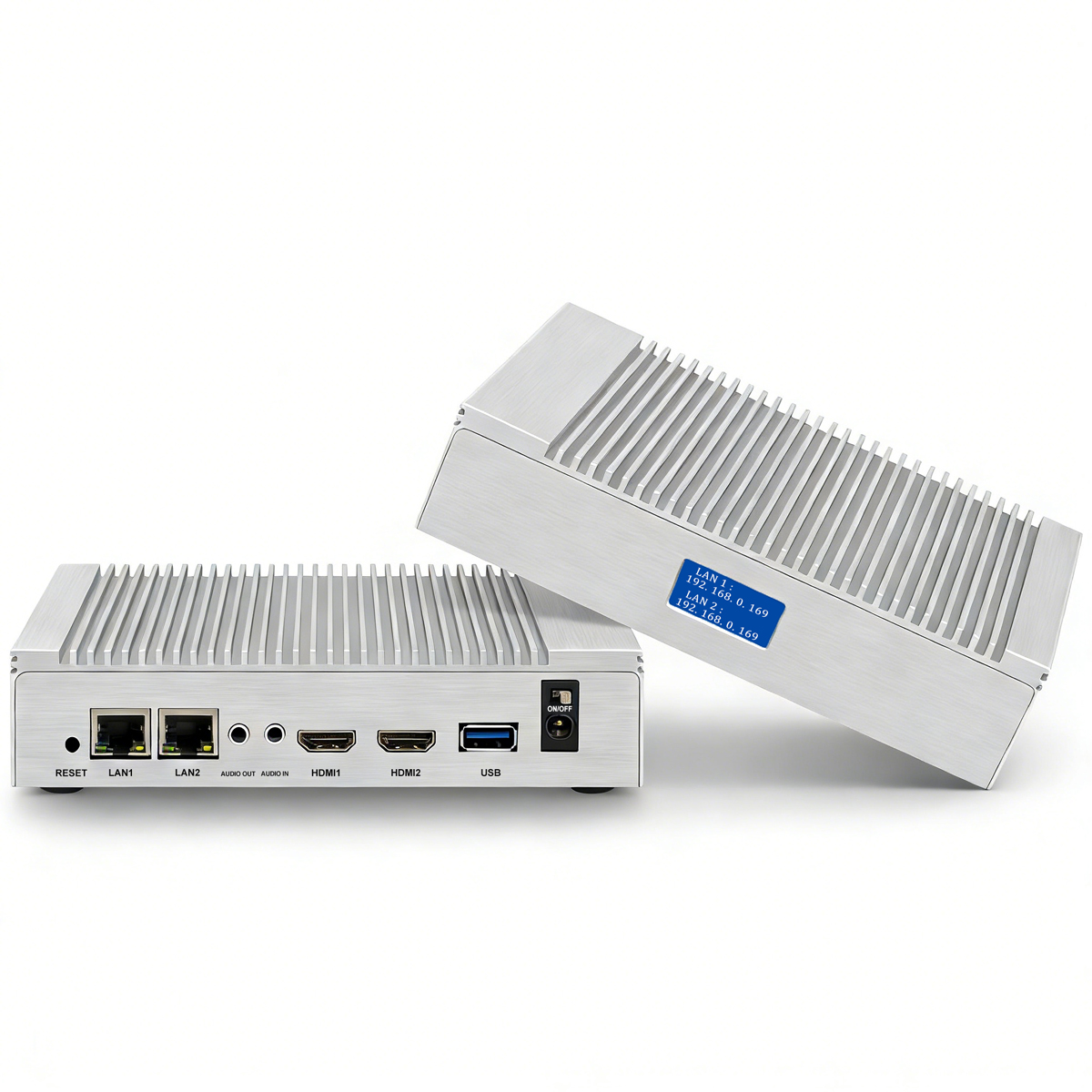

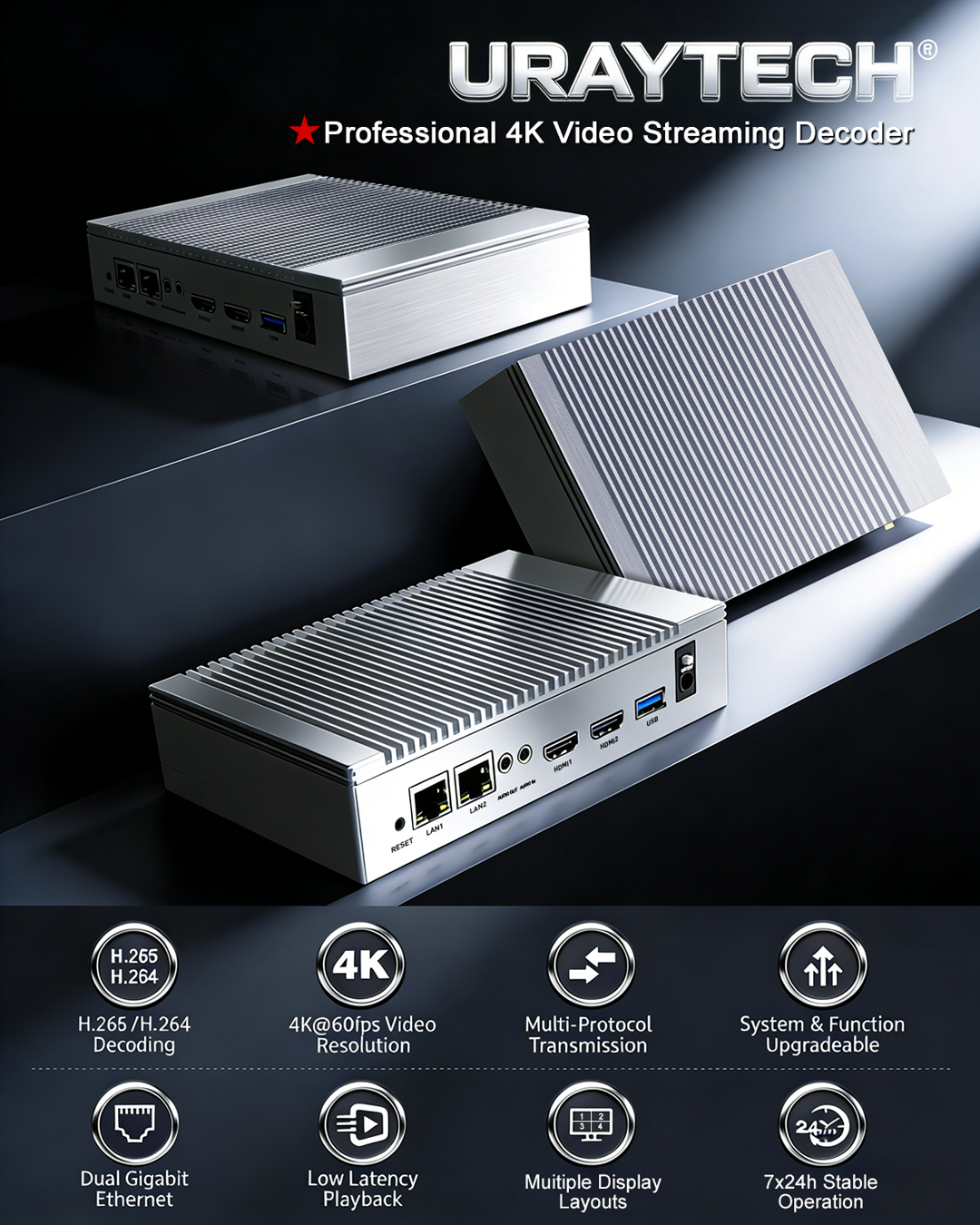

2 Channels 4K@60fps Video Decoder with Dual HDMI and Ethernet Ports

2 Channels 4K@60fps Video Decoder with Dual HDMI and Ethernet Ports

Model： UHD265-2-4K60
Input： Video stream address (Max 32 URLs input and decode simultaneously)
Output Video： Dual HDMI output simultaneously
Output Audio： 2xHDMI audio, 2xline-out audio(3.5mm jack) output simultaneously
Video Resolution： Max 3840x2160@60fps input output, output resolution is adjustable

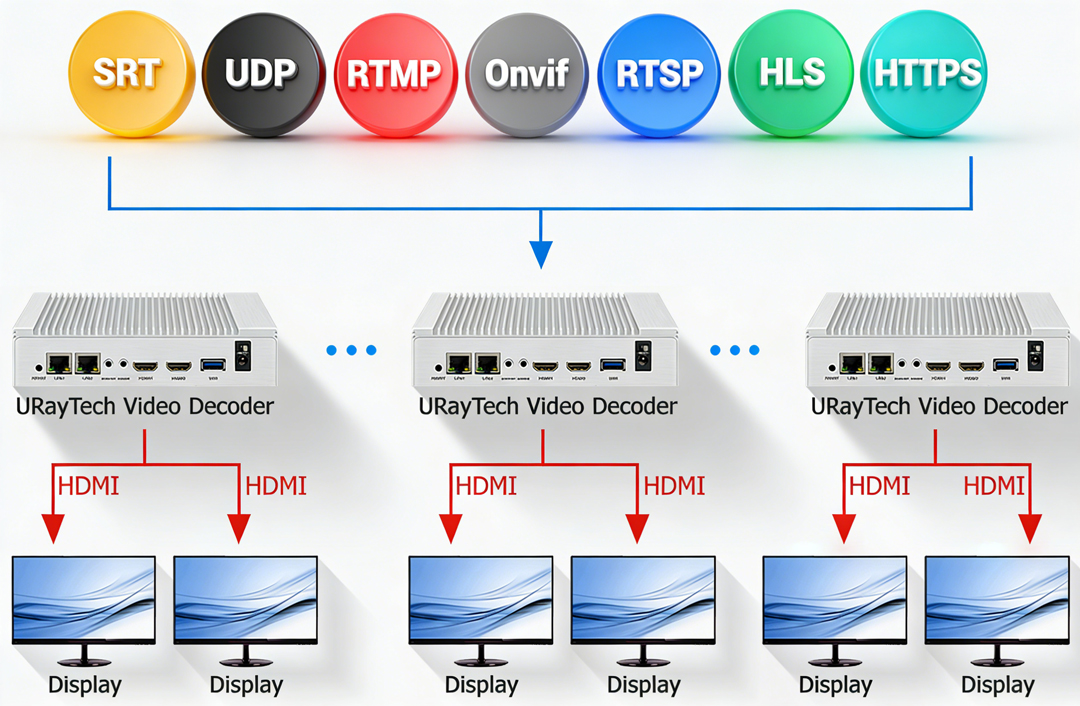

Streaming Protocol： SRT, HTTP(S), UDP, RTP, RTSP, RTMP, HLS(M3U8), ONVIF, Unitcast, etc.
Control Mode： Web、CGI command, support wide area network remote control
Customization： Provide many kinds of ODM(Shell, Logo, Function, Language, etc.)
Service： Free lifetime warranty, provide secondary development documents
General： 170x110x40/mm(Size), 645g(Weight), Aluminum Shell, Driver-free
Video Decoding： H.265, H.264, MJPEG
Audio Decoding： AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Display Mode： 1 Picture, 4 Pictures(2x2), 9 Pictures(3x3), 16 Pictures(4x4)
Description

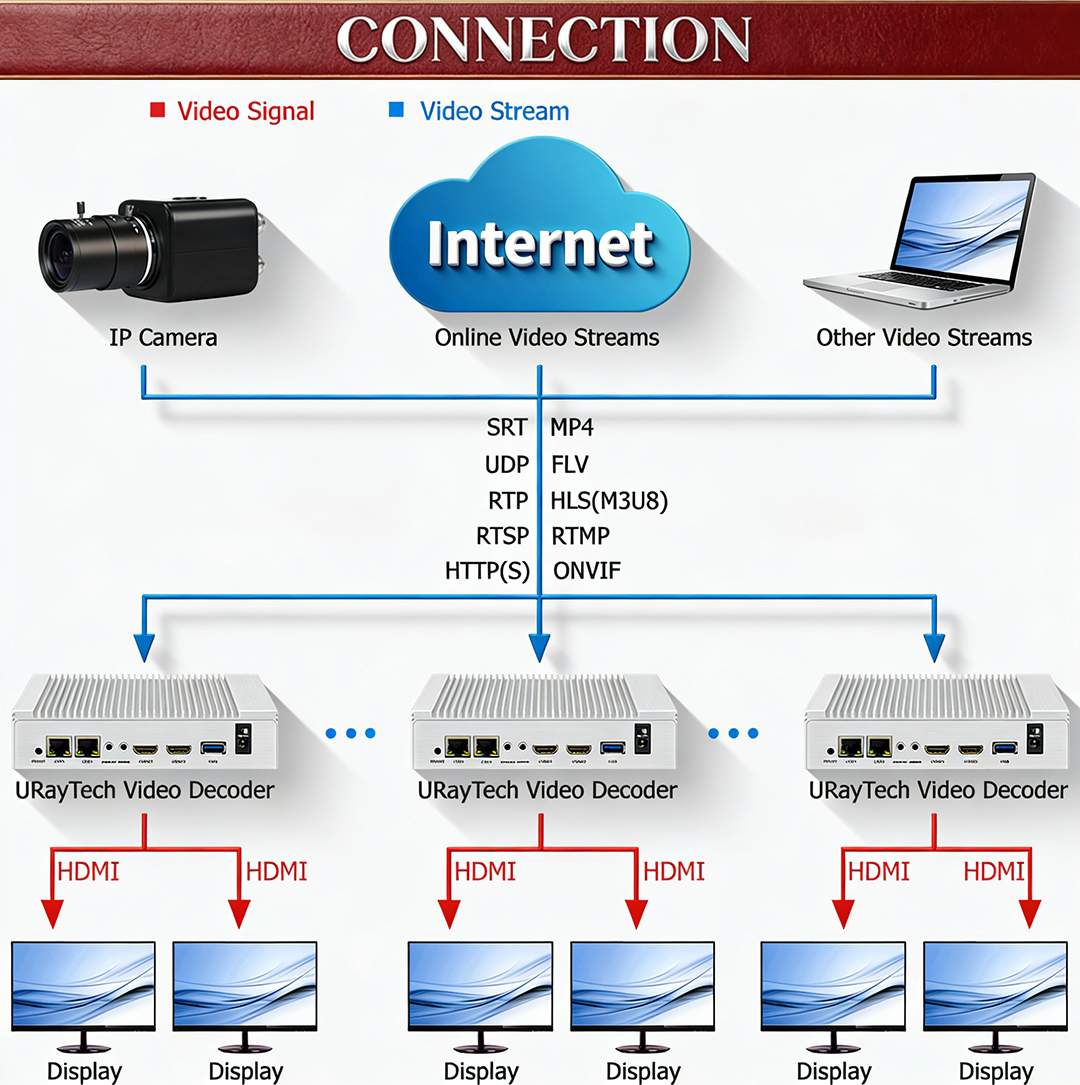

  • Support multiple types of video stream address input and decoding

  • Support simultaneously output dual HDMI video to the display


  • Max 16 video stream URLs input and decoded for each HDMI output

  • Connect the decoder directly to the monitor, plug and play


  • Support output video resolution setting, up to 3840x2160p input and output

  • Support output video frame rate setting, up to 60fps input and output

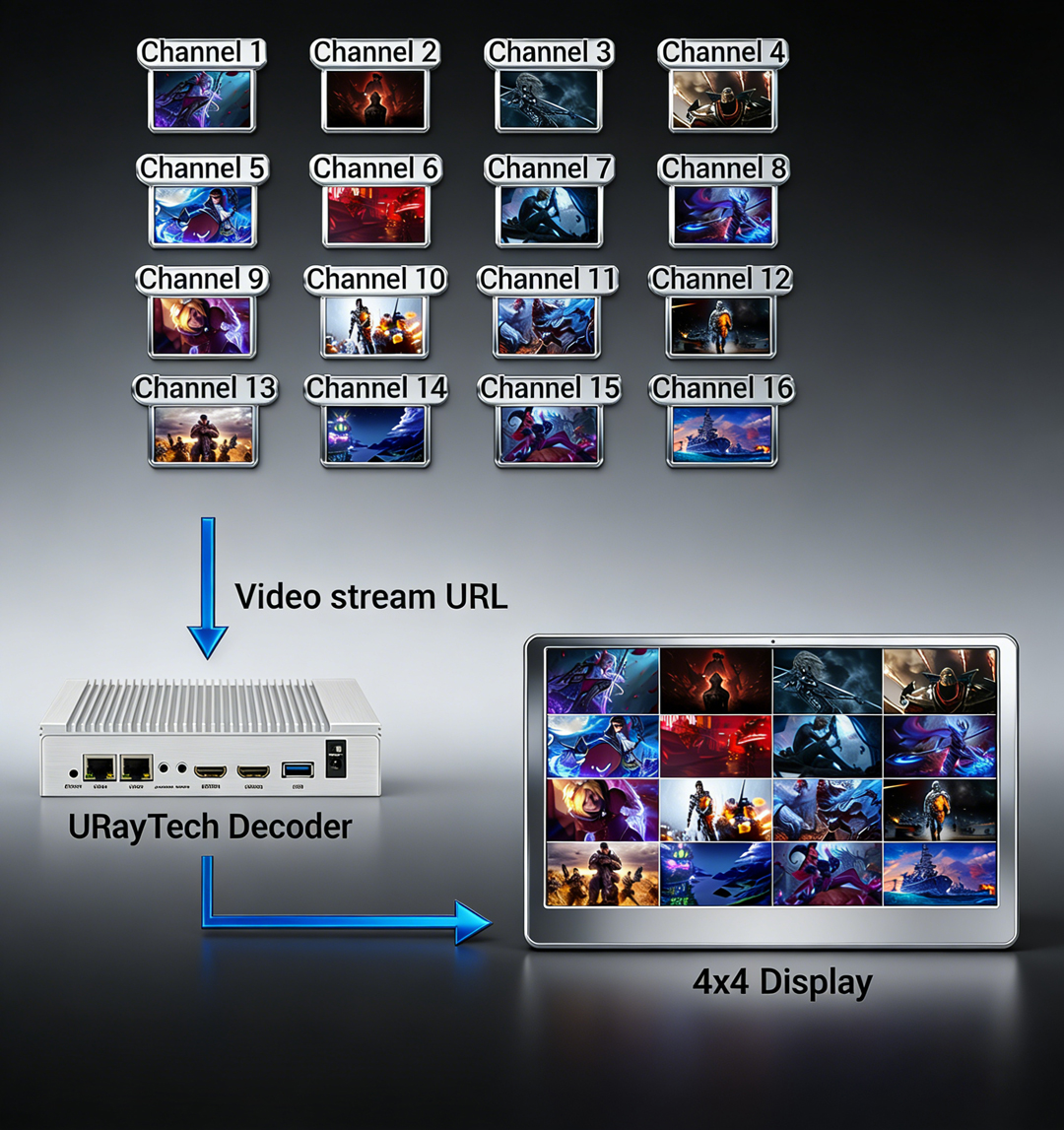

  • Supports 4 display modes for each HDMI output: 1P, 4P(2x2), 9P(3x3), 16P(4x4)

  • You can switch the display layout in the control dashboard


  • Webpage or CGI command control modes, support wide area network remote management

  • Support customizing the display image or logo when there is no decoding signal


  • In addition to RTMP /SRT address, it can also decode RTMP /SRT stream pushed from the server

  • Input the decoder information to the server, and the RTMP /SRT stream will be pushed to the decoder


  • Support logo printing /language /solution /function /system and other customizations

  • Provide lifetime free warranty service, and SDK /API /CGI files for secondary development



Model No.

UHD265-2-4K60

Video

Input Video

Video stream address (Max 32 stream URLs input and decode simultaneously)

Video Resolution

Max 3840x2160@60fps input and output, output resolution is adjustable

Video Decoding

H.265, H.264, MJPEG(Motion JPEG)

Output Video

Dual HDMI output simultaneously

Frame Rate

Max 60fps input and output

Video Processing

Resolution, Video Color, Brightness, Contrast, Saturation, Crop, Rotate, Hue, Scaling, etc.

Display Mode

1 Picture, 4 Pictures(2x2), 9 Pictures(3x3), 16 Pictures(4x4)

Audio

Audio Decoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Output Audio

2xHDMI audio, 2xline-out audio(3.5mm jack) output simultaneously

Audio Source

Selectable from channel 1 to channel 16 for each HDMI output

Network

Interface

2 x Ethernet ports(Gigabit)

Streaming Protocol

SRT, HTTP(S), UDP, RTP, RTSP, RTMP, HLS(M3U8), ONVIF, FLV, Unitcast, etc.

Control Dashboard

Webpage dashboard, support remote management over WAN

System Update

Uploading firmware to dashboard and upgrade

General

Dimension (L x W x H)

160 x 125 x 30 /mm

Net Weight

300g

Power

DC 12V /1A

Material

Aluminum Shell



• Status Display（Click to enlarge）status.jpg

• Address Setting（Click to enlarge）

address setting.jpg

• Network Setting（Click to enlarge）

network setting.jpg

• System Output Setting（Click to enlarge）

system output.jpg

• Password Setting（Click to enlarge）


• Upgrade（Click to enlarge）


• Reset（Click to enlarge）reset.jpg

• Reboot（Click to enlarge）


• Schedule Reboot（Click to enlarge）

schedule reboot.jpg

• Help（Click to enlarge）
