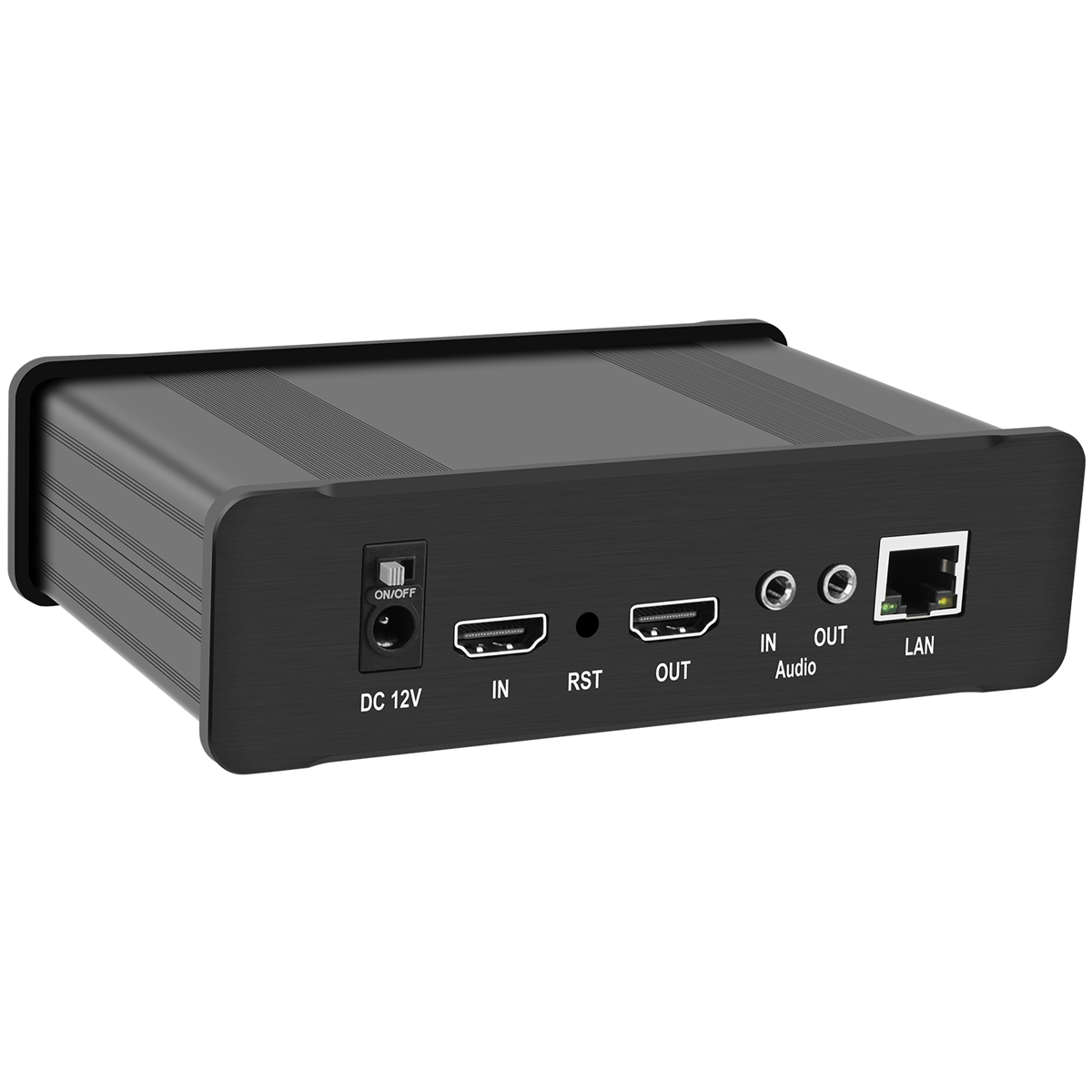

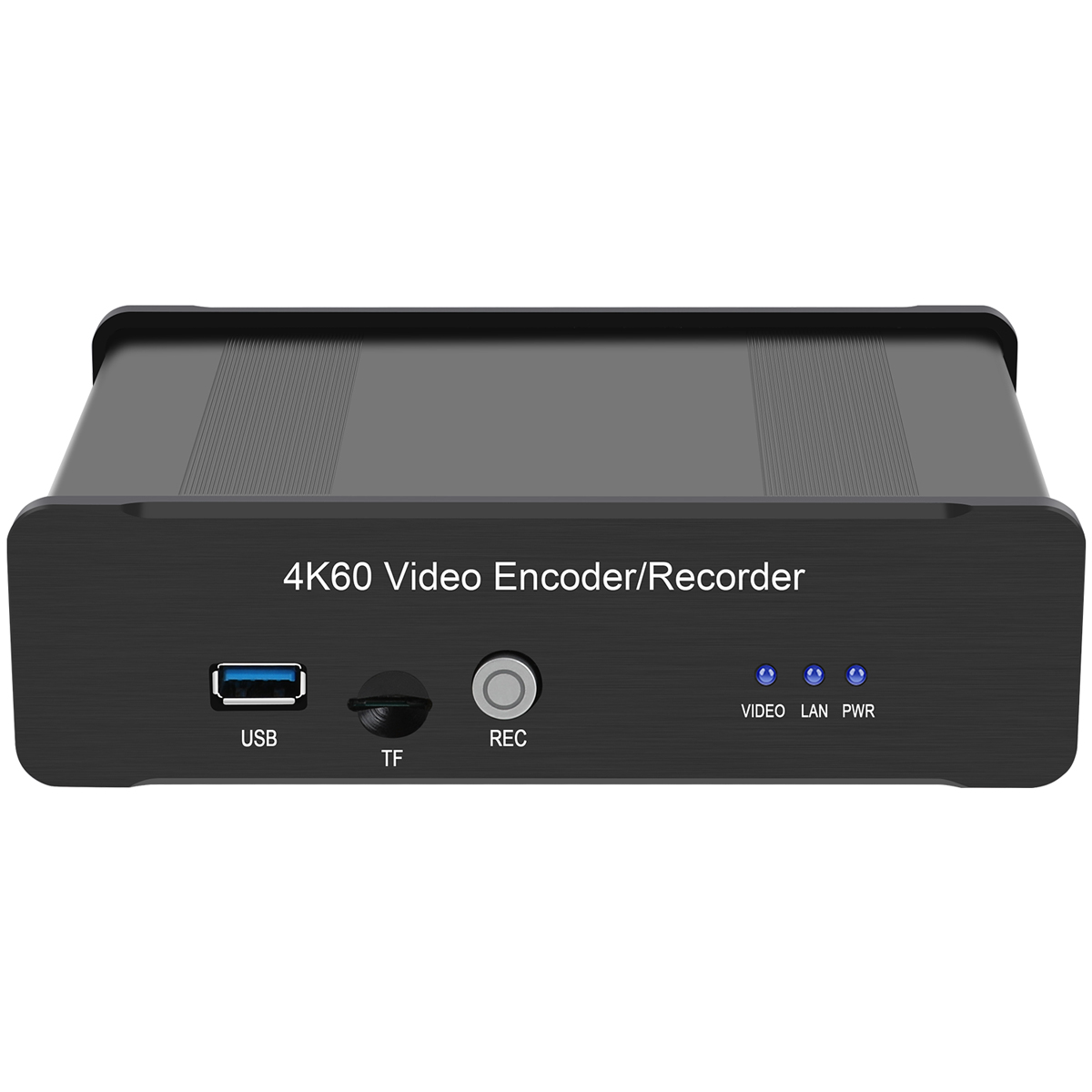

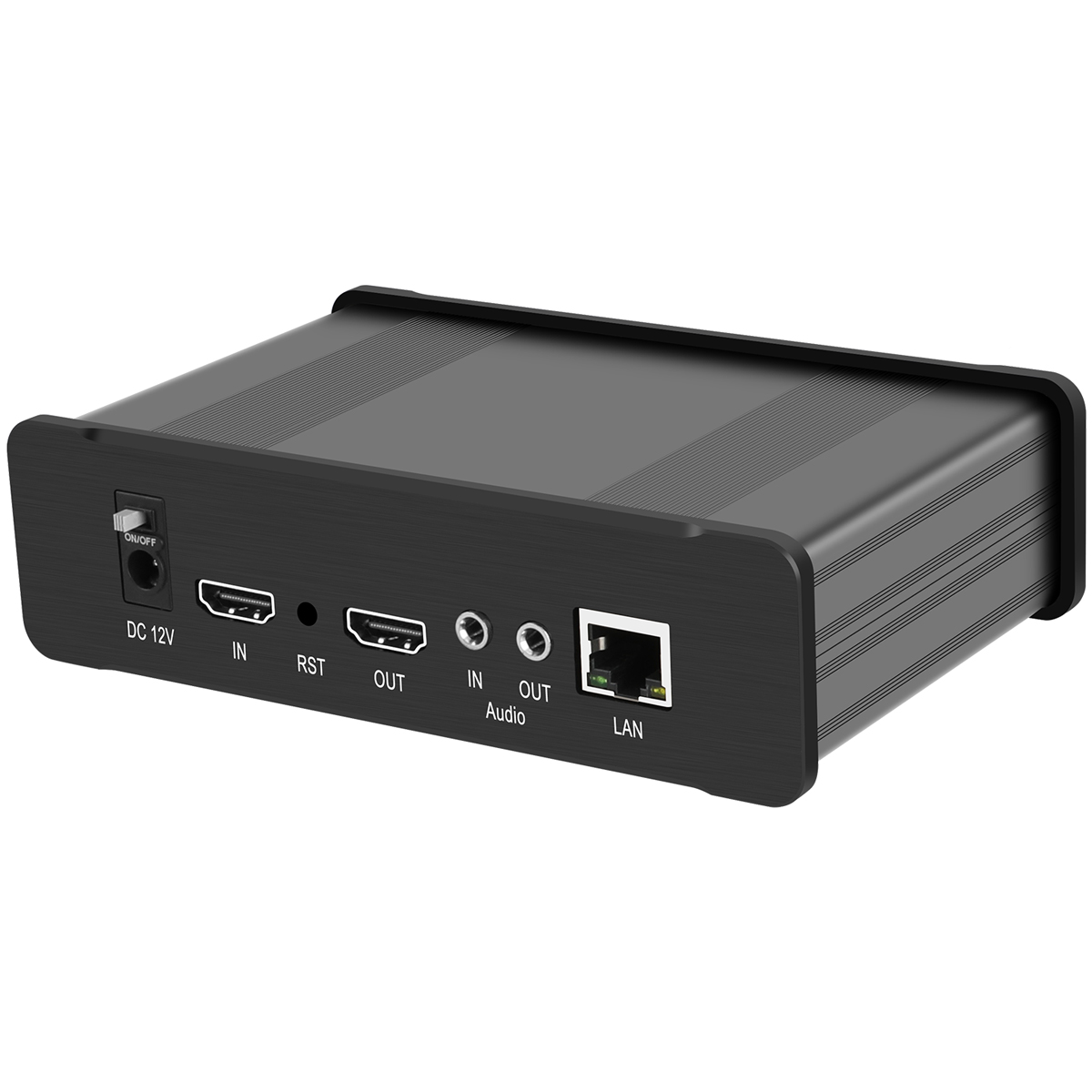

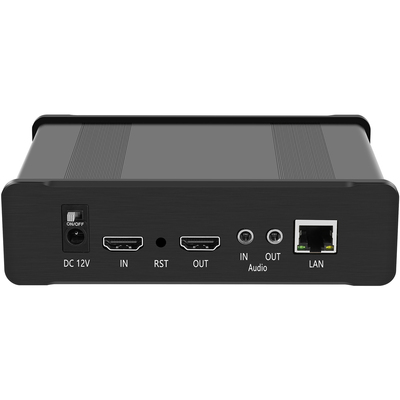

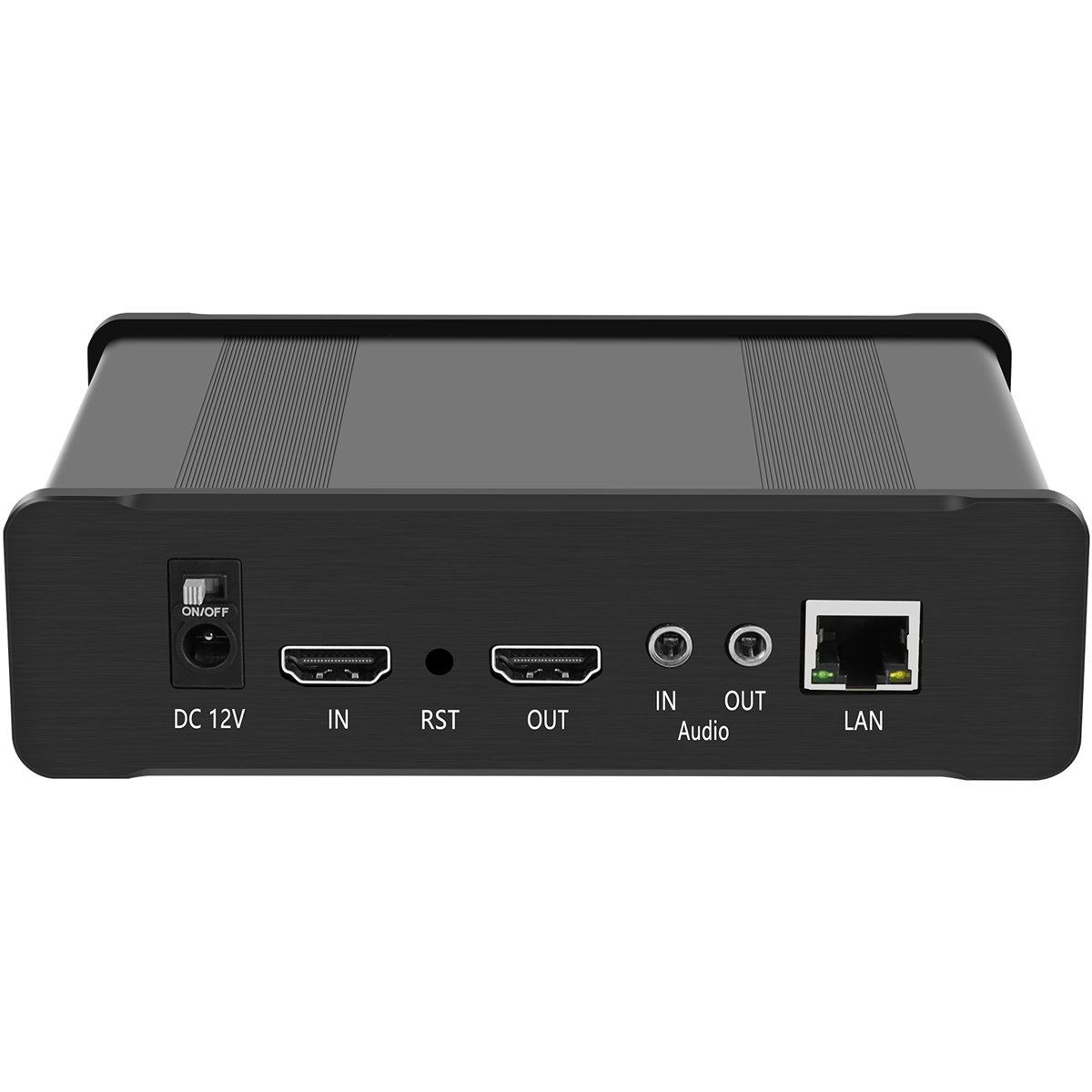

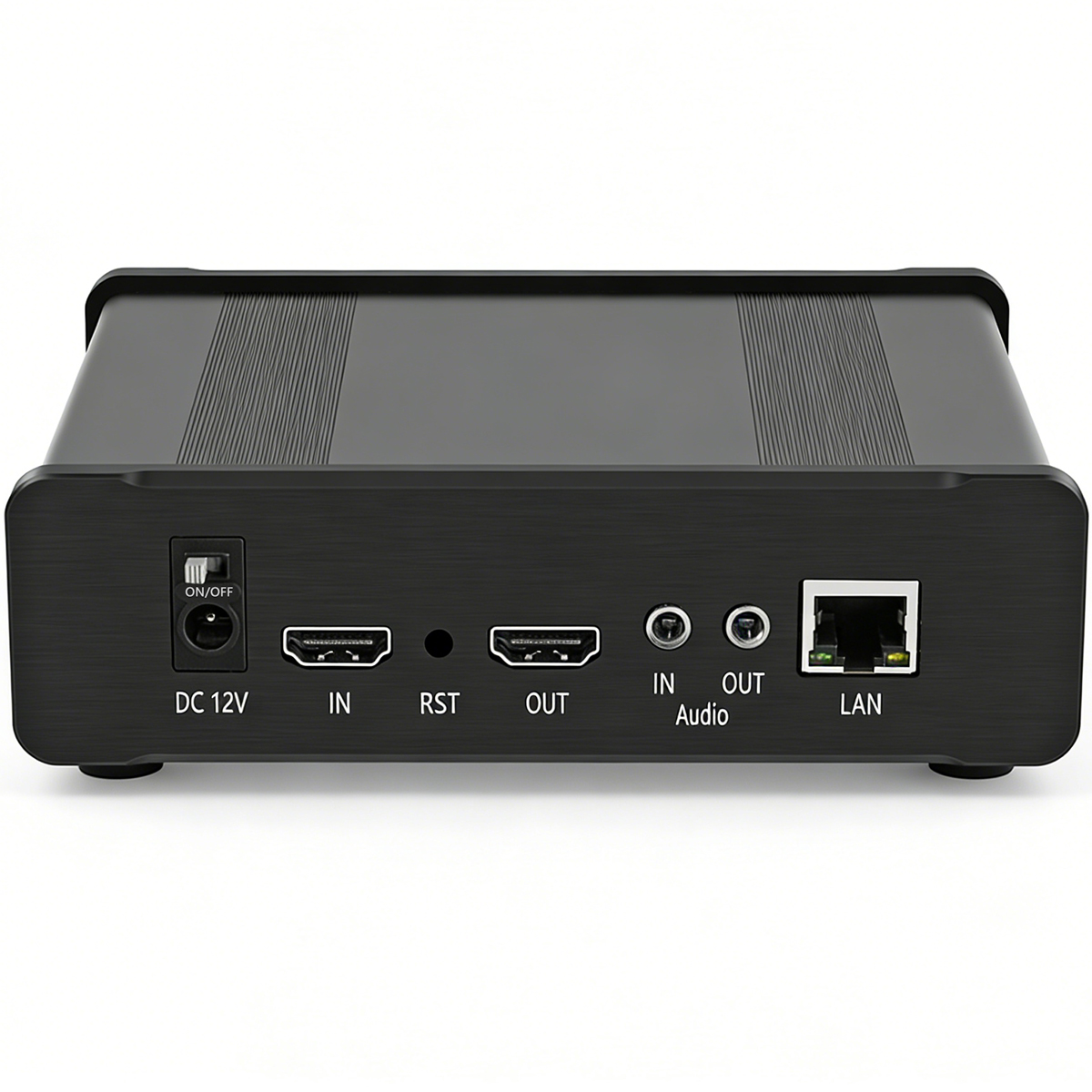

4K60fps HDMI Video Encoder Supports Recording and 4K HDMI Loop Out

Model：	UHE265-1LR-4K60
Input：	HDMI(audio bulid-in) + line-in audio(3.5mm jack)
Video Encoding：	H.265, H.264, MJPEG
Audio Encoding：	AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711
Output Video：	4 video streams output simultaneously + HDMI loopout
Output Audio：	Support switching HDMI audio or line-in audio as output audio
Video Resolution：	Max 3840x2160@60 input and output, output resolution adjustable
Streaming Protocol：	HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, UDP, RTP, FLV, MP4, etc.
Video Bitrate：	Adjustable from 32kbit/s to 32000kbit/s
Audio Bitrate：	Adjustable from 48000kb/s to 320000kb/s
Control Mode：	Web、CGI command, support wide area network remote control
Display Settings：	Support adding logo, text, scroll text, time on the displayed video
Service：	Free lifetime warranty & technical supports, ODM(Logo, Function, etc.)
Special Feature：	4K@60 input output, Record video streams to TF-card or USB flash disk

Description

‍




Supports HEVC /H.265, H.264 /AVC, MJPEG video encoding
Supports AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711 audio encoding

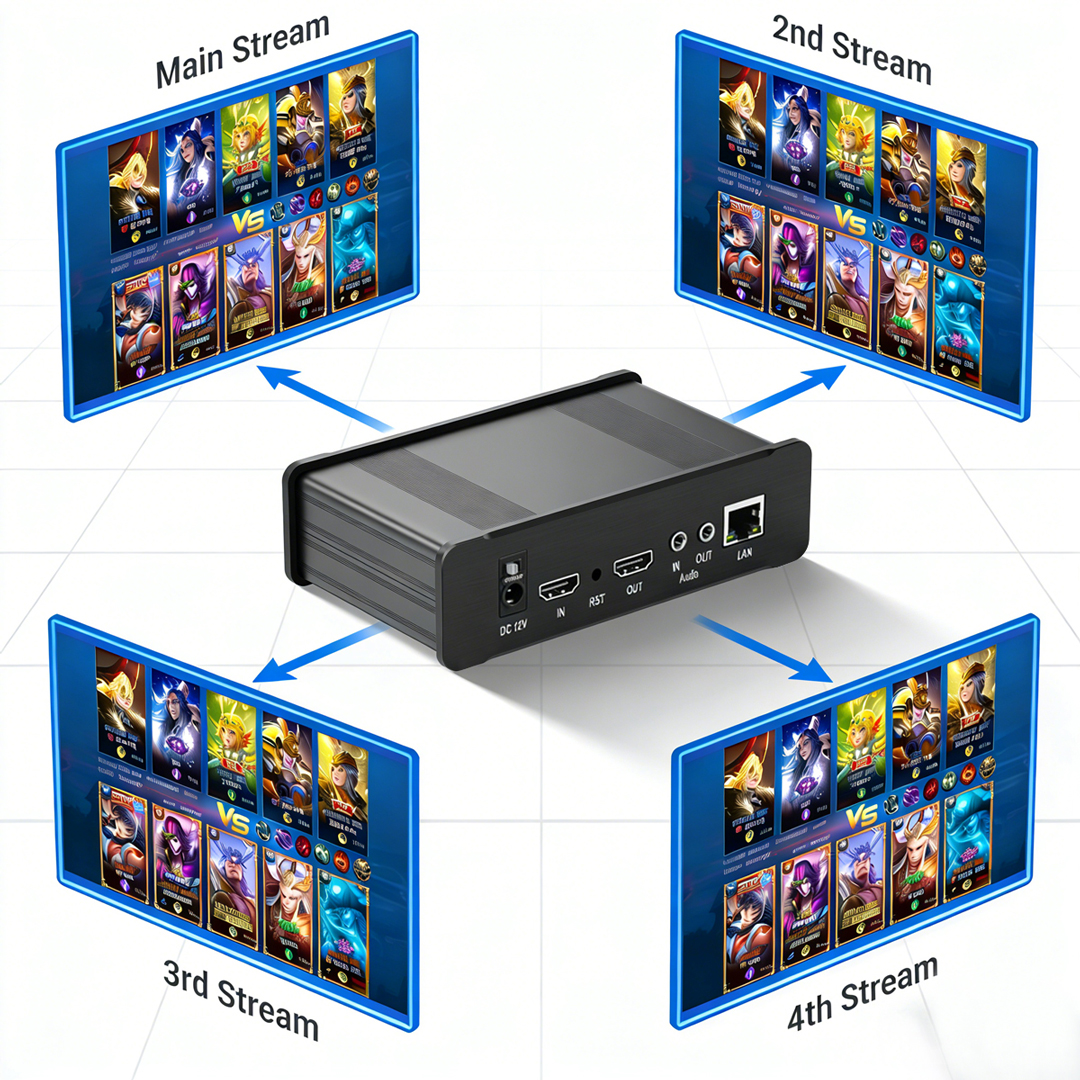

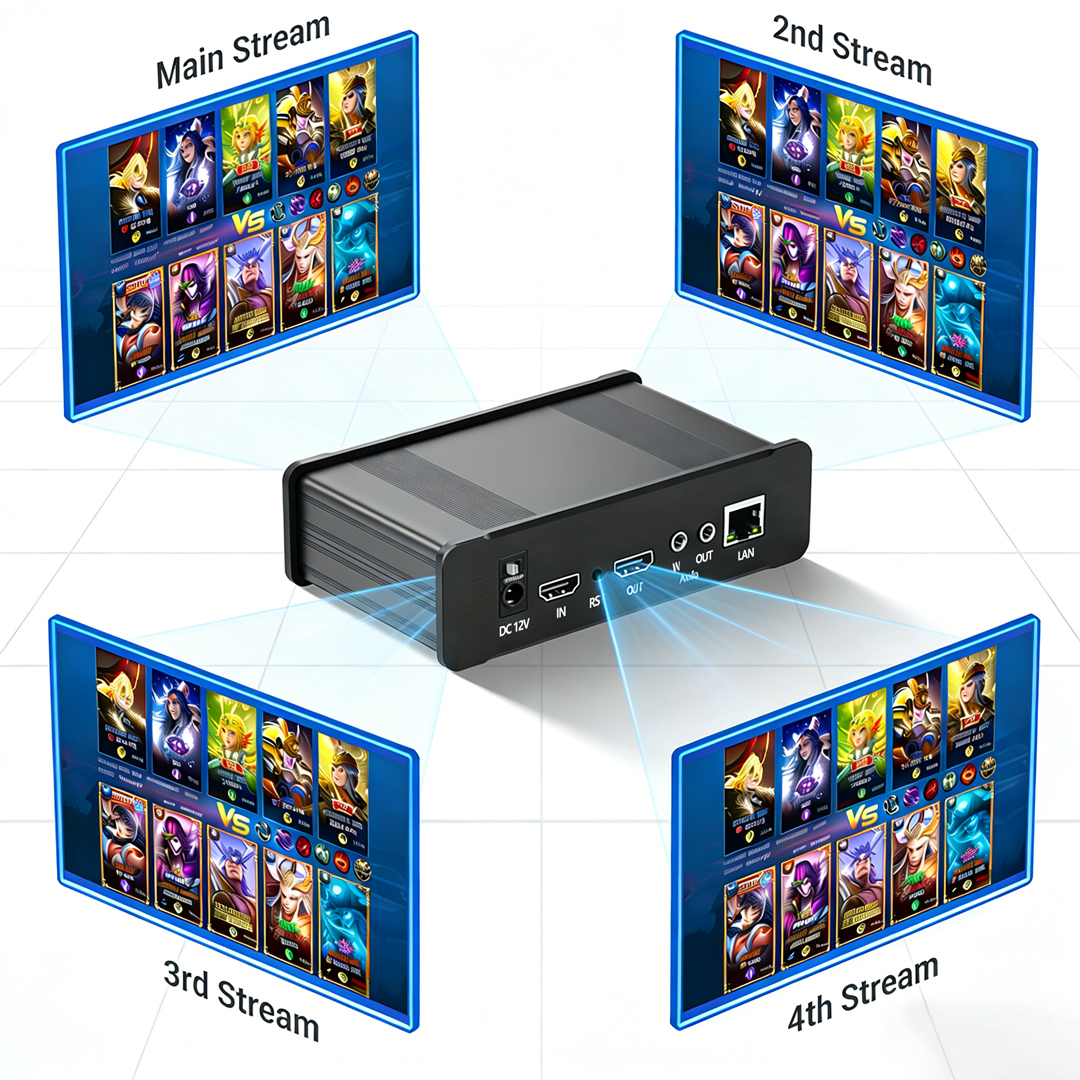

Supports simultaneously output 4-channel video streams with different protocols

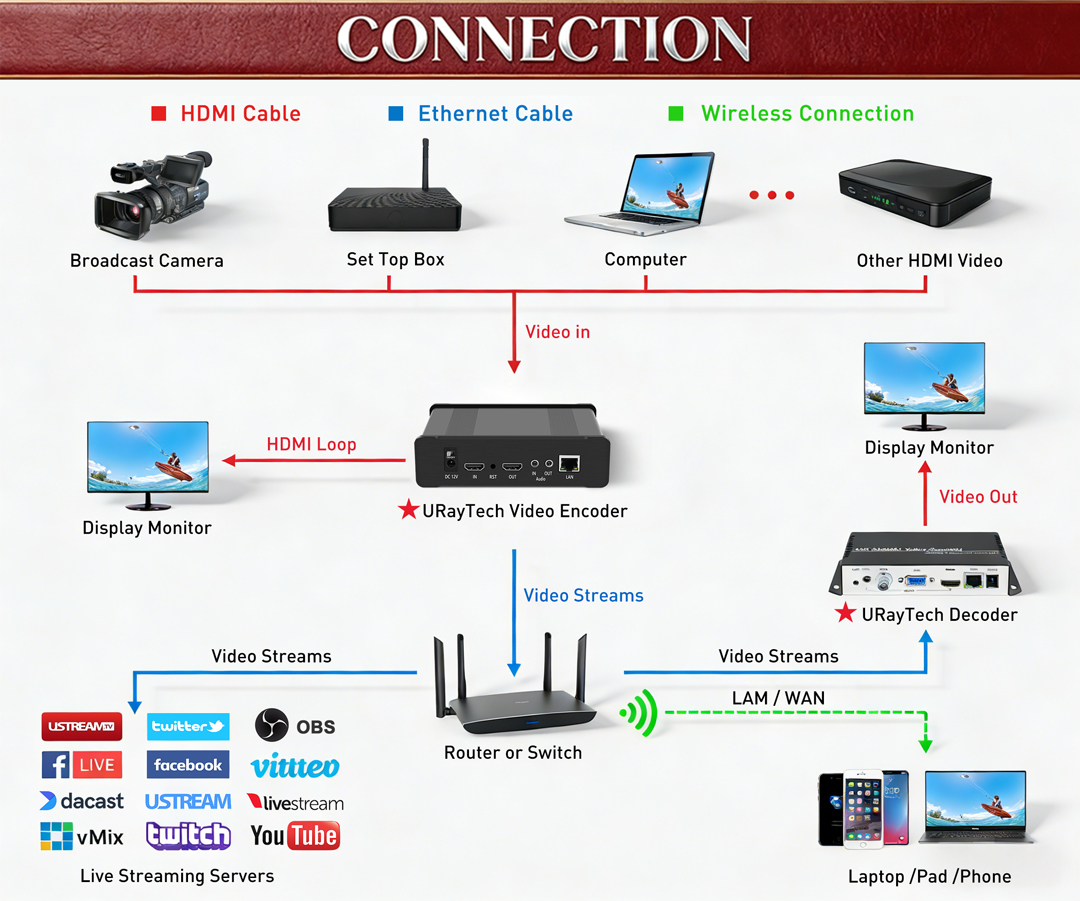

Simultaneously push video streams to multiple live streaming platforms with one click


Compatible with multiple live broadcast platforms and playback software
Supports using different protocol transmission for each video stream


Free switching output video resolution, max 3840x2160 resolution input and output
Support output video frame rate setting, max 120fps input and output(Max 30fps when 4K resolution)


Supports SRT, HTTP, RTSP, RTMP(S), HLS, UDP, RTP, ONVIF, FLV, MP4, WebRTC, ICECAST, etc.

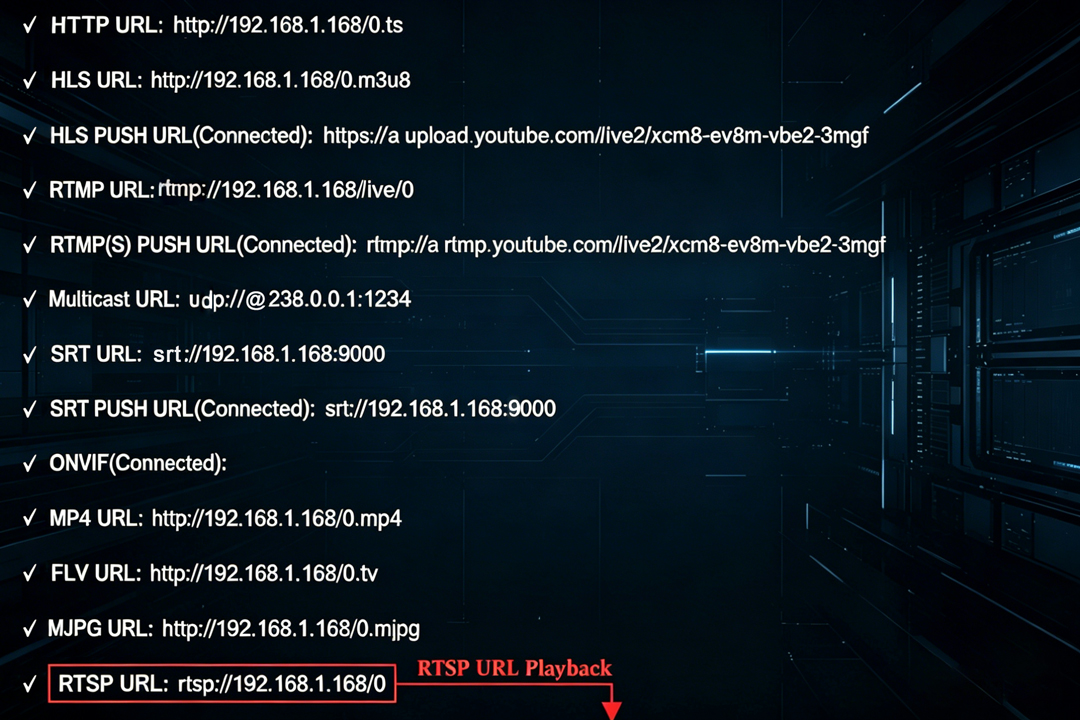

Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty

Supports multiple on screen display settings, such as logo, text, scroll text, time, etc.
Supports customizing the display image or logo when there is no input signal

Supports both HDMI audio and line-in audio input simultaneously
Supports switching HDMI audio or line-in audio as output audio

1-channel HDMI signal loop out for reuse
Zero-lag passthrough without any loss

Supports logo printing, language, solution, function, system and other customizations
Lifetime free warranty and technical supports, system firmware continuously updated

‍

Model No.	UHE265-1LR-4K60
Video
Input Video	1 x x HDMI, Support HDCP(ver 1.4)
Input Resolution	Max 3840x2160@60fps（Downward compatible）
Video Encoding	H.265, H.264, MJPEG(Motion JPEG)
Encoding Format	4:2:0 8bit, 4:2:2 8bit, 4:0:0 8bit, 4:2:0 10bit, 4:2:2 10bit, 4:0:0 10bit
Encoding Profile	Please see the following ''Dashboard → Stream Setting''
Video Bitrate	Adjustable from 32kbit/s ~ 32000kbit/s, CBR /Strong CBR /VBR control modes
GOP	Adjustable from 1 ~ 300
Output Resolution	It is adjustable, max 3840x2160@60fps
Video Processing	De-interlacing, noise reducing, sharpening, flip, mirror, crop, etc.
Audio
Input Audio	HDMI audio, line-in audio(3.5mm jack)
Output Audio	Support switching HDMI audio or encoded line-in audio
Sampling Rate	44.1KHz, 48KHz, Same as Input
Audio Bitrate	Adjustable from 48000kbit/s ~ 320000kbit/s
Audio Encoding	AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711
Network
Interface	1 x Ethernet port(Gigabit)
Streaming Protocol	HTTP, SRT, RTSP, RTMP(S), HLS(M3U8), ONVIF, Multicast(UDP /RTP /PTL), MP4, Unitcast, etc.
Control Dashboard	Webpage or CGI command, support remote management over WAN
System Update	Uploading firmware to dashboard and upgrade
OSD
Display Area	Zone 1 /Zone 2 /Zone 3
Transparency	0 - 255 adjustable
Position (Horizontal)	0 - 1920 adjustable
Position (Vertical)	0 - 1080 adjustable
Logo	Max 4 LOGOs can be uploaded for selection
Font size	8 - 72 adjustable
Background	White /Black /Transparent
Font Color	Adjustable in RGB colors
Recording
Storage	USB3.0 USB flash drive, TF-card card in NTFS /EXFAT /FAT32 format
Preview	SMB /CIFS file share: \\192.168.1.168\encoder\
Format	TS /MP4 Format
General
Dimension (W x L x H)	170 x 123 x 38 /mm
Net Weight	610g
Temperature	-20℃ to 60℃(working), -20℃ to 80℃(storing)
Power	DC 12V /2A
Material	Aluminum Shell

• Status Display（Click to enlarge）

‍

• Main Stream Setting（Click to enlarge）

• Video Setting（Click to enlarge）

• Audio Setting（Click to enlarge）

• Advanced Setting（Click to enlarge）

• Display Setting（Click to enlarge）

• Logo Upload（Click to enlarge）

• Network Setting（Click to enlarge）

• Password（Click to enlarge）

• Upgrade and Backup（Click to enlarge）

• Reboot（Click to enlarge）

• Schedule Reboot（Click to enlarge）

• Reset（Click to enlarge）

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
