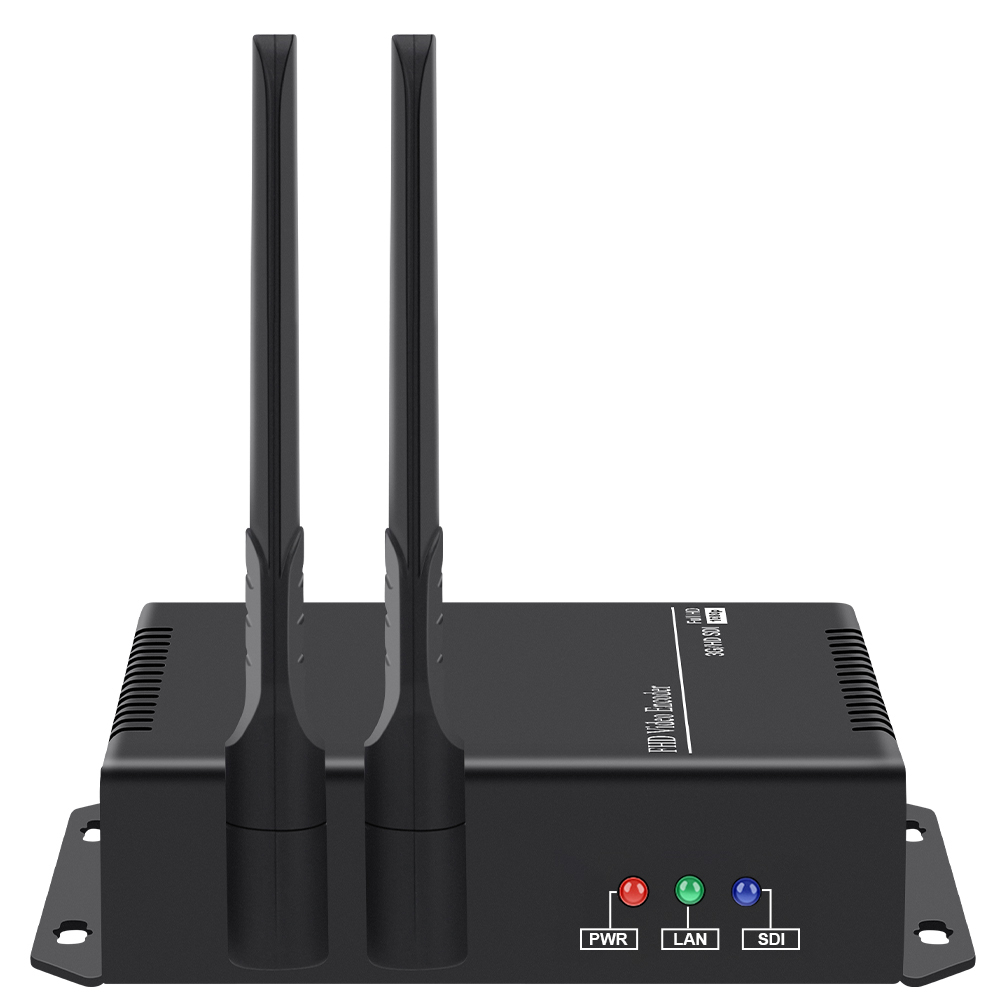

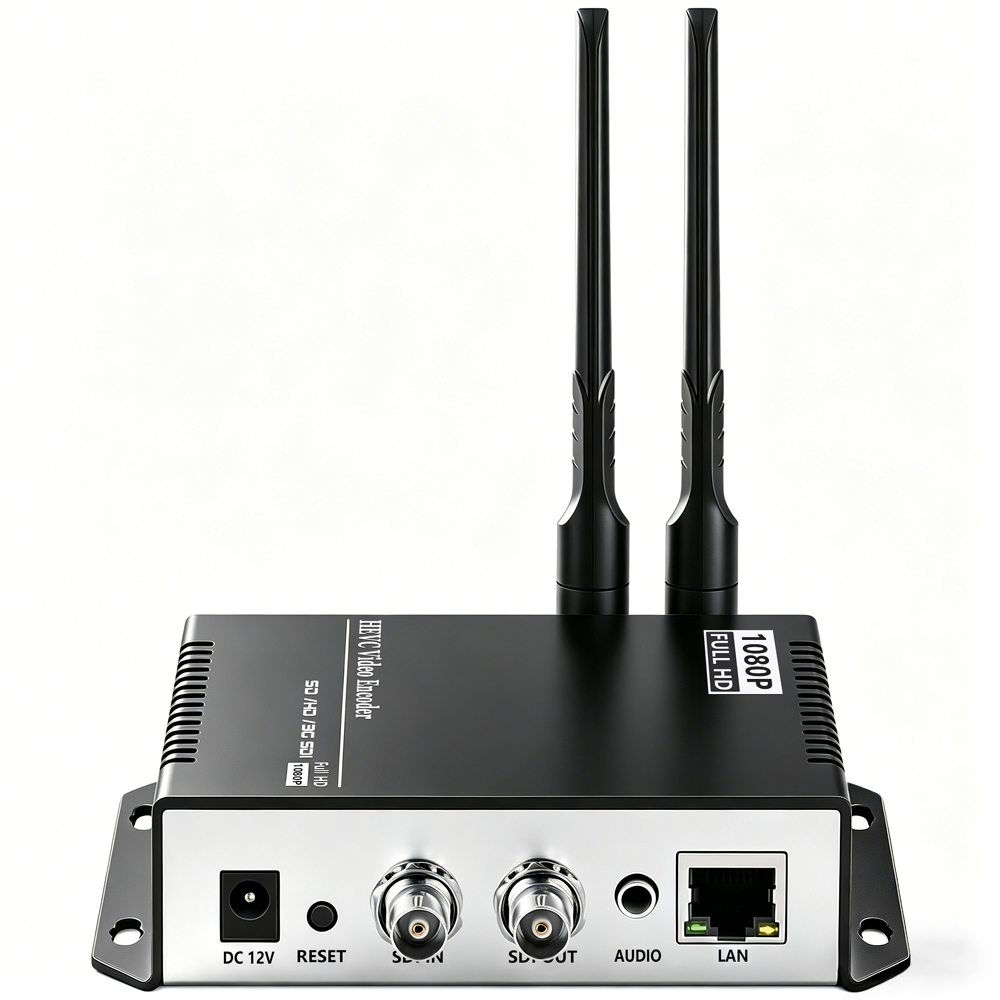

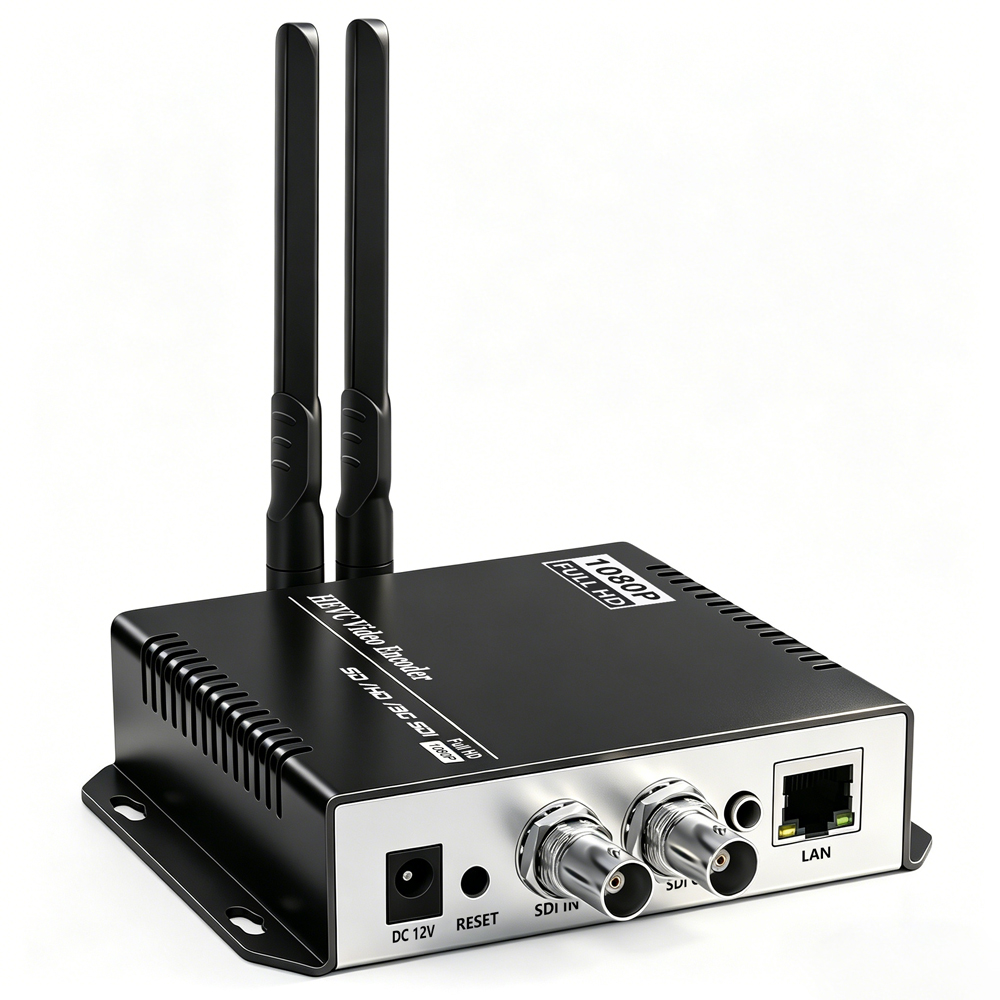

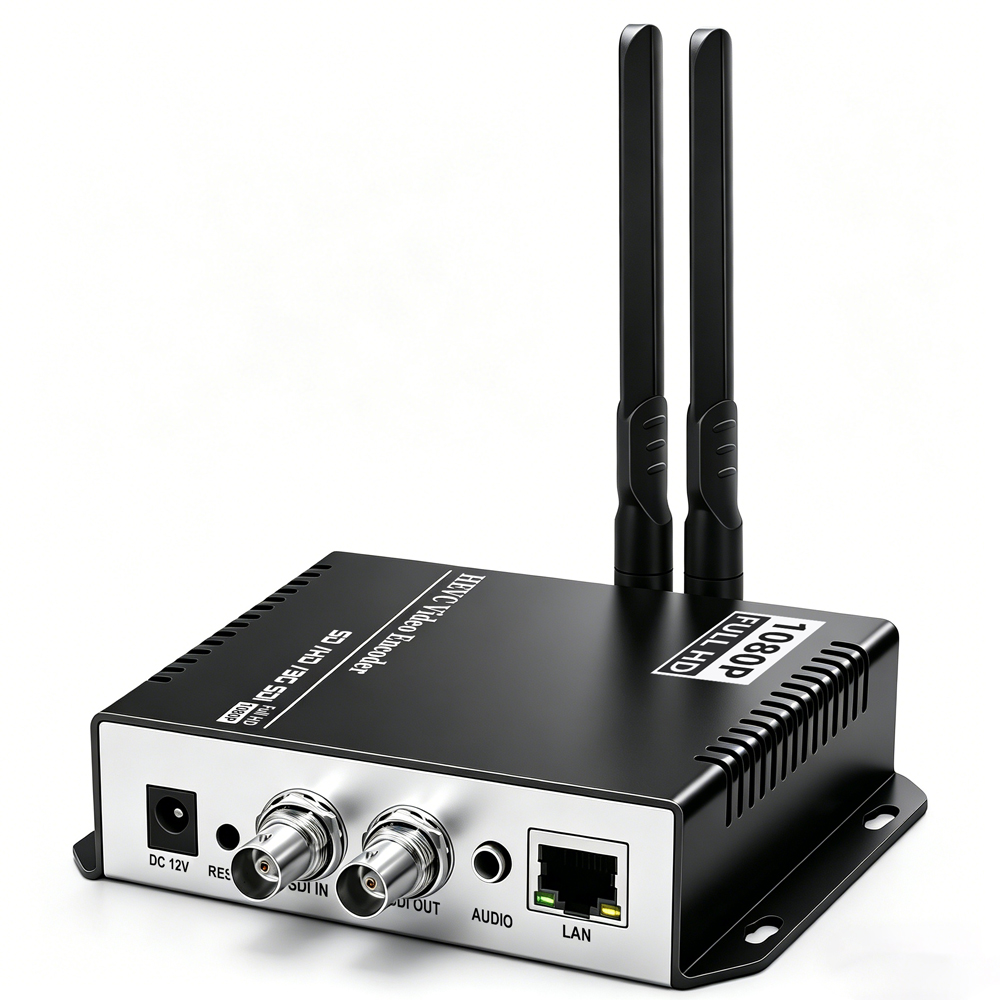

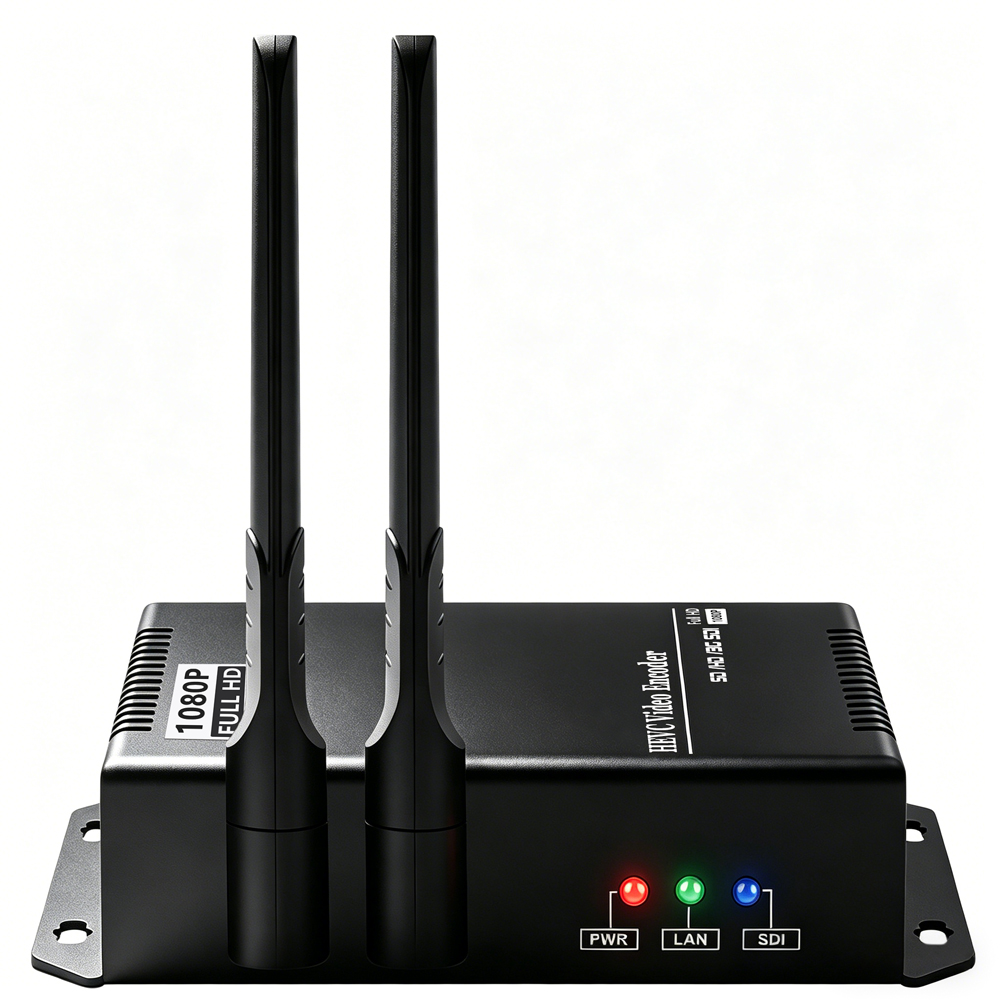

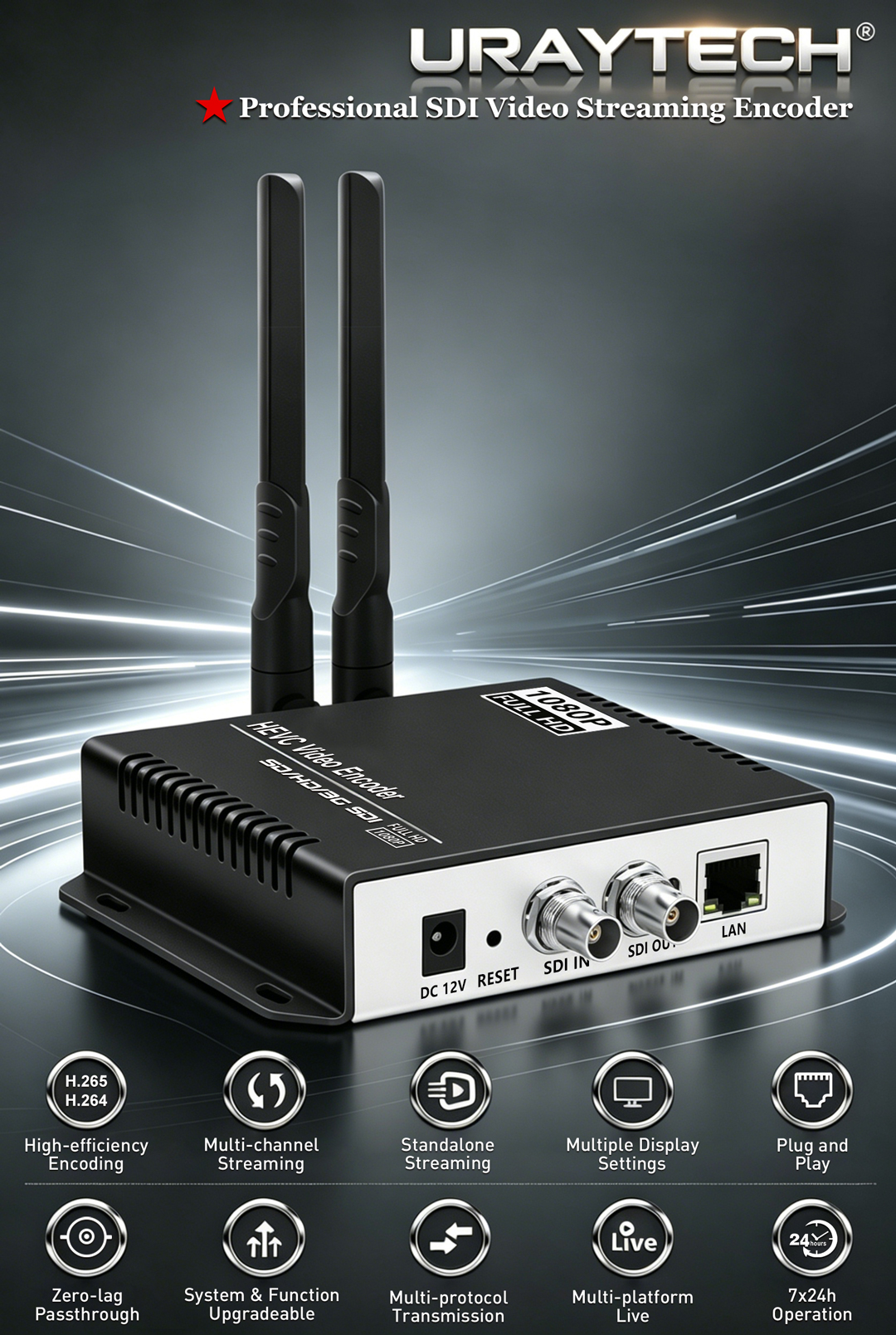

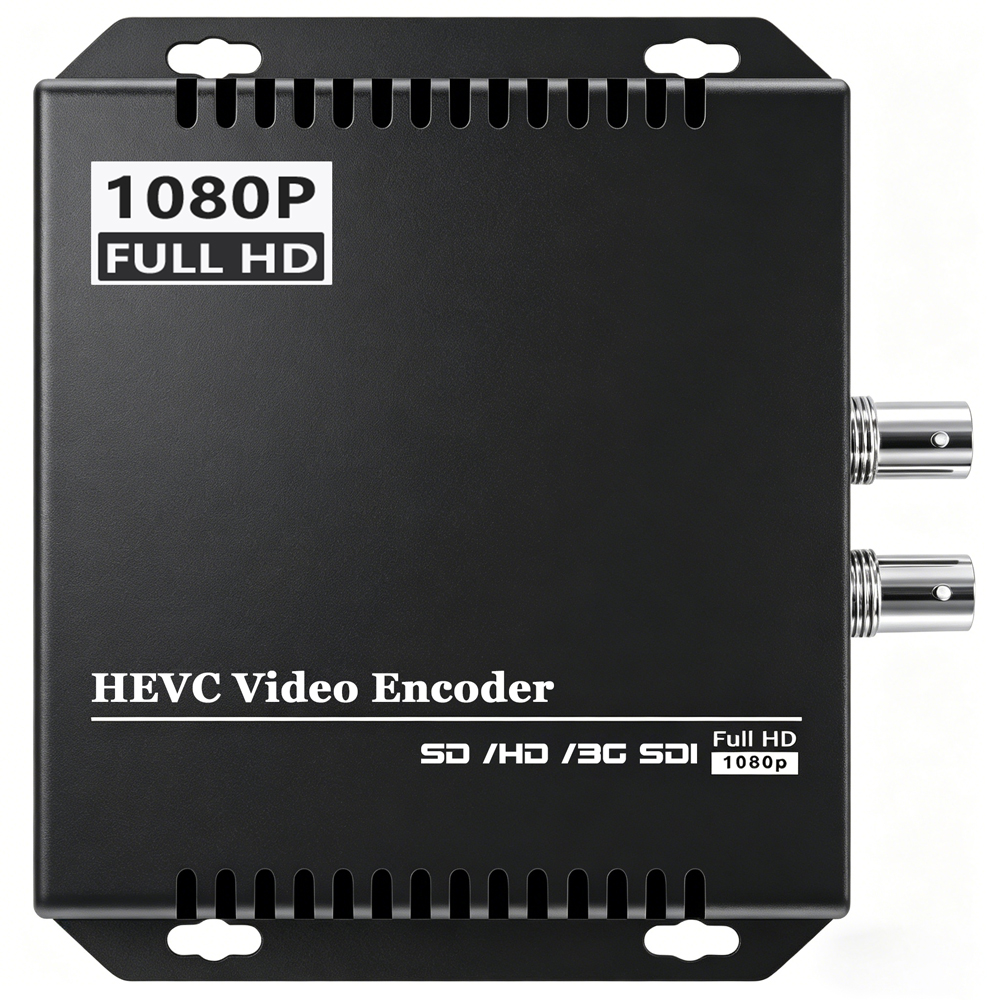

⭐Wireless SDI Video Encoder with SDI Loop Out

⭐Wireless SDI Video Encoder with SDI Loop Out

Model： USE265-1LW
Input： SDI(audio bulid-in) + line-in audio(3.5mm jack)
Video Encoding： HEVC /H.265, MPEG-4 /H.264 AVC, MJPEG
Audio Encoding： AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711
Output Video： 4 video streams output simultaneously + SDI loopout
Output Audio： Supports switching SDI audio or line-in audio as output audio
Video Resolution： Max 1920x1080@60 input and output, output resolution is adjustable
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, Multicast(UDP, RTP, PTL), Unitcast, FLV, MP4, WebRTC, ICECAST, Shoutcast, etc.
Video Bitrate： Adjustable from 32kbit/s to 32000kbit/s
Audio Bitrate： Adjustable from 48000kb/s to 320000kb/s
Control Mode： Web、APP、CGI command, support wide area network remote control
Display Settings： Supports adding logo, text, scroll text, time on the displayed video
Service： Free lifetime warranty & technical supports, ODM(Logo, Function, etc.)
Transmission： Ethernet Port(Gigabit) or WIFI(2.4G /5.8G)
Description

通用

USE265-1LW



  • Supports HEVC /H.265, H.264 /AVC, MJPEG video encoding

  • Supports AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711 audio encoding

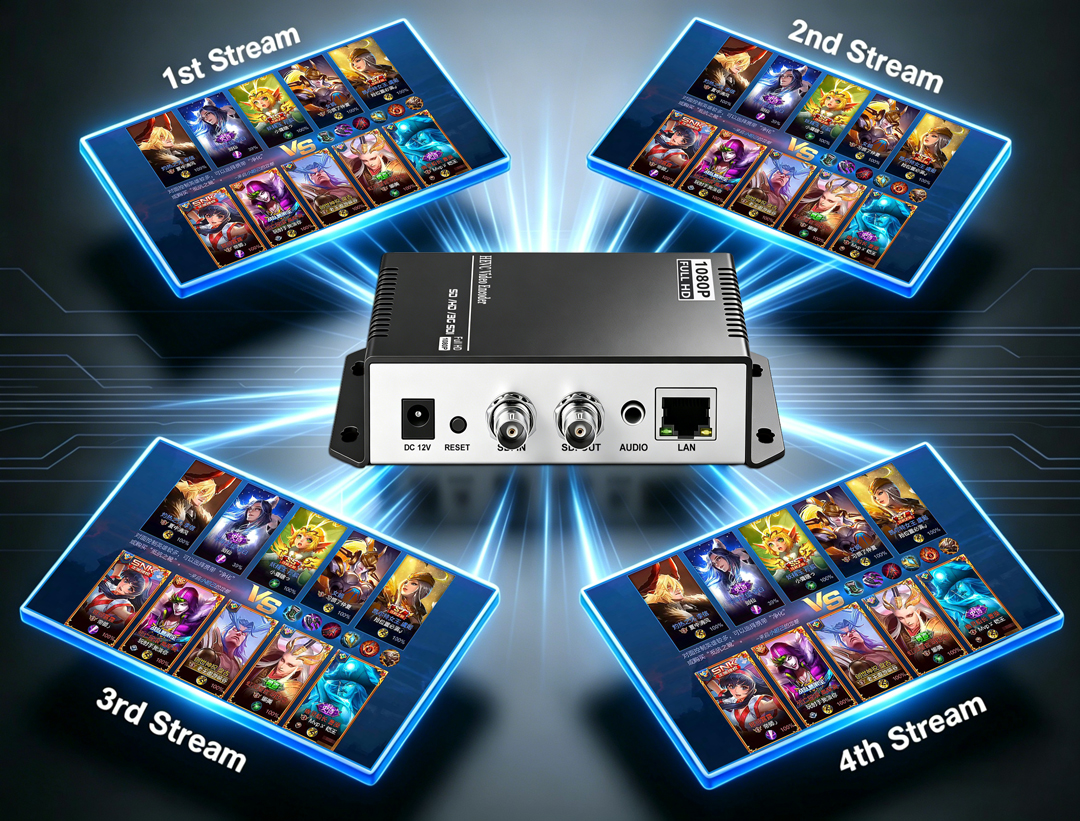

  • Supports simultaneously output 4-channel video streams with different protocols

  • Simultaneously push video streams to multiple live streaming platforms with one click


  • Compatible with multiple live broadcast platforms and playback software

  • Supports using different protocol transmission for each video stream

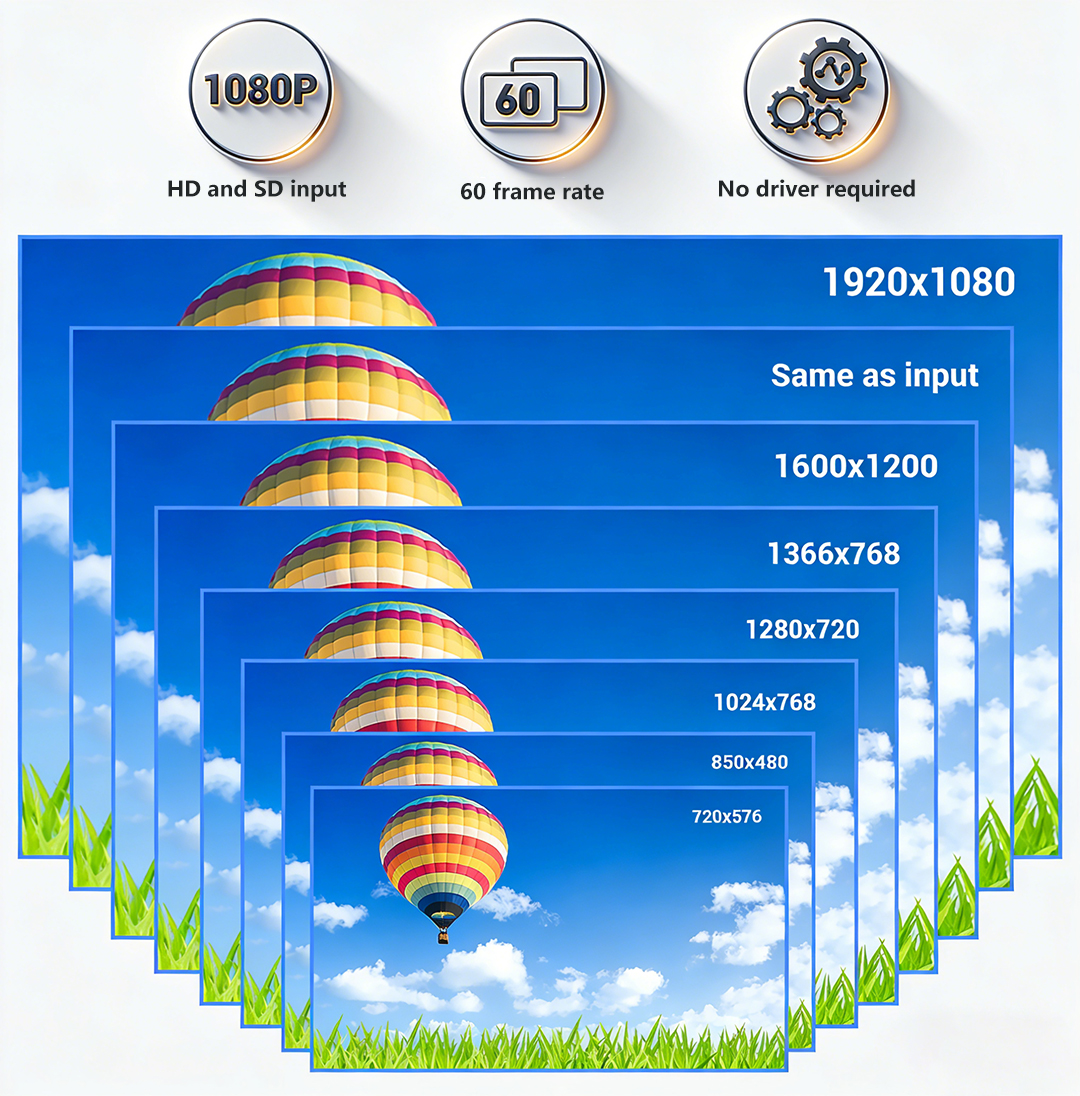

  • Free switching output video resolution, max 1920x1080 resolution output

  • Supports output video frame rate setting, max 60fps input and output


  • Supports SRT, HTTP, RTSP, RTMP(S), HLS, UDP, RTP, ONVIF, FLV, MP4, WebRTC, ICECAST, etc.

  • Choose suitable video streaming URL to prioritize bandwidth consumption or image quailty

通用


  • Supports multiple on screen display settings, such as logo, text, scroll tect, time, etc.

  • Supports customizing the display image or logo when there is no input signal


  • Supports both SDI audio and line-in audio input simultaneously

  • Supports switching SDI audio or line-in audio as output audio


  • 1-channel SDI signal loop out for reuse

  • Zero-lag passthrough without any loss


  • Web page /APP /CGI command 3 control modes

  • Supports wide area network remote management


  • Supports logo printing, language, solution, function, system and other customizations

  • Lifetime free warranty and technical supports, system firmware continuously updated



Model No. USE265-1LW
Video

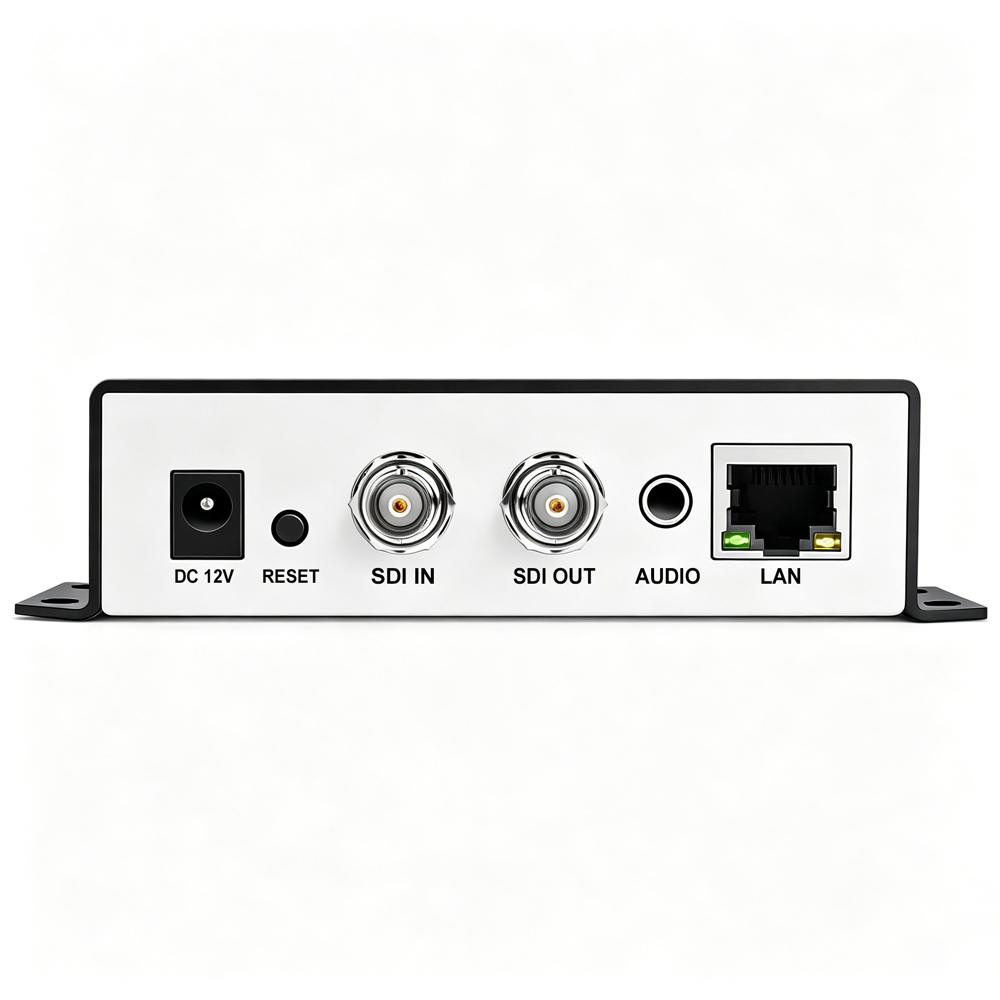

Input Video SD-SDI, HD-SDI, 3G-SDI
Video Resolution Max 1920x1080@60fps input and output, output resolution is adjustable
Video Encoding HEVC /H.265, MPEG-4 /H.264 AVC, MJPEG(Motion JPEG)
Video Bitrate Adjustable from 32kbit/s ~ 32000kbit/s
Bitrate Control CBR(Constant Bitrate), Strong CBR, VBR(Variable Bitrate)
Video Processing Noise reducing, sharpening, flip, mirror, clip, brightness adjustment, etc.
Audio
Input Audio SDI audio + line-in audio(3.5mm jack)
Output Audio Supports switching SDI audio or line-in audio at will
Sampling Rate 44.1KHz, 48KHz, Same as Input
Audio Bitrate Adjustable from 48000kbit/s ~ 320000kbit/s
Audio Encoding AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711
Network
Transmission Ethernet port(Gigabit) or WIFI(2.4G /5.8G)
Streaming Protocol HTTP, SRT, RTSP, RTMP(S), HLS, ONVIF, Multicast(UDP, RTP, PTL), MP4, FLV, WebRTC, ICECAST, Shoutcast, Unitcast, UTP, TRTC, etc.
Control Dashboard Web or APP dashboard, support remote management over WAN
System Update Uploading firmware to dashboard and upgrade (System firmware constantly updated)
OSD
Transparency 0 - 255 adjustable
Position 0 - 1920 adjustable (Horizontal), 0 - 1080 adjustable (Vertical)
Display Area Zone 1 /Zone 2 /Zone 3 /Zone 4
Font size 8 - 72 adjustable
Background White /Black /Transparent
Font Color Adjustable in RGB colors
Logo Max 4 LOGOs can be uploaded for selection
General
Dimension (L x W x H) 124 x 123 x 30 /mm
Net Weight 270g
Temperature 0 to 45℃(working), -20℃ to 80℃(storing)
Power DC 12V /1A or 12V /2A
MaterialAluminum Shell


• Status Display（Click to enlarge）

1080 1.jpg

• Stream Setting → Encoding Video（Click to enlarge）

1080 2.jpg

• Stream Setting → TS /Multicast Protocol（Click to enlarge）


• Stream Setting → RTSP Protocol（Click to enlarge）


• Stream Setting → RTMP（Click to enlarge）


• Stream Setting → SRT Protocol（Click to enlarge）


• Stream Setting → WebRTC Protocol（Click to enlarge）


• Stream Setting → HLS Protocol（Click to enlarge）


• Stream Setting → MP4 /FLV /ICECAST /Shoutcast（Click to enlarge）


• Video Setting → Input Setting（Click to enlarge）


• Video Setting → Brightness Adjustment（Click to enlarge）


• Audio Setting → Normal Setting（Click to enlarge）


• Audio Setting → ONVIF Audio（Click to enlarge）


• Display Setting（Click to enlarge）

osd-setting.jpg‍

• Display Setting → Logo Upload（Click to enlarge）


• System → Network Setting（Click to enlarge）

network.jpg‍

• Advanced Setting（Click to enlarge）


• System → Password（Click to enlarge）


• System → Transport（Click to enlarge）


• System → Upgrade and Backup（Click to enlarge）


• System → Reboot（Click to enlarge）


• System → Schedule Reboot（Click to enlarge）


• System → Reset（Click to enlarge）
