Product Details

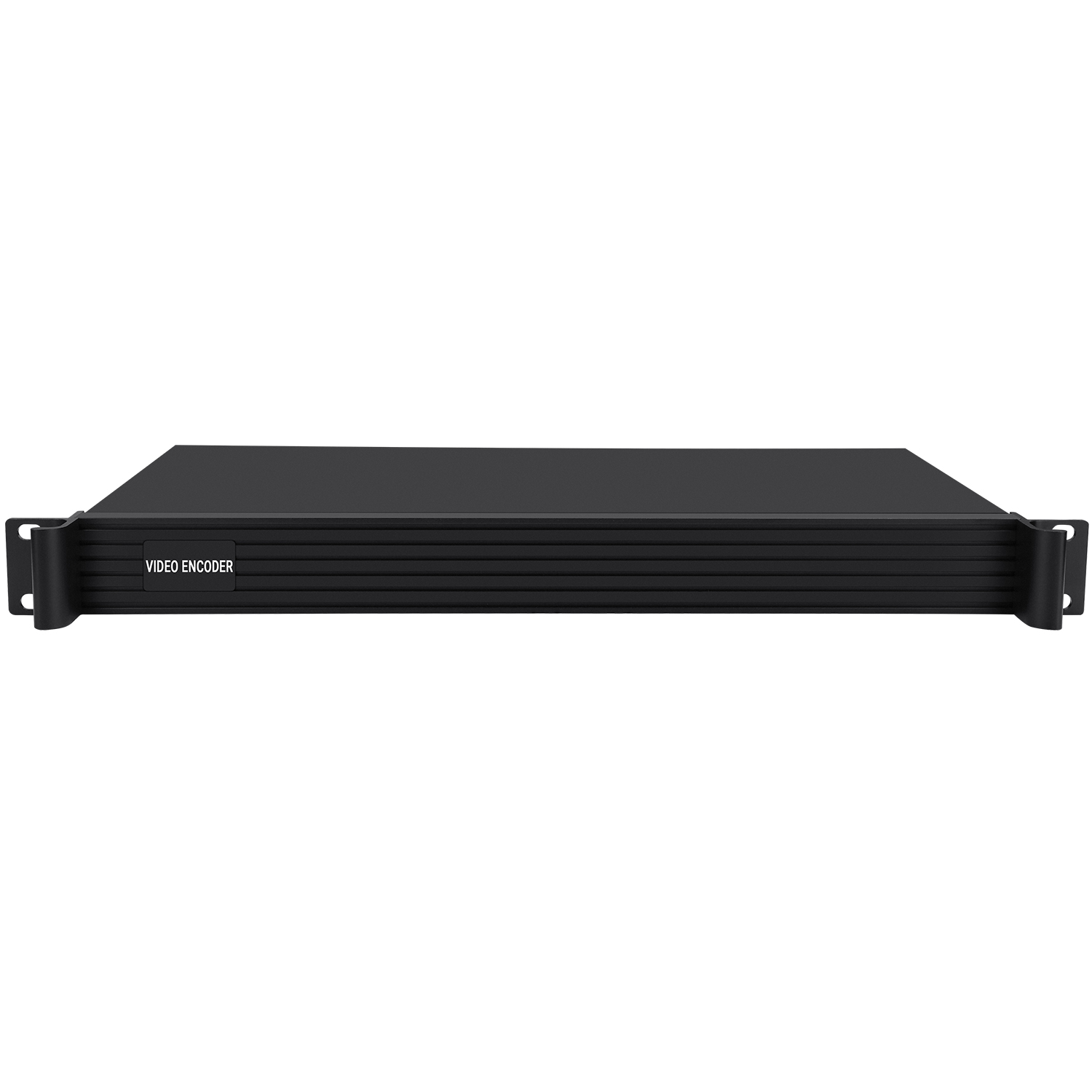

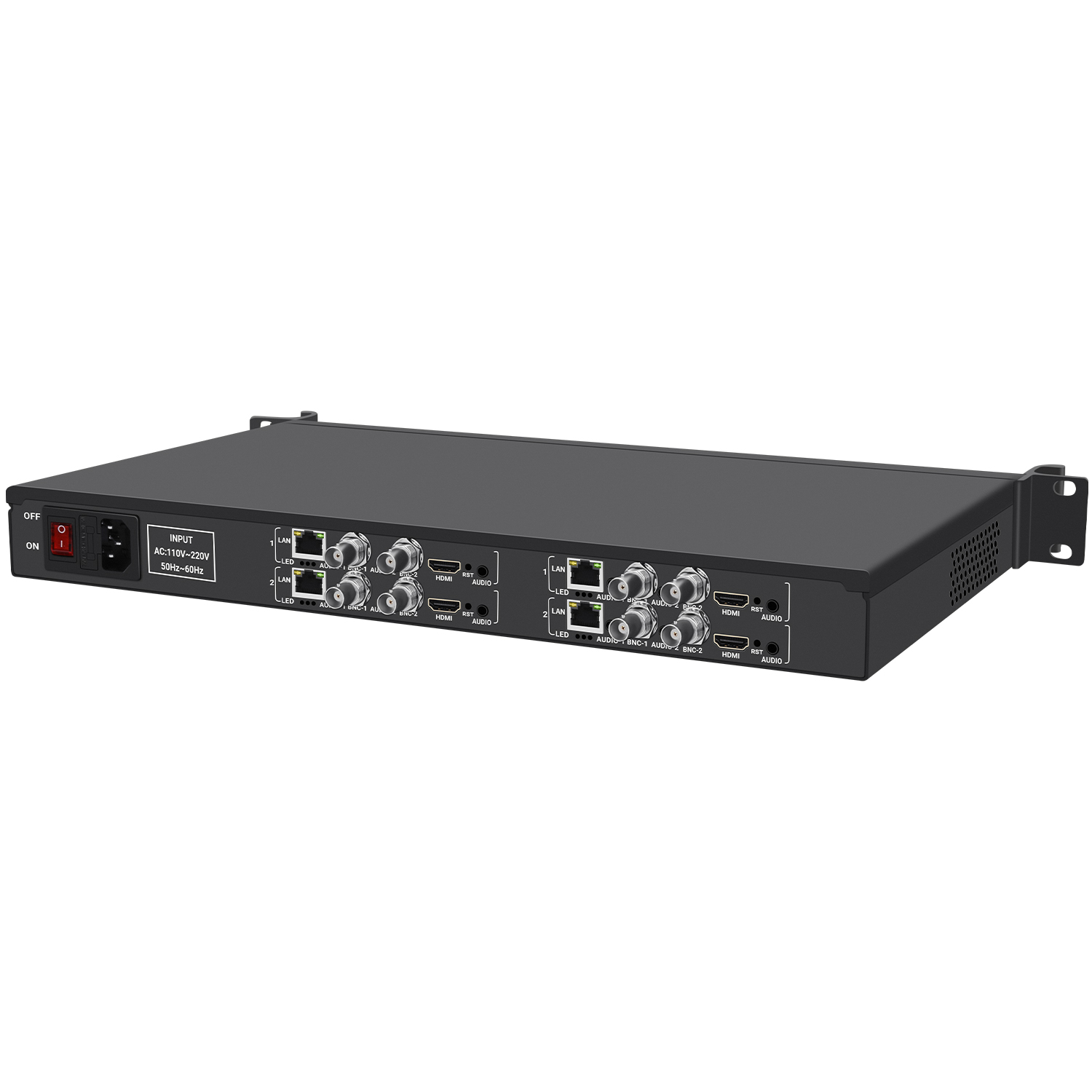

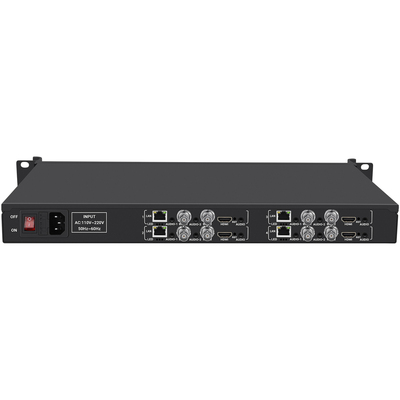

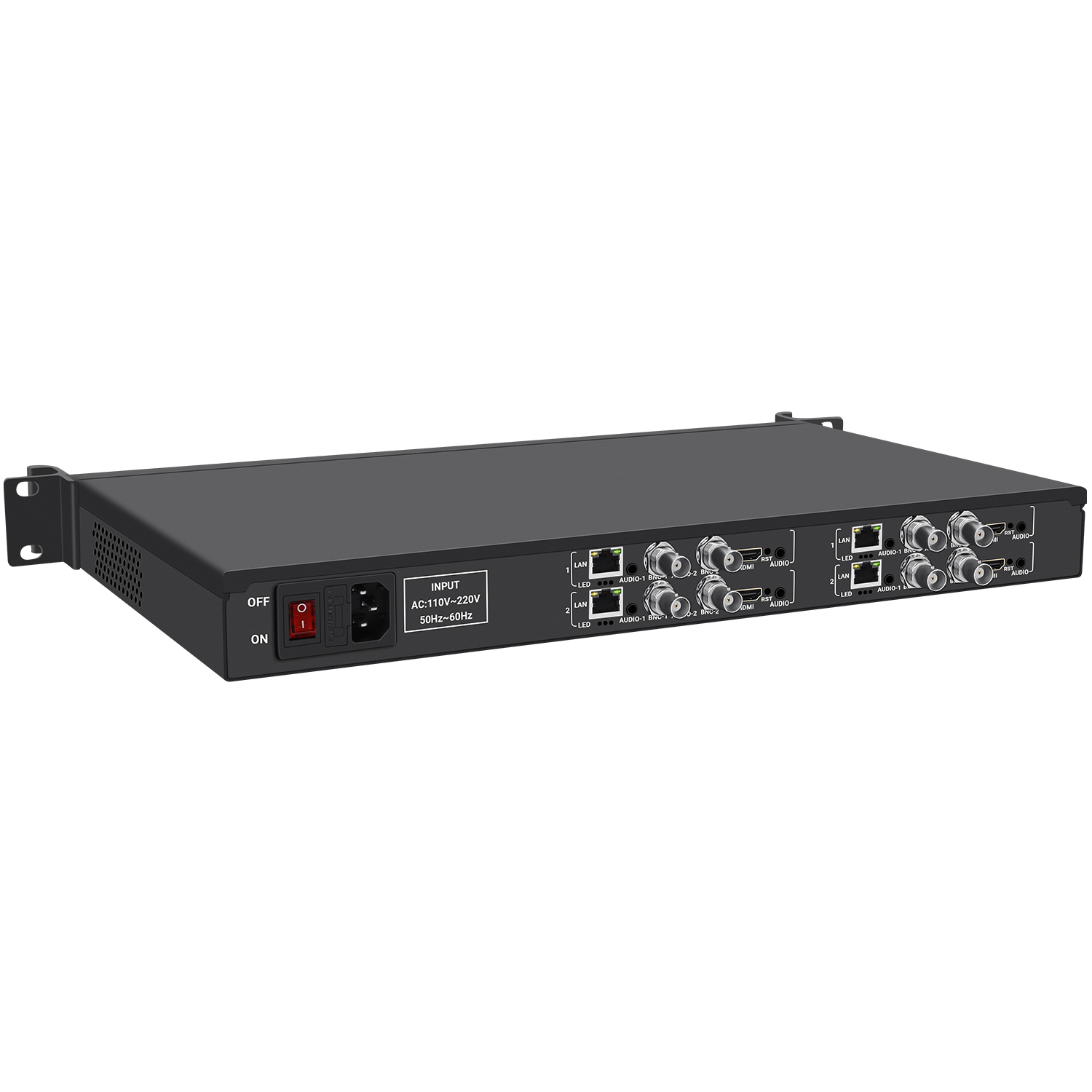

1U Rack H.264 4 Channels HDMI + 8 Channels CVBS /AV /RCA Video Encoder

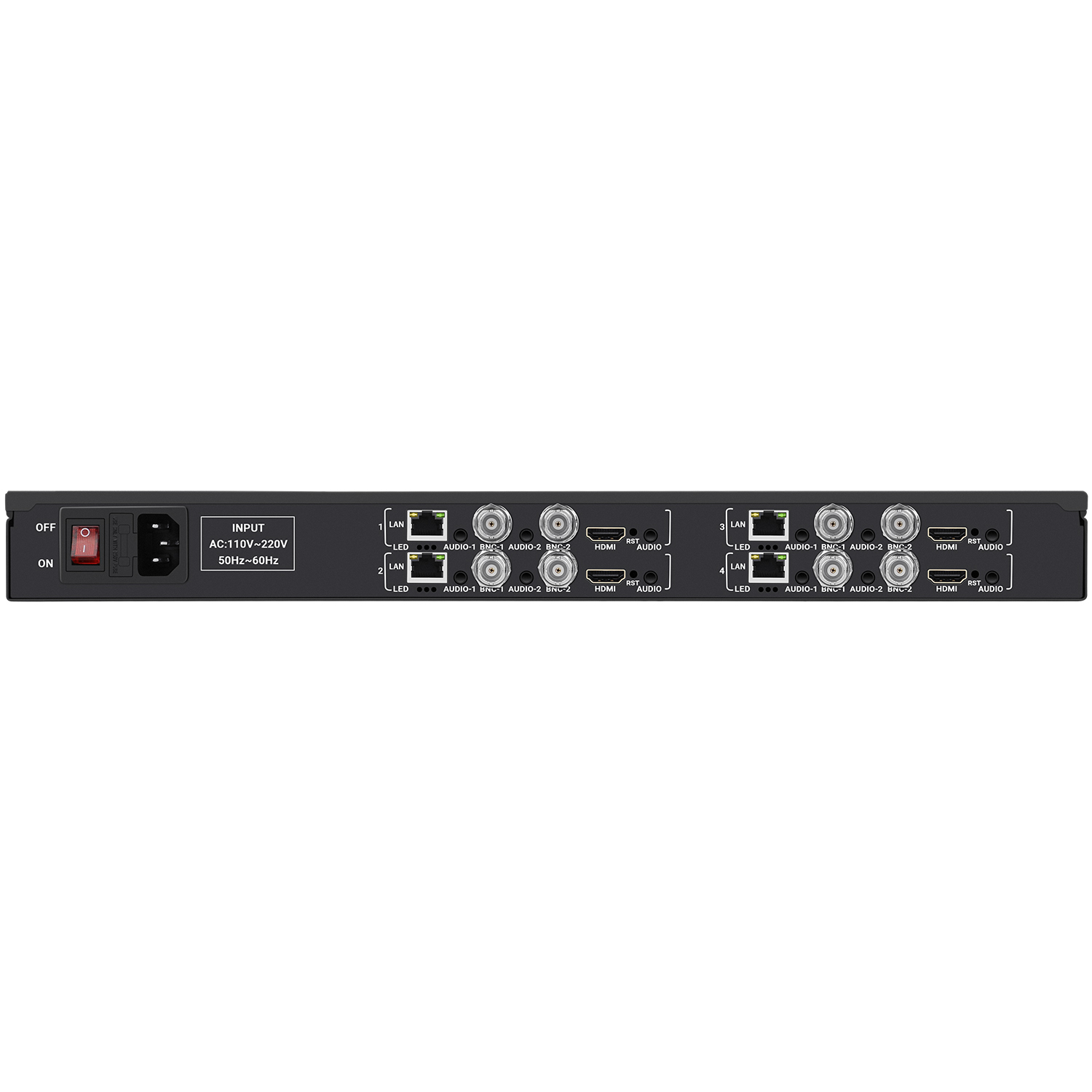

Input: 4 x HDMI(audio bulid-in)+8 x CVBS+12 x Stereo Audio(3.5mm jack)
Model No.: UHCE264-4P8
Output: 4xEthernet Port(1000BASE-T)
Streaming Protocol: HTTP, SRT, RTSP, RTMP, RTMPS, UDP, RTP, ONVIF, HLS(M3U8), Multicast etc
Video Resolution: Max 1920x1080P /60fps Input and Output
Video Encoding: MPEG-4 /H.264 AVC
Audio Encoding: AAC, MP3, MP2, G.711
Bitrate Control: 16kbit /s to 12mbit /s Adjustable for Each Channel
OSD Setting: Support Insert Logo and Text and Time on the Output Displayed Video
Video Stream: Up to 6 Video Streams Output Simultaneously for Each Channel
Upgrade: Firmware is Upgradeable
Service: Provide SDK and API and CGI for Secondary Development
Warranty: 5-year Warranty and Free Lifetime Technical Support
Description



The 1U rack 4 channels MPEG-4 /H.264 AVC HDMI CVBS video encoder(Model No. UHCE264-4P8) is URay newest professional HD audio and video encoding device with powerful functionality. It supports 4 channels HDMI(Audio Build-in) and 8 channels CVBS /AV /RCA input, H.264 /AVC high profile /main profile /baseline profile video encoding format and AAC / MP3 /G.711 audio encoding format, and 6 video stream output simultaneously each channel. It is streaming by HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS, FLV. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube, Ustream, Twitch, Facebook Live etc.

This encoder enable you to choose HDMI embedded audio or external audio in output video stream.

Not only four channels, we also produce multi-channel HDMI CVBS video encoder which is packed by 1U rack or 3U rack. For 3U rack, support max 16pcs encoder cards to be installed.

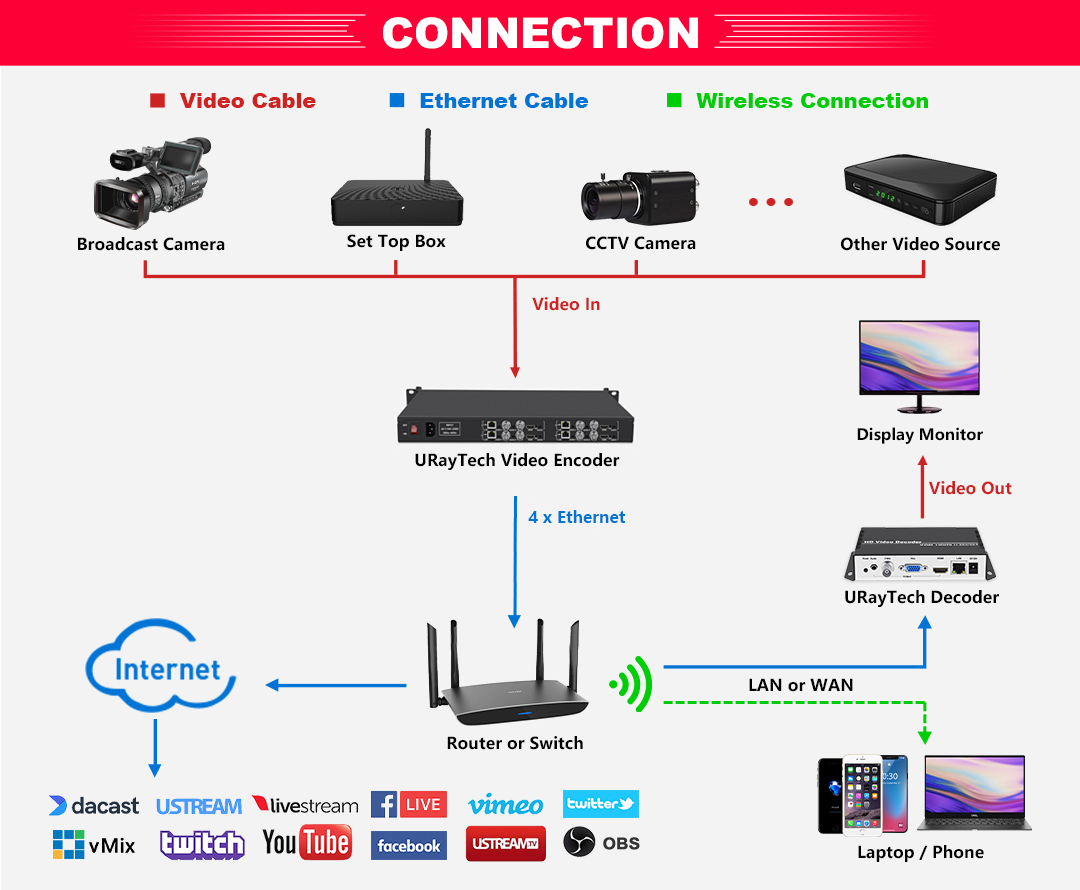

1). For Live Streaming Broadcast Online(Using RTMP Protocol)

2). For Surveillance, Video Conference, Live Streaming Broadcast etc.

3). For IPTV Project etc.



•   Multi Platforms Live Streaming

This HDMI CVBS encoder is easy to be operated. Turn your HDMI-equipped device or CVBS-equipped device into a video source, and live stream to any streaming platform. When you are doing live streaming of your party or club or church’s ceremony, or sharing your campus sport game, it helps you bring your unique experiences of live broadcast to the web for your people.

It is compatible with most of live broadcast platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xstream Codes. It supports multi-stream output, up to 6 video stream output at the same time for each channel. You can push multi video stream to multi-platform at the same time.

Here is the example of live streaming on youtube. Find RTMP URL & Key in YouTube Live dashboard, input the information in the RTMP setting of the encoder. Use RTMP streaming protocol to push the video stream to youtube server.

•   Encoder Feature

•   Embedded HiLinux System, stable and effective

•   Friendly Web Control UI(IP address can be setted by yourself)

•   Support H.264 /AVC baseline profile /main profile /high profile video encoding format selection

•   Support MP3, AAC, G.711 audio encoding format selection

•   From 16Kbit/s to 12Mbit/s adjustable by CBR /VBR bitrate controlling

•   Support HTTP, UDP, RTP, RTSP, RTMP, HLS, FLV, ONVIF, Unitcast, Multicast streaming protocol

•   Support image, logo, text parameter settings on the output video stream

•   Support english WEB operating interface and language customizable

•   Support output video stream resolution setting(Up to 1920 * 1080P /60fps)

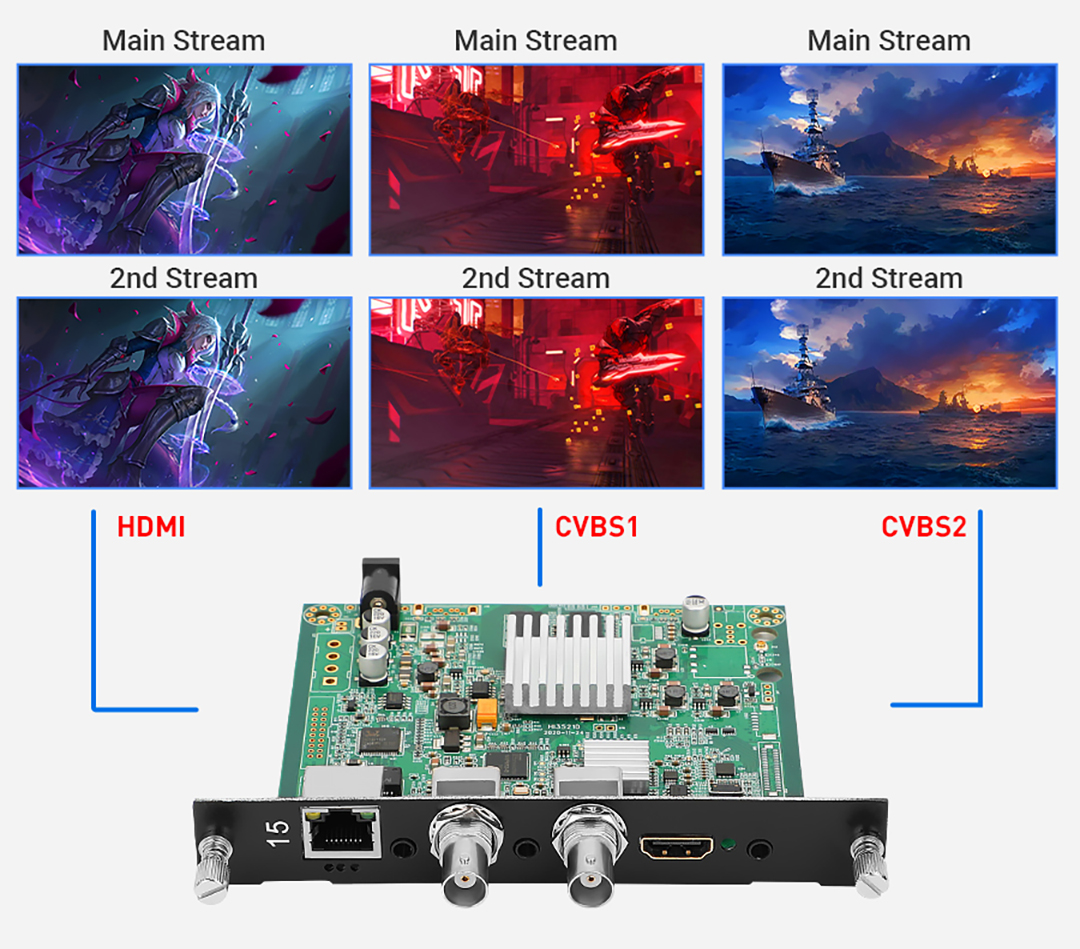

•   Support up to 6 video stream output simultaneously each channel

•   Support firmware upgradeable

•   Support choose HDMI embedded audio or external audio in output video stream

•   Provide SDK and API for secondary development

•   Support GOP frame rate settings

•   Network interface full-duplex mode with 1000M speed

•   Support HDCP and HD blue-ray

•   A wide area network remote management (Web control panel)

•   Support different protocol transmission for the 6 output stream each channel

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support from 2 channels to 16 channels 1U /3U rack structure available, support up to 16pcs encoder cards to be installed




Model No.

UHCE264-4P8

Video

Input

4*HDMI+8*CVBS

Input Resolution

1080P/1080i/720P ,50 /60Hz and below

Encoding Type

H.264 /AVC

Encoding Levels

H.264 High /Main /Baseline Profile

Video Bitrate

From 16Kbps to 12Mbps Adjustable

Bitrate Control

CBR /VBR

Output Resolution

Support max 1920*1080P /60fps

Video Pre-processing

De-interlacing, Noise Reducing & Sharpening

Audio

Input

HDMI embedded audio Or 3.5mm audio line in for mixed

Audio Encoding

AAC, MP3, G.711

Sampling Rate

32KHz, 44.1KHz

Bitrate Control

24000 To 256000

Sampling Accuracy

24 Bit

ONVIF

G.711

Network

RJ45 Ethernet

1000M Ethernet Interface

Streaming Protocol

HTTP, UDP, RTSP, RTMP, HLS, FLV, Multicast, ONVIF, RTP, Unitcast etc.

Control Panel

WEB Panel (Language Customizable)

Firmware Update

Enable by Uploading Files To Dashboard

General

Dimension (W* L* H)

483 * 300 * 50 /mm

Gross Weight

2.5KG

Temperature

0 to 45(For working),   -20 to 80(For storing)

Input Voltage

AC 110V~220V

Power Consumption

5W /channel


1.   BNC * 8Pcs (Free Gift)

2.   R /L audio & stereo audio converter cable * 12Pcs (Free Gift)

3.   AC power cable * 1Pcs (EU, US, UK, AU Optional)

4.   1U 4 channels HDMI CVBS Encoder H.264 * 1Pcs

5.   User Manual * 1Pcs











If you want to test URay Video Encoder or Video Decoder Online, please contact us.


•   IPTV

•   Streaming Media Server(Wowza, Xtream Codes, Flash Media Server, etc.)

•   Online Live Broadcast(Youtube, Facebook, Ustream, etc.)

•   NVR(Net Video Recorder)

•   Teaching / Campus Broadcast

•   Hotel TV System

•   Video Conference

•   Digital Signage

•   Recording System(Replace Video Capture Card)
